Wanzhi GL coil
Wanzhi GL coil (galvalume steel coil, aluminum-zinc alloy coated steel) is a hot dipped aluminum alloy steel coil consisting of 55% aluminum + 43.4% zinc + 1.6% silicon, which can be used as a structural and load-bearing component of the building in different application scenarios such as common environments, high corrosive areas and so on.
Wanzhi GL Coil for Sale
Wanzhi Group is a GL coil manufacturer from China, our popular products are GI, GL aluzinc, PPGI, PPGL, and other coated steel. We can provide cost-effective steel solutions for construction, industrial, energy, transportation, education, and other applications.
| Type | Galvalume Steel |
|---|---|
| Thickness | 0.15-6 mm |
| Width | 600-1250 mm |
| Packing Weight | 5-10t, customize |
| Aluzinc Coating | AZ20-AZ350 g/m2, 40-150 micron. |
| Surface Finish | oiled, chrome plated, anti-fingerprint, lacquered, etc. |
| Quality | SGS, ISO, support third-party organization testing |
Wanzhi GL Coil price is 600-900 USD per ton, GL Coil price is affected by steel substrate price, aluminum and zinc alloy cost, silicon additives, coating weight, substrate thickness, surface treatment, supply and demand fluctuations, etc. Leave us a message to tell us your needs or application scenarios, and get a free quote and customized solutions from Wanzhi Group!
25 tons of Galvalume Steel Coil shipped to Puerto Rico
100 tons of Aluminized Zinc Coils Shipped to Myanmar
60 tons Aluzinc Coils GL Coils to Brazil
100 tons of GL and PPGL in Solomon Islands
110 tons of PPGI and PPGL in Colombia
Wanzhi GL Coil Factory
Wanzhi Group is a steel supplier from China, our marketing center Zhengzhou Wanzhi Materials Steel is located in Zhengzhou City, Henan Province, and our factory Shandong Wanzhi Steel is located in Binzhou City, Shandong Province. We provide coated steel, alloy steel, pre-painted steel production and processing services, in addition to steel coils, steel plates, we also have roofing sheets, corrugated sheets, floor slabs, steel pipes, steel wires, steel profiles, steel structures, strip steel production and processing services.
GL coil consists of cold rolled steel with an aluminized zinc coating. Galvalume steel is a zinc-aluminum alloy coated with 55% aluminum + 43.4% zinc + 1.6% silicon. The zinc-aluminum alloy coating provides excellent corrosion and heat resistance, reflectivity, and economy to the steel.
Substrate pretreatment
- Cleaning and degreasing: Alkaline solution to remove oil on the surface of the steel plate.
- Pickling: Hydrochloric acid to remove oxidized layer.
- Passivation: Chrome-free passivation.
Hot-dip aluminum-zinc plating
- Plating solution composition: aluminum 55%, zinc 43.4%, silicon 1.6% (.
- (Dip plating time: 3-15 seconds).
- Cooling: water quenching or air cooling to form dense Al-Zn-Si alloy layer.
Post-treatment and testing
- Surface treatment: oiling (to prevent rust) or chroming (to enhance the adhesion of subsequent coatings).
- Quality test: Coating weight, corrosion resistance (salt spray test), mechanical properties (tensile strength).
Wanzhi galvalume steel coil is located in Binzhou City, Shandong Province, China. Our factory is Shandong Wanzhi Steel, which has one GL/ZAM steel production line, and 6 galvanized and pre-painted galvanized steel production lines. In addition, we have quality testing equipment to complete the salt spray, bending, thickness, UV resistance, and other tests for different steel materials.
Our factory has passed ISO9001, ISO14001 and other quality management system certificates, GL steel coil and sheet support SGS, BV and other third-party organizations, before ordering, you can apply for free samples to Wanzhi for quality testing!
Wanzhi GL Coil Benefit and Application
GL steel Coil is the metal of choice for outdoor, coastal, industrial and acid rain areas due to its superior corrosion resistance, excellent heat resistance, heat reflection and long service life.
| Industries | Applications | Advantages |
| Architecture | Roofing, wall panels, curtain walls (roofing material for Dubai’s Marina Hotel) | Weatherproofing, lightweighting, aesthetics |
| Home Appliances | Air conditioner shells, oven liners | High temperature resistance, rust prevention |
| Automobile | Exhaust pipe, fuel tank shell | High temperature oxidation resistance, chemical corrosion resistance |
| Agriculture | Grain silos, farm roofs | Photovoltaic support, charging pile shell |
| New Energy | Photovoltaic support, charging pile shell | Revestimiento más duro, necesita herramientas especiales de corte |
Wanzhi GL Coil vs GI Coil (Galvanized Steel)
| Indicator | GL Coil | Galvanized Steel (GI) |
| Composition | 55% Aluminum + 43.4% Zinc + 1.6% Silicon | 100% Zinc |
| Corrosion resistance | 3-6 times higher than GI | base protection |
| High temperature resistance | ≤315°C | ≤60°C |
| Initial cost | High | Low |
| Service life | Service life | 10-20 years |
| Painted | PPGL Painted Aluminum Zinc Steel | PPGI Painted Galvanized Steel |
| Application Scenario | Tough environment, long-life project | Ordinary environment, short-term project |
Customer Feedback
Wanzhi Group has supplied GL Coil to customers from all over the world in compliance with international standards of ASTM A792 (plating), EN 10346 (overall performance), ASTM A653 (substrate), JIS G 3321 (Aluminum zinc steel), and we have also received feedback from customers from a wide range of industries including roofing, greenhouse construction, factory construction, pipeline construction, and other industries, such as roofing, roofing, greenhouse construction, and other industries.

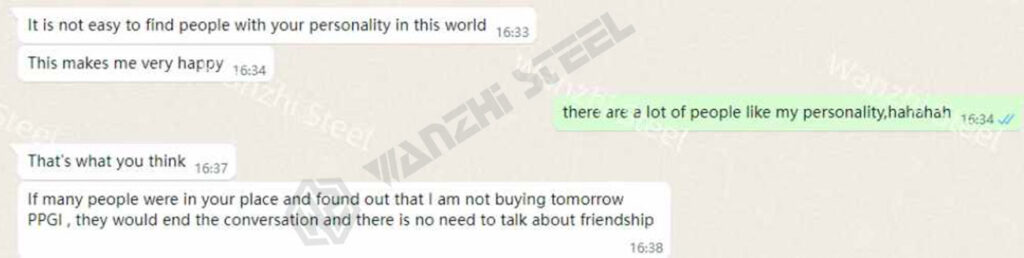

Client Feedback from Libya
Bolivian Structural Steel Customers Visit Wanzhi Factory
Wanzhi Steel – Agricultural Greenhouse Project in Turkmenistan
Project of PPGI Roofing en Libya
If you are interested in Wanzhi GL coil, please leave your message to us, we hope to communicate and share more information about coated steel with you!
