Galvanised steel mesh panels are specially treated mesh metal materials that are widely used in a variety of industries such as construction and infrastructure, industrial applications, agriculture and horticulture, power industry, etc., especially where high corrosion resistance and structural strength are required. Choosing the right type and size of galvanized mesh can effectively enhance the safety and durability of your project.
Wanzhi – Galvanised Steel Mesh Panels
Galvanised steel mesh panels are usually made from low carbon steel strips and other metal materials which are welded/welded and then hot-dipped galvanized or electro-galvanized. Wanzhi Group provides customized services for various applications such as slope protection/court fencing, bee hives/filters, building formwork/storage racks, decorative screens/audio mesh, and so on. We offer customized galvanized wire, galvanized mesh and more.
Specifications
| Attribute | Standard Range |
| Mesh Shape | Diamond/Honeycomb/Square |
| Wire Diameter | 0.5-6.0mm ±0.02mm |
| Hole Opening Rate | 30%-80% |
| Plate Thickness | 0.8-3.0mm |
| Zinc Coating Weight | 60g/㎡(Z60) – 275g/㎡(Z275) |
Wire Grade and Diameter
| Standard | Steel Grade | Wire Diameter Range | Tensile Strength |
| China GB/T | SWRH62A | 1.0-3.0mm | 550-750 MPa |
| USA ASTM A641 | Class 3 | 0.8-6.0mm | 480-620 MPa |
| EU EN 10244-2 | S355J0 | 1.2-5.0mm | 510-680 MPa |
Performances
| Test Item | Galvanized Mesh Panel |
| Salt Spray Test | 1000h without red rust (Z60) |
| Tensile Strength | 350-550 MPa |
| UV Resistance | Indefinitely stable |
| Installation Ease | Weldable/Bolted |
Types of Galvanized Steel Mesh

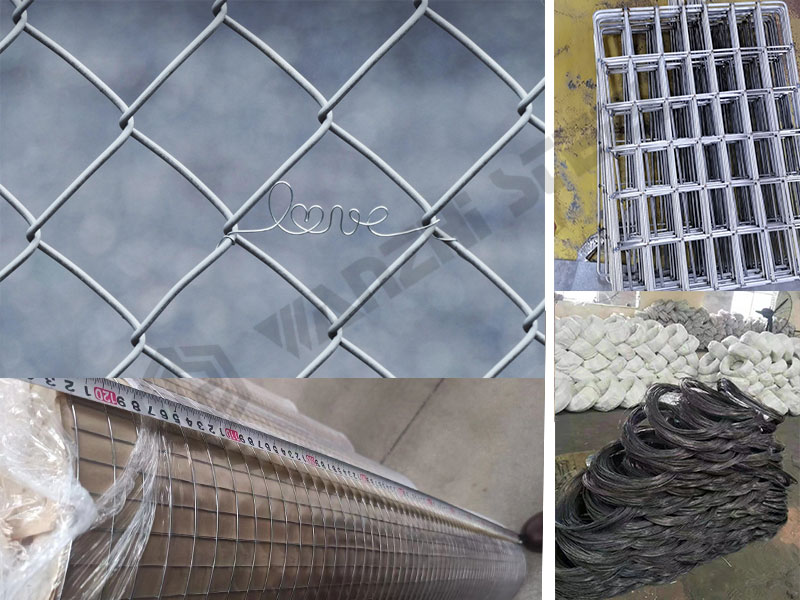

Wanzhi Group offers galvanised steel mesh panels in a variety of mesh patterns, such as diamond, hexagonal, square, and round mesh.
Galvanised
Zinc is applied to the metal surface by the hot-dip galvanizing process. Zinc is available in a variety of finishes, such as plain zinc spangle (crystalline pattern), small spangle (small grain), etc. The zinc coating provides a strong protection for the steel, and is suitable for use in applications where the external environment is harsh.
The zinc layer is electro-chemically plated on the metal surface, the surface is smooth without galvanization, and the flatness Ra≤1.6μm, which is suitable for precision filtration or applications with high demands on appearance.
Processing Technology
- Welded Wire Mesh Panel: Wire mesh is welded into square holes by resistance welding of longitudinal + transverse wires.
- Woven Wire Mesh Panel: Flexible wire mesh made by mechanical weaving of metal wires, which can be rolled and transported.
- Stretching Mesh Panel: The whole panel is pressed and stretched as a continuous mesh structure without welded joints.
- Perforated Mesh Panel: CNC stamped and molded wire mesh with precise holes and flat surface.
Product Features
Galvanised steel mesh panels has smooth and flat surface, beautiful appearance, good decorative, corrosion resistance, light transmission, and anti-slip.
- Extreme anti-corrosion: zinc layer sacrificial anode, corrosion-resistant life of up to 40 years for civil buildings, 50 years for industrial environments.
- Cost-effective: price = 1/5 of stainless steel, life cycle cost reduced by 40%
- Mechanical properties: tensile strength of 350-550MPa, with high load-bearing capacity.
- Convenient installation: simple structure of galvanized mesh panels, support welding/bolts/snap fasteners, increase installation efficiency by 50%
- Environmental suitability: applicable temperature: -40℃~120℃, UV resistance ∞
- Reprocessability: can be stamped/bent/welded (zinc layer damage rate <5%)
- Anti-slip safety: surface zinc layer friction coefficient of 0.45-0.55, wet anti-slip grade reaches the standard of R11 to ensure the safety of use.
- Ventilation and light transmission: Grid design ensures good ventilation and light transmission performance, effectively preventing rainwater accumulation.
Applications of Galvanised Steel Mesh Panels
Building Enclosure System
- Applications: platforms, stair treads, ditch covers, factories, warehouses, etc.
- Recommended models: wire diameter 3.0mm + mesh 50x100mm + Z275 coating galvanised steel mesh panels
- Advantages: wind pressure resistance level 12 (GB 50009), modular installation efficiency increased by 40%.
Agricultural farming equipment
- Recommended model: Q235 + double-sided galvanized 275g/㎡ + passivated closed
- Advantage: Resistant to high humidity environment erosion
Mining screening system
- Products: coarse screen mesh, fine screen mesh
- Specifications: mesh size 0.5-100mm, wire diameter 1.0-6.0mm
- Advantages: wear-resistant, corrosion-resistant
Environmental protection equipment
- Application: aeration tank walkway plate, sedimentation tank cover plate, etc.
- Product: hexagonal mesh grating, V-shaped reinforced dust filter holder
- Advantage: high strength, anti-clogging design, anti-deformation structure
Traffic Protection
- Product: sound barrier backing mesh, tunnel arch mesh
- Specifications: tensile strength ≥ 500MPa zinc layer ≥ 150g / ㎡, wire diameter ≥ 4mm +
- Advantages: C3 corrosive environment, high strength
Innovative applications for home
- Product: three-dimensional decorative mesh panels, cabinet breathable mesh
- Specifications: 0.8mm wire diameter + 3mm microporous zinc plating + color spraying
- Advantages: aesthetic, decorative, breathable
Customized Galvanised Steel Mesh Panels
Wanzhi Group has professional mesh welding machine, hydroforming machine, automatic spraying production line, laser cutting machine and other production equipments in our factory, we can provide customized mesh service according to the application requirements. Besides galvanised steel mesh panels, we also have galvanized steel wire, stainless steel wire, annealed wire, etc. Samples and test reports are available.
OEM ODM Galvanised Steel Mesh Panels
| Item | Technical Specifications |
| Maximum Width | 2.5 meters |
| Special Shapes | Wavy/Step-shaped/Custom Punching |
| Surface Upgrade | Galvanized + Epoxy Coating |
| Precision Cutting | Laser perforation ±0.1mm |
Innovative Structural Design
- Locking edges with V-shaped reinforcement for quick installation
- Composite mesh with diamond + square combinations
Wanzhi Group offers a wide range of customized services for different types of wire mesh such as galvanised steel mesh panels, and electro-galvanized + PVD tinted/stamped + etched patterns. Contact us for the right solution for your project!
