RAL 9003 PPGI Coil refers to pre-painted galvanized iron (PPGI) coil coated with the color RAL 9003, which is a color code in the RAL color matching system, specifically signal white. It is suitable for durable, weather-resistant white coating applications, such as building facades, domestic appliances, or industrial equipment.
What is RAL 9003 PPGI?
PPGI stands for Pre-Painted Galvanized Iron, a type of steel coil that is coated with a layer of zinc (galvanized) and then pre-painted to prevent rusting. The paint is aesthetically pleasing and provides additional protection against corrosion. The paint coating is available in a wide range of shades, patterns, and colors, one of which is RAL 9003, which is often used to create a clean and modern look.
Common applications for RAL 9003 PPGI membrane:
- Construction: for roof panels, wall panels, and facades.
- Appliances: for the manufacture of refrigerators, washing machines, and other white goods.
- Automotive: for the manufacture of body panels, interior trims, and other components.
- Furniture: for metal furniture or decorative elements.

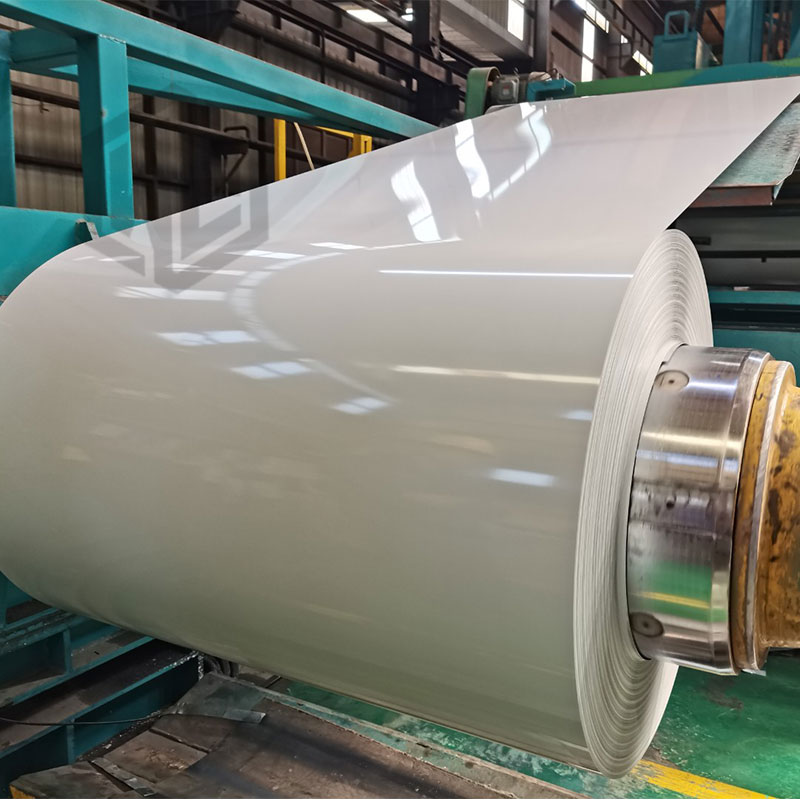

RAL 9003 PPGI Coil Signal White for Sale
Wanzhi Group is a supplier of pre-painted galvanized steel coils, produces and sells pre-painted galvanized steel sheets, pre-painted galvanized sandwich panels and so on by international standards such as ASTM,JIS, EN, GB, etc., and we offer a wide range of grades, specifications, colors, and finishes of PPGI steel. In addition to PPGI Coil Signal White, we also offer PPGI solutions and further processing in red, blue, black, gold, green, and many other colors for the construction, home appliance, automotive, electrical, and other industries.
Customized
- Substrate: PPGI coils are based on galvanized steel with a specific thickness and weight of zinc coating. (Zinc coating thickness optional)
- Primer: Epoxy resin primer
- Topcoat: RAL 9003 topcoat (PE, SMP, HDP, PVDF, PVC, PU, etc.), (Film optional: 10-40 micron)
- Surface effects: glossy, matt or textured, wood grain, prints, perforations, 3D, etc.
Price
RAL 9003 PPGI Coil Signal White is available at $600-900 per ton, bulk purchase or customized special effects and specifications prices may vary. our minimum order quantity for PPGI coil is 10 tons, delivery time is 5–45 days. Leave a message to get a free quote!

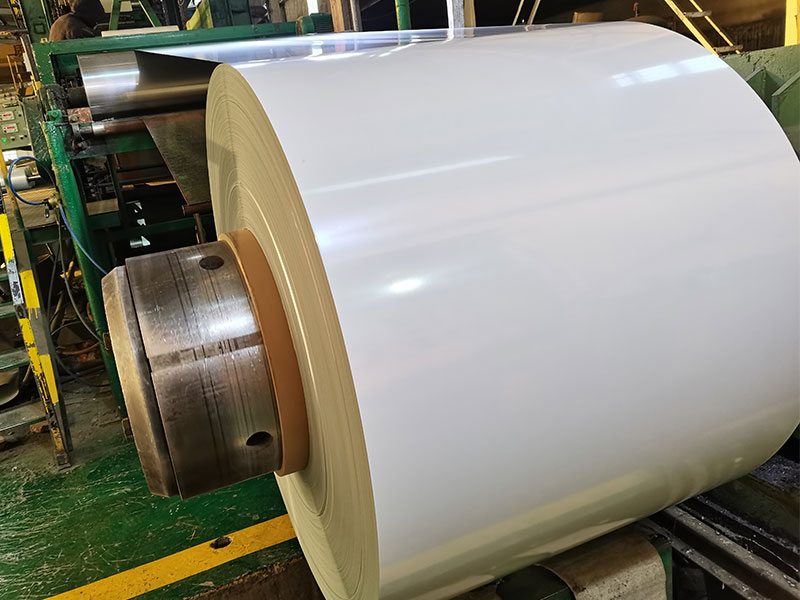

PPGI Coil White
PPGI Coil White is widely used in the manufacture of roofing panels, wall cladding, garage doors, industrial fencing or metal products requiring a durable finish, in addition to Signal White, we also have PPGI RAL 9002 Grey white, RAL 9006 White aluminium, RAL 9010 Pure white, RAL 9016 Traffic white, RAL 9016 Traffic white, RAL 9018 Papyrus white, RAL 1013 Oyster white, and many more.
RAL 9003 PPGI Coil Manufacturer
If you are looking for RAL 9003 PPGI Coil and would like to order from a manufacturer or supplier who specializes in coated steel products, then Wanzhi Group is the ideal supplier for you. We have galvanized and color-coated galvanized production lines with an annual capacity of 600,000 tons, which can meet the needs of different applications in construction, industrial production, and so on, and we can offer competitive PPGI prices for large volume buyers by providing production efficiency.

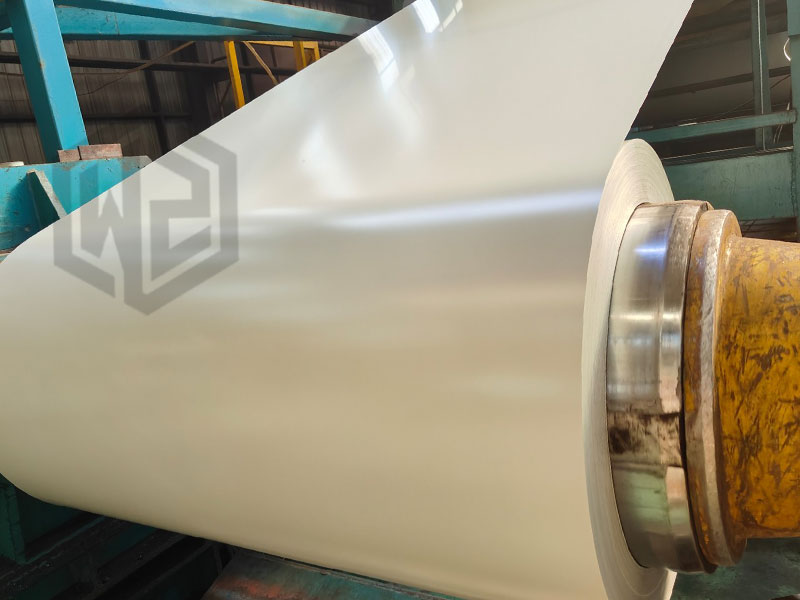

RAL 9003 PPGI Coil – Production
Wanzhi Group’s RAL 9003 PPGI Coil meets the standards of ASTM A755, EN 10169, or JIS G3312, and the factory and production line are certified according to ISO9001, ISO14001, and other standards.
Substrate Preparation
- Substrate: Cold rolled steel coil (usually SPCC, DC01 or similar grades).
- Thickness: Thickness ranges from 0.12 mm to 1.5 mm.
- Cleaning: Alkaline degreasing to remove oil and oxides.
Galvanized
- Hot Dip Galvanizing (HDG): Coils are dipped in molten zinc to form a protective layer of zinc-iron alloy.
- Electro Galvanizing (EG): An alternative method to using electrolysis to obtain a thinner, more uniform coating of zinc.
Pretreatment
- Chemical passivation: chromate or chromium-free treatment.
Coating (RAL 9003)
- Primer: A primer (e.g. epoxy or polyester primer) is applied first to improve adhesion and corrosion resistance.
- Topcoat (RAL 9003 Signal White): Apply by rolling with high-quality polyester (PE), polyurethane (PU), or polyvinylidene fluoride (PVDF), high weathering (HDP) coatings to achieve a uniform thickness.
- Color matching: RAL 9003 is verified using a spectrophotometer to ensure that it matches the RAL Classic color standard.
- Finish type: glossy, wrinkled, high gloss, or Matt, depending on customer requirements.
Curing (baking)
- Oven curing: The coated steel is oven cured at high temperatures to polymerize the coating.
- Cooling: Rapid cooling to stabilize the coating.
Surface Preparation and Quality Control
Surface Inspection: Check for defects such as scratches, bubbles, or color differences.
Performance Test:
- Adhesion.
- Corrosion resistance.
- UV resistance.
- Coating thickness.
More Products
RAL 9003 PPGI coils are long-lasting, weather-resistant, and aesthetically pleasing, making them the ideal metallic material for industries requiring a high-quality finish. Wanzhi Group offers customized processes and products to meet specific customer needs or regional standards. Contact us for more details!
