ASTM A792 galvalume steel is a thermally aluminized zinc plated steel with the standard of aluminized zinc alloy coated steel sheet formulated by the American Society for Testing and Materials (ASTM). AZ100-AZ150 aluminized zinc plated steel has a life expectancy of >40 years in a Class C2 rural environment, and 25 years without perforation in a Class C4 industrial environment (chemical plant), making it the anti-corrosion defender of the architectural and industrial fields.
ASTM A792 Galvalume Steel – Component
The surface of low carbon cold rolled steel plate is hot-dip coated with an aluminum-zinc alloy consisting of 55% aluminum (Al) + 43.4% zinc (Zn) + 1.6% silicon (Si).
- The substrate determines the service life and mechanical properties of the steel
- Aluminum oxide film blocks Cl-/SO₂ penetration to form a physical barrier
- Zinc sacrificial anode repairs scratched areas to form an electrochemical protection
- Silicon interfacial layer prevents Fe-Al embrittlement and inhibits diffusion.
ASTM A792 Galvalume Steel Mechanical Properties
| ASTM A792(M) | Yield Strength,min,Mpa(Ksi) | Tensile Strength,min,Mpa(Ksi) | Elongation in 50 mm,min,% |
| Grade 230(33) | 230(33) | 310(45) | 20 |
| Grade 255(37) | 255(37) | 360(52) | 18 |
| Grade 275(40) | 275(40) | 380(55) | 16 |
| CS Type A | 205/410(30/60) | — | 20 |
| CS Type B | 245/410(35/60) | — | 20 |
| CS Type C | 205/450(30/65) | — | 15 |
| Grade 340(50) Class 1 | 340(50) | 450(65) | 12 |
| Grade 340(50) Class 2 | 340(50) | — | 12 |
| Grade 340(50) Class 4 | 340(50) | 410(60) | 12 |
| Grade 550(80) Class 1 | 550(80) | 570(82) | — |
| Grade 550(80) Class 2 | 550(80) | 570(82) | — |
ASTM A792 Galvalume Steel vs. ASTM A653
| Performance | ASTM A792 (55% Aluminum-Zinc) | ASTM A653 (Pure Zinc) |
| Salt Spray Test Life | 3000+ hours | 500-800 hours |
| Heat Resistance | No failure at 315℃ | Oxidation accelerated at 140℃ |
| Heat Reflectivity | ≥75% | 40-50% |
ASTM A792 Galvalume Steel for Sale
Wanzhi Group provides solutions and OEM ODM services for different steel applications, producing and customizing galvalume steel in various specifications.
Specifications
| Type | Galvalume Steel |
|---|---|
| Thickness | 0.15-6 mm |
| Width | 600-1250 mm |
| Packing Weight | 5-10t, customize |
| Aluzinc Coating | AZ20-AZ350 g/m2, 40-150 micron. |
| Surface Finish | oiled, chrome plated, anti-fingerprint, lacquered, etc. |
| Quality | SGS, ISO, support third-party organization testing |
Products
Sell Aluzinc Steel Coil, Aluzinc Plated Sheet, Aluzinc Corrugated Sheet, Aluzinc Roofing Sheet, Aluzinc Pipe, Aluzinc Plated Strip, Prepainted Aluzinc Plated Steel with Paint, and so on. We offer galvanizing, slitting, forming, bending, punching, stamping, flattening and painting services.
Price
AZ100-AZ150 ASTM A792 galvalume steel coil price is 650-900 USD per ton, the price depends on the substrate material, the thickness of the aluminum zinc coating, the surface treatment, the quantity and other factors, the minimum order quantity is 10 tons, leave a message to tell us the style of the sheet you need or the thickness/width, get a free quote!
Advantages and Applications
ASTM A792 galvalume steel is protected by zinc-aluminum alloy layer with excellent corrosion resistance, weather resistance, etc. It is the first choice of steel for highly corrosive environments along the coasts, in chemical zones, and on ocean platforms.
- Roofing and wall: coastal, industrial buildings (such as chemical plants, port warehouses), (corrosion-resistant)
- waterproofing membrane: metal roofing liner preferred, (weather-resistant)
- steel bracket: photovoltaic power plants, highway guardrail
- shell and internal components: refrigerators, washing machines, air conditioning shell (fingerprint-resistant treatment, fingerprints residue)
- high-temperature components: oven liners, microwave oven cavity (high-temperature-resistant)
- car body structural components: the inner door panels, floor guards of high-end vehicles Inner door panels, floor guards (light weight, corrosion resistance)
- Chassis components: fuel tanks, exhaust system heat shield (high temperature, corrosion resistance)
- Electronics industry: server chassis, communication equipment shell (fingerprint resistance, electromagnetic shielding)
- Agricultural facilities: greenhouse skeleton, animal husbandry equipment (fertilizer, pesticide corrosion resistance)
ASTM A792 Galvalume Steel Factory

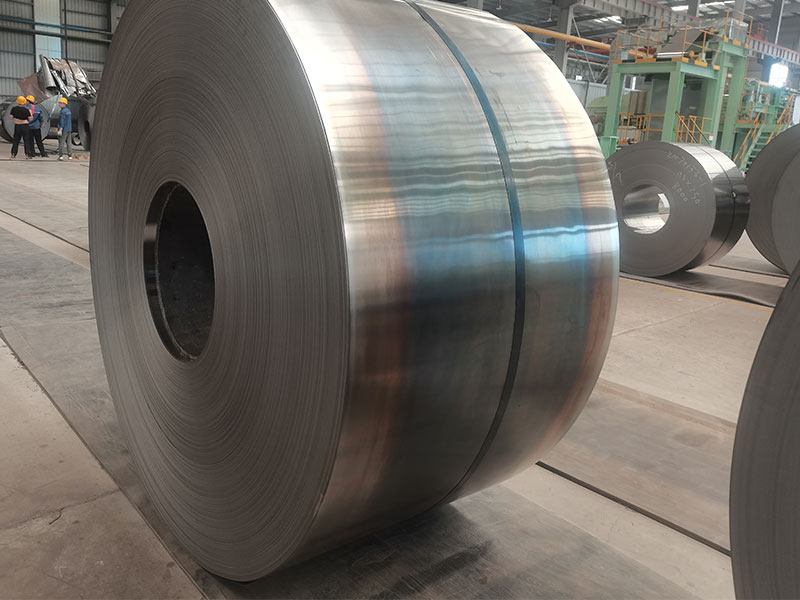

Wanzhi Group Aluminum & Zinc factory is certified by ISO9001, ISO14001, etc. The factory consists of one production line of GL and ZAM with an average production capacity of 10,000 tons per month each, which is supported by on-line and on-site inspections as well as third-party inspections by BV, SGS and other organizations.
ASTM A792 Aluminized Zinc Plated Steel, coated with a 55% aluminum-zinc-silicon alloy, is an upgraded version of galvanized steel that offers excellent corrosion resistance, long life and versatility, making it an ideal material for use in construction, home appliances, automotive and other applications. Contact us to select the right coating weight and finish for your project to maximize material performance!
