Color Coated Sheet Process: Spray Coating and Roll Coating

Spray coating (powder coating) and roll coating are two common processes used for surface decoration and protection of color-coated sheets. While they may look similar, they differ significantly in mass production capability, durability, cost, and suitable applications. Today, join us in exploring a comprehensive comparison and understanding of these two coated materials, from their principles to practical applications.

Core Differences

Process Type	Spray Coating (Powder Coating)	Roll Coating (Liquid Painting)
Process Principle	Solid powder + Electrostatic adsorption + High-temperature curing	Liquid paint + Roller coating + High-temperature curing
Appearance Features	Matte/Semi-matte, hard touch, smooth, no runs, relatively thick coating	Gloss/Semi-matte/Matte, extremely flat surface, thin and uniform coating
Core Performance	High hardness, excellent scratch resistance, good weather resistance, strong adhesion, environmentally friendly, low efficiency	Adjustable weather resistance, excellent adhesion, extremely high mass production efficiency, medium scratch resistance
Suitable Applications	Small batches, irregularly shaped parts, outdoor products prone to impact	Large batches, standardized products, building/Home Appliance etc.
Cost-Effectiveness	Medium	High

 Process Principle

Process Type	Spray Coating (Powder Coating)	Roll Coating (Liquid Painting)
Definition	Powder coating, a dry painting process	A wet continuous coating process
Working Principle	Applying thermosetting powder coating to the metal surface using an electrostatic spray gun	Evenly applying liquid paint onto a continuously moving metal coil surface using a roller coater. This is the standard production method for PPGI/PPGL.
Process Steps	Pretreatment (degreasing, phosphating) → Electrostatic Spraying → High-temperature Curing → Cooling	Uncoiling → Pretreatment → Primer Application → Baking → Topcoat Application → Baking → Cooling → Recoiling
Application Object	Spraying onto already formed workpieces, such as steel structures, aluminum profiles, metal furniture, etc.	Continuous, high-volume production for flat coils.

 Core Characteristics Comparison

Comparison Dimension	Spray Coating Process	Roll Coating Process
Coating Form	Powder (Solid)	Liquid (Solvent-based/Water-based)
Coating Object	Formed Workpieces	Metal Coils
Production Mode	Intermittent, single-piece/batch production	Continuous, high-volume production
Coating Thickness	Relatively Thick	Relatively Thin
Film Thickness Uniformity	Can be uneven, affected by workpiece shape and operation	Excellent, precise roller control, uniform and consistent
Edge Coverage	Good, can cover all sides of the workpiece	Covers only top and bottom surfaces; cut edges have no coating
Color Change	Flexible, suitable for small batches with multiple colors	Complex process, suitable for large batches of the same color
Production Efficiency	Relatively Low	Extremely High
Equipment Investment	Relatively Low	High
Environmental Friendliness	Powder coatings have no VOC emissions, excellent	Solvent-based paints require exhaust treatment; water-based paints are more environmentally friendly

Coating Performance Comparison

Adhesion and Flexibility

Performance Indicator	Spray Coating	Roll Coating
Adhesion	Excellent, bonds firmly with the substrate	Excellent, ensured by chemical pretreatment + primer
T-bend Flexibility	Average; thick coating tends to crack at bends	Excellent, can achieve 0T-2T, suitable for stamping and forming
Impact Resistance	Good; thick coating absorbs impact	Excellent; coating deforms synchronously with the substrate

Weather Resistance and Corrosion Resistance

Performance Indicator	Spray Coating	Roll Coating
Weather Resistance	Depends on powder type (Polyester, PVDF, etc.)	Depends on paint type (PE, SMP, HDP, PVDF)
Salt Spray Resistance	Good	Excellent
Scratch Resistance	Good	Good
Color Retention	Good	Excellent

Appearance Effects

Appearance Dimension	Spray Coating	Roll Coating
Surface Texture	Can create rich textures like sand texture, orange peel, wrinkles	Primarily smooth and fine; textures possible via embossing
Gloss Level	Wide adjustable range, matte to high gloss available	Wide adjustable range, precise control
Color Consistency	Possible batch-to-batch variations	Excellent, stable color in continuous production
Complex Patterns	Difficult to achieve	High-definition printing of wood grain, stone grain, etc., possible

Application Scenarios

Application Area	Recommended Process
Steel structure building components (H-beam, C-channel)	Spray Coating
Aluminum profile doors/windows/curtain walls	Spray Coating
Large steel structural parts (bridges, pipe racks)	Spray Coating / Thermal Spray Zinc + Spray Coating
Color-coated steel coils / roof sheets / wall panels	Roll Coating
Appliance panels (refrigerators, washing machine shells)	Roll Coating
Precision stamped parts (automotive components)	Roll Coating
Small batch / custom color products	Spray Coating

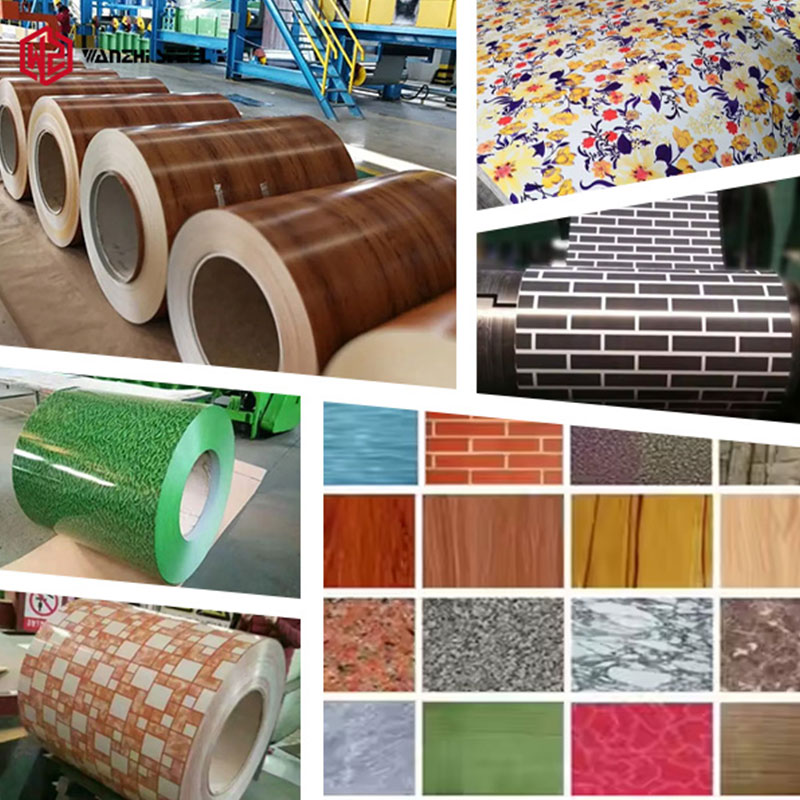

Imitation wood grain / stone grain decorative panels	Roll Coating (Printing)

Wanzhi Group: Matching You with the Optimal Coating Solution

As a professional metal material supplier, Wanzhi Group not only produces and sells color-coated steel materials in various grades but also provides OEM and ODM services based on customer application environments and project requirements.

• Roll-Coated Products (PPGI/PPGL): We possess advanced continuous coating lines, enabling us to supply large volumes of high-quality, color-consistent coated steel coils widely used in building envelopes, home appliance manufacturing, and more.
• Spray Coating Processing Support: For components requiring spray coating, we collaborate with professional spraying partners to offer you one-stop service from base material to coating.
• Selection Guidance: Our technical team can provide professional coating solutions based on your product shape, batch size, performance requirements, and budget.

Whether it’s large-scale production pursuing ultimate efficiency or small-batch projects needing flexible customization, Wanzhi Group can help you find the optimal balance between performance and cost. Feel free to contact us for free technical consultation and sample support!
