Wanzhi’s RAL3020 color-coated steel coils are expertly designed using galvanized (GI) or aluminized steel (GL) substrates with PE, SMP, HDP, or PVDF coatings, offering precise color, corrosion resistance, durability, and easy workability. Widely applied in construction, home appliances, and transportation, Wanzhi operates 3 modern color-coated production lines, exporting to nearly 120 countries while providing customers with consistent quality and customized solutions.
Thickness: 0.12-1.2mm
Coating: PE/PVDF/SMP/HDP

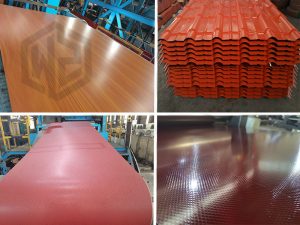

Surface: Matt, glossy, wrinkled, textured, patterned, etc.
Color Coated Steel Coil Specifications
| Item | Details |
| Product Name | Color Coated Steel Coils |
| Base Material | GI / GL |
| Thickness | 0.12 -1.2 mm |
| Width | 600 mm -1250 mm |
| Coil Weight | 3-5 Tons, customizable |
| Coating | PE, SMP, HDP, PVDF |
| Coating Thickness | Top: 11-35 μm; Bottom: 5-14 μm |
| Finish | Matte / Textured / Glossy |
| Color | Customizable based on RAL or customer drawings |
| Certifications | ISO 9001, SGS, CE, BV |
| Packing | Standard export packing |
| Monthly Capacity | 5,000-10,000 Tons |
What is RAL 3020 Color Coated Steel Coil?

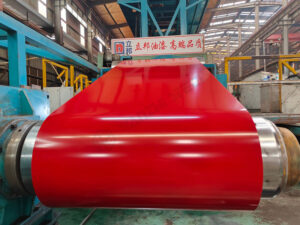

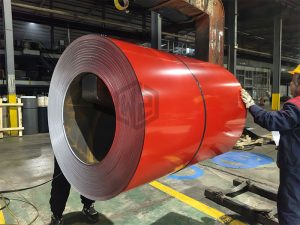

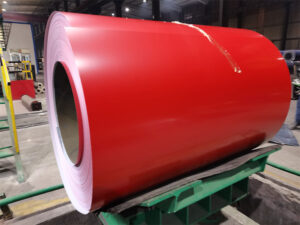

RAL3020 color coated steel coil uses GI or GL substrates with a roller-coated organic layer. Its bright “Traffic Red” is highly visible, ideal for warning, branding, and identification. Widely used in roofs, walls, industrial enclosures, and transportation, it combines vivid color, steel strength, and corrosion protection.
PPGI & PPGL Color Coated Steel Coil Parameters
| Item | PPGI (Pre-painted Galvanized Steel Coil) | PPGL (Pre-painted Galvalume Steel Coil) |
| Coating Density | 7.14 g/cm³ (zinc) | ~ 3.75 g/cm³ (aluzinc alloy) |
| Long-term Service Temperature | ≤200℃ | ≤315℃ |
| Thickness | 0.12-1.2 mm | 0.12-1.2 mm |
| Width Range | ≤1500 mm | ≤1500 mm |
| Coating Thickness | Top: 11-35 μm
Bottom: 5-14 μm |
Top: 11-35 μm
Bottom: 5-14 μm |
| Coating Weight | Z30-Z275 g/m² | AZ30-AZ150 g/m² |
| Weather Resistance (UV) | QUV≥500h (PE); ≥1000h (PVDF) | QUV≥500h (PE); ≥1500h (PVDF) |
| Heat Resistance | Long-term ≤200℃; Short-term ≤250℃ | Long-term ≤300℃; Short-term ≤350℃ |
Advantages of RAL3020 Color Coated Steel Coil
- Superior Corrosion Resistance: The substrate uses hot-dip galvanized steel or 55% aluminum-zinc alloy coating, combined with a RAL3020 protective topcoat for double-layer corrosion protection. It resists acids, alkalis, salt spray, and humidity, offering 2-3 times longer service life than ordinary steel in coastal, industrial, or highly corrosive environments.
- Excellent Formability: The coil can be bent, sheared, stamped, profiled, or rolled. Even when bent 180°, the coating remains intact without cracking or peeling (adhesion rating 0-1), making it compatible with a wide range of steel fabrication processes.
- Lightweight, High Strength, and Structural Stability: The steel substrate has a strength of 220-550 MPa, providing high load-bearing capacity while remaining lightweight. It reduces structural load and construction costs for roofs and walls, with outstanding seismic and wind resistance.
- Eco-Friendly and Low Maintenance: The coating is free of formaldehyde and odors, environmentally friendly, smooth, dirt-resistant, and easy to clean. No frequent repainting is needed, keeping long-term maintenance costs extremely low.
- High Temperature and Heat Resistance: The RAL3020 coating withstands high temperatures and resists thermal aging. It remains stable, does not soften, deform, or peel, even in tropical or high-temperature regions.
Applications of RAL3020 Color-Coated Steel Coils
- Buildings Roofs and Walls: Ideal for roofs and walls of factories, warehouses, steel structures, modular and container houses. The bright red color improves visibility, and corrosion resistance ensures long-term outdoor use.
- Transportation & Steel Structures: Perfect for guardrails, supports, equipment enclosures, vehicle bodies, and containers. The warning-red color enhances safety and suits traffic, heavy industry, and maritime projects.
- Municipal & Fencing Projects: Used for hoardings, fences, billboards, and signage. The color is vivid, weather-resistant, and maintains its appearance over time.
- Appliances & Equipment: Suitable for appliance casings, electrical cabinets, agricultural machinery, and ducts, offering uniform color, corrosion resistance, and easy cleaning.
- Agriculture & Storage: Used in greenhouses, silos, livestock sheds, and shelving, providing moisture resistance, UV protection, and durability.
Coatings For RAL3020 Color Coated Steel Coil
| Type | Advantages | Applications | Color Retention (Years) |
| PE | Affordable, bright, flexible, easy to form | Factories, indoor barriers, short-term projects | 5-10 |
| SMP | Hard, scratch & wear resistant, better aging than PE | Walls, roofs, outdoor equipment, fences | 10-15 |
| HDP | UV resistant, anti-chalking, long-lasting color & gloss | Long-term outdoor buildings, coastal factories | 10-20 |
| PVDF | Ultra-durable, corrosion & chemical resistant, extreme longevity | Heavy corrosion, high-end curtain walls, coastal industry, outdoor signage | 20-25 |
Wanzhi PPGI / PPGL Steel Coil Manufacturer
Factory

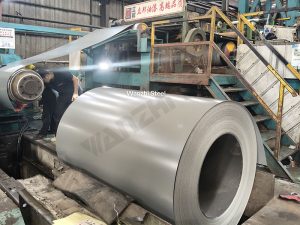

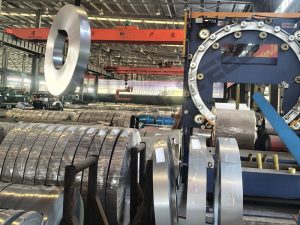

Wanzhi’s factory features full galvanized and color-coated steel lines with dedicated quality inspection. Strict process control from raw materials and production to quality testing and finished product packaging to packaging ensures consistent, high-quality steel products for every customer project.
Coil and Sheet Package

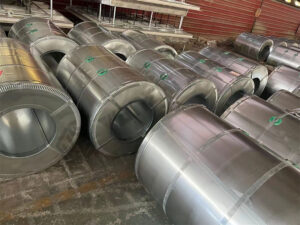

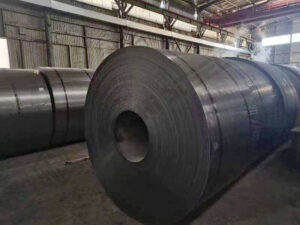

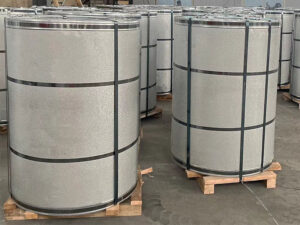

Most exported steel coils are packaged using standard export packaging. Wanzhi also offer customized packaging based on customer requirements, including vertical packing, plastic wrapping, moisture-proof paper, galvanized steel sheets, and labeling options. Packaging can be tailored to meet the specific needs of different markets.
Premium PPGI / PPGL Steel Supplier
Wanzhi Group is a certified PPGL/PPGI steel manufacturer in China, holding ISO 14001:2015, ISO 9001:2015, and ISO 45001:2018 certifications. With over a decade of experience in the production and sale of color-coated steel, we provides high-quality, competitively priced steel sheets in international standard sizes.
Global Projects
Wanzhi Group’s PPGL and PPGI coils have been exported to more than 120 countries across Europe, South America, the Middle East, Southeast Asia, Africa, and Oceania, including Libya, Brazil, Saudi Arabia, the UAE, Chile, Colombia, Azerbaijan, Malaysia, Uzbekistan, Turkey, and Poland.
Wanzhi Steel – Agricultural Greenhouse Project in Turkmenistan
550 tons PPGI Steel Coil to Azerbaijan
100 tons of Galvanized Coils to Saudi Arabia
144 ton Steel Wire to Spanish
Project of PPGI Roofing en Libya
100 tons of GL and PPGL in Solomon Islands
Customer Feedback
PPGI/PPGL Steel Coils Price
The price of PPGI/PPGL steel coils typically depends on the base material, paint type and thickness, coating layer, specifications, and other factors. For common material specifications, Wanzhi’s PPGL steel is priced around USD 600–1,000 per ton. Please leave us your requirements, and we will provide a free quotation.
Customized Color-Coated Coils / Sheets for Your Projects
Wanzhi Group is committed to providing high-quality color-coated steel coils. If you would like to learn more about PPGI coils, PPGI sheets, or other coated steel products, leave us a message with your requirements, and our product manager will contact you.
