Flowers Pattern PPGI Coil is one of the popular PPGI steels produced by Wanzhi Group. Its rich pattern effects and diverse colors make it an innovative material for construction and decoration. We have provided Floral pattern design PPGI for roofing, walling, decoration, furniture, and other applications by international ASTM, JIS, EN, GB, and ISO standards.
Flowers Pattern PPGI Coils for sale
Pattern design PPGI coils produced by Wanzhi Group are available in wood, brick, tile-like, stone, and wood grain. The pattern design PPGI coils produced by Wanzhi Group are available in wood, brick, tile, stone, metallic, floral, grass, sky, stripe, etc. Patterns and colors (high gloss, matte, glossy, etc.) can be designed and produced according to the application requirements.
Specifications
At Wanzhi Group, you can get flowers pattern PPGI coil in thicknesses of 0.12-1.5mm, widths of 600-1250mm, lengths of any size, topcoats of 10–40 microns, and primers of 5–20 microns.
| Grades | GI/GL/SPCC/SPCD/SPCE/DC01-DC07/Q195、Q215、Q235 |
|---|---|
| Colors | Top/Back：RAL，Painted steel，3D Painted steel, etc(can be customized) |
| Thickness | 0.12-1.5 mm |
| Width | 600-1250mm/ customized |
| Coil Weight | 3-6 tons/ customized |
| Substrate Type | Hot dip galvanized, Galvalume, Zinc alloy, Cold rolled steel, Aluminum-zinc plated steel，Zimalium |
| Zinc Coating Thickness | Z30-275g/ ㎡,AZ30-150g/ ㎡ |
| Introduction to Coating | PVDF、HDP、SMP、PE |
| Coating Thickness | Top ：10-40 um，Back：5-20 um |
| Inside diameter | 508/610mm |
| Package | Standard export package or as per your requirements |
| Certificates | SGS, ISO 9001,CE |
| Date of Delivery | 5-45 days |
Performance Parameters
| Indicators | Standard Values | Explanation |
|---|---|---|
| Thickness of Substrate | 0.12 mm- 1.5 mm (Commonly used: 0.4mm (decorative), 0.8mm (structural)) | Various thicknesses based on application: 0.4mm for decorative use, 0.8mm for structural use. |
| Coating type | Galvanized or Aluminum zinc plated (20-350g/㎡) | Galvalume has better corrosion resistance and is suitable for outdoor use. |
| Coating type | PE (Polyester) SMP, HDP or PVDF (Fluorocarbon) | PVDF has better weathering resistance and has a lifespan of 20 years or more. |
| Pattern Durability Color Difference | ΔE ≤ 5 (QUV aging for 3,000 hrs.) | Ensures that it will not fade out in long-term use. |
Customized
Wanzhi produces hot-dip pre-painted galvanized steel substrates, materials, sizes, shapes, patterns, etc., according to customers’ specifications.
- Material: DX51D, SGCC, S220GD, DC01, Q195, etc.
- Shape: PPGI coils, PPGI sheets
- Colors: glossy, high-gloss, matt, etc.
- Pattern: 3D printing/wood grain/stone grain/brick pattern/metal texture/bird and flower painting/abstract pattern/camouflage/antique/gradient/imitation stone pattern/imitation wood pattern/masonry embossing/corrugated embossing/geometric embossing/relief embossing/customized.
Price
The price of PPGI steel is affected by the substrate, galvanized substrate, coating process, surface effect, order quantity and so on, the price of pattern PPGI coil is also affected by the complexity of the pattern, the minimum order quantity of Wanzhi PPGI coil is 10 tons, the price per ton is around 600-900, the price will be different for the orders with special effect or large demand, Contact info01@wanzhisteel.com, get a free quote now!
Flowers Pattern PPGI Coil Process and Design Type
PPGI coil has solid color, special printing, and 3D embossing, The embossing process includes digital printing, transfer printing, one-color embossing, multi-color HD printing,
Common PPGI surface floral design style
- Realistic style: rose, peony, cherry blossom, gerbera.
- Abstract Geometric: Simplified floral lines with color blocking.
- Vintage Texture: Embroidery or watercolor effect.
Flowers Pattern PPGI Coil Process
| Process | Principle | Features |
|---|---|---|
| Digital printing / Inkjet printing | Prints floral patterns directly onto the coated surface | Rich colors, supports complex patterns, and high resolution |
| Embossing | Roller die embossing on the surface of the galvanized sheet | Strong sense of dimension, wear-resistant, but pattern complexity is limited |
| Transfer Coating | Transferring floral patterns to PPGI PVDF through heat transfer | Floral pattern transferred onto PPGI PVDF/PE coating by heat transfer, clear pattern, good weather resistance, high cost |
Printing Process Options
| Requirements | Recommended Process | Rationale |
|---|---|---|
| Highly Weather Resistant for Outdoor Use | Transfer + GL steel Substrate | UV resistant, salt spray resistant, long-lasting pattern |
| Low-Cost Indoor Decor | Digital Printing + GI steel Substrate | Cost-effective, vibrant colors |
| 3Dimensional Tactile Requirements | Embossing + Solid Coatings | Outstanding texture, good for close-up viewing |
Flowers Pattern PPGI Coil Application Scenarios
Flowers pattern PPGI coil integrates floral patterns into metal surfaces, ensuring that the steel’s high strength, corrosion, and weathering resistance are not compromised, while enhancing the aesthetic and decorative properties of the steel to meet the diversified design needs of architectural decorations, home appliances, automobiles, and other fields.
Building Decoration
- Indoor: wall, shopping mall ceiling, elevator interior, indoor partition.
- Outdoor: fences, building facades, landscape installations.
Home & Commercial
- Furniture Veneer: cabinet door panels, bar tops.
- Customized signage: florist signs, decorations, billboards.
Industrial Design
- Packaging Materials: gift box exteriors, high-end equipment housings.

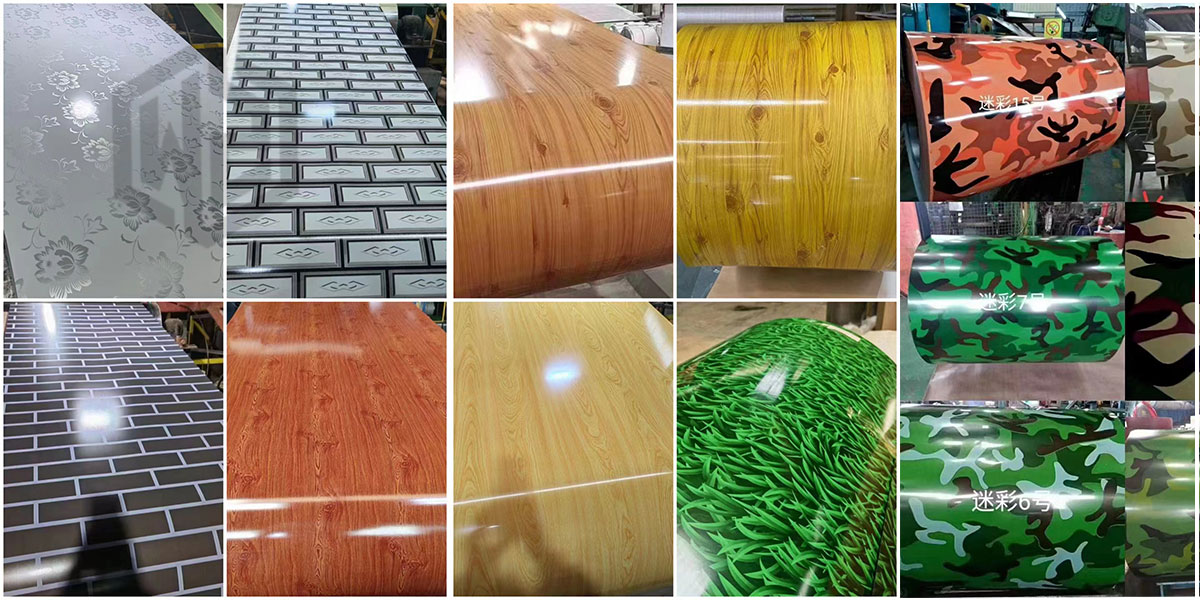

Pattern PPGI Coil Manufacturer: Wood, Flower, Brick, etc
Wanzhi Group is an ISO certified coated steel supplier and manufacturer. Our marketing center, Zhengzhou Wanzhi Material Co., Ltd., is located in Binzhou City, Shandong Province, China. PPGI PPGI is our main product, There are 3 PPGI PPGL production lines in the factory. Our flower pattern PPGI coil, wood grain PPGI coil, and matt textured PPGI coil have been exported to more than 100 countries and regions. 100 countries and regions.
Production Line
Certificate
Customer Feedback
Flowers Pattern PPGI Coil Selection and Customization Process
We have more than 150 printing rolls in our factory, supporting pattern customization.
Design Options
- Pattern Customization: Provide a vector drawing or a sample.
- Color matching: support RAL, Pantone color card, or sample color mixing.
Customization Steps
- Requirement Confirmation: Pattern, size, coating type, and plating specification.
- Proofing review: Produce samples to confirm color and texture.
- Mass Production: Standard rolls.
- Quality inspection: Provide salt spray test, color difference inspection report, etc.
Flowers Pattern PPGI steel Caution
Pattern PPGI Installation Suggestion
- Cutting: Use laser cutting or CNC shearing machine to avoid edge burrs damaging the pattern.
- Fixing: Concealed fasteners or structural adhesive paste to minimize pattern design PPGI surface perforation, and maintain surface integrity.
PPGI Maintenance Guide
- Do not use steel wool or acidic solvents.
- Stubborn stains can be gently wiped with alcohol pads, avoiding hard scratches.
- For small scratches, apply a dab of the same color touch-up paint.
- Replace the entire sheet for large flakes.
PPGI Storage advice
- Coil storage: store vertically, avoid horizontal stacking, leading to deformation.
- Ambient humidity ≤ 70%, temperature 10-40°C, away from acid and alkali corrosive gases.
More Products
If you are looking for flowers pattern PPGI coil supplier that supports customized design and has passed international certification, welcome to contact us!
