Wanzhi Steel is a subsidiary of Wanzhi Group specializing in the production and sale of galvanized steel, with galvanized coil, prepainted galvanized coil (PPGI coil), galvalume coil, prepainted galvalume coil (PPGL coil) production lines, providing customized and deep processing services for various types of coated steel solutions to customers worldwide.
Prepainted Galvanized Steel Coil Price
Wanzhi Steel offers premier prepainted galvanized steel coils at wholesale prices for bulk purchase, retail, and wholesale needs. Currently, Wanzhi PPGI coil prices are in the range of $600-900 per ton (This is the price for regular-sized, PE coated, minimum quantity of color-coated steel.). The price of pre-painted galvanized steel is determined by the thickness of the steel, coating, plating, production process, and so on. Leave a message to tell us the steel specification you need, we will offer you a free quote.
Prepainted Galvanized Steel Coil Specification
In addition to wholesale price, we also provide pre-painted galvanized steel coil and sheets following international standards such as ASTM, JIS, GB, EN, etc. In addition to steel coils, we also provide PPGI coils with deep processing such as cutting, slitting, bending, molding, and so on.
| Grades | DX51/52/53/54D+Z, S280GD+Z, S350GD+Z, S550GD+Z, SECC, etc. |
|---|---|
| Colors | Top/Back：RAL，Painted steel，3D Painted steel, etc(can be customized) |
| Thickness | 0.12-1.5 mm |
| Width | 600-1250mm/ customized |
| Coil Weight | 3-6 tons/ customized |
| Substrate Type | Hot dip galvanized, Galvalume, Zinc alloy, Cold rolled steel, Aluminum-zinc plated steel，Zimalium |
| Zinc Coating Thickness | Z30-275g/ ㎡,AZ30-150g/ ㎡ |
| Introduction to Coating | PVDF、HDP、SMP、PE |
| Coating Thickness | Top ：10-40 um，Back：5-20 um |
| Inside diameter | 508/610mm |
| Package | Standard export package or as per your requirements |
| Certificates | SGS, ISO 9001,CE |
| Date of Delivery | 5-45 days |
Pre-painted Galvanized Steel Coil Customized Service
We not only provide common prepainted galvanized steel coil production, but also can customize PPGI with special surfaces, special sizes, special patterns, and paint, the production lead time is 5–45 days, and we can provide free samples.
Customized Options
Color: RAL, Pantone color card, support spot color customization.

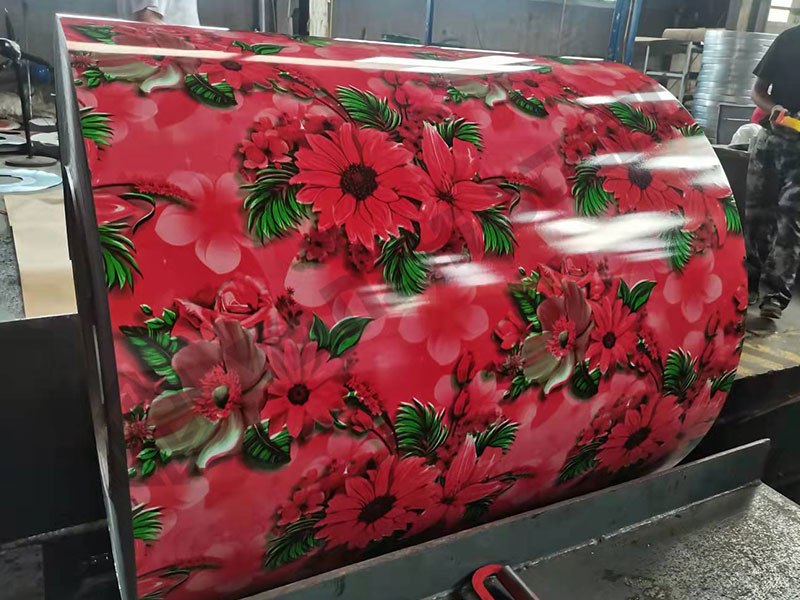

Texture: wood grain, stone grain, brushed metal, flower, brick, marble, stripe, grass, etc.
Color: matte, glossy, wrinkled, etc.
Coating: Epoxy resin, Polyester (PE), Silicon Modified Polyester (SMP), High Weather Polyester (HDP), Fluorocarbon (PVDF), PU, PVC, etc.
Functional coatings: Antibacterial (silver ion), self-cleaning (TiO₂), thermal insulation (ceramic beads).
Production Process
Cold rolled steel coil → degreasing → pickling → galvanizing → passivation → primer coating → top coating → curing → cooling → testing → winding and packaging
- Raw material for cold rolled steel coils: we have stock in our factory.
- Hot-dip galvanizing: Continuous hot-dip galvanizing process, according to the demand of the steel surface coated with a uniform layer of zinc (zinc layer thickness z30-350g / m²).
- Pre-treatment: Chemical conversion treatment
- Coating process: Apply a primer and a topcoat on the passivated hot-dip galvanized steel surface using a roller coating process.
- Baking, curing, and cooling: The coating is cured on the galvanized steel surface in a curing oven and then cooled.
- Quality Inspection: PPGI is produced in rolls and randomly selected PPGI coils are tested for coating thickness, adhesion, color difference, and salt spray resistance.
Prepainted Galvanized Steel Coil Suppliers/Manufacturers
China pre-painted galvanized steel coil suppliers provide global PPGI importers with premium and cost-effective PPGI PPGL materials. Suppliers from China have the advantages of quick response, fast delivery, good quality, diversified customized service, and competitive prices. If you are planning to purchase steel from overseas, please feel free to contact us.
PPGI Factory Evaluation Points
When choosing PPGI prepainted steel factory, you can evaluate the strength and service of the factory through on-site inspection, asking the supplier to provide qualification certificates, capacity, samples, etc., and then choose the factory that can provide the best quality steel products.
- Qualification: ISO 9001, environmental protection certification (chrome-free passivation process).
- Testing ability: salt spray box, film thickness meter, color difference meter (require test report).
- Production capacity: Monthly production ≥ 10,000 tons of factories can guarantee the delivery of large orders.
- After-sales service: 10 years warranty, 48 hours technical response.
Wanzhi Steel Factory

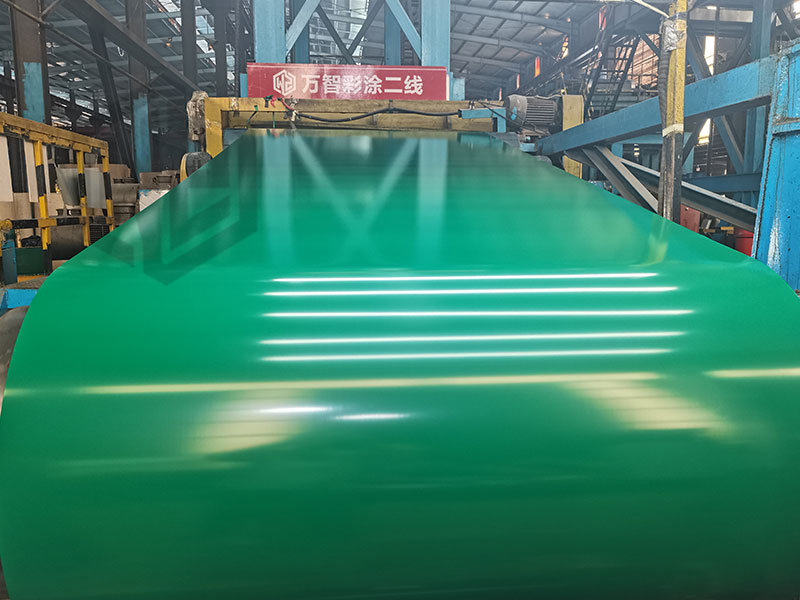

Wanzhi Steel Factory is located in Binzhou City, Shandong Province, China, has passed ISO14001, ISO9001, and other management system certifications, there are 3 color coated steel production lines in the factory, with an average monthly production capacity of 10,000 tons, with a delivery time of 5–45 days, and samples can be supplied for quality testing.
Prepainted Galvanized Steel Coil vs. Traditional Materials
| Product | PPGI | Stainless Steel | Aluminum Sheet |
| Cost | Medium | High | High |
| Weatherability | Excellent (depending on coating) | Very Excellent | Good |
| Processability | Easy to press | weld High hardness, requires special tools | easy to form, low strength |
Prepainted Galvanized Steel Coil Advantages and Applications
Prepainted galvanized steel coil has excellent corrosion resistance, decorative properties, durability, and lightweight, and is an ideal material for construction, home appliances, automotive, agriculture, education, and other applications.
| Corrosion Resistance | Galvanized (30-275g/m²) + Organic Coating (Polyester/Fluorocarbon), Salt Spray Life 500-3000 hrs (ASTM B117) | Roofing/Wall panels for buildings (Coastal, Industrial), Automotive (Fuel Tanks, Chassis Protection), Agricultural facilities (Greenhouses, Farms) |
|---|---|---|
| Decorative | Support RAL/Pantone full-color system, surface can be customized with wood grain, stone grain, and other textures (ΔE ≤ 1.5) | Appliance panels (refrigerators, air conditioners), commercial building curtain walls, interior decorative panels (light luxury style) |
| Lightweight | Base material thickness 0.12-1.5mm, 70% lighter than concrete, reducing transportation and installation costs | Temporary buildings (sheds, showrooms), logistics containers, solar panel racking |
| Economical | Low full cycle cost: initial price 600-900 USD/ton, maintenance cycle 10–15 years (no frequent painting) | Large industrial plants, low-cost housing projects, infrastructure (noise barriers, bus stops) |
| Processing convenience | Direct stamping, bending, welding, compatible with automated production lines (yield rate ≥ 98%) | Ventilation ducts, cable bridges, machinery, and equipment shells (agricultural machinery, construction machinery) |
| Environmental friendliness | Chrome-free passivation process, VOC emission ≤50g/L, steel recycling rate ≥95% (in line with LEED standards) | Green buildings (zero-carbon parks), medical facilities (antimicrobial coatings), food factories (easy-to-clean surfaces) |
Customer Visits and Feedback
So far, we have provided PPGI prepainted galvanized steel coil solutions for more than 100 countries and regions including Turkmenistan, Indonesia, Saudi Arabia, UAE, Malaysia, Azerbaijan, Tajikistan, Turkey, Russia, Chile, Peru, and so on, among which 40 countries customers come to us for the site visit. If you are looking for a reliable coated steel supplier, welcome to contact Wanzhi Group!
Wanzhi Steel – Agricultural Greenhouse Project in Turkmenistan
550 tons PPGI Steel Coil to Azerbaijan
100 tons of Galvanized Coils to Saudi Arabia
144 ton Steel Wire to Spanish
Project of PPGI Roofing en Libya
100 tons of GL and PPGL in Solomon Islands
Pre-painted galvanized steel coil (PPGI) has become the material of choice for industrial and architectural applications due to its cost-effectiveness, weather resistance, and customization flexibility, leave your request for a free quote!
