DX52D Z275 is a stamping-grade hot-dip galvanized steel sheet that conforms to European standard EN 10346. It features a total double-sided zinc coating of 275g/m² with excellent anti-corrosion and rust resistance, and is widely used as a high-quality substrate for electrical cabinets, household appliances and color-coated steel. Wanzhi Group manufactures galvanized steel with zinc coating from 30g/m² to 275g/m², and also provides customized processing services including cutting, stamping, punching, bending and forming.
Thickness: 0.12mm – 4.0mm
Zinc layer: 30-275g
Grade: DX51D, DX52D, DX53D, SGCC, etc.
What Does DX52D Z275 Mean?
D stands for low carbon structural steel suitable for cold forming; X indicates that the substrate’s rolling state is unspecified; 52 denotes the mechanical grade number; and the final D signifies hot-dip galvanizing. DX52D determines the processing characteristics, making it soft, easy to bend, and easy to stamp.
Z represents a pure hot-dip galvanized coating (as opposed to aluminum-zinc or zinc-aluminum-magnesium coatings), while 275 indicates a total zinc coating weight of 275 g/m² on both sides. Z275 defines the corrosion resistance, providing a high zinc content, strong rust prevention, and long service life.
Specification
| Product Name | Dx52d Z275 Galvanized Steel |
|---|---|
| Standard | GB/JIS/ASTM/EN |
| Substrate | Low carbon cold rolled steel |
| Coatings | Hot-dip pure zinc, Z275 (275g/m² double side) |
| Thickness | 0.12 - 4.00 mm |
| Width | 600 - 1,500 mm |
| Length | Cut as needed (C) |
| Surface Structure | Spangle coating, minimized spangle coating, spangle-free |
| Coil Weight | 3 - 8 tons per coil |
| Yield Strength (ReH) | 140 – 300 MPa |
| Tensile Strength (Rm) | 270 – 420 MPa |
| Elongation (A80) | ≥ 26% |
| Surface Treatment | Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U) |
| Processing Service | Cutting, Slitting, Embossing, Punching, Profiling, Pre-Painting, etc. |
| Quality Certificate | SGS, ISO, BV, CE etc. |

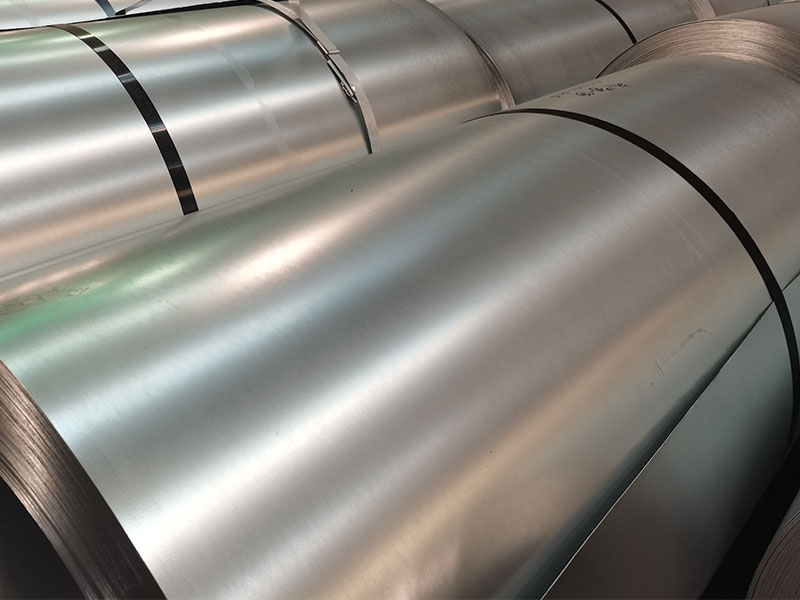

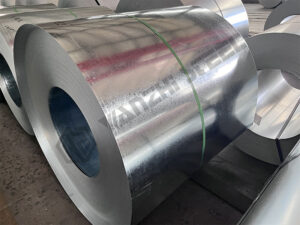

DX52D Z275 Galvanized Steel Sheets & Coils
The service life of galvanized steel sheets depends on zinc coating thickness, climatic conditions and application scenarios. The 275g/m² double-sided zinc layer greatly enhances corrosion resistance for a longer service life. Wanzhi Group supplies high-quality DX52D Z275 galvanized steel sheets and coils with complete specifications and reliable performance, fully meeting diverse industrial and construction requirements.
DX52D Z275 Galvanized Steel Prices
The price of galvanized steel sheets is mainly affected by width, thickness, surface treatment and production processes. The price of DX52D Z275 hot-dip galvanized steel generally ranges from USD 600 to 1000 per ton, with big spangle, regular spangle, small spangle or zero spangle available as options.
All galvanized steel sheets supplied by Wanzhi Group have a thickness above 3.0 mm and are all produced by professional hot-dip galvanizing technology. Please kindly advise your application, required specifications and purchase quantity, and we will offer you the most cost-effective solution.
Grade Comparison
| Grade | Performance | Usage |
| DX51D | General forming, low ductility, hard | Simple bending, flat parts, common structure |
| DX52D | Good ductility, excellent bending & stamping | Sheet metal, cabinet, home appliance, general stamping |
| DX53D | Deep drawing grade, higher flexibility | Complex drawing and forming parts |
| DX54D | Extra deep drawing, best toughness | Ultra-deep stamping, complex irregular parts |
Benefits And Application Of DX52D Z275 Galvanized Steel
Benefits
- Excellent Formability: DX52D is stamping-grade low-carbon steel, with high ductility, easy bending, punching and deep drawing, no cracking during processing.
- Superior corrosion resistance: Z275 high zinc coating (275g/㎡ double-sided) provides strong anti-rust and anti-oxidation ability, much better than low zinc coating materials.

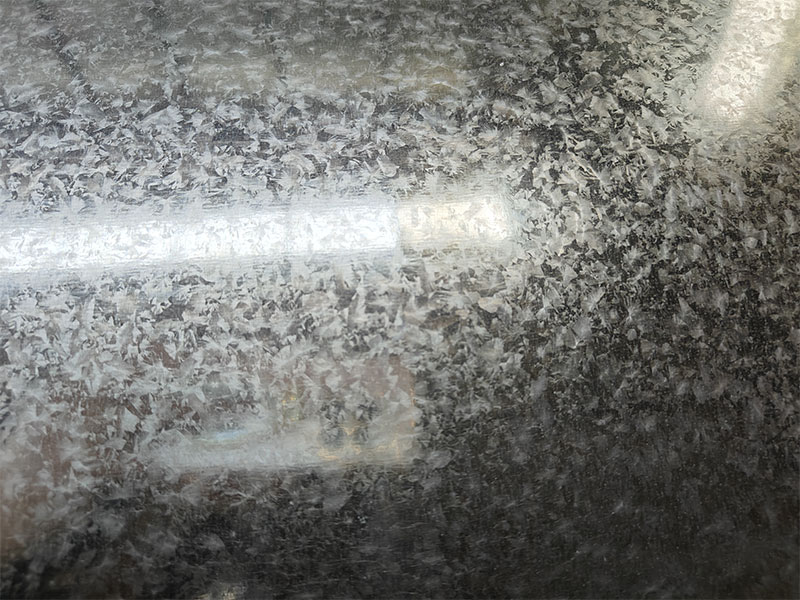

- Stable surface quality: Uniform zinc layer, optional regular spangle, minimal spangle or zero spangle; smooth surface, good appearance.
- Good surface adhesion: Suitable for subsequent processing such as spraying, painting, phosphating and color coating, with strong coating bonding force.
- Long service life: Effectively isolate air and moisture, adapt to humid indoor and mild outdoor environments, and extend service life.
- Good weldability and processability: Easy welding, cutting and folding, widely used in cabinets, home appliances, construction and metal parts.
- Cost-effective: Lower cost compared with stainless steel or complex coated systems.
Application
- Electrical & industrial cabinets, distribution boxes, control enclosures
- Home appliance shells and internal structural parts
- Color coated steel base material for construction industry
- Building components: roofing, wall panels, ventilation ducts, pipe fittings
- Stamped metal parts, hardware accessories and sheet metal components
- New energy equipment, charging pile shells and energy storage cabinet parts
- Agricultural equipment, logistics facilities and general engineering parts
- Indoor and slightly outdoor structural parts with high anti-rust requirements
DX52D+Z Galvanized Steel Supplier — Wanzhi Group
Wanzhi Group is a certified manufacturer and supplier of coated steel sheets, accredited with ISO9001 and ISO14000. We provide high-quality galvanized steel sheets, including Z100, Z140, Z275, DX51D, and SGCC, as well as steel coils, roofing panels, and color-coated galvanized/aluminum-zinc sheet products to approximately 120 countries and regions worldwide. Our solutions cater to professional needs in construction, electrical equipment, home appliances, and other engineering projects.
Customization Services

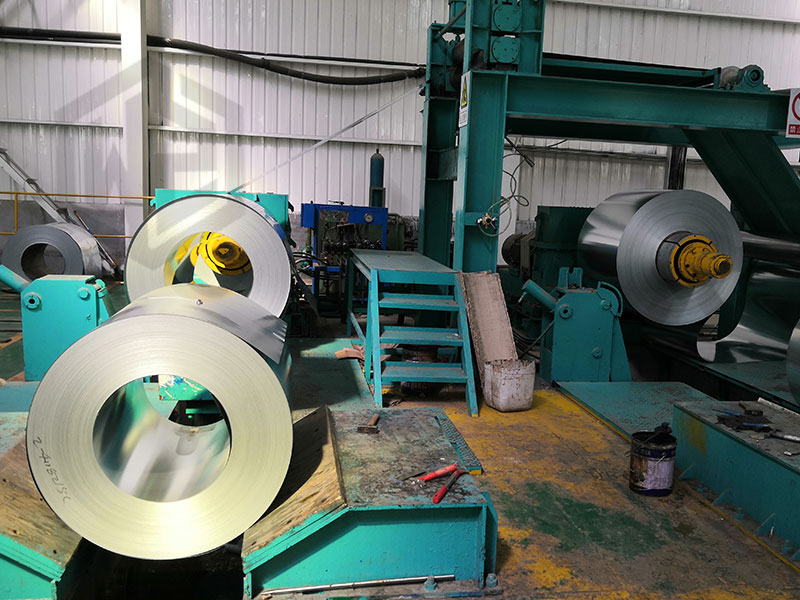

WanZhi Steel operates two galvanized production lines with a monthly capacity of 10,000 tons, providing customized solutions for the design, customization, and production of galvanized steel for customers in various industries worldwide.
Production
WanZhi Group has production lines for galvanized, aluminum-zinc, and color-coated steel, with products that meet international standards such as ASTM, GB, JIS, and EN. We supply finished steel products and raw materials, including galvanized metal roofing sheets, galvanized roofing sheets, galvanized profiles, and galvanized square steel. Additionally, we offer processing services such as cutting, bending, stamping, and forming.
Package

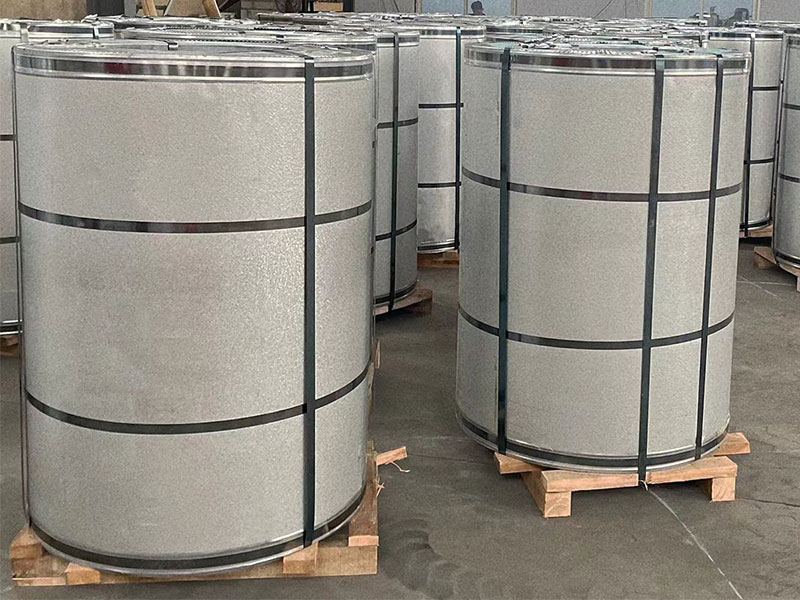

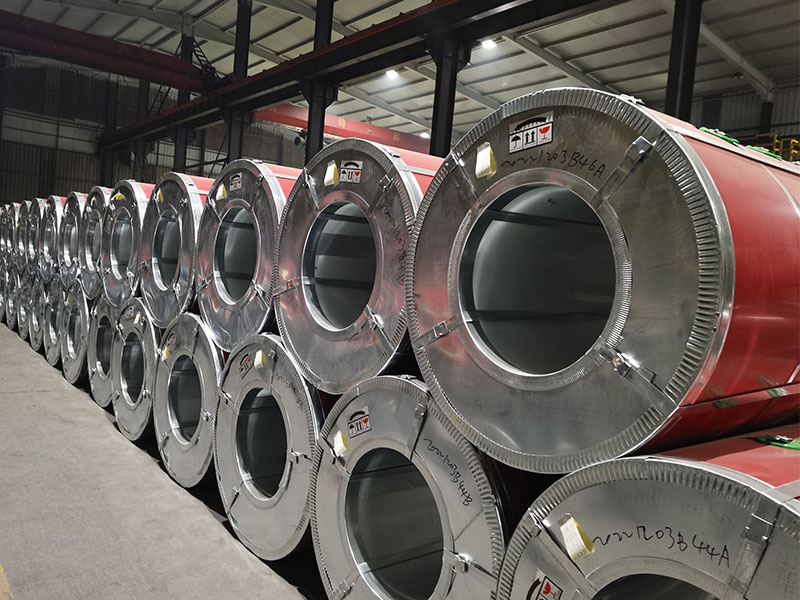

Most products are packaged using standardized export packaging, which includes plastic film, moisture-proof paper, galvanized iron sheets, corner protectors, and wooden pallets. We can also customize the weight, packaging method, and logo according to customer requirements.

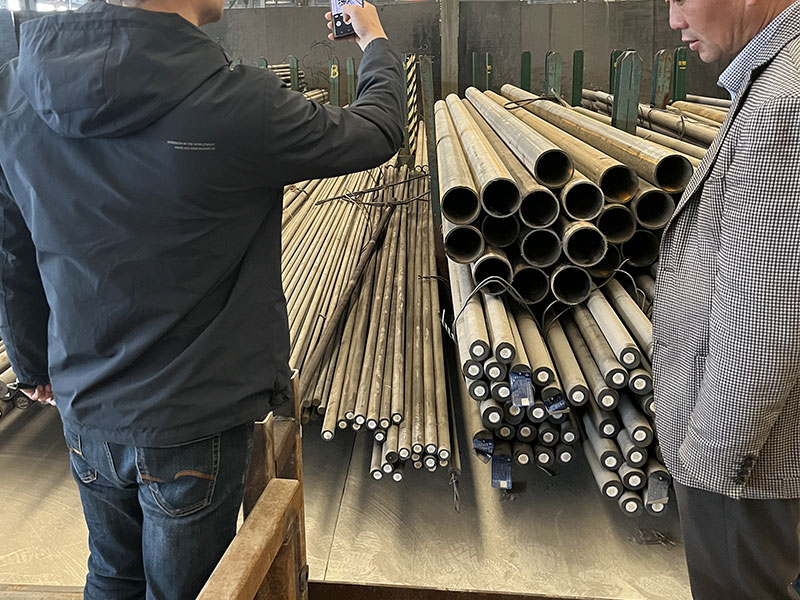

Quality Inspection and Delivery

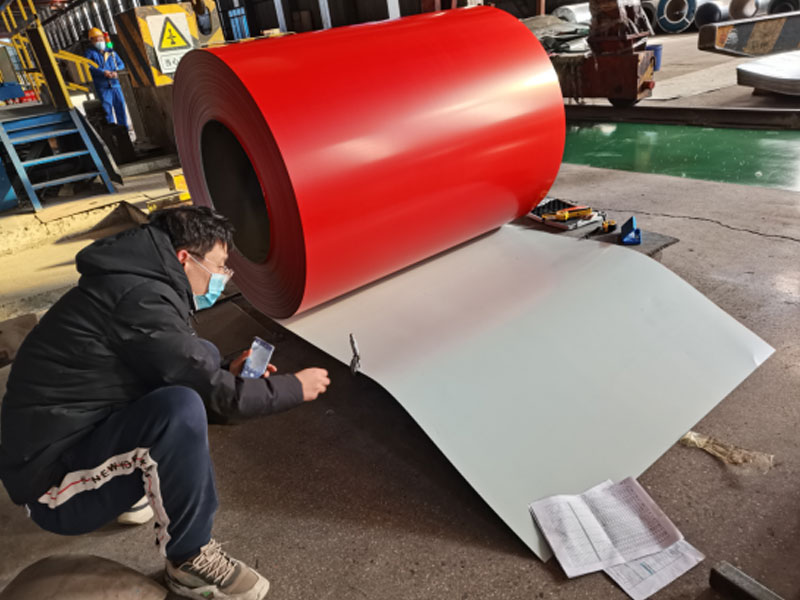

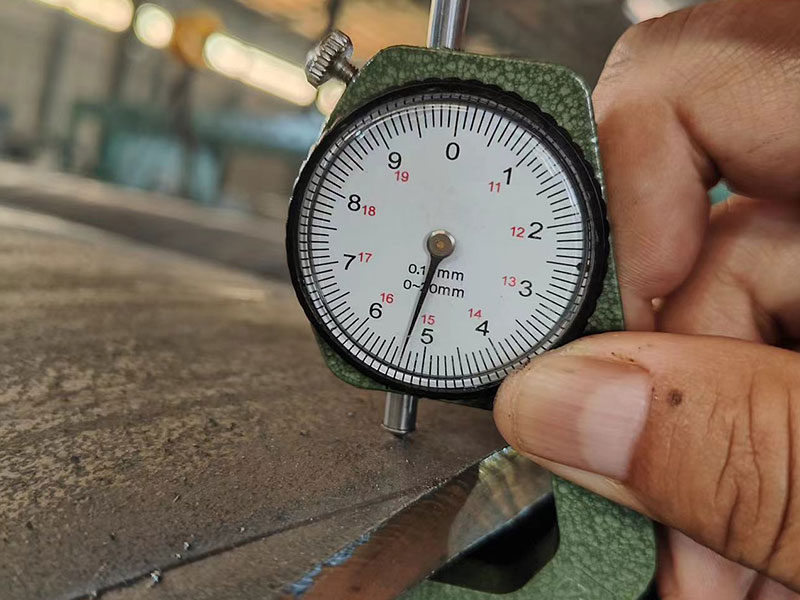

Each batch of products comes with a material certificate. After the production of galvanized steel is completed, our factory conducts various tests, including thickness measurement, adhesion testing, corrosion resistance testing, impact resistance testing, hardness testing, and temperature adaptability testing.

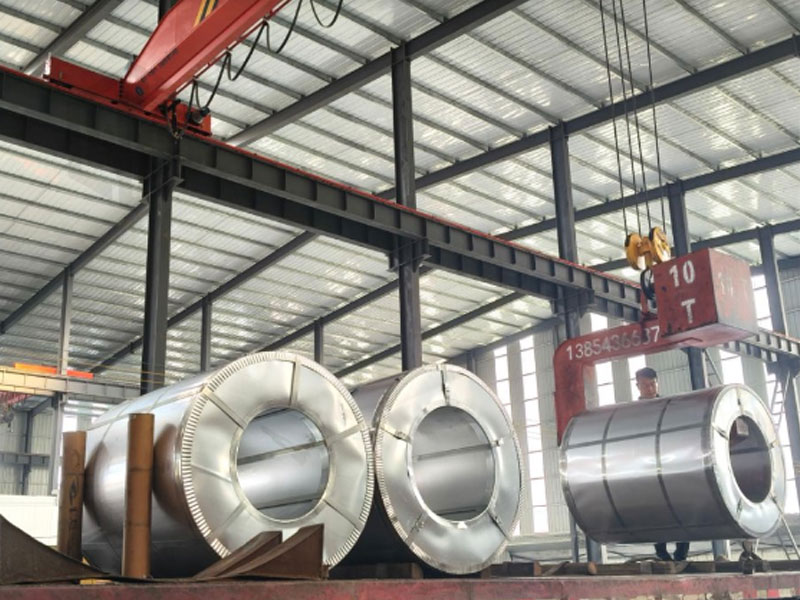

Additionally, we provide professional export packaging and coordinate global logistics to ensure that products are delivered to your factory or construction site safely and on time.
Global Cases
Since its establishment in 2011, WanZhi has supplied various thicknesses, dimensions, and materials of galvanized steel, aluminum-zinc steel, and other products to projects in over 120 countries.
Wanzhi Steel – Agricultural Greenhouse Project in Turkmenistan
550 tons PPGI Steel Coil to Azerbaijan
100 tons of Galvanized Coils to Saudi Arabia
144 ton Steel Wire to Spanish
Project of PPGI Roofing en Libya
100 tons of GL and PPGL in Solomon Islands
Would you like to learn more about the material grades and zinc coating thicknesses of galvanized steel? Or are you interested in more information about DX52D Z275 hot-dip galvanized steel? Feel free to leave a message for inquiries.
