Galvanized checker plate is a galvanized sheet that combines rust resistance, anti-slip properties, and decorative features. Popular surface patterns include diamond and five-stripe patterns, making it an ideal metal material for the industrial, transportation, and construction sectors. Wanzhi Group offers customized services based on substrate material, galvanizing process, and pattern type. Contact us for a free quote on your checker plate!
Standards and Specifications

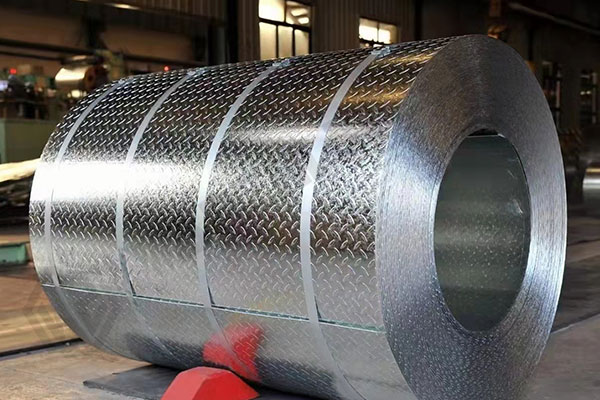

Wanzhi Group manufactures and sells a variety of galvanized checker plates (diamond checker plates or checker plates). In addition to checker plates, we also offer embossed galvanized steel sheet with leather, orange peel, wood grain, and pebble patterns. If you’re looking for premium anti-slip and decorative metal sheeting, please contact us.
| Parameter | Common Specifications |
| Base Material | Low carbon steel (e.g., ASTM A36, SS400, Q235B) |
| Coating Standards | G90 (0.90 oz/ft²), G115, Z275 (range: Z30-Z350g) |
| Common Thickness | 1.5mm, 2.0mm, 2.5mm, 3.0mm, 4.0mm, 5.0mm (range: 1.5-6mm) |
| Process | Hot-dip galvanizing, electro-galvanizing |
| Common Sizes | Sheets: 1000mm x 2000mm, 1250mm x 2500mm, 1500mm x 3000mm, etc. (customizable) |

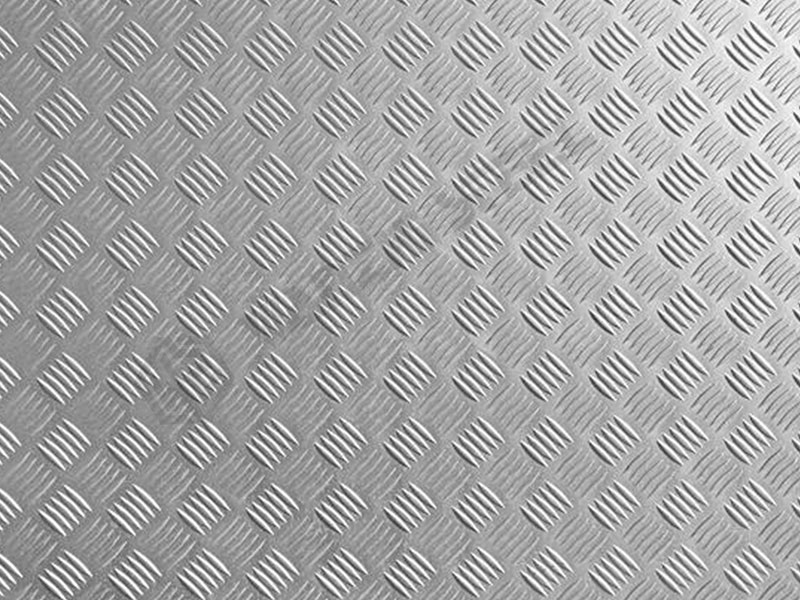

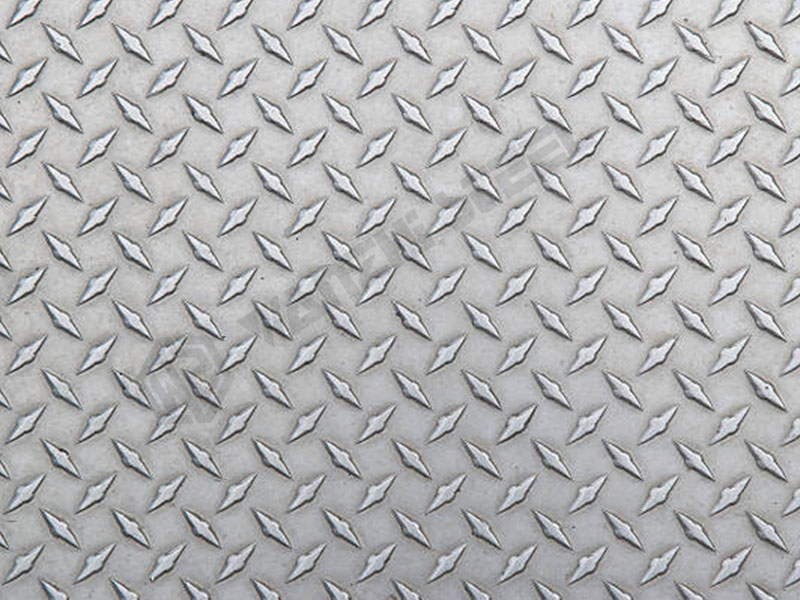

| Pattern Style | Diamond (most common), Teardrop, Five Bar, Lenticular (Circular), Cross, etc. |
| Pattern Height | Approximately 1.0mm – 1.5mm (depends on pattern style and sheet thickness) |
Advantages and Applications
Galvanized checker plate’s zinc coating provides rust and weather resistance, while its patterned surface combines functionality (anti-slip) with aesthetic appeal. It is widely used in factories, warehouses, food processing, equipment bases, trucks/trailers, ships/docks, and public transportation.
Galvanized Checker Plate Advantages
- Anti-slip;
- Easy to clean;
- Structural support;
- Impact resistance;
- Adaptability to humid and salt spray environments;
- Durability;
- High-temperature resistance
Galvanized Checker Plate Applications
- Industrial flooring and platforms: Factory workshops and walkways, equipment operating platforms and non-slip workbenches, stair treads, loading docks, machine bases, and oil drilling platforms.
- Transportation: Floors and non-slip flooring for trucks, trailers, and containers; flooring for railway freight cars; and side panels for public transportation.
- Public and commercial facilities: Pedestrian bridges, fire escapes, escape stairs, gutter covers, and supermarket refrigerated sections.
- Decorative coverings: Walls, ceilings, load-bearing panels, floors, and steps.
- Construction: Temporary walkways and scaffolding treads at construction sites. Agriculture and animal husbandry: livestock vehicle floors, livestock house pedals, feed processing plant floors.

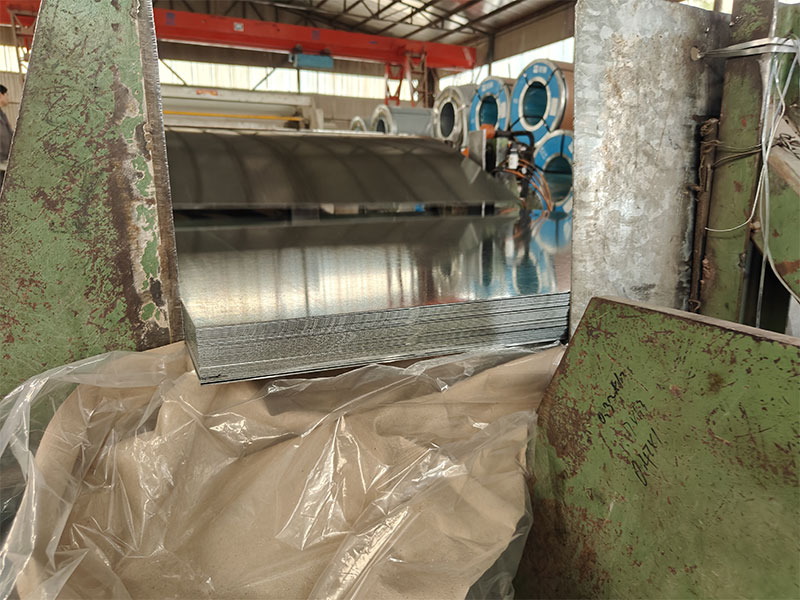

Galvanized Checker Plate Factory
Wanzhi Group is a Chinese-based galvanized steel manufacturer. We produce hot-dip galvanized and electrogalvanized steel, offering further processing services such as painting, bending, slitting, forming, and stamping. With an annual production capacity of 600,000 tons, we can provide customized solutions and offer free samples.
- Quality Assurance: Our Galvanized Checker Plates strictly adhere to international standards such as ASTM A653 and EN ISO 1461, ensuring the coating thickness and adhesion meet the standards.
- Fully Customizable: We offer a variety of thicknesses, sizes, coating grades, and patterns to meet your specific project needs.
- Processing Services: We provide precise cutting, drilling, and welding pre-fabrication services, saving you time and costs during on-site installation.
- Professional Packaging: Moisture-proof packaging ensures the product remains in optimal condition even after long-distance transportation.
Checker Plate and Embossed Steel
| Feature | Galvanized Checker Plate | Other Embossed Galvanized Steel |
| Function | Anti-slip | Decoration, aesthetic, hide surface defects, special texture |
| Pattern Design | Regular, high relief (usually 1.0-1.5mm), symmetrical | Irregular, low relief, mimicking natural textures |
| Key Performance | Anti-slip coefficient, load-bearing capacity, impact resistance | Coating adhesion, aesthetic, fingerprint resistance |
| Touch Sensation | Strong concave-convex feel, noticeably rough | Relatively smooth, with a delicate texture |
Galvanized Checker Plate VS Stainless Steel Checker Plate
| Feature | Galvanized Checker Plate | Stainless Steel Checker Plate |
| Core Material | Low carbon steel + Hot-dip galvanized layer | Alloy steel (such as 304, 316L) with chromium, nickel, etc. |
| Corrosion Mechanism | Zinc layer corrodes first | Dense, stable passive film on the surface |
| Corrosion Resistance | Good | Excellent |
| Strength and Hardness | High. Base material is strong, but the zinc layer is soft and prone to scratches. | Relatively high. Some grades (e.g., 304) may be softer and prone to deep scratches. |
| Cost | Low. Economic choice. | Very high. Expensive. |
| Aesthetic | Industrial silver-gray appearance, rust may appear after wear. | Modern, clean, aesthetically pleasing, maintains metallic luster, easy to clean. |
| Maintenance Requirement | Regular inspection needed; re-coating required after zinc layer is exhausted. | Almost maintenance-free, only routine cleaning needed to maintain appearance. |
| Weight | Heavier | Slightly lighter |
| Welding and Processing | Easy to weld and process. | Difficult to process. |
Wanzhi Gorup sells galvanized steel, embossed galvanized sheet, and other various steel products. Galvanized checker plate, a hot-dip galvanized steel plate with a raised diamond or teardrop pattern, offers the perfect combination of anti-slip safety, high strength, and excellent corrosion resistance. Contact us for a free quote!
