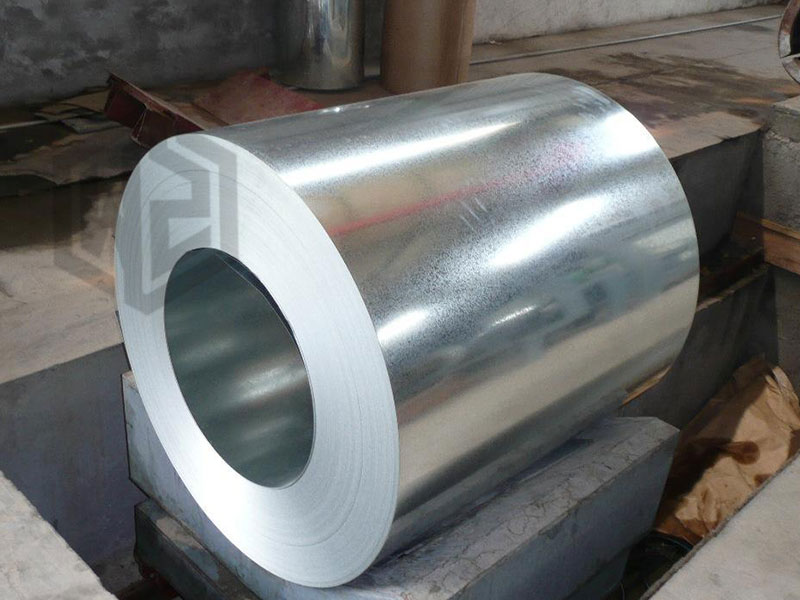

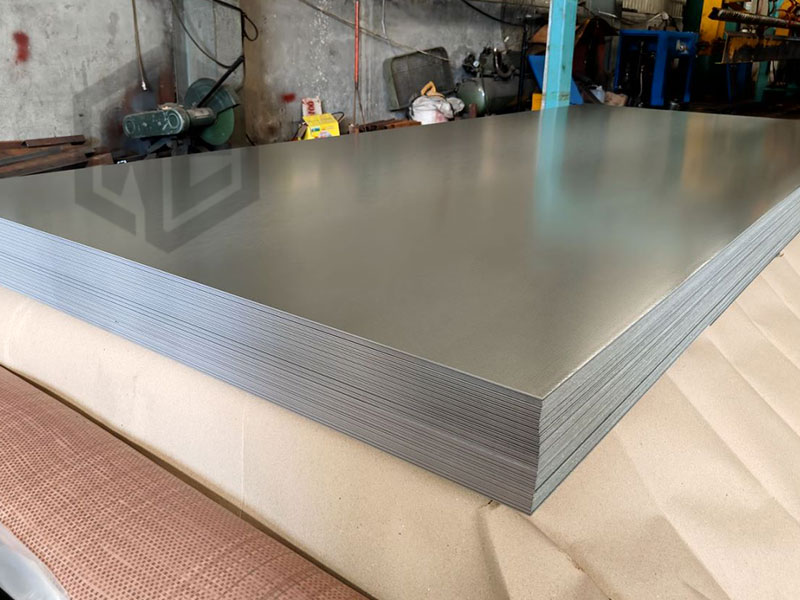

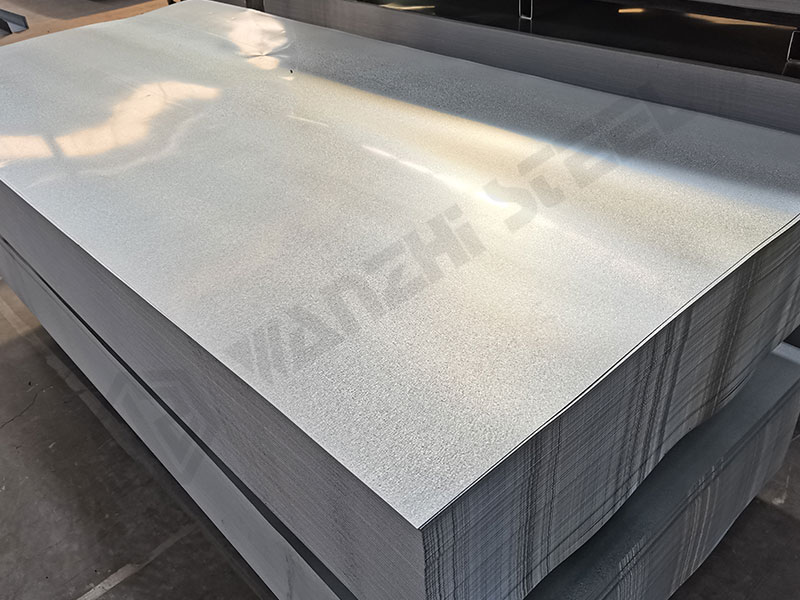

DX52D Galvanized Steel is a European standard EN10346 hot-dip galvanized steel grade with the best comprehensive cost performance for medium-depth stamping (automotive interior parts, building brackets), maintaining ≥22% elongation at a yield strength of ≥140MPa. At the same time, as a cold-rolled weldable hot-dip galvanized steel, DX52D GI steel coil and sheet can withstand stamping, bending and other processing, and is widely used in construction, industry, automobile and other fields.
DX52D Mechanical Properties
| Parameter | Value Range |
| Tensile Strength | 280-500 MPa |
| Yield Strength | 160-300 MPa |
| Elongation | ≥18% |
| Hardness | HV 50-120 (galvanized coating) |
DX52D GI Steel Surface Treatment and Effect
Coating type
- Zinc coating thickness: 20-350 g/㎡, which can be controlled by adjusting the dipping time.
- Surface structure: smooth (smooth surface) or spangle (increase coating adhesion).
- Coating system: DX52D+Z pure zinc (99%Zn), DX52D+AZ aluminum zinc (55%Al-43.4%Zn-1.6%Si), DX52D+ZAM zinc aluminum magnesium (Zn-6%Al-3%Mg)
Additional surface treatment
- Chemical treatment: passivation (chromate or chromium-free passivation)/phosphating to improve corrosion resistance.
- Oil coating: reduce friction damage during storage and transportation.
- Organic coating PPGI/PPGL: such as epoxy resin coating, polyester coating, fluorocarbon coating, used in high corrosion environment (need to be customized).
Surface effect
- Regular zinc spangle: Regular zinc spangle
- No zinc spangle: Uniform matte surface
- Uniform matte surface: Mirror/satin effect
DX52D VS DX51D,DX53D,DX54D
| Parameter | DX51D | DX52D | DX53D | DX54D(+) |
| Tensile Strength | 270–420 MPa | 270–500 MPa | 260–440 MPa | 260–440 MPa |
| Yield Strength | ≥140 MPa | ≥140 MPa | ≥140 MPa | ≥120 MPa |
| Elongation (A₈₀) | ≥24% | ≥22% | ≥26% | ≥28% |
| n Value (Work Hardening Index) | ≥0.18 | ≥0.18 | ≥0.20 | ≥0.22 |
| r Value (Plastic Strain Ratio) | ≥1.1 | ≥1.3 | ≥1.5 | ≥1.8 |
| Main Advantages | Lower strength, high ductility | Balanced strength and ductility | High uniform elongation | Super-deep drawing performance |
| Application Scenarios | Indoor appliances, short-term outdoor use | Construction, automotive, moderate corrosion environments | Complex automotive stamping parts (e.g., oil pan) | Structural components, high-strength requirements |
DX52D Equivalent Grade
| Performance Grade | EN 10346 (European Standard) | ASTM A653 (American Standard) | JIS G3302 (Japanese Standard) | GB/T 2518 (Chinese Standard) |
| Basic Forming Grade | DX51D | SS Grade 33 | SGCC | DX51D+Z |
| Balanced Grade | DX52D | SS Grade 40 | SGCD2 | DX52D+Z |
| Deep Drawing Grade | DX53D | SS Grade 50 | SGCD3 | DX53D+Z |
| Super Deep Drawing Grade | DX54D(+) | SS Grade 60 | SGCD4 | DX54D+Z |
Application and Advantages of DX52D Galvanized Steel
DX52D galvanized steel has become the preferred metal material for deep-drawn structural and functional parts in moderately corrosive environments due to its mechanical properties, corrosion resistance, and processing adaptability. Its application range covers many fields such as construction, automobiles, electricity, and home appliances.
Advantages
- Balance of mechanical properties: tensile strength: 280-500MPa, yield strength: 160-300MPa, elongation: ≥18%, DX51D galvanized steel balances strength and ductility
- Wide adaptability of coating: the surface can be zinc coated, aluminum-zinc-coated, and zinc-aluminum-magnesium alloy
- Corrosion resistance: the zinc layer provides corrosion protection.
- Processing adaptability: can be stamped, bent, welded and other processing
Application
- Construction field: building exterior wall keels, roof purlins, bridge guardrails, roof panels/wall panels, interior partitions
- Automobile manufacturing: car door inner panels, fuel tank brackets, structural reinforcements, chassis guard plates, seat frames
- Electric power facilities: cable trays, distribution box shells, wind power tower internal structures
- Home appliance manufacturing: home appliance side panels, liner, shell, air conditioning radiator
- Transportation facilities: highway guardrails, traffic track fixings

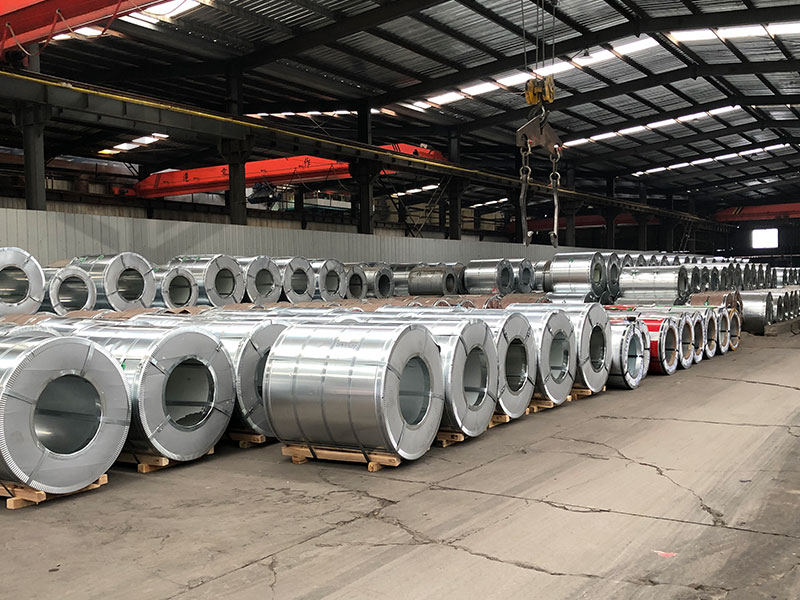

DX52D Galvanized Steel Factory
Wanzhi Group provides galvanized steel that meets EN 10346, EN 10346, EN 10346, GB/T 2518 standards for applications in construction, industry and other fields. In addition to DX52D galvanized steel, our popular grades include DX51D, DX52D, SGCC, SGCD, SS Grade 250/345, CS Type A/B/C, etc.
If you are looking for deep drawing grade galvanized steel, please contact us. We provide solutions for applications in various fields such as construction, automobiles, and electricity in different corrosive environments.
