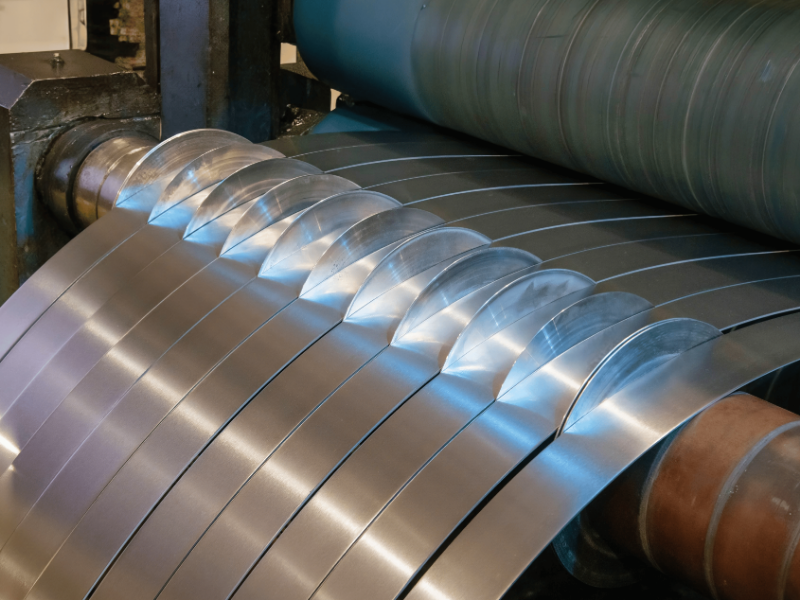

Slitting steel coils is a precision processing technique that cuts wide master coils into custom narrow strips, featuring precise dimensions, smooth cut edges and high material utilization rate. These slit strips are widely applied in construction, automotive, home appliance, electrical and other industries. Wanzhi Group delivers professional slitting services for cold rolled, hot rolled, galvanized, prepainted and stainless steel. Customized sizes and dimensional tolerances are available. We also provide one-stop auxiliary solutions including handling, bundling, packaging, labeling and palletizing to help clients cut production costs and improve processing efficiency.
Slitting Steel Coils Technical Parameters
| Item | Details |
|---|---|
| Common Grades | Q195, Q235A, Q235B, SPCC, St12, St13, DC01, SPCE, DC03, DC04, DC05, etc. |
| Hot Rolled Steel | Thickness: 1.2-16 mm, Width: 50-600 mm |
| Cold Rolled Steel | Thickness: 0.5-3 mm, Width: 50-600 mm |
| Galvanized Steel | Thickness: 0.12-1.5 mm, Width: 50-600 mm |
| Prepainted Steel | Thickness: 0.12-1.5 mm, Width: 50-600 mm |
| Stainless Steel | Thickness: 0.3-4 mm, Width: 50-600 mm |
| Coil Weight | 3-8 tons, can be customized |
| MOQ | 10 tons |
| Quality Certificates | SGS, ISO, BV, CE etc. |
| Standard | GB/JIS/ASTM/EN |
| Package | Standard export packaging or as per clients’ requirements |

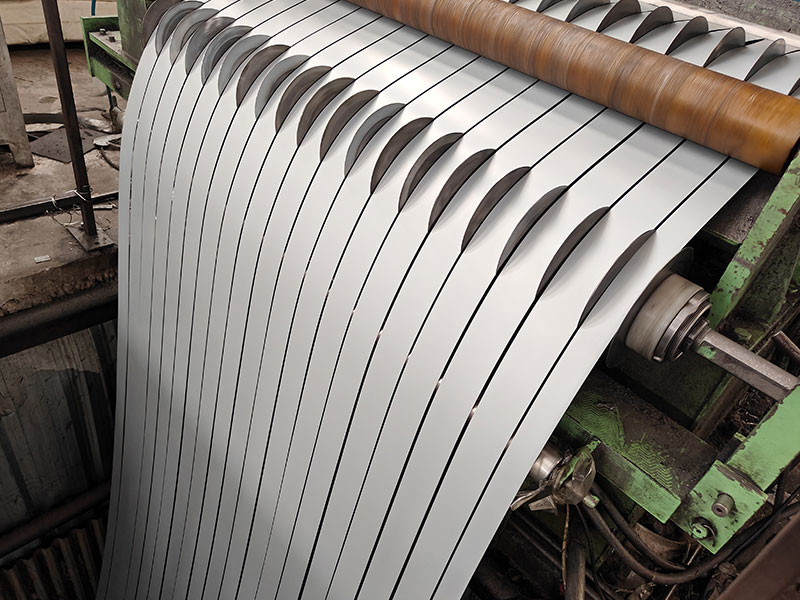

Production Process of Slitting Steel Coils
- Uncoiling: Raw master steel coil is loaded onto uncoiler to unwind flat steel strip.
- Leveling: Strip passes through leveling machine to eliminate camber & surface irregularity.
- Precision Slitting: High-speed cutter splits wide strip into customized narrow widths with smooth burr-free edges.
- Edge Trimming: Optional edge trimming removes uneven sides for tight tolerance.
- Recoiling: Finished narrow strips are rewound into compact slit coils.
- Final Packing: Coils are bundled, labeled & palletized per export standards.
Surface Standard & Spangle Finish of Slitting Steel Coils
- Surface Standard: Slit coils shall be free from bubbles, scars, cracks, folds and inclusions without delamination. Minor red oxide scale is acceptable; other minor surface flaws cannot protrude or recess over half of thickness tolerance. Defect polishing is permitted as long as minimum strip thickness & width are kept with smooth polished area.
- Spangle Options: There are four spangle types: regular, big, small and zero spangle. Precision slitting safeguards the original zinc coating without peeling or scratching, keeping spangle patterns complete across finished strips.
Advantages & Applications of Slitting Steel Coils
Cold Rolled Steel
Hot Rolled Steel
Prepainted Steel
Stainless Steel
Comparison of Slitting Steel Coils
All five steel materials feature precise slitting accuracy, smooth burr-free edges and high material utilization. Wanzhi Group own 2 galvanized steel production lines and 3 prepainted steel production lines, providing full-range slitting services for the above steel types. We support personalized size, precision and surface customization for diverse application scenarios, delivering reliable and tailored material solutions to support customers’ various project demands.
| Material Type | Anti-corrosion | Weather Resistance | Heat Resistance | Hardness | Cost |
| Cold Rolled Steel | Moderate | Moderate | Moderate | Medium | Moderate |
| Hot Rolled Steel | Poor | Poor | Medium | Low | Low |
| Galvanized Steel | Excellent | Excellent | Medium | Medium | Moderate |
| Color Coated (Prepainted) Steel | Excellent | Superior | Moderate | Medium | High |
| Stainless Steel | Superior | Superior | Excellent | High | High |
How to Choose Slitting Steel Coils for Your Project?
- Application Needs: Clarify working environment (indoor/outdoor, corrosive atmosphere) and mechanical requirements like forming, stamping or structural loading.
- Material Grade: Select from HR, CR, galvanized, prepainted or stainless steel based on target anti-corrosion, ductility, hardness and appearance demands.
- Size Specification: Confirm customized slitting thickness and finished width to match subsequent production assembly standards.
- Budget Control: Pick economical HR/CR for common use, galvanized for cost-effective anti-rust, prepainted/stainless for high-end projects.
Slitting Steel Coils Supplier – Wanzhi Group
Wanzhi Group is an ISO-certified steel manufacturer and supplier based in Boxing County, Binzhou City, Shandong Province, China. We operate well-established slitting lines and complete auxiliary processing equipment to supply slit steel coils in various specifications. Rigorous production management ensures precise dimensional tolerances, which improves processing efficiency and reduces material waste effectively. All products conform to international standards of ASTM, GB, JIS and EN. We deliver in-stock goods promptly, and the lead time for customized products ranges from 5 to 45 days.
Global Services
Apart from slit coils, Wanzhi also supply a wide range of steel products including GI/GL sheets & coils, PPGI & PPGL sheets and coils, PPAL coils, corrugated sheets, metal roof panels and stainless steel products. Our products are exported to more than 120 countries and regions globally to meet diverse project demands of customers.
Wanzhi Steel – Agricultural Greenhouse Project in Turkmenistan
550 tons PPGI Steel Coil to Azerbaijan
100 tons of Galvanized Coils to Saudi Arabia
144 ton Steel Wire to Spanish
Project of PPGI Roofing en Libya
100 tons of GL and PPGL in Solomon Islands
Wanzhi Steel Factory
Wanzhi factory runs 8 modern production lines certified with ISO9001, ISO14001 and ISO45001, alongside dedicated sample inspection and quality testing rooms. We install full sets of high-precision equipment for slitting, leveling, film coating and painting. And, our factory delivers various deep processing services including bending, punching, forming, stamping, coating and special-shaped fabrication.
- Supply & Export Support: Wanzhi’s product range covers diverse raw metal materials and finished products worldwide across South America, Africa, the Middle East, Southeast Asia and Europe. Located close to Qingdao Port and Tianjin Port, we accept multiple trade terms such as EXW, FOB and CIF. We handle customs declaration, commodity inspection and shipping booking to guarantee on-time delivery.
- One-stop Service: Our team delivers full-process services covering material selection, technical consultation, customized production and delivery, with 24-hour online customer support available.
- Quality Certificates: Wanzhi factory implements strict full-process management from raw material procurement, production and processing to quality inspection and finished product packaging to ensure stable and high-quality goods for customers’ projects. We provide Original Mill Test Certificates (MTC), and accept third-party inspections by SGS, BV, TUV and other institutions.
- Free Samples: An exclusive on-site sample lab supports traceability services for existing partners, alongside complimentary test samples for incoming quality checks.
Packages
Most exported steel sheets and coils adopt standard export packaging with plastic film, moisture-proof paper, galvanized iron sheets and edge protectors. We also provide customized packaging options including wooden pallets and customized logo printing as per customer requests.
Customer Visits and Reviews
So far, our factory has received customer visits from over 40 countries and regions. Our products including galvanized steel coils, galvalume sheets, prepainted galvanized coils, galvanized steel wires, metal roof panels, corrugated sheets and galvanized wire mesh are exported globally. Customers highly recognize our tight dimensional tolerances, consistent product quality and on-time delivery, maintaining long-term stable cooperation with Wanzhi Group.
No matter you are engaged in construction, automobile, home appliance, agriculture or other industrial sectors, Wanzhi Group can supply qualified steel products complying with local regulations together with supporting services. Feel free to contact us if you have any interest in our items; our sales managers will provide free quotations and customized solutions promptly!
