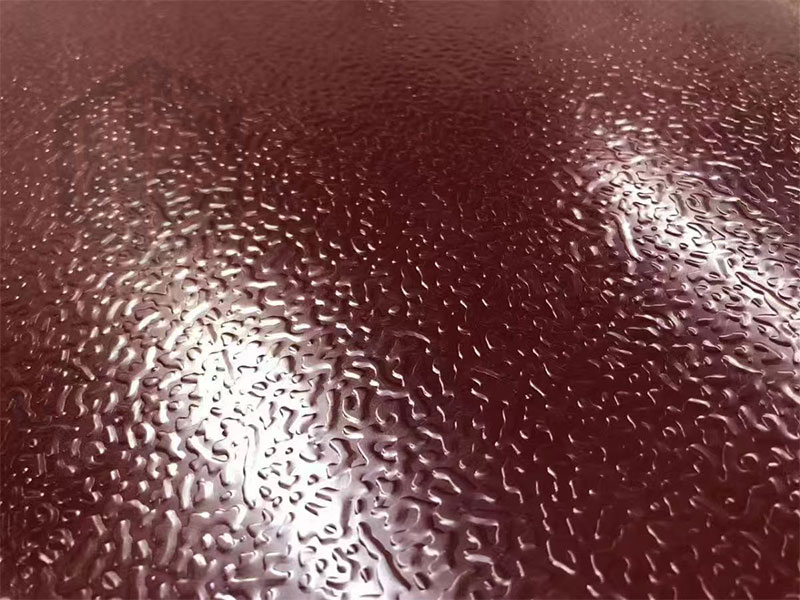

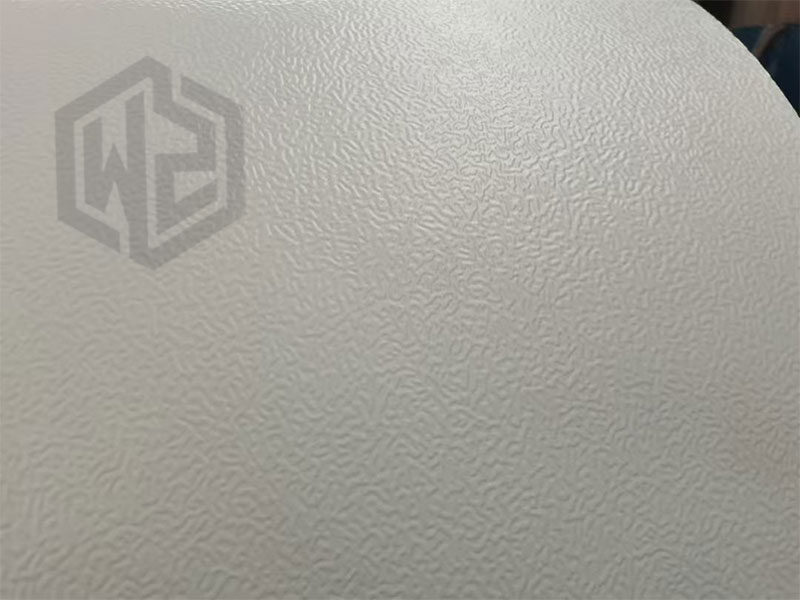

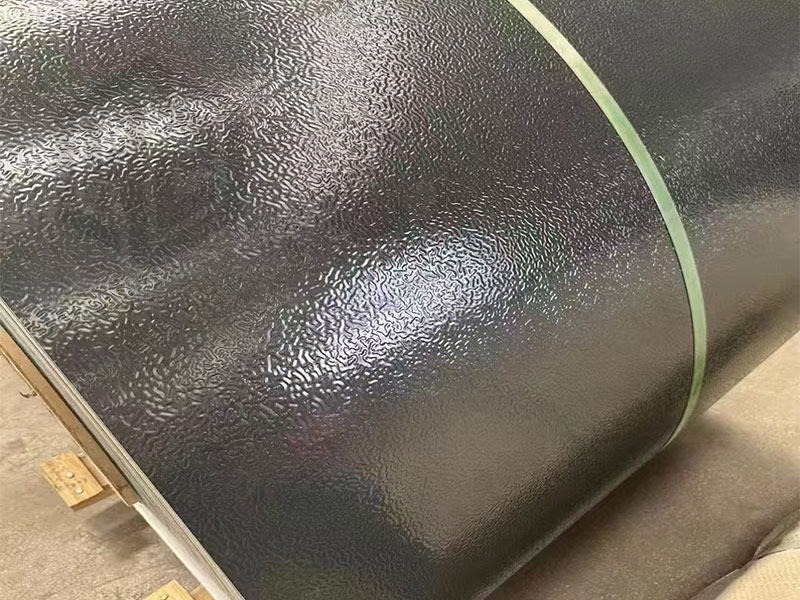

Orange Peel PPGI coils feature a special surface effect that serves as a decorative element and increases surface friction. Orange Peel is a special coating that mimics the uneven texture of citrus fruit peels, a type of textured PPGI coil that falls between glossy and rough. Options include subtle, standard, and heavy orange peel, depending on the degree of roughness.
Orange Peel Process
- Substrate Preparation: First, degrease and clean the galvanized steel coil. Then, a chemical conversion coating is formed on the surface through a chromium-free passivation or chromization treatment.
- Primer Application: Select epoxy resin (EP), polyurethane, or polyester as the coating. Roll-coat a 5-20 micron thick film on the galvanized steel surface.
- Topcoat Application – Orange Peel Formation: Select a functional paint such as polyester, fluorocarbon, or highly weather-resistant polyester as the topcoat. Use a micro-dimpled textured roller to apply one or more layers of the textured coating to the steel surface.
- Texture Curing: High-temperature heating is used to cure the texture.
- Cooling: The cured PPGI steel is cooled by air quenching and then used.
- Coiling: The coil is stored and shipped.
Orange Peel PPGI Coil Advantages
- Scratch Concealment: The orange peel texture scatters light, making minor scratches imperceptible to the naked eye. It also shields against transportation scrapes and is abrasion-resistant and scratch-resistant.
- Fingerprint Resistance: The textured surface reduces hand contact, making it less likely to leave marks. Improved coating adhesion: The roughened surface area increases by 20-30%, enhancing the mechanical bond between the coating and the substrate.
- Optical comfort: Low reflection, reduced glare, suitable for bright light environments.
- High thickness tolerance: The convex and concave surface can mask minor substrate unevenness or coating thickness fluctuations (±3μm).
- Aesthetics: The textured surface of PPGI creates a commercial look and offers excellent decorative appeal.
- Corrosion resistance: Metal coatings and colored paint coatings provide corrosion protection.
Orange Peel PPGI Coil Applications
- Home Appliances: Side panels for high-end appliances, air conditioner casings
- Building Interiors: Exterior walls, roofs, billboards, interior ceilings, elevator cars, partitions
- Office Furniture: File cabinets, conference desk panels
- Industrial Equipment: Control cabinets, instrument casings
- Transportation: Vehicle panels, carriage panels, subway interior panels, luggage racks
- Logistics Containers: Refrigerated equipment
Orange Peel vs. other Surface Treatments
| Characteristic | Orange Peel PPGI | Smooth PPGI | Embossed PPGI |
| Surface Feel | Soft, grainy texture | Absolutely smooth | Three-dimensional embossed pattern |
| Scratch Resistance | Strong | Average | Strong |
| Cleaning Difficulty | Easy to clean (shallow texture) | Prone to water stains | Difficult to clean (deep grooves) |
| Design Sensibility | Subtle, light industrial style | Modern minimalist | Retro/natural texture imitation |
Orange Peel PPGI Coil VS Galvanized Embossed Sheet
| Characteristic | Orange Peel PPGI Steel Coil | Galvanized Embossed Steel |
| Material | Galvanized steel coated with organic coating | Galvanized steel |
| Corrosion Resistance | 1000-1500 hours without red rust | 500-800 hours, edge rusting |
| Weather Resistance | Excellent | Average |
| Decorative Quality | High | Average |
| Edge Protection Ability | Primer blocks corrosion spread | Zinc layer consumption accelerates at the edges |
| Resistance to Moisture and Heat | 2000 hours ΔE < 1.5 | 500 hours, ink bubbling |
| Texture Lifetime | ≥15 years (same as coating lifetime) | 3-5 years (pattern wear) |
| Cost | High | Low |
Orange Peel PPGI Coil Manufacturer
Wanzhi Group is a Chinese color-coated steel manufacturer and supplier. We offer Orange Peel PPGI Coil, Orange Peel Galvanized Coil, Orange Peel Aluminized Steel Coil, and other metal materials in a variety of materials and styles for global applications in construction, industrial production, and factory processing. Our factory is ISO9001 and ISO14001 certified and offers free sample requests, customized solutions, and free quotes. Please feel free to contact us.
Orange Peel PPGI Coil is widely used in applications requiring long-lasting corrosion protection, high-end decorative finishes, and corrosion resistance. In addition to orange peel, Wanzhi Group also offers PPGI coil with various surface effects, including printed patterns and wrinkles. Please leave a message for inquiries.
