Last month, a Turkish customer purchased 5,000 tons of high-quality Galvalume coils and PPGL coils from Wanzhi Group, covering various thickness specifications ranging from 0.15mm to 0.8mm. Recently, the customer authorized his partner in China to visit our modern production base in Boxing County, Binzhou City, Shandong Province, to conduct an acceptance inspection of this batch of goods!
Customer Itinerary
This visit was conducted based on the cooperative intentions previously established between the two parties; during the visit, the client conducted an on-site inspection and confirmed the quality of the initial batch of galvalume and PPGL products. The client expressed high commendation for both the product quality and the management system at Wanzhi Factory.
Galvalume Coil Standards
| Item | Standard Requirements | Reference Specifications |
| Substrate Material | DX51D+AZ, DX52D+AZ, S250GD+AZ, etc. | EN 10346 |
| Coating Weight | Double-sided coating weight | Three-point weighing method |
| Mechanical Properties | Yield strength, tensile strength, and elongation meet grade requirements | EN 10346 / ASTM A792 |
| Surface Quality | No zinc spots, scratches, passivation stains, or oil stains; minor defects allowed per standard grading | GB/T 708, EN 10346 |
| Dimensional Tolerances | Thickness, width, sickle curvature, and flatness meet order requirements | GB/T 708, EN 10131 |
PPGL Coil Standards
| Item | Standard Requirements | Reference Specifications |
| Substrate Requirements | First meet Galvalume coil standards, then apply coating | —— |
| Coating Thickness | As specified by the customer | GB/T 13448, ASTM D5796 |
| Color Difference | ΔE ≤ 1.0 (compared to standard color plate) | Visual inspection + colorimeter |
| Pencil Hardness | ≥ 2H (Mitsubishi pencil) | GB/T 6739 |
| Adhesion | Cross-cut test Grade 0 (1mm grid, no peeling) | GB/T 9286, ASTM D3359 |
| Bending Performance | 0T–3T (depending on thickness and coating type) with no cracks | GB/T 13448 |
| Impact Resistance | No peeling at 9J impact | GB/T 13448 |
| Salt Spray Resistance | As required by the customer | ASTM B117 |
| Aging Performance | QUV 1000 hours, gloss retention ≥70%, color difference ≤3 | ASTM G154 |

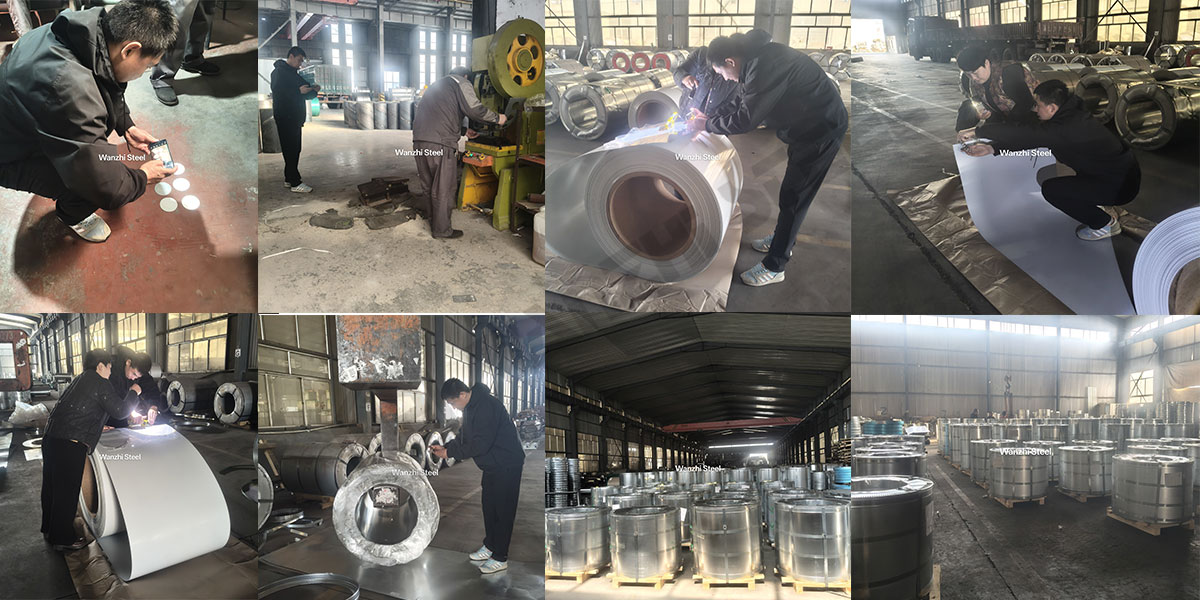

Customer Acceptance Process
- Document Verification: Check whether documents such as the quality certificate, packing list, and bill of lading are consistent with the actual goods.
- Visual Inspection: Randomly uncoil several rolls to inspect surface quality, color uniformity, and packaging integrity.
- Dimension Re-measurement: Measure thickness with a micrometer and width with a tape measure to ensure they are within tolerance.
- Performance Re-testing: Conduct on-site inspections of coating thickness, adhesion, and salt spray resistance.
- Sample Sealing: Wanzhi Factory’s sample room retains sealed samples from the same batch for customer comparison.
- Warehouse Management: Visit the warehouse to confirm clear identification of steel coils and secure packaging.
Turkish Customer Feedback
The 5,000 tons of Galvalume and PPGL products purchased by the Turkish customer this time are primarily intended for distribution in the local building materials market. During the acceptance process, the customer focused on verifying the color difference, mechanical properties, and coating weather resistance of samples across different thickness specifications. The customer expressed satisfaction. Additionally, Wanzhi Group’s production team worked alongside the customer to complete the sealing of samples and steel coil packaging.
Wanzhi Group insists on providing high-quality steel to customers across various industries. Through strict acceptance standards and a transparent acceptance process, we ensure that every coil of Galvalume and PPGL product meets or even exceeds customer expectations. If you are looking for a coated steel supplier, feel free to contact us.
