Aluzinc Coils (55% Al-Zn Alloy Coated Steel Coil, GL Coil), one of the popular metal materials for building structures, appliance panels, automotive exterior panels, and galvanized coils, zinc-aluminum-magnesium coils collectively referred to as metal-coated steels, is one of the popular metal materials of the Wanzhi Group, with excellent corrosion resistance, weatherability, light weight, wear resistance and other characteristics. We support free sample request and quality inspection by third-party testing organizations.
Aluzinc Coils – Specification
Wanzhi Group, as a professional aluzinc coils factory supplier, produces a wide range of metal coils with various specifications and material grades, coating thicknesses and surface qualities.
| Type | Galvalume Steel |
|---|---|
| Thickness | 0.15-6 mm |
| Width | 600-1250 mm |
| Packing Weight | 5-10t, customize |
| Aluzinc Coating | AZ20-AZ350 g/m2, 40-150 micron. |
| Surface Finish | oiled, chrome plated, anti-fingerprint, lacquered, etc. |
| Quality | SGS, ISO, support third-party organization testing |
Material Grade
| Grade | Yield strength (MPa) | Elongation (%) |
| DX51D+AZ | 140-280 | ≥22 |
| S250GD+AZ | 250-330 | ≥18 |
| S350GD+AZ | 340-420 | ≥14 |
| HX380LAD+AZ | 380-480 | ≥16 |
Physical Property
| Parameter | Value |
| Density | 3.75 g/cm³ |
| Thermal Reflectivity (300nm) | 85% |
| Coefficient of Thermal Expansion | 22×10⁻⁶ /K |
| Continuous Operating Temperature | 600°C |
Mechanical Properties
| Parameter | Standard Value |
| Yield Strength (Rp0.2) | ≥350 MPa |
| Tensile Strength (Rm) | 420-520 MPa |
| Elongation (A80mm) | ≥14% |
| Bending Performance (180°) | d=0a qualified |
International Standards
| Standard System | Coating Standard | Substrate Standard |
| Europe | EN 10346 | EN 10143 |
| North America | ASTM A792/A792M | ASTM A653 |
| Japan | JIS G3321 | JIS G3302 |
| China | GB/T 14978 | GB/T 2518 |
| International | ISO 14788 | ISO 3574 |
Surface Treatment
- Phosphating
- Passivation
- Oil coating
- Film coating
- Paint coating
Aluzinc Coils Process
Wanzhi Group has one aluzinc coils production line, which provides production, processing and further processing services of aluminum zinc coated steel with an average monthly output of 10,000 tons, including aluzinc rolls, aluzinc profiles, aluzinc tubes, color coated aluzinc and so on.
Production
Raw Material Coil -> Uncoiler -> Alkaline Cleaning Tank -> Acid Cleaning Tank -> Reduction Furnace -> Aluminum Zinc Plating Tank -> Air Knife System -> Cooling Tower -> Passivation Tank -> Winding Machine
Cold rolled steel as raw material is degreased, acid washed and coated with a uniform aluminum zinc alloy coating on the surface of the steel material, which is then cooled down and rolled up to be ready for use.
Processing

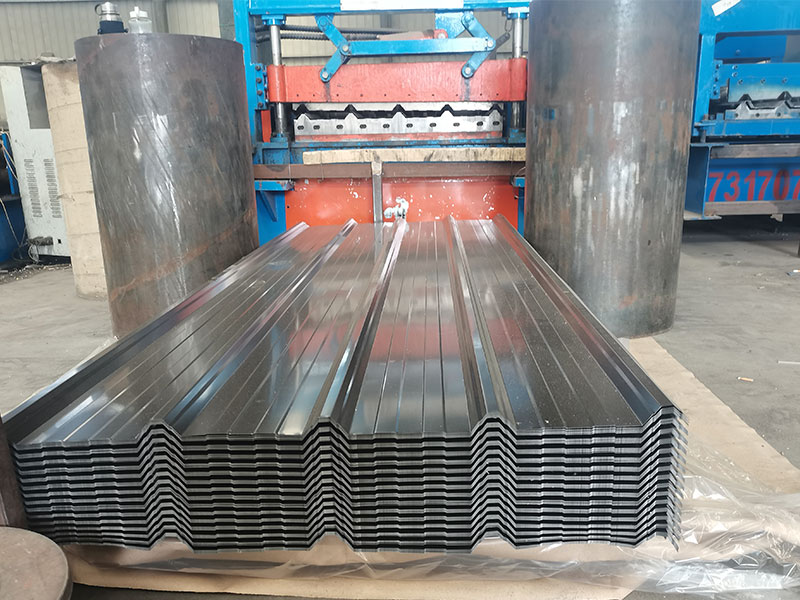

Aluminum-zinc alloy coils production line, we also have precision slitting and cold forming equipment. The width tolerance of the slitting machine is ±0.1mm, and the length tolerance is ±0.5mm. The molding equipment can process all kinds of aluzinc materials according to the customer’s requirements.
Further Processing

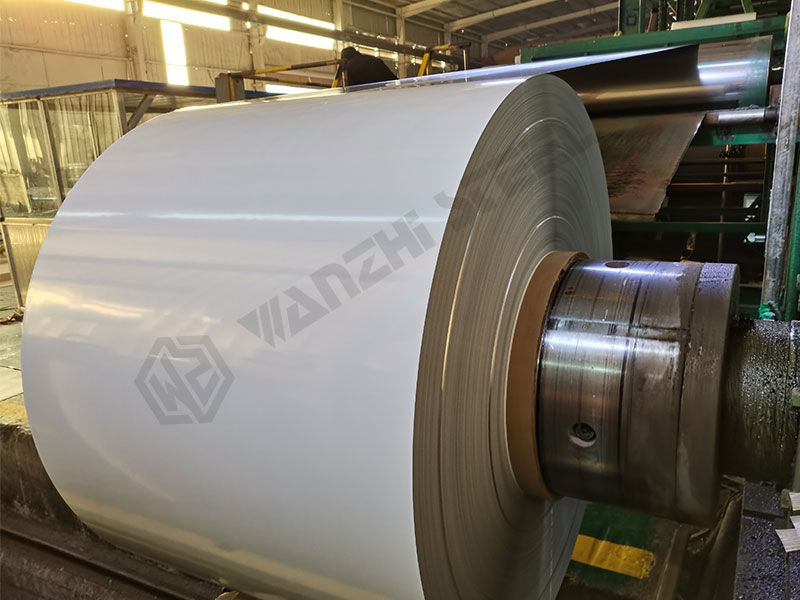

We have three painting lines, and laminating lines, mainly for the production of painted aluminum-zinc coils PPGL coil and sandwich panels. Color, paint, paint film, surface treatment, core material of sandwich panel can be customized according to requirements.
Aluzinc Coils Application Advantages
Aluminized zinc coils are widely used in construction, home appliances, automotive, transportation, agricultural equipment, industrial equipment and other fields.
Construction
Applications: roofing systems, curtain wall panels, steel structures
Recommended: DX51D/S320GD +AZ150 Aluzinc steel coils (can be surface painted)
Advantages: good corrosion resistance, high reflectivity, light weight, low maintenance costs.
Home Appliance Manufacturing
Applications: refrigerator side panels, oven shells, washing machine inner tubes
Recommended: DX51D + AZ60-AZ120 Aluzinc (surface can be roll coated with PE coating)
Advantages: high temperature and corrosion resistance, good processability, low maintenance costs.
Automotive industry
Application: exhaust system, muffler, exhaust pipe, body structure, underbody, wheel cover, new energy components, battery tray
Recommended: AZ100-AZ150 Aluzinc steel
Advantages: light weight, corrosion resistance.
Transportation
Application: Side/top panels of shipping containers, roof/floor of railroad wagons, inner wall of refrigerated trucks
Recommended: AZ150+ Aluzinc (surface can be stamped and painted)
Advantage: Extreme environmental protection, salt spray, corrosion and wear resistance.
Agricultural equipment
Applications: combine harvesters, silos, fertilizer hoppers greenhouses
Recommended: AZ100-AZ120 Aluzinc (surfaces can be silicone-sealed and painted)
Advantages: corrosion and abrasion resistance, etc.
Industrial equipment
Application: power station boiler heat exchanger, chemical tanks, construction machinery
Recommended: AZ60-AZ150 Aluzinc (the surface can be coated)
Advantages: resistance to corrosion of chemicals, high temperature, resistance to impact of debris and so on.
Aluzinc Coils – Customized
Aluzinc Coils consists of a substrate and a coating, the grade of the substrate determines its physical and mechanical properties, and the thickness of the coating determines its corrosion resistance, Wanzhi Group offers customized solutions for architectural and industrial applications, which can be manufactured and processed according to the needs of the application, and can also provide cost-effective solutions according to the environment. If you are looking for coated steel OEM ODM, we are your ideal partner.
Aluzinc Coils Factory
Our factory is located in Boxing County, Binzhou City, Shandong Province, China. We have Aluminum Zinc Plating, Painted Aluminum Zinc Plating production and processing services, Cold Rolled Coil (CRC) and Hot Rolled Coil (HRC) in stock, as well as a small amount of regular sized Aluminum Zinc sheet Coil in stock, which can be specified by the coil thickness, width, coil weight, surface finish and so on. For a tour of the galvanizing plant, please contact us.
Aluzinc Solutions
- Construction steel: We provide different solutions for durability, insulation and aesthetics of aluzinc sheet for roofing, walling, piping and other construction areas, as well as upgraded sheet painted steel solutions for different climatic conditions.
- Industrial steel: Our aluzinc steel for the automotive, home appliance, and machinery manufacturing industries focuses on high strength, light weight, and processability, and we can change the substrate material and improve the thickness of the plate according to the needs of the application.
- Raw material processing: We also provide steel raw materials for various processing plants, including cold rolled coils, hot rolled coils, galvalume steel coils, galvanized coils, and so on.
Customer Feedback
Until now, our Aluzinc Coils, GI coils, PPGI coils, PPGL coils, PPAL coils and other coated steels have been exported to all over the world, and we have received real feedbacks from our customers from different fields such as factories, construction projects, traders and so on.
If you are looking for high quality Aluzinc Coils and sheets for your project, please contact us, our products have a 98% return rate, and the quality and quantity of our products are always recognized by our customers!
