Color coated aluminum sheet is manufactured from premium aluminum substrates and high-performance coatings through cleaning, roller coating and high-temperature baking processes. Featuring light weight, corrosion resistance, weather resistance and UV resistance, it is widely used in architectural decoration, transportation, home appliance manufacturing and other fields. Equipped with professional aluminum pretreatment systems, roller coating production lines, Wanzhi Group supplies color coated aluminum coils and sheets. Customization of dimensions, colors and coating types is available.
Thickness: 0.15mm – 4.0mm
Width: 200mm – 2,000mm
Paint Type: PE, HDP, SMP, PVDF
Specification
| Product Name | Color Coated Aluminum Sheet / Pre-painted Aluminum Sheet |
|---|---|
| Thickness | 0.15mm - 4.0mm |
| Width | 200mm - 2000mm |
| Length | According to your requirements |
| Coating Type | PE, HDP, SMP, PVDF |
| Coating Structure | 2/1; 2/2; 3/2; 3/3 |
| Coating Thickness | Top: 11-35μm; Bottom: 5-14μm |
| Gloss Level | Matte, Semi-gloss, High Gloss |
| Color | As per RAL color, or customer sample |
| Surface Finish | Smooth, Embossed, Brushed, Anodized + Coated, Wrinkle Texture |
| Deep Processing | Punching, bending, cutting, welding, etc. |
| Tensile Strength | 80 - 290 MPa (Subject to alloy grade and temper) |
| Elongation | ≥ 8% |
| Impact Resistance | ≥ 50kg·cm |
| Pencil Hardness | ≥ 2H (PE coating); ≥ 3H (PVDF coating) |
| MOQ | 10 tons |
| Package | Standard export packaging or as clients requirements |

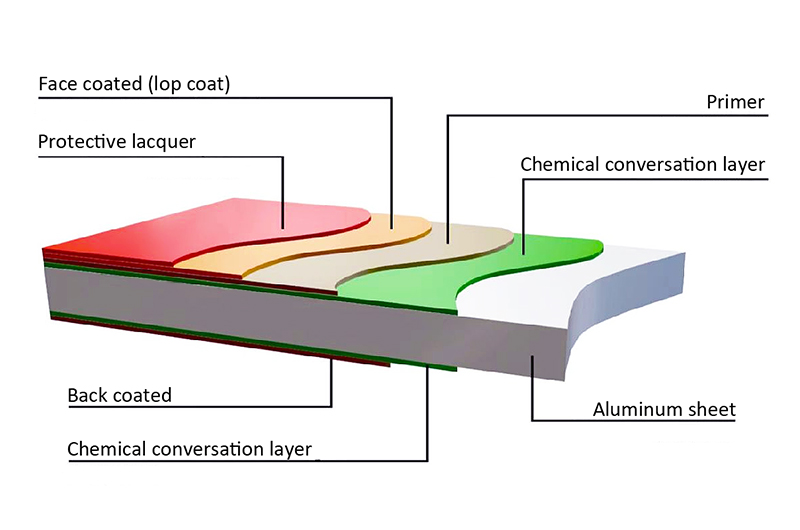

Layer Structure of Color Coated Aluminum Sheet
- Aluminum Sheet Substrate: It is the core base material with various aluminum alloy options. Good ductility and corrosion resistance fit diverse usage environments.
- Front-side Chemical Conversion Layer: Surface passivation improves adhesion between substrate and coatings to prevent paint blistering and peeling.
- Primer: This bonding layer connects the top coat and conversion layer, avoiding coating cracking or peeling during bending processing.
- Top Coat: The outer decorative and weather-resistant layer protects the substrate from UV rays, acid rain and abrasion.
- Back-side Chemical Conversion Layer: Passivation treatment on the back ensures stable adhesion of the back protective coating.
- Back Coated Layer: It protects the substrate against oxidation, moisture corrosion and scratches during stacking, transport and storage.
Color Coated Aluminum Sheet Production Process
- Raw Material Inspection: Check the specification, thickness and surface quality of aluminum coils.
- Surface Pretreatment: Degrease, clean and conduct chemical passivation to improve coating adhesion.
- Primer Coating & Curing: Apply primer evenly by roller coating, then bake to dry.
- Top Coating & High-temperature Baking: Roll coat the top finish paint and cure at a set high temperature.
- Cooling Treatment: Cool the coated aluminum coil to room temperature.
- Surface Quality Inspection: Check for color deviation, scratches, bubbles and coating defects.
- Finishing Processing: Rewind into coils or level and shear into aluminum sheets.
- Final Inspection & Packaging: Carry out overall inspection, pack finished products and store in warehouse.
Substrate Options of Color Coated Aluminum Sheet
| Alloy Series | Alloy Grades | Core Features | Applications |
| 1xxx Pure Aluminum | 1050/1060/1100 | High ductility, cost-effective, easy to process | Indoor decor, signage, thermal roofing |
| 3xxx Al-Mn Rust-proof | 3003/3004/3005/3105 | Excellent rust resistance, moderate strength, good bendability | Architectural roofing, cladding, profiled sheets, general outdoor |
| 5xxx Al-Mg High Strength | 5052/5083/5754 | High tensile strength, superior corrosion & fatigue resistance | Coastal curtain walls, chemical equipment, high-corrosion outdoor |
| 6xxx Al-Mg-Si Alloy | 6061/6063 | Medium strength, high corrosion resistance, good weldability | Building structural parts, decorative profiles, outdoor engineering |
Coating Types & Surface Finish
Wanzhi Group offers customized alloy grade, thickness, width, coating type, color, gloss and surface texture to meet your project needs.
Coating Types
- PE (Polyester): Economical coating with bright color and good flexibility, ideal for indoor and mildly corrosive outdoor projects.
- SMP (Silicone Modified Polyester): Better weather and anti-chalking performance than PE, widely used for conventional building exterior decoration.
- HDP (High Durability Polyester): Great UV and fade resistance, a cost-effective option for long-term outdoor construction use.
- PVDF (Polyvinylidene Fluoride): Premium fluorocarbon coating with superior weather and corrosion resistance, perfect for coastal and heavily polluted harsh environments.

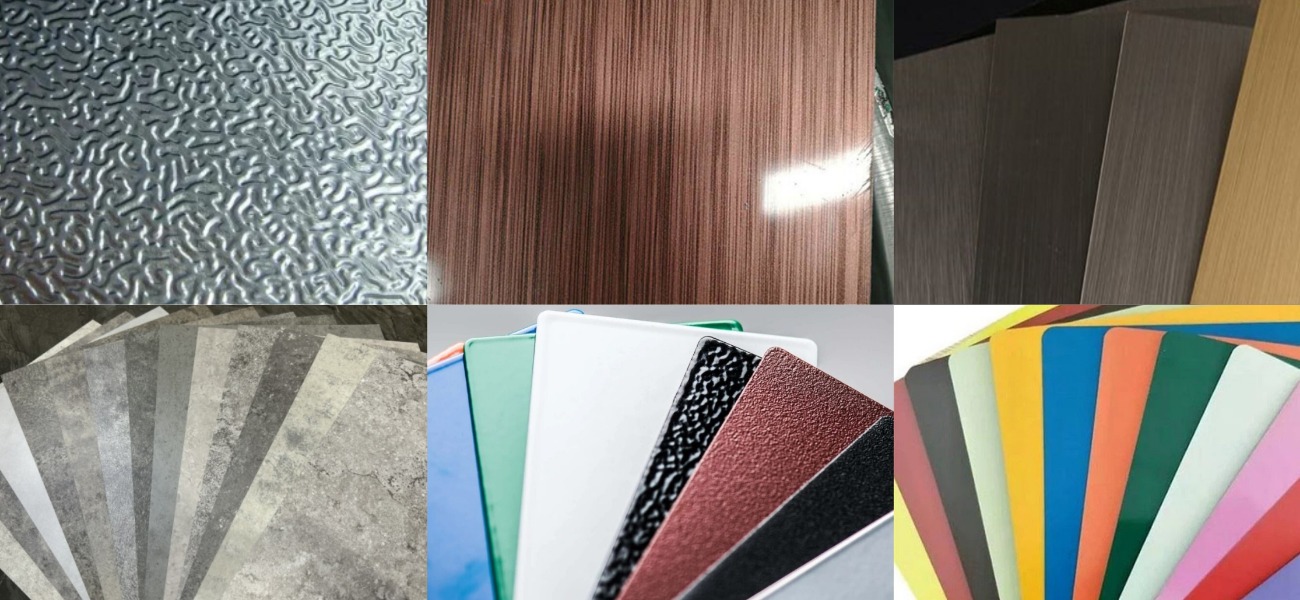

Surface Finish
- Smooth: Flat uniform surface for general architectural and appliance use.
- Embossed: 3D textures to enhance rigidity and cover minor surface flaws.
- Brushed: Fine linear metallic texture for high-end interior decoration.
- Transfer Printed: Simulated wood, stone or custom geometric patterns.
- Special Texture: Metallic finish, hammer finish for unique decorative effects.
Advantages and Applications of Color Coated Aluminum Sheet
Advantages
- Superior weather resistance: Resists UV rays, acid rain and extreme climates without fading or corrosion, perfect for outdoor use.
- Lightweight and high-strength: Cuts structural load while maintaining rigidity, easy to transport and install.
- Superior surface performance: Uniform roller coating ensures smooth, flat and color-consistent surface. It features high pencil hardness, good impact resistance and scratch resistance.
- Good processability: The sheet maintains excellent flexibility and bending performance. It supports bending, cutting, stamping and other deep processing without coating cracking or peeling.
- Stain-resistant and easy to clean: Dense coating repels dirt, requiring only simple wiping for maintenance.
- High cost-performance: Boasts a long service life with minimal maintenance costs, lowering long-term replacement expenses.
- Eco-friendly &recyclable: Aluminum material is 100% recyclable with low pollution. The whole production process is environmentally friendly, conforming to green building standards.
Applications

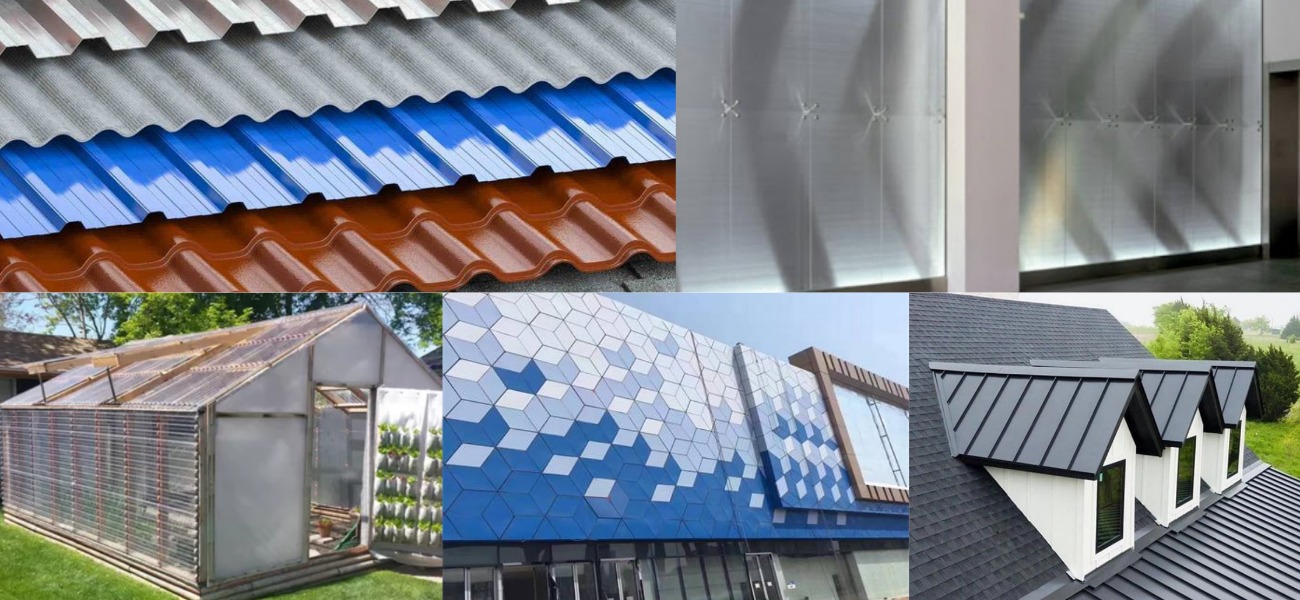

- Architectural Decoration: Widely used for building curtain walls, exterior wall cladding, roofing, ceiling panels and interior decoration.
- Home Appliance Industry: Applied for the surface panels of refrigerators, air conditioners, washing machines and other household appliances.
- Transportation Field: Suitable for interior and exterior decorative parts of automobiles, trains, ships and containers.
- Industrial Equipment: Used for equipment housing, ventilation ducts, color steel panels and industrial anti-corrosion components.
- Advertising & Decoration: Commonly adopted for billboards, signboards, decorative panels and outdoor display facilities.
Color Coated Aluminum Sheet Prices
The price of color coated aluminum sheets is affected by factors such as aluminum alloy grade, coating type, dimensional specifications, surface treatment and order quantity. Standard pre-painted aluminum sheets are priced between USD 2,500 and USD 4,000 per ton. Wanzhi Group sets a minimum order quantity of 10 tons with a lead time ranging from 5 to 45 days, offering factory wholesale prices. We also supply cold rolled steel, hot rolled steel, galvanized steel sheets, coils and steel wires, galvalume steel sheets and coils, color coated steel coils and sheets, color coated aluminum coils, corrugated metal sheets, stainless steel and other related products. Please leave your detailed requirements including specifications and order quantity, and we will provide you with an accurate quotation and customized solutions!
Maintenance Tips
- Clean the surface regularly with soft cloth and neutral detergent; avoid strong acid or alkaline cleaners.
- Do not use hard brushes or abrasive tools to prevent scratching the coating.
- Remove accumulated dust, rain stains and industrial pollutants in a timely manner.
- Keep drainage smooth to avoid long-term water stagnation on the sheet surface.
- Check regularly for coating peeling, cracking or fading; repair damaged areas promptly.
- Avoid prolonged contact with corrosive substances such as chemical solvents and salt spray.
- Do not weld or grind directly on the coated surface without protective measures.
Color Coated Aluminium Sheet Manufacturer & Supplier – Wanzhi Group
Wanzhi Group is a manufacturer and supplier of color coated steel sheets with rich experience in metal material production and global export business. Our factory is located in Boxing County, Binzhou City, Shandong Province, China, and has obtained ISO9001, ISO14001 and ISO45001 management system certifications. Our products comply with international standards including ASTM, EN, JIS and GB. We are equipped with professional aluminum surface pretreatment systems, fully automatic roller coating production lines, CNC leveling and shearing equipment as well as precision testing instruments. Our product range covers aluminum coils and sheets, color coated aluminum sheets and coils, color coated aluminum roof panels and other supporting aluminum products. We keep spot inventory of color coated aluminum sheets in conventional specifications and provide full-process OEM/ODM customization services to meet diverse requirements of customers’ projects.
Quality Assurance

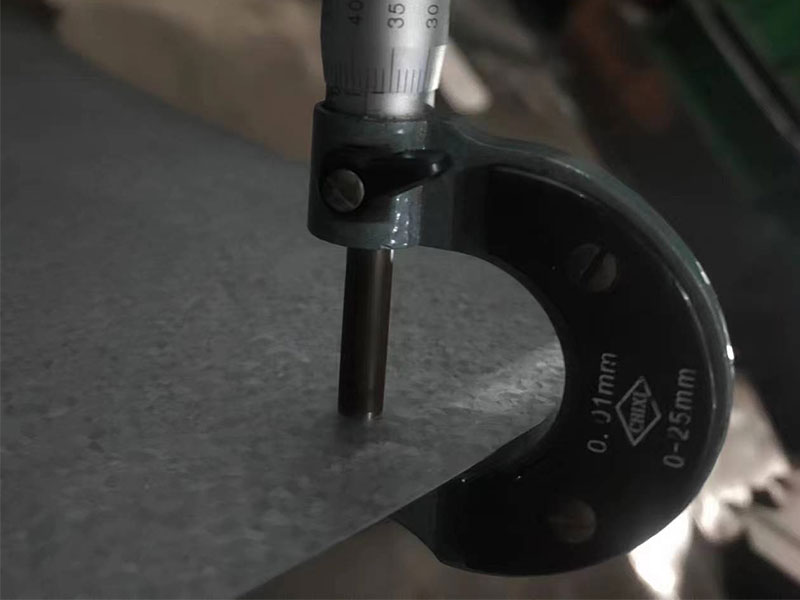

We implement strict full-process quality control. Raw aluminum substrates are inspected for alloy composition and mechanical properties. During production, coating thickness, color difference and gloss are monitored online in real time. Finished products undergo T-bending, impact, salt spray and QUV accelerated weathering tests. Full inspection reports and factory certificates are provided for each batch. Third-party inspections by SGS, BV, TUV and other authoritative organizations are accepted to guarantee compliance with relevant standards.
Wanzhi Steel Factory
- Export Support: Wanzhi Group supplies various metal raw materials and finished products worldwide, with business covering South America, Africa, the Middle East, Southeast Asia, Europe and other regions. We accept multiple trade terms including FOB, CIF and EXW, and can handle customs declaration, commodity inspection and shipping booking to ensure timely delivery of goods.
- Deep Processing Service: Wanzhi factory boasts professional processing equipment such as large laser cutting machines, CNC punching machines and CNC bending centers. We provide deep processing services including slitting, cutting, punching, stamping, bending, welding, film coating, embossing, painting and special-shaped processing.
- One-stop Service: Our professional team offers full-process customized solutions including material selection, technical consultation, customized production and delivery, with 24-hour online customer support available.
Packaging
We adopt standardized export packaging consisting of plastic film, moisture-proof kraft paper, galvanized steel sheets, corner protectors and wooden pallets. This packaging prevents products from collision deformation, moisture and rust, ensuring goods arrive intact at your project site. Besides, customized export packaging solutions are available upon your request.
Customer Feedback
Our GI, GL, PPGI, PPGL products have won wide recognition and favorable customer feedback thanks to reliable quality, fast delivery and thoughtful service. Moving forward, Wanzhi Group will keep supplying high-quality and cost-effective steel products for all clients.
Wanzhi Group provides all-round one-stop services covering material selection, technical consultation, production, delivery and after-sales support. If you want to know more about the production, technical parameters, prices of our color coated aluminum sheets and coils, or need to request samples, please leave us a message. Our product manager will contact you shortly!
