As a professional manufacturer and supplier of Color Coated Aluminium Coil, Wanzhi Group possesses extensive production experience in the color coil field, along with specialized aluminium coil pretreatment and coating lines, and a strict quality control system. We are committed to providing customers worldwide in industries such as building decoration, transportation, and home appliances with a one-stop service for high-quality color-coated aluminium coils that are lightweight, corrosion-resistant, and available in a rich variety of colors.
Color Coated Aluminium Coil: Stock & Customization
A Color Coated Aluminium Coil is a color coil composed of an aluminium substrate + a chemical pretreatment layer (conversion coating) + a high-performance primer + a colored topcoat. Wanzhi Group maintains an inventory of popular specification color-coated aluminium coils year-round and supports full-process OEM/ODM customization. Leave us a message with your application scenario and performance requirements, and we will provide you with the optimal substrate specification and surface treatment solution.
Substrate Selection
| Substrate Series | Representative Grades | Core Characteristics | Applicable Scenarios |
| 1xxx Pure Aluminium | 1050, 1060, 1100 | Purity ≥ 99%, excellent plasticity, good electrical and thermal conductivity, strong corrosion resistance | Lighting fixtures, decorative panels, chemical containers, radiators |
| 3xxx Manganese-Aluminium | 3003, 3004, 3105 | Preferred choice for building decoration, excellent rust resistance, medium strength, good formability | Building curtain walls, ceiling tiles, roofing sheets, appliance housings |
| 5xxx Magnesium-Aluminium | 5052, 5083, 5754 | Medium to high strength, excellent resistance to marine atmospheric corrosion, good weldability | Ship interiors, chemical storage tanks, high-end curtain walls, automotive parts |
| 6xxx Magnesium-Silicon | 6061, 6063 | Heat treatable for strengthening, excellent extrusion properties, aesthetically pleasing surface | Decorative profiles, structural components, door and window frames (requires forming) |
Coating Types
| Coating Type | Characteristics | Typical Applications |
| Polyester (PE) | Economical and versatile, rich colors | Interior decoration, ceiling panels, appliance back panels |
| Silicone Modified Polyester (SMP) | Significantly improved weather resistance and gloss retention | Commercial building exteriors, billboards |
| High Durability Polyester (HDP) | Excellent UV resistance | Coastal buildings, outdoor public facilities |
| Polyvinylidene Fluoride (PVDF) | Top-tier weather resistance (20-30 year warranty), good self-cleaning properties | Landmark building curtain walls, high-end decoration |
| PVC Plastisol | Thick film protection, rich texture | Furniture panels, interior walls |
Gloss & Color
Gloss Level: Full range adjustable: High Gloss (≥70°), Semi-Gloss (40-60°), Matt (≤30°).
Color Standards: Provides RAL, Pantone international standard color charts, and supports sample customization. Factory color difference is strictly controlled to ΔE ≤ 1.0, ensuring batch-to-batch consistency.
Backer Coating: Standard is a light-colored back paint providing basic protection; can be adjusted to oiled or untreated as needed.
Appearance Options
Wanzhi Group offers embossed, textured, and printed color coated aluminium coils for various fields like construction and home appliances, providing a wide range of aesthetic effects.
- Smooth Surface: Standard flat surface, suitable for most construction and appliance applications.
- Embossed/Relief Texture: Physical embossing creates three-dimensional patterns like orange peel, matte, leather grain, or diamond. This not only enhances aesthetics but also increases sheet rigidity and hides processing marks.

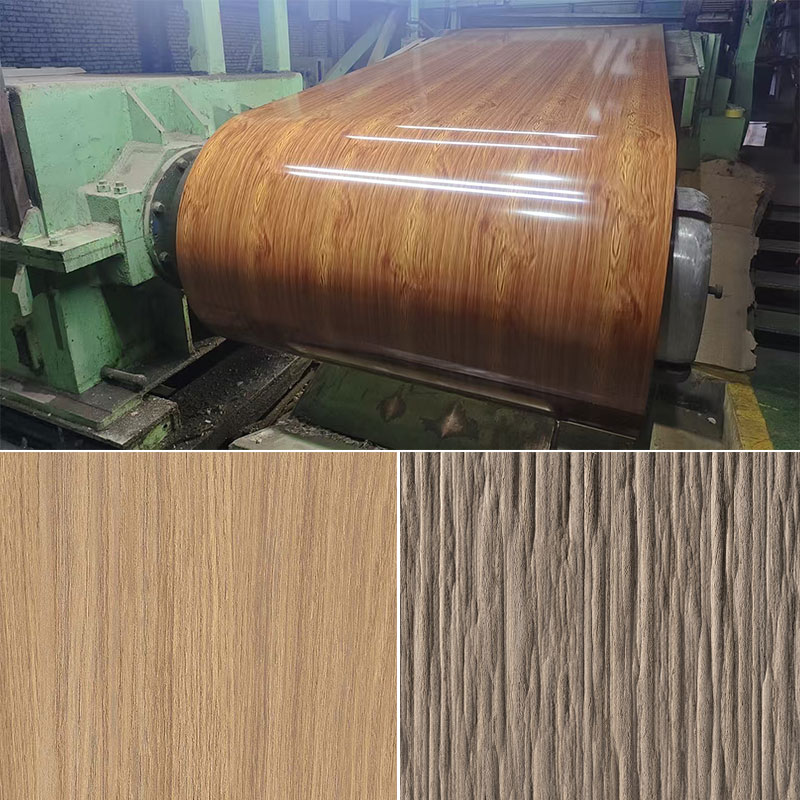

- Wood Grain/Stone Grain: Realistic simulated wood grain or stone grain embossing effects, suitable for high-end decoration.
- Printed Texture: Custom complex high-definition printed effects like wood grain, stone grain, brick wall, geometric patterns.
- Special Effects: Metallic paint (sparkles in sunlight), Hammered/Textured paint (unique artistic texture).
Color Coated Aluminium Coil Performance Advantages
| Performance Indicator | Wanzhi | Advantage |
| Lightweight | Density 2.7g/cm³, only 1/3 of steel | Reduces structural load, saves transportation and installation costs |
| Corrosion Resistance | Natural corrosion resistance of aluminium + coating barrier protection | Never rusts, especially suitable for coastal/humid environments |
| T-bend Ability | Achievable 1T-2T, coating without cracking | Adapts to deep processing like stamping and bending |
| Adhesion | Grade 0 in cross-hatch test, no peeling in lattice test | Strong bond between coating and substrate |
| Impact Resistance | ≥ 9J (direct impact) | Withstands physical impact during installation and use |
| Pencil Hardness | ≥ F-H | Strong surface scratch resistance |
| Salt Spray Resistance | ≥ 500 hours (depending on coating) | Substrate free from red rust, reliable protection |
| Weather Resistance | HDP/PVDF coating QUV ≥ 2000 hours, gloss retention ≥ 80% | Long-term outdoor use without fading or chalking |
| Environmental Friendliness | Compliant with RoHS Directive, 100% recyclable | Green building material, sustainable development |
Why Choose Wanzhi Group?
The Wanzhi Group Color Coated Aluminium Coil production base (Shandong Wanzhi Steel) is equipped with advanced continuous coil coating lines and aluminium coil pretreatment systems, with an annual production capacity of 120,000 tons. The factory holds ISO9001, ISO14001, and ISO45001 international system certifications. Products comply with major global standards such as ASTM, EN, JIS, GB, and possess complete export qualifications. We have earned the long-term trust of customers across construction, decoration, and appliance manufacturing sectors through stable quality, on-time delivery, and professional service.
Factory Qualifications & Strength
- Incoming substrate inspection (alloy composition, mechanical properties)
- Online coating monitoring (coating thickness, color difference, gloss)
- Finished product performance testing (T-bend, impact, salt spray, QUV aging)
- Complete quality inspection report and mill certificate provided for each batch
- Support for third-party inspections such as SGS, BV, TUV
Market Reputation
- Experience: Exported to over 100 countries and regions globally.
- Inventory: Common alloys (3003) and colors (White, Silver Grey, Wood Grain) are kept in stock.
- Delivery time: 5-45 working days.
- Order Flexibility: Supports small trial orders (5 tons) to thousand-ton long-term contracts.
- Value-Added Services: Provides precision slitting, cut-to-length shearing, profile processing, film laminating, and other value-added services.
- Comprehensive Customization: Alloy grade, thickness, width, coating, color, gloss, and texture can all be customized as needed.
Pricing
Wanzhi Group adopts a “factory direct supply” model for all its metal products, offering highly competitive prices. The price range for standard color coated aluminium coil products is $2,500 – $4,000 USD per ton. Please provide specific specifications (alloy grade, thickness, width, coating type, color, quantity), and we will provide you with an accurate quotation!
Price Influencing Factors
- Substrate alloy grade (3003 most economical, 5052/5083 higher)
- Coating type (PE < SMP < HDP < PVDF)
- Color (special custom colors slightly higher)
- Order quantity (bulk orders enjoy greater discounts)
Solutions
| Application | Requirements | Recommendation |
| Building Curtain Wall/Exterior | Ultra-long weather resistance, color durability, flat and aesthetic | Substrate: 3003, 5052 Coating: PVDF/HDP Thickness: 0.8-2.0mm Appearance: Matt/Metallic |
| Interior Ceiling/Tiles | Lightweight, strong decorativeness, easy installation | Substrate: 1100, 3003 Coating: PE/SMP Thickness: 0.3-0.8mm Appearance: High Gloss/Wood Grain/Solid Color |
| Roofing Sheets/Corrugated Sheets | Weather resistance, waterproof, lightweight and high strength | Substrate: 3003, 3105 Coating: HDP/PVDF Thickness: 0.5-1.2mm Appearance: Corrugated/Trapezoidal profile |
| Appliance Housings/ Panels | Perfect surface, good formability, environmentally friendly | Substrate: 3003, 5052 Coating: PE/SMP + Protective Film Thickness: 0.4-1.0mm Performance: Excellent T-bend, fingerprint resistance |
| Transportation Interiors | Lightweight, flame retardant, aesthetic | Substrate: 5052, 6061 Coating: HDP/PVDF Thickness: 0.8-2.5mm Appearance: Matt/Brushed |
| Advertising/Signage | High flatness, vibrant colors | Substrate: 3003 Coating: PE/SMP Thickness: 0.5-2.0mm Appearance: High Gloss/Custom Color |
| Chemical/Food Equipment | Corrosion resistant, easy to clean | Substrate: 5052, 5083 Coating: Special anti-corrosion coating Thickness: 1.0-3.0mm |
Color Coated Aluminium Coil Packaging
- Inner Moisture Barrier: Rust-proof film.
- Buffer Layer: Wrapped with high-strength waterproof kraft paper.
- Protective Layer: Outer layer tightly wrapped with fully enclosed galvanized steel sheet.
- Securing Layer: Multiple high-strength steel straps evenly bundled circumferentially.
- Palletizing: Coil secured on a fumigated wooden pallet or steel pallet.
- Custom Packaging: Confidential packaging without labels, or printed packaging (customer logo) available.
Wanzhi Group provides a full-process one-stop service from product selection, sample testing, order production, logistics shipping, to after-sales guarantee, offering professional color coated aluminium coil, prepainted steel coil solutions, free sample support, and highly competitive quotations to customers in various fields!
