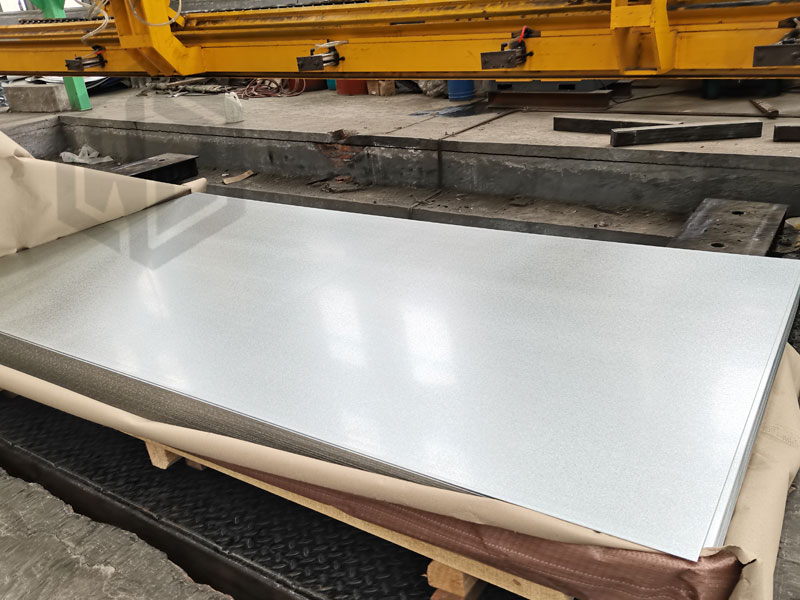

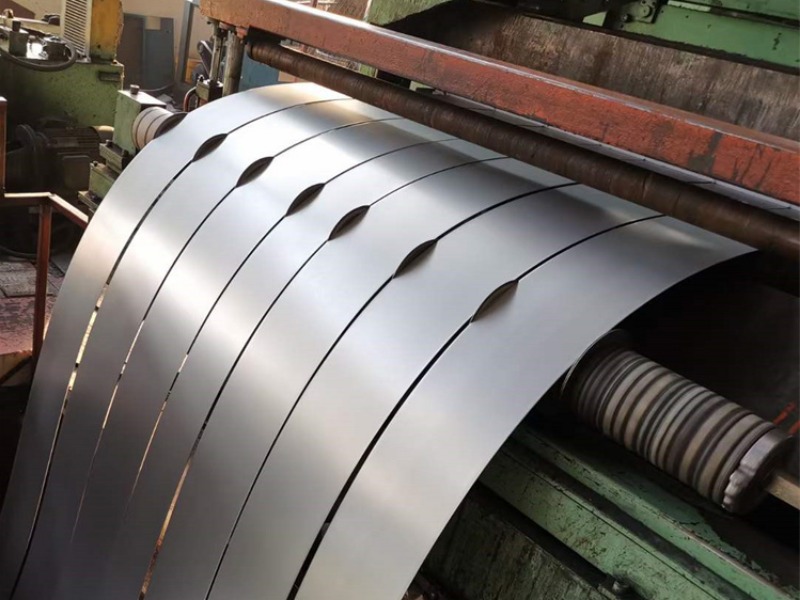

Zinc-Aluminum-Magnesium (ZAM) steel coil is a high-performance alloy-coated steel. It boasts outstanding corrosion resistance, heat resistance, scratch resistance and excellent workability, and is widely used in construction, solar brackets, automotive and coastal engineering projects. Wanzhi Group provides ZAM coils, ZAM sheets and strips with customizable dimensions and coatings. We also deliver comprehensive deep processing services such as bending, cut-to-length, slitting, forming, stamping and painting, catering to global construction, industrial, home appliance and chemical sectors.
Thickness: 0.5mm-4.0mm
Width: 600mm-1,500mm
Coating Thickness: 30g-275g/㎡
Specification
| Product Name | Zinc-Aluminum-Magnesium Steel Coil |
|---|---|
| Substrate | Low Carbon Cold Rolled Steel |
| Thickness | 0.5mm-4.0mm |
| Width | 600mm-1,500mm |
| Length | According to customer requirements |
| Coating Thickness | 30-275 g/㎡ |
| Coil Weight | 3-5 tons, can be customized |
| Standard | AISI, ASTM, DIN, GB, JIS, BS |
| Surface Treatment | Passivation, Oiled/non-oiled, Film coating, Anti-fingerprint |
| MOQ | 10 tons |
| Quality Certificate | SGS, ISO, BV, CE, etc. |
| Packages | Standard export packaging, can be customized as requests |

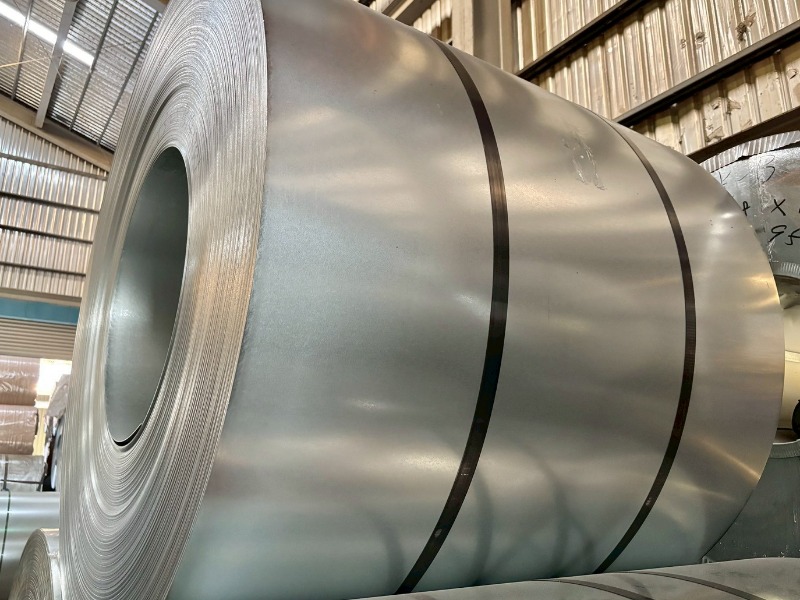

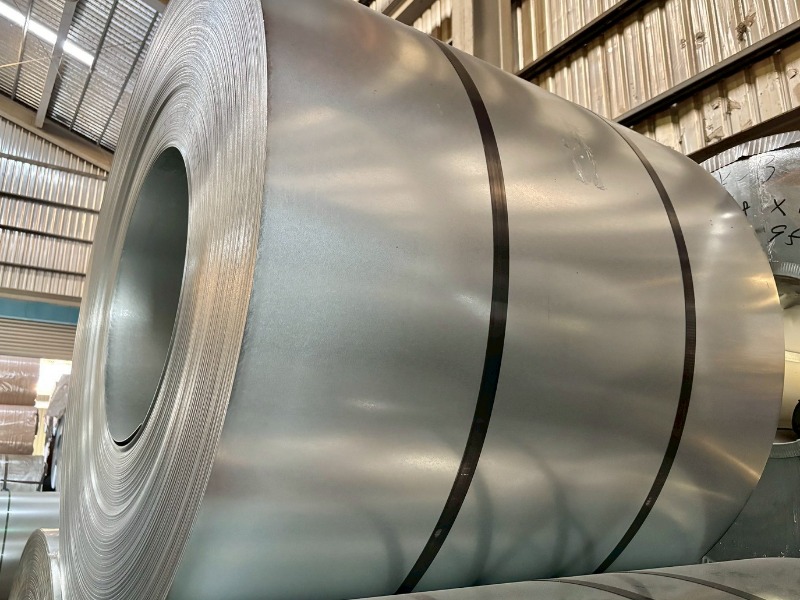

What Are ZAM Steel Coils?

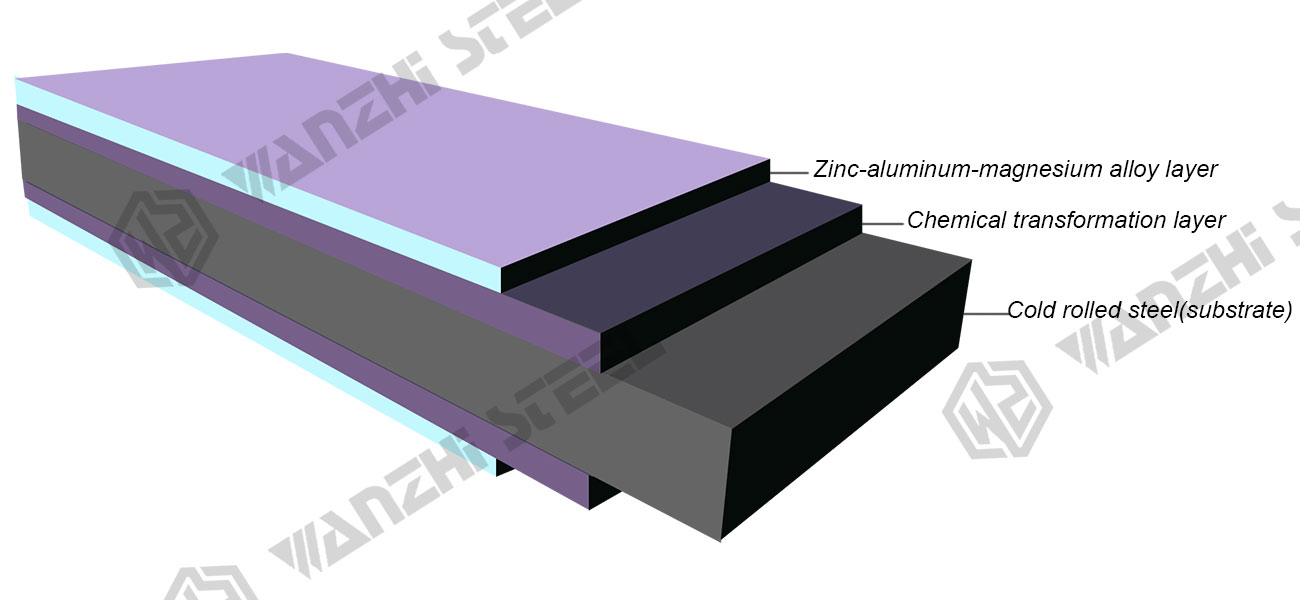

ZAM is the abbreviation for Zinc-Aluminum-Magnesium. ZAM steel coils are hot-dip steel products coated with high-corrosion-resistant Zn-Al-Mg alloy. The coating is mainly composed of zinc, along with 11% aluminum, 3% magnesium and trace silicon. Zinc delivers basic corrosion resistance, aluminum improves weather- and oxidation resistance, and magnesium further enhances anti-rust performance. Higher contents of aluminum and magnesium bring better corrosion protection. Its anti-corrosion capability is 10 to 20 times stronger than that of regular galvanized and galvalume steel, making it ideal for saline, alkaline and humid areas.

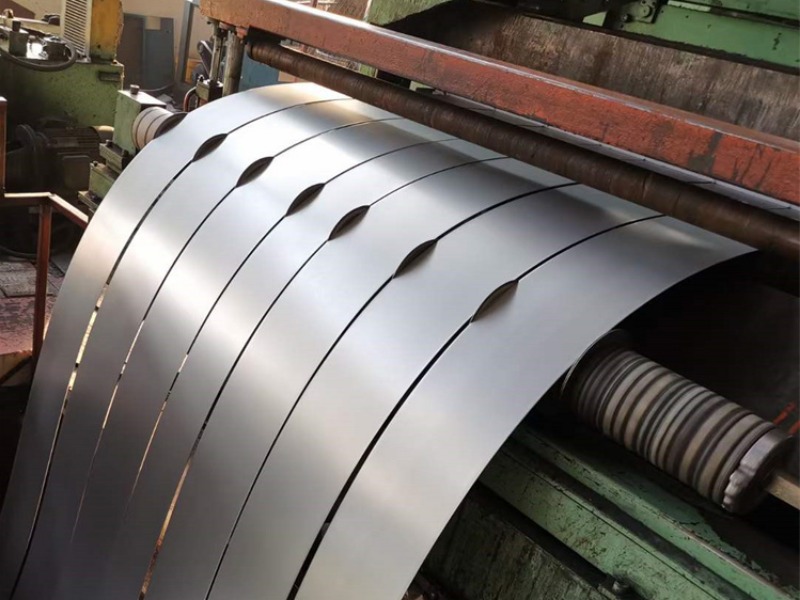

Production Process of ZAM Steel Coils
- Substrate Preparation: Uncoil, clean and inspect cold/hot-rolled steel substrate to remove surface impurities.
- Surface Pretreatment: Degrease, pickle and dry to ensure a clean, active surface.
- High-temperature Annealing: Heat the steel strip to improve ductility and coating adhesion.
- Hot-dip Zn-Al-Mg Coating: Immerse the strip into molten Zn-Al-Mg alloy bath for uniform coating.
- Coating Thickness Control: Use air/nitrogen knives to adjust coating weight evenly.
- Rapid Cooling: Cool the strip quickly to solidify the dense alloy layer.
- Surface Post-treatment: Apply chromium-free passivation, oiling or filming to enhance corrosion resistance and processability.
- Final Inspection & Recoiling: Check surface quality and mechanical properties, then recoal into finished ZAM coils.
ZAM Steel Coil Prices
The price of ZAM steel coils generally ranging from $650 to $1,000 per ton, is mainly affected by raw material costs, coating thickness, order quantity and product specifications, etc. Wanzhi Group operates production lines for galvanized steel, pre-painted steel and zinc-aluminum-magnesium alloy steel. We supply coated steel products in full range of specifications, including PPGI, PPGL, PPAL, ZAM sheets and strips. The lead time is 5 to 45 days. Please leave a message with your specific requirements to receive free samples and factory wholesale prices from Wanzhi Group.
Advantages and Applications of ZAM Steel Coil
Benefits
- Excellent Corrosion Resistance: Far better anti-rust performance than GI and GL steel, with reliable protection for cut edges in humid and harsh environments.
- Superior Mechanical Performance: Boasts high tensile strength and hardness, paired with stable heat resistance to adapt to diverse working conditions.
- Strong Coating Adhesion: The alloy coating bonds tightly with the steel substrate, effectively preventing peeling and cracking during processing.
- Long Service Life: Features outstanding durability, its service lifespan is much longer than conventional coated steel.

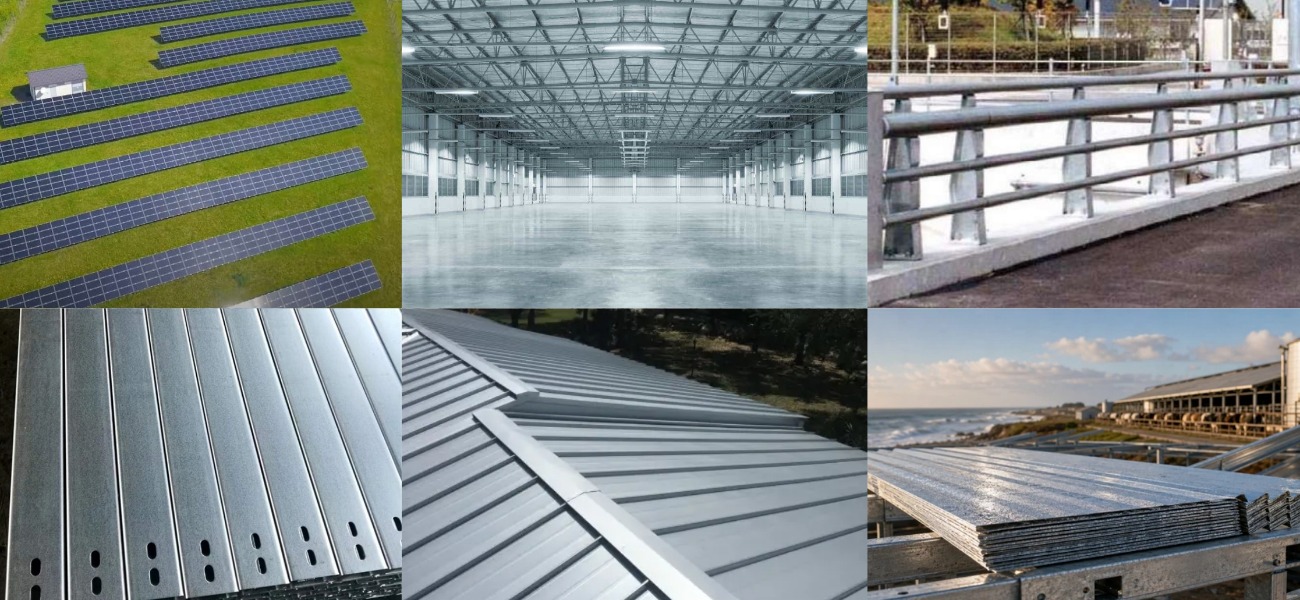

Usages
- Building Engineering: Roofing panels, wall claddings and various building structural components.
- Automotive & Home Appliance: Auto parts, exterior body panels, chassis, and refrigerators, washers, and other household appliance accessories.
- New Energy Industry: Supporting parts for photovoltaic, wind power and energy storage equipment.
- Agricultural & Utility Structures: Fencing, poles, towers.
- Outdoor & Harsh Environment Projects: Garden facilities, pipeline accessories and coastal engineering components.

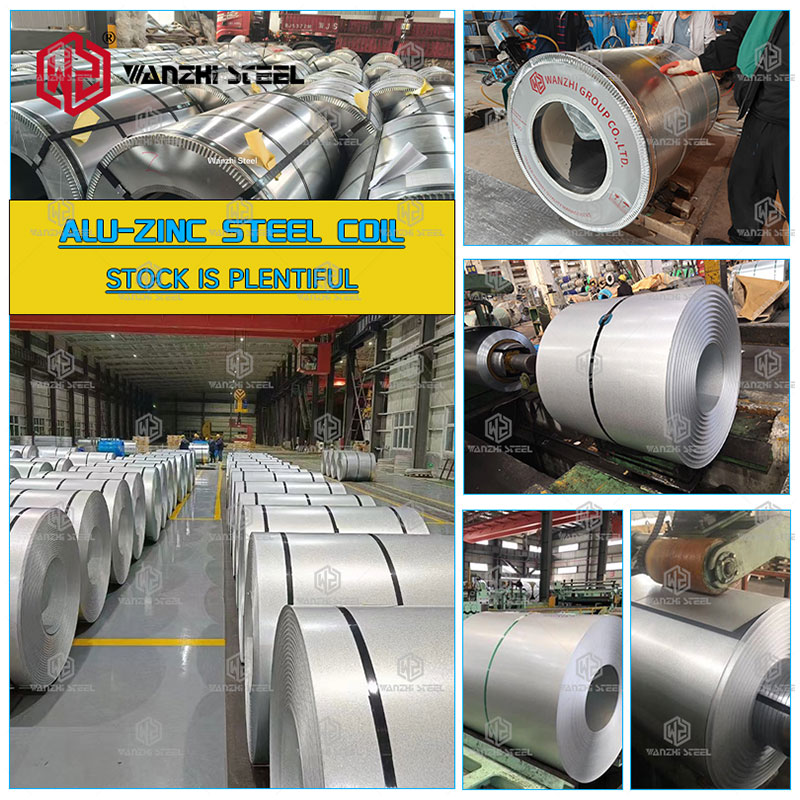

Comparison of GI/GL/ZAM Steel
Wanzhi provides GI, GL and ZAM steel, with coating weights Z30-Z275g/㎡, AZ30-AZ150g/㎡ and 30-275 g/㎡ respectively. They serve construction, transport, and industry, as well as other fields. Differing in coatings, they vary in corrosion resistance, heat resistance, mechanical properties and cost.
| Item | GI Steel | GL Steel | ZAM Steel |
| Core Coating | Pure Zn single layer | 55%Al + 43.5%Zn + 1.5%Si | 11%Al+3%Mg |
| Corrosion Resistance | Standard | Good | Superior |
| Service Life | Medium | Long | Ultra-long |
| Hardness (HV) | 100-150 | 110-160 | 120-180 |
| Yield Strength | 270-380MPa | 280-400MPa | 300-420MPa |
| Elongation | ≥20% | ≥18% | ≥16% |
| Cost | Low | Medium | Medium-high |
| Key Applications | General construction, hardware | Roofing, exterior panels | High-end construction, automotive, new energy |
ZAM Coated Steel Manufacturer and Supplier – Wanzhi Group
WanZhi Group is a professional coated steel supplier based in Boxing County, Binzhou City, Shandong Province, China. Our factory owns modern production lines for galvanized steel, aluzinc steel, color-coated steel and zinc-aluminum-magnesium steel. The top coating of our steel sheets ranges from 10 to 40 microns in thickness, while the primer coating is 5 to 20 microns. Certified with ISO standards, each production line boasts a monthly output of 10,000 tons. We specialize in the design, production and sales of a full range of coated metal steel products. Serving the construction, industrial, infrastructure and home appliance sectors worldwide, we deliver cost-effective and high-quality coated steel solutions to global clients.
Wanzhi Factory
- Export Support: Wanzhi supplies a full range of metal raw materials and finished products worldwide, with business covering South America, Africa, the Middle East, Southeast Asia, Europe and other regions. Located close to Qingdao Port and Tianjin Port, we maintain a stable supply chain. We accept various trade terms including FOB, CIF and EXW, and handle customs declaration, commodity inspection and shipping booking to ensure timely delivery.
- Capacity & Delivery: Standard specifications are in stock for immediate shipment. We respond promptly to custom orders, with a lead time of 5 to 45 days.
- One-stop Service: Wanzhi supplies premium steel products and delivers comprehensive one-stop services, including material selection, technical consultation, production and delivery. We tailor optimal solutions based on local climate, building functions, design styles and project budgets. We offer 24/7 online support to all clients.
- Quality Certificates: Wanzhi Factory has obtained ISO9001, ISO14001 and ISO45001 certifications. Our steel products strictly comply with international standards such as ASTM, GB, JIS and EN. We offer Mill Test Certificates (MTC), and also support third-party inspections by SGS, BV, TUV and other authorities.
Packages
Wanzhi Steel provides standard export packaging, including anti-rust film, kraft paper, steel straps, wooden pallets, edge protectors and moisture-proof paper. We can also provide customized packaging solutions according to customer requirements.
Global Cases
Wanzhi’s GI, GL, PPGI, PPGL and metal roof panels have been exported to 120 countries and regions worldwide. We have established long-term partnerships with clients from Libya, Indonesia, Turkey, the Philippines, Malaysia, Chile, Peru, Colombia, Ecuador, Brazil and more, delivering tailored solutions for various projects.
Wanzhi Steel – Agricultural Greenhouse Project in Turkmenistan
550 tons PPGI Steel Coil to Azerbaijan
100 tons of Galvanized Coils to Saudi Arabia
144 ton Steel Wire to Spanish
Project of PPGI Roofing en Libya
100 tons of GL and PPGL in Solomon Islands
Customer Feedback
With professional services, strict quality control and on-time delivery, Wanzhi has earned wide recognition and high praise from clients.
Looking for coated steel solutions compliant with local regulations? Or interested in our hot rolled steel, cold rolled steel, roof panels, corrugated sheets, stainless steel and other products? Feel free to contact us for a free quotation!
