Metal profiled sheets, also known as profiled metal sheets, are durable, economical building panels with light weight and high strength, commonly used for roofing and wall cladding and structural applications. Wanzhi Group supplies galvanized, bare galvalume and color-coated profiled sheets with Z30-Z275/AZ30-AZ150g/m2 coating weights. Custom waveforms and lengths are supported by our complete profiling equipment. We also provide deep processing services including slitting, cutting, punching, welding, bending and custom shape processing, etc.
Thickness: 0.12mm – 1.2mm
Width: 600mm – 1500mm
Material: SGCC/CGCC/TDC51D+ZM/TDC52D/S350GD/TS550GD/DX51D+Z, etc.
Specification
| Product Name | Metal Profiled Sheet |
|---|---|
| Material | SGCC/CGCC/TDC51D+ZM/TDC52D/S350GD/TS550GD/DX51D+Z, etc. |
| Surface Treatment | Hot-dip galvanized, hot-dip galvalume, pre-painted |
| Coating Weight | Zinc coating: Z30g-Z275g/m2, Aluzinc coating: AZ30-AZ150g/m2 |
| Painting | Top:11-35um, Back:5-14um |
| Paint Type | PE, SMP, HDP, PVDF |
| Surface Finish | Matt/wrinkled/glossy/embossed |
| Standard | GB/JIS/ASTM/EN/AISI/DIN |
| Thickness | 0.12mm - 1.2mm |
| Width | 600mm - 1500mm |
| Color | Primary color or according to the RAL card |
| Deep Processing | Slitting, cutting, punching, bending, welding, perforating, decoiling, etc. |
| Quality Certificate | ISO, CE, SGS, BV etc. |
| MOQ | 10 tons |
| Delivery Time | 5 - 45 days |
| Package | Standard export packaging or as per your requirements |

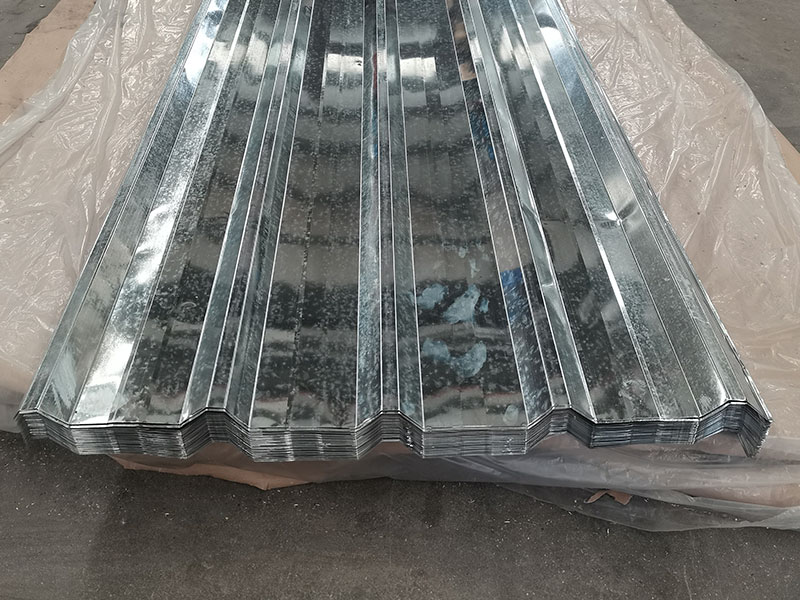

What Are Metal Profiled Sheets?
Metal profiled sheets, also called corrugated metal sheets or profiled steel sheets, are thin metal panels shaped via roller cold bending to form diverse wave and trapezoidal profiles for boosted structural rigidity. Base substrates undergo hot-dip galvanized, hot-dip galvalume or pre-painted surface treatments for anti-corrosion performance. Featuring light weight, high strength, waterproof performance, shock resistance, easy installation and long service life, they are versatile materials widely applied in construction, industrial plants and agricultural facilities. Feel free to contact us for further inquiries if you need more details.
Production Process of Metal Profiled Sheet
- Raw Material Preparation: Select qualified GI, GL, PPGI, PPGL steel coils with specified thickness and coating weight as raw substrates.
- Raw Material Inspection: Check coil surface coating, thickness flatness and quality certificates to eliminate defective coils.
- Uncoiling & Feeding: Unwind steel coils and feed flat steel strips into the profiling production line steadily.
- Roller Cold Bending Forming: Pass flat metal through multi-group roller molds to cold-form trapezoidal, corrugated, standing-seam and other custom waveforms.
- Fixed-Length Cutting: Cut shaped metal sheets into customized lengths according to customer requirements.
- Optional Deep Processing: Carry out additional fabrication: slitting, punching, bending, welding and special custom shape processing on finished sheets.
- Finished Product Inspection: Check sheet dimension, waveform uniformity and surface coating for scratches or damage.
- Packaging & Delivery: Bundle qualified sheets with waterproof wrapping and steel belts for sea transportation.
Advantages and Applications of Metal Profiled Sheet
Advantages
- Light weight with high structural strength: Roll-formed profiles greatly boost rigidity without using thick steel, lowering overall building load and steel frame cost.
- Excellent waterproof & drainage: Grooved wave/trapezoidal design accelerates rainwater runoff and effectively prevents roof leakage.
- Excellent durability & longevity: Available in hot-dip galvanized, galvalume and pre-painted coated types to resist rust, UV, acid rain and salt mist.
- Shock and wind resistant: Special forming structure offers stable performance against strong wind and earthquakes.
- Fast & convenient installation: Large integral panels reduce construction time and labor costs for roofs and walls.
- Superior weather resistance: Effectively sheds water, resists wind uplift, and withstands extreme temperatures without warping, cracking, or rotting.
- Low maintenance: Requires minimal upkeep over its lifespan, typically just periodic inspection and cleaning – saving long-term costs versus materials needing frequent painting, sealing, or replacement.
- Cost-effectiveness: Lower material, transportation, installation, and lifecycle costs make it an economical choice for many industrial, commercial, agricultural, and residential applications.
Usages
- Industrial Buildings: Factory workshops, industrial plants, logistics warehouses, storage buildings.
- Commercial Buildings: Shopping malls, exhibition halls, office buildings, stadiums and other public facilities.
- Agricultural Facilities: Poultry houses, barns, greenhouses, farm storage sheds.
- Civil & Residential Buildings: Villa roofs, residential exterior walls, attics.
- Temporary & Auxiliary Buildings: Temporary construction houses, site enclosures, container houses, portable sheds.
- Special Engineering Projects: Railway stations, airports, carports, canopy roofs, environmental protection facilities.
Classification of Metal Profiled Sheets
Metal Profiled Sheet Prices
The price of metal profiled sheets is mainly affected by substrate cost, material grade, zinc coating thickness, coating type, sheet gauge, dimensions and order quantity. Galvanized steel costs USD 600 to 850 per ton, while galvalume steel ranges from USD 600 to 1000 per ton. The minimum order quantity for steel products from Wanzhi Group is 10 tons, with a lead time of 5 to 45 days. In addition, we supply cold rolled steel, hot rolled steel, galvanized & galvalume steel coils, galvanized steel wire, steel strips, prepainted steel coils, PPAL, ZAM and stainless steel products. Please leave a message with your required specifications and quantity, and we will offer you accurate quotation!
Premium China Metal Profiled Sheets Manufacturer – Wanzhi Group
Wanzhi Group is a manufacturer and supplier of metal profiled sheets with more than ten years of export experience. Our factory is located in Boxing County, Binzhou City, Shandong Province, China. The factory operates professional production lines for galvanized steel, galvalume steel, prepainted steel and ZAM steel, as well as multiple sets of automatic roll forming machines. We also have a dedicated sample room and quality inspection laboratory on site. A strict full-process management system has been implemented in our plant. Rigorous standards are followed in every procedure, ranging from raw material procurement and production processing to quality testing and finished product packaging. We supply steel coil raw materials and rolling equipment to metal sheet manufacturers worldwide. Meanwhile, we provide finished metal profiled sheets and matching accessories for project contractors and distributors. Our products deliver long-term anti-corrosion performance, durability and attractive decorative effects for all kinds of buildings.
Metal Sheet Line
Wanzhi’s factory boasts multiple professional production lines with an annual output capacity of 600,000 tons. Our products feature a zinc coating weight ranging from Z30 to Z275 g/m², and an Al-Zn coating weight from AZ30 to AZ150 g/m². Apart from raw steel materials, we offer a full range of deep processing services including slitting, cut-to-length, punching, stamping, bending, welding, film lamination, painting and special-shaped fabrication. We carefully select premium steel substrates paired with anti-corrosion coatings. Backed by mature production technologies, we carry out continuous quality monitoring and control throughout the whole production process.

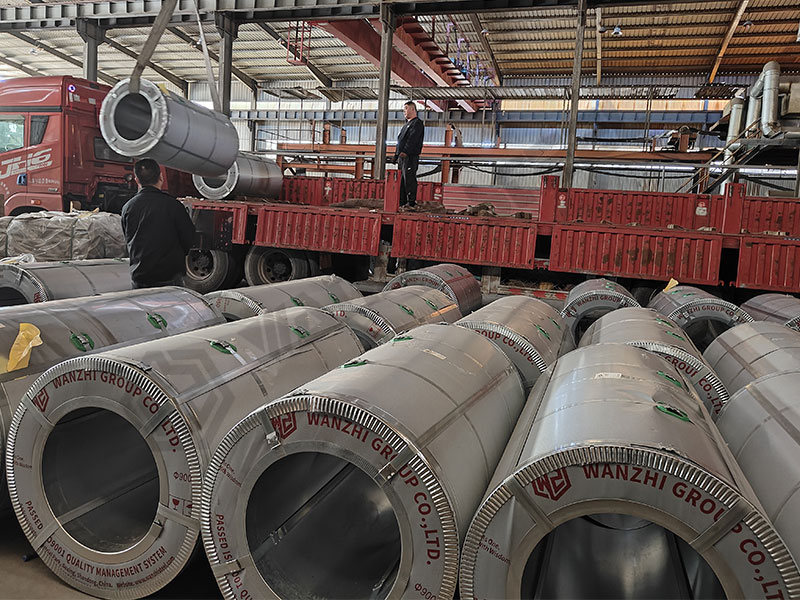

Wanzhi Steel – Factory
Up to now, our factory has welcomed customers from more than 40 countries and regions for factory visits and inspections. Visiting clients can observe our complete galvanizing, galvalume and prepainted coating production lines on site, and gain direct understanding of our product quality, coating processes and quality control standards. Please feel free to contact us for factory tours, free samples or project inquiries. Our sales managers will contact you promptly.
- Certificates: Wanzhi factory has obtained ISO 14001:2015, ISO 9001:2015 and ISO 45001:2018 management system certifications. Our products comply with international standards including ASTM, GB, JIS and EN. We can supply original Mill Test Certificates (MTC) and support third-party inspections from BV, SGS and other authorized labs.
- Export Support: Our factory is close to Qingdao Port and Tianjin Port with stable supply chains. We accept multiple trade terms including FOB, CIF and EXW. We will handle customs declaration, commodity inspection and booking arrangements to guarantee on-time delivery of goods.
- One-stop Service: The lead time for custom-sized products ranges from 5 to 45 days. Wanzhi team delivers full-process one-stop service covering material selection, technical consultation, production and delivery, with 24-hour online support.
Packages & Delivery
We adopt standard export packaging, consisting of plastic film, moisture-proof paper, galvanized steel sheets, edge protectors and wooden pallets. This effectively prevents dampness and rust to guarantee intact delivery to your project site. We also offer customized export packaging as required.
Global Cases
Wanzhi’s GI, GL, PPGI, PPGL sheets and coils, corrugated sheets and metal roof panels have been exported to 120 countries and regions worldwide. We have delivered tailored solutions for projects located in Libya, Indonesia, Azerbaijan, Turkey, the Philippines, Malaysia, Chile, Peru, Colombia, Ecuador, Brazil and more.
Wanzhi Steel – Agricultural Greenhouse Project in Turkmenistan
550 tons PPGI Steel Coil to Azerbaijan
100 tons of Galvanized Coils to Saudi Arabia
144 ton Steel Wire to Spanish
Project of PPGI Roofing en Libya
100 tons of GL and PPGL in Solomon Islands
Customer Feedback
We have received numerous positive comments and compliments from our clients. Customers speak highly of our precise dimensional tolerances, reliable product quality and on-time delivery, maintaining long-term and stable cooperative relationships with Wanzhi Group.
If you are interested in Wanzhi’s metal roof and wall sheets, we can provide raw materials, finished panels and supporting professional equipment. Please feel free to contact us for the most competitive prices and comprehensive services.
