Manufactured with hot-dip galvanized steel sheets as the base material, galvanized corrugated roofing sheet delivers excellent rust and corrosion resistance, strong water drainage performance, and easy installation, with a service life of up to 15 years or more. It is widely applied for roofing and wall cladding in industrial, agricultural and various other building projects. WanZhi Group operates two galvanizing production lines, with sheet thickness ranging from 0.12 to 4.0 mm. Customization is available in dimensions, zinc coating weights, sheet profiles and other specifications, and we provide deep processing services including cutting, drilling, forming, coating, and film lamination.
Thickness: 0.12m – 4.0mm
Zinc Coating: Z30 – Z275 g/㎡
Width: 600 – 1,500mm, can be customized
Specification
| Item | Corrugated GI Roofing Sheets |
|---|---|
| Thickness | 0.12mm- 4.0mm |
| Zinc Coating | Z30 – Z275 g/㎡ |
| Width | 600-1,500mm, can be customized |
| Length | ≤6000mm or cut as required |
| Material | X51D, DX52D, DX53D, S350GD, S550GD, CGCC, SGCH, SGCC, G350, G450, G550 |
| Surface Treatment | Passivation,Oiling, Lacquer sealing, Phosphating, Untreated |
| Surface Spangle Type | Big Spangle,Regular Spangle, Small Spangle, Zero Spangle |
| Standard | ASTM, GB, JIS, DIN, EN |
| Yield Strength | ≥ 550MPa |
| Tensile Strength | ≥ 550MPa |
| Elongation | ≥ 8% |
| Service life | 15-20 years |
| Color | As per RAL color, can be customized |
| Package | Standard export packaging |
| MOQ | 10 tons |
Corrugated Galvanized Steel Sheet Manufacturing Process
This process refers to the full production workflow for processing galvanized steel sheets (available in both coil and flat sheet forms) into corrugated roofing panels, covering uncoiling, leveling, roll forming, cutting, inspection and packaging.
- Continuous Roll Forming (Coil-to-Sheet Process): Hot-dip galvanized steel coils are directly processed through continuous roll forming equipment. The finished products feature a corrugation profile accuracy deviation of ≤0.5mm, excellent dimensional stability, superior overall flatness, and high production efficiency.
- Flat Sheet Press Forming (Sheet-to-Sheet Process): Hot-dip galvanized steel coils are first cut into flat sheets of specified dimensions , followed by press forming. This process eliminates the need for post-forming cutting, easily accommodates customized requirements for special specifications, and avoids deformation issues that are prone to occur during roll forming of thick steel sheets.
WanZhi Corrugated Roofing Sheets For Sale
WanZhi Group is equipped with coating, galvanizing and galvalume production lines, as well as professional forming equipment for metal corrugated sheets. We supply a full range of corrugated roofing sheets, supporting customized production available in color, profile and thickness to meet differentiated demands of various projects. Standard specifications are in sufficient stock, while custom orders have a delivery lead time of 5-45 working days. Feel free to contact us for the latest quotation at any time.

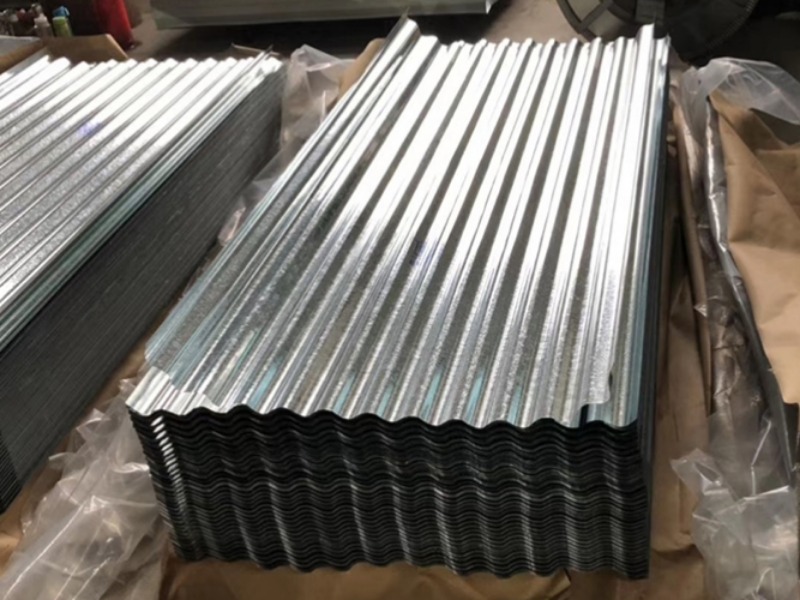

- Available Types: GI Corrugated Sheets, GL Corrugated Sheets, PPGI & PPGL Corrugated Sheets, and Stainless Steel Corrugated Sheets.

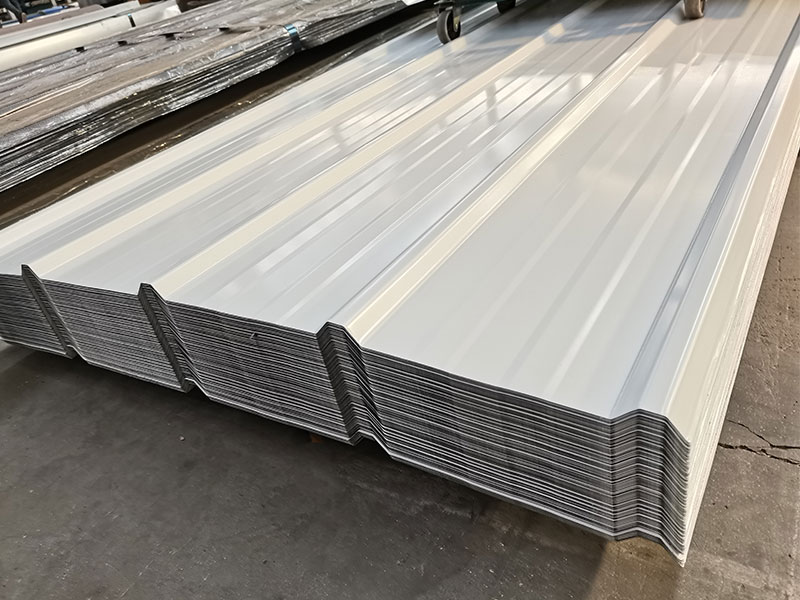

- Profiles: Type 850, 900, 750, 1050, and trapezoidal wave. Custom profiles are supported.
- Colors: Ivory white, sky blue, dark gray, red, dark green, etc. Custom colors based on the full RAL color chart are available.
- Surface Treatment: Painting, embossing, oil coating, passivation, fingerprint resistance, phosphatization.
Galvanized Corrugated Roofing Sheets Prices
The price of galvanized corrugated roofing sheets is affected by factors including raw material costs, substrate thickness, custom specifications, zinc coating thickness, surface treatment, and production processes. The price range for galvanized steel is USD 600 to USD 1,000 per ton. In addition to galvanized corrugated roofing sheets, WanZhi Steel also supplies galvanized steel coils, steel strips, galvanized steel pipes, galvanized steel wires, color-coated galvanized steel sheets/coils, and other products. Factory direct pricing. Please inform us of your project’s required quantity, and we will provide you with competitive quotations and tailored customization solutions.
Galvanized Corrugated Roofing Sheets Benefits
- Long-lasting Corrosion Resistance: Features a full-surface hot-dip galvanized coating of ≥275g/m². Cut edges and drilled holes are highly resistant to rusting, ensuring a service life of 15-20 years in general non-corrosive environments with minimal maintenance.
- Lightweight & High Strength: The corrugated design enhances structural stiffness with excellent bending and impact resistance. It can withstand typhoons and heavy rain, features fast drainage without leakage, and is suitable for roof pitches ranging from 15° to 90°.
- Easy & Fast Installation: Standardized dimensions and modular design simplify transportation and installation, significantly reducing construction timelines and saving on labor and time costs.
- Cost-effective: Offers an affordable initial cost combined with low long-term maintenance expenses. Its lightweight nature allows for quick fastening with bolts or self-drilling screws, providing excellent overall value.
- Highly Adaptable & Customizable: Supports on-site cutting, drilling, and bending. Customizable in thickness, corrugation profile, size, and surface coating to perfectly match diverse applications such as industrial plants, agricultural greenhouses, and temporary structures.

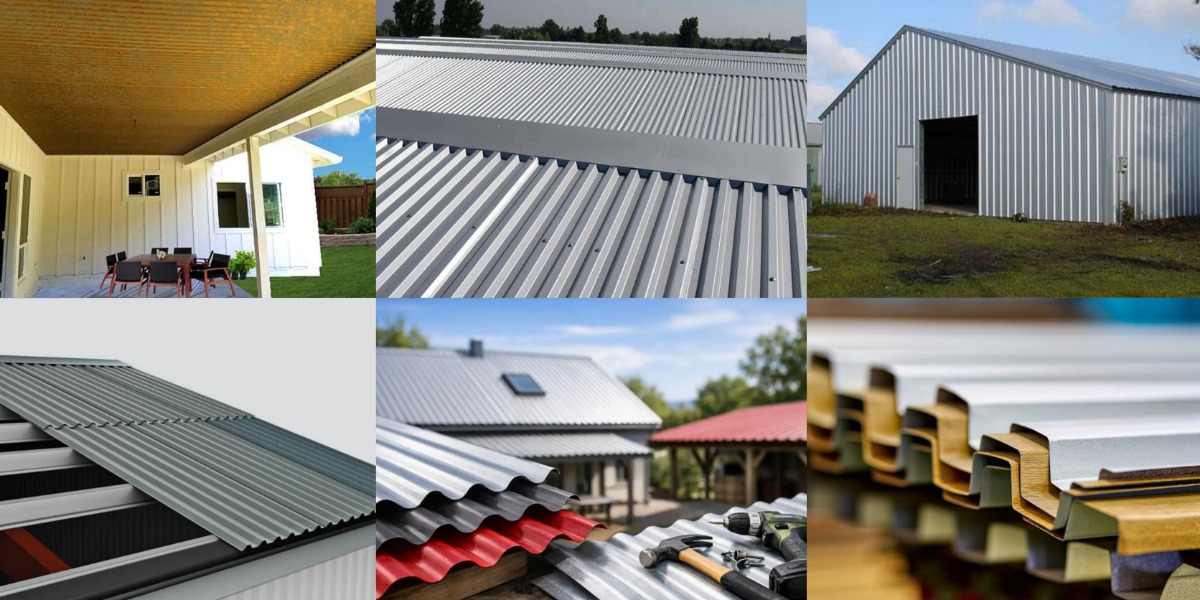

Applications

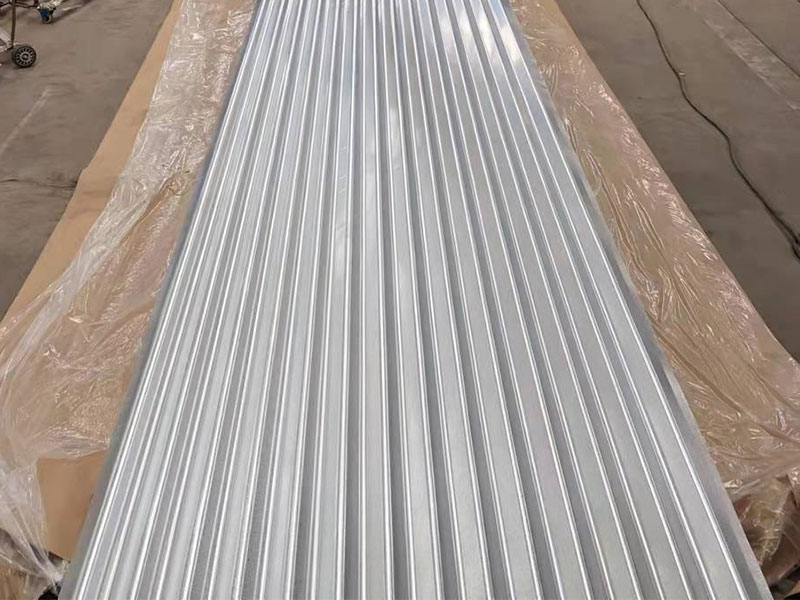

- Industrial building roofing and cladding: Widely used for factories, warehouses, steel structure buildings, logistics parks, cold storage facilities, production workshops and plant enclosure systems.
- Agricultural facility construction: Suitable for multi-span greenhouses, livestock sheds, farm barns, grain storage warehouses and farm equipment sheds.
- Residential and low-rise building applications: Commonly used for self-built house roofs, carports, garages, courtyard canopies, sunrooms, villa roofs and remote rural dwellings.
- Municipal and temporary structure projects: Applied to bus shelters, public toilets, temporary construction site fences, post-disaster transitional housing, site temporary buildings and exhibition temporary venues.
- Special climate and overseas project: Suitable for projects in high-corrosion coastal areas, typhoon-prone regions and heavy rain/snow zones.
Corrugated VS Galvalume Roofing Sheets
For low-corrosion budget-oriented projects, GI corrugated sheets are more cost-effective, while GL sheets are ideal for harsh environments or projects prioritizing longer service life.
| Item | GI Corrugated Roofing Sheet | GL Corrugated Roofing Sheet |
| Coating | Pure zinc | 55% Al-Zn alloy |
| Service Life | Medium | Long |
| Corrosion Resistance | Medium | High |
| Heat Resistance | Medium | High |
| Price | Low | Medium-High |
Galvanized Corrugated Roofing Sheets Supplier – WanZhi Group

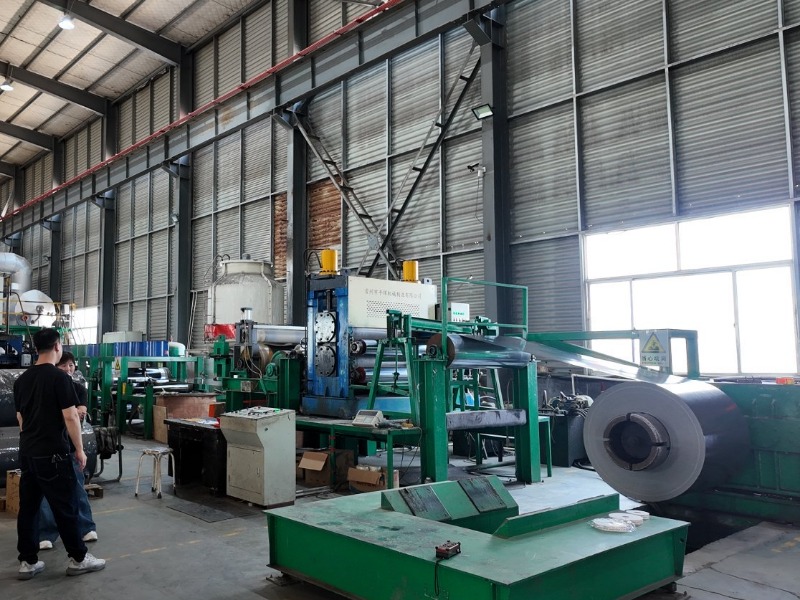

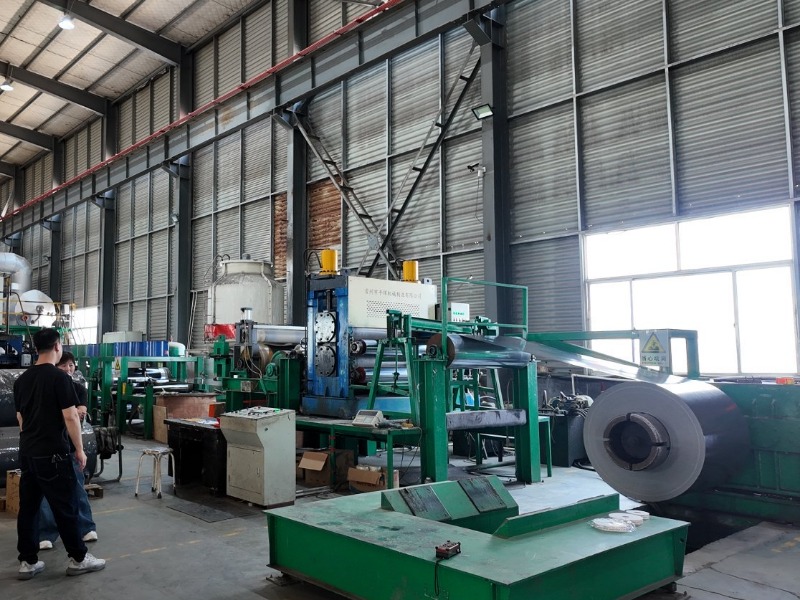

WanZhi Group is an ISO-certified professional manufacturer and supplier of metal building materials in China. Our factory is equipped with 3 color-coated steel production lines, 2 galvanized steel production lines and 1 aluminum-magnesium alloy coated production line, with an annual comprehensive production capacity exceeding 600,000 tons. In addition to galvanized corrugated sheets, we also offer a full range of metal building materials, including cold-rolled / hot-rolled steel, GI/GL/ZAM/PPGI/PPGL coils and sheets, as well as stainless steel products. Custom specifications are available to meet customers’ personalized requirements.
- Certifications: Wanzhi factory has obtained ISO certification, and our products have also been certified by CE, SGS, BV, strictly complying with global standards including ASTM, GB, JIS, EN, etc.
- Package: We utilize standardized export packaging, consisting of plastic film, moisture-proof paper, galvanized iron sheets, edge protectors, and wooden pallets. Customized export packaging is also available upon request.
- One-Stop Service: Our team is dedicated to providing all-round integrated services that cover material selection, technical consultation, production, and supply, with 24-hour online support.
- Free Samples: Free samples are provided for customers to help with accurate model selection and reliable purchasing.
- Processing Service: The factory supports full-process processing services such as slitting, leveling, corrugation forming, longitudinal shearing, punching, bending and film lamination.
Global Cases
WanZhi Steel has established partnerships with over 120 countries and regions worldwide, providing professional solutions for various construction, industrial, agricultural and infrastructure projects.
Wanzhi Steel – Agricultural Greenhouse Project in Turkmenistan
550 tons PPGI Steel Coil to Azerbaijan
100 tons of Galvanized Coils to Saudi Arabia
144 ton Steel Wire to Spanish
Project of PPGI Roofing en Libya
100 tons of GL and PPGL in Solomon Islands
Customer Feedback
WanZhi Group enjoys widespread high recognition and positive feedback from global clients, backed by its strengths in reliable product quality and efficient delivery.
Whether you are looking for GI/GL/PPGI/PPGL corrugated sheets or coils, please feel free to contact us, we will offer you wholesale prices!
