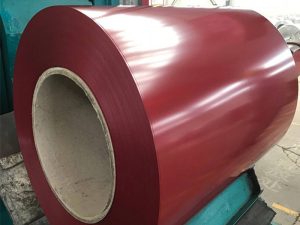

RAL 3009 PPGI/PPGL coil is made from hot-dip galvanized or galvalume steel and coated with a dedicated RAL 3009 topcoat. It offers excellent corrosion and weather resistance, with a service life of approximately 15–25 years. It is easy to form, bend, slit, and punch, making it widely used for roofing, wall cladding, doors and windows, as well as industrial decoration.
Thickness: 0.12-1.2mm
Width: 600–1,250 mm
MQQ: 10 tons
RAL 3009 PPGI/PPGL Coil Specification
| Item | Details |
| Substrate | Pre-Painted Galvanized Iron(PPGI) |
| Thickness | 0.12–1.2 mm |
| Width | 600–1,250 mm |
| Coating Weight | Z30–Z275 g/m², AZ30–AZ150 g/m² |
| Paint Surface | matt/wrinkled/glossy/emboss |
| Coatings | PE / SMP / HDP / PVDF |
| Coating Thickness | Top: 11–35 μm; Bottom: 5–14 μm |
| Coating Structure | 2-coat 2-bake (top), 1-coat 1-bake (back) |
| Material | DX51D, DX52D, DX53D, SPCC, CGCC, S250GD, S350GD, A653, etc. |
| Certificates | SGS, ISO 9001,CE |
| Service Life | 15–25 years (outdoor) |
| Inside diameter | 508/610mm |
| Date of Delivery | 5-45 days |
| Package | Standard export package or as per your requirements |
| Monthly Production | 5,000-10,000tons |
Production Process of RAL 3009 PPGI/PPGL Coil
- Substrate Preparation: High-quality hot-rolled or cold-rolled steel coils are selected as substrates, and the surface is cleaned to remove oil, rust, and other impurities.
- Coating Treatment:
- Hot-Dip Galvanizing: The substrate is immersed in molten zinc to form a protective zinc layer, enhancing corrosion resistance.
- Galvalume Coating: Similar to hot-dip galvanizing, but using an aluminum-zinc alloy for improved weather resistance.
- Coating Application: A specialized RAL 3009 paint is applied to the surface of the coated steel coil, typically using electrostatic spraying or roller coating techniques to ensure an even application and strong adhesion.
- Curing: After coating, the material undergoes high-temperature curing to ensure that the coating adheres well to the steel substrate, improving wear resistance and weather durability.
- Cutting and Packaging: The finished coils are cut to the required specifications based on customer needs and packaged for transportation and use.
RAL 3009 PPGI Coil vs RAL 3009 PPGL Coil
| Item | RAL 3009 PPGI Coil | RAL 3009 PPGL Coil |
| Substrate | Hot-dip galvanized steel (GI) | 55% Al-Zn alloy coated steel (GL) |
| Corrosion Resistance | Good for general environment | Excellent, superior corrosion resistance |
| Service Life | 10–15 years | 15–25 years |
| Heat Resistance | Normal | High, better heat reflection |
| Formability | Good, easy to bend and process | Good, slightly higher hardness |
| Price | Lower, cost-effective | Higher, better long-term value |
| Suitable Scenarios | Dry areas, warehouses, interior panels | Coastal, industrial, high-corrosion areas |
Advantages of RAL 3009 PPGI/PPGL Coil
- Consistent and Stable Color: Utilizing the internationally recognized RAL 3009 Oxide Red, this coil offers a sophisticated appearance that resists dirt and fading in outdoor environments.
- Strong Corrosion Resistance: The combination of a coating and a paint layer provides dual protection against oxidation and environmental erosion, significantly extending its lifespan.
- Excellent Processability: This material is easy to form, bend, cut, and stamp, making it suitable for various processing techniques and enhancing installation efficiency.
- Lightweight Design: With a low weight and high strength, it reduces structural load while ensuring stability during use.
- Superior Weather Resistance: It effectively withstands extreme weather conditions, including high temperatures, low temperatures, and humidity, preventing chalking or cracking over long outdoor exposure.
- Cost-Effective and Practical: Offering outstanding value for money, it is more affordable than stainless steel and aluminum alloys, with simple maintenance requirements.
- Strong Impact Resistance: The material’s excellent toughness allows it to endure certain impacts, minimizing the risk of damage from external forces.
- Long-Term Color Stability: The strong adhesion of the coating ensures it is resistant to wear, oil stains, scratches, and impacts, with minimal risk of paint chipping or cracking during bending and shaping.
- Eco-Friendly: The steel substrate is 100% recyclable, meeting environmental and low-carbon requirements.
Applications
- Building Roofs and Walls: Suitable for industrial plants, warehouses, sports arenas, commercial building roofs, exterior wall panels, and agricultural market structures.
- Doors and Awnings: Ideal for rolling shutters, garage doors, sunshades, awnings, and more.
- Municipal Barriers and Construction Fencing: Used for construction site barriers, road safety barriers, and temporary building walls.
- Agricultural and Greenhouse Construction: Perfect for greenhouse roofs, livestock shelters, and roofs and walls of agricultural storage facilities.
- Appliance and Equipment Casings: Commonly used for distribution boxes, electrical cabinets, agricultural machinery casings, and ventilation equipment enclosures.
- Decorative and Interior Applications: Utilized in storefront decorations, ceiling panels, interior partitions, and door/window trims.
- Transportation Components: Employed in trailer panels, refrigeration units, trailer skirts, and lightweight trailer shells.
- Storage and Modular Housing: Used for container homes, modular houses, shelf panels, and storage partition panels.
- Public Facilities: Suitable for highway guardrails, sound barriers, platform canopies, and bus or subway station roofs.
- Lightweight Structures and Furniture: Applied in metal furniture panels, shelving boards, and billboard backing plates.
PPGI/PPGL Coil Manufacturer – WanZhi Steel
WanZhi Group is an ISO-certified manufacturer of color-coated galvanized steel coils in China, specializing in the production and sale of stainless steel, galvanized steel, and color-coated steel. The company features a sample room, laboratory, and complete production lines, offering one-stop services for samples, design, and production to meet the needs of global customers.

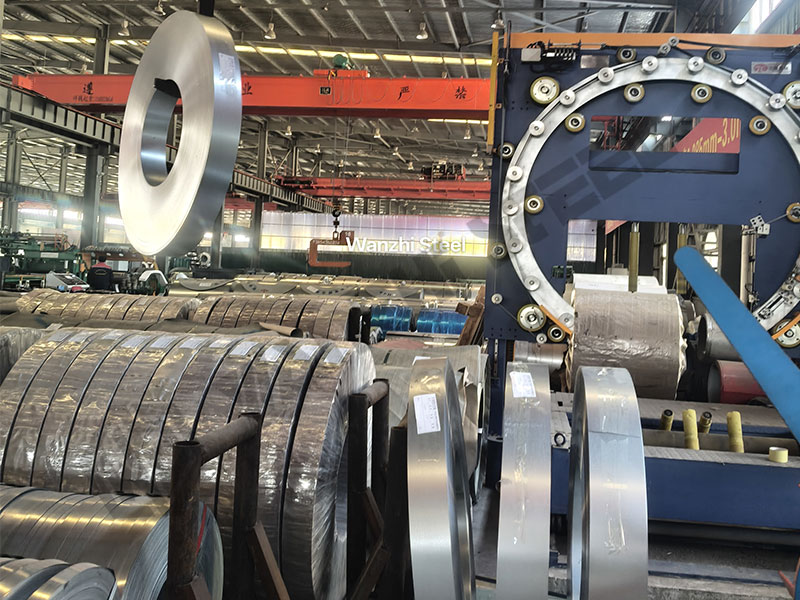

Factory
The WanZhi Steel’s color-coated steel sheet factory produces coated steel sheets with a topcoat thickness ranging from 11 to 35 μm and a substrate thickness of 5 to 14 μm, providing a wide range of patterns and color options. Additionally, the factory offers various designs and surface patterns for color-coated coils, sheets, and other products.

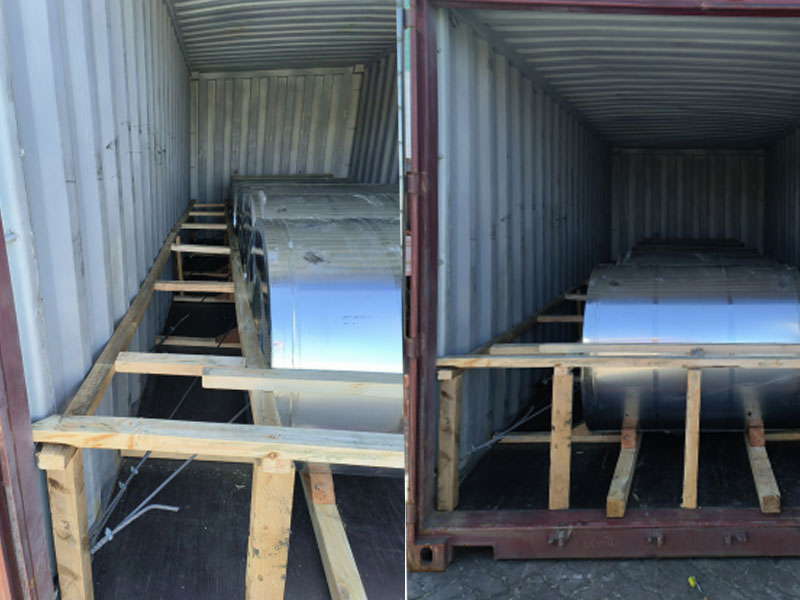

Packaging & Shipping
Most export steel coils are packed using standard export packaging. We also offer customized packaging based on customer requirements, including vertical packing, plastic wrap, moisture-resistant paper, galvanized steel sheets, and the option to include company logo.
Certificates
- WanZhi provides cost-effective wholesale prices for color-coated coils along with tailored solutions, serving over 120 countries.
- Our color-coated products comply with international standards such as ASTM, ISO, EN, and JIS.
- Wanzhi Group operates three color-coated steel production lines, two galvanized steel production lines, and one aluminum–magnesium alloy production line, all certified by ISO and SGS, etc.
- Direct from the manufacturer, we maintain ample raw material stock and short delivery times, typically fulfilling orders within 5–45 days.
PPGI/PPGL Coil Price
The price of PPGI/PPGL coils typically depends on factors such as the cost of the base material, the type of paint and thickness, the coating film, and specifications. Prices may vary accordingly. Please leave a message with your requirements, and we will provide you with a free quotation!
