DX54D galvanized steel complies with EN10346 standard, premium deep drawing hot-dip galvanized steel equivalent to FeP06G, material No.1.0952. It features yield strength ≥120MPa and elongation above 36% with excellent ductility for deep stamping and complex bending. Widely used in automotive, home appliances and deep-form parts. Wanzhi Group supplies full-range DX series steel products, with specifications, widths, coatings and surface treatments available for customized requirements.
Thickness: 0.12mm – 4.0mm
Width: 600 – 1,500 mm
Zinc Coating Weight: Z30g/㎡-Z275g/㎡

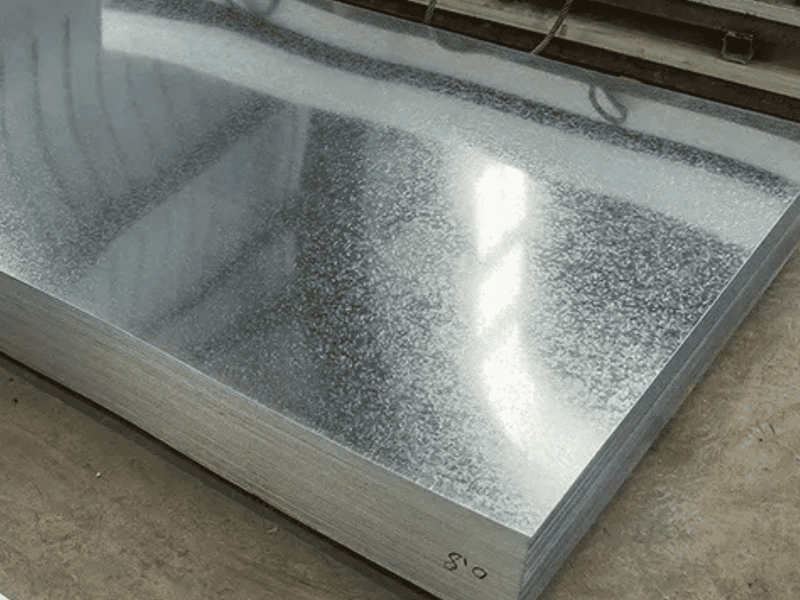

What is DX54D Galvanized Steel?
DX stands for coated steel series, the figures indicate formability grades, and D refers to deep drawing grade. Compared with DX51D, DX52D and DX53D, it features lower yield strength, higher elongation, superior deep drawing and bending performance as well as less springback. It is ideal for stamping processing of ultra-complex shapes. Meanwhile, its galvanized coating endows the material with excellent corrosion resistance to guarantee a long service life.
DX54D Galvanized Steel Specification
DX54D is a high-performance deep drawing grade galvanized steel complying with EN10346 standard. DX51D, DX52D and DX53D are also mainstream hot-dip galvanized base steels. WanZhi Group supplies the full range of DX grade steels, as well as SGCC and SGCD grades conforming to JIS G3302 standard. We also offer SS250/345 grades and CS Type A/B/C products that meet ASTM A653 and A653M standards, fully catering to the procurement demands of global clients. Feel free to contact us for further inquiries.
| Material | SGCC,S350GD+Z,S550GD+Z,DX51D,DX52D,DX53D, etc |
|---|---|
| Substrate | Low carbon cold rolled steel |
| Thickness | 0.12mm - 4.0mm |
| Width | 600mm - 1500mm |
| Yield Strength | 120 – 220 MPa |
| Tensile Strength | 270-370 MPa |
| Vickers Hardness (HV1) | ≤ 120 |
| Elongation | ≥36% |
| Elastic Modulus | 210 GPa |
| Vickers Hardness | 100 – 130 HV |
| Coil Weight | 3-8 tons |
| Zinc Coating Weight | Zinc Coating Weight |
| Surface structure | Zero spangles, Small spangles, Regular spangles, Big spangles |
| Standard | GB / JIS / ASTM/EN |
| Certificates | SGS, ISO, BV, CE etc. |
| Packages | Standard Export Packaging or as client required |
Production Processes of DX54D GI Steel
- Raw Material Selection: Adopt qualified low-carbon cold rolled base steel with stable chemical composition to meet deep drawing performance requirements.
- Surface Cleaning: Remove oil stains, rust and impurities through degreasing and pickling to ensure clean steel surface.
- Hot-dip Galvanizing: Immerse cleaned steel into molten zinc liquid for uniform zinc coating formation, control precise zinc layer weight.
- Cooling & Leveling: Cool down finished steel strips and carry out leveling to improve flatness and eliminate internal stress.
- Skin Pass Rolling: Fine rolling to optimize surface texture and enhance ductility for better deep drawing effect.
- Surface Treatment: Perform passivation, anti-fingerprint or film lamination as required to boost anti-corrosion performance.
- Slitting & Cutting: Process into customized width, length and coils according to customer specifications.
- Quality Testing: Inspect mechanical properties, zinc coating thickness, size tolerance and surface quality strictly.
- Packing & Warehousing: Adopt standard export packaging, finish labeling and store finished products for timely delivery.
Surface Treatment of DX54D GI Steel
DX54D galvanized steel features diverse coatings, flexible surface treatments and full-range deep processing to meet various application demands.
Surface Finishes
- DX54D+Z (zn): Good corrosion resistance, for outdoor & ordinary auto parts.
- DX54D+AZ (aluminum-zinc alloy): High corrosion resistance & heat reflection, for roofing and HVAC.
- DX54D+ZAM (zinc aluminum magnesium): Superior anti-corrosion and weather resistance, for harsh environments.
- DX54D+ZM (zinc-magnesium alloy): Anti-white rust, fit humid-area auto & structural parts.
- DX54D+ZF (zinc-iron alloy): Excellent paint adhesion, perfect for automotive parts needing subsequent painting.
- DX54D+ZA (zinc-aluminum alloy): High hardness & rust resistance, for buildings and facades.
Coating Options
- Zinc Coating Weight: Z30-Z275 g/㎡, AZ30-AZ150g/m2, can be customized on clients’ demand.
- Surface Spangle: Zero spangle, minimum spangle, regular spangle, big spangle.
- Secondary Protection: Passivation, anti-rust oil coating, anti-fingerprint treatment and phosphating treatment.
- Pre-painted Finish: Available with PE, SMP, HDP, PVDF coatings to make pre-painted sheets and coils, such as PPGI, PPGL sheets and coils
DX54D Galvanized Steel Prices
The price of DX54D galvanized steel is affected by factors on raw material costs, zinc coating weight, customized specifications and dimensions, surface treatments. The price ranges from USD 600 to USD 1000 per ton. We sell directly from the factory with a delivery lead time of 5 to 45 days. The minimum order quantity for galvanized steel is 10 tons. Apart from DX54D galvanized steel, WanZhi also supplies galvalume steel, prepainted galvanized steel, prepainted aluminum, zinc-aluminum-magnesium coated steel, roof panels, corrugated sheets, stainless steel and other products. Please leave a message with your detailed requirements, and WanZhi Group will offer you competitive quotations!
Advantage of DX54D Galvanized Steel
- Superior Formability: It is top-grade super deep drawing steel with high elongation and low yield strength, easy for complex stamping, bending and deep forming without cracking during processing.
- Stable Mechanical Property: Low-carbon raw material ensures non-aging performance, keeping stable processing effect for long-term storage and production.
- Excellent Corrosion Resistance: Uniform hot-dip zinc coating provides effective shielding against rust, moisture and mild chemical corrosion, extending service life in outdoor, humid or industrial environments.
- Wide Applicability: Compatible with multiple coating types and various sizes, perfectly match diverse processing demands and industrial usage scenarios.
- Good Machinability: Fine weldability and cutting performance, convenient for subsequent secondary processing and finished product manufacturing.
DX54D Galvanized Steel Usages
- Automotive Industry: Used for auto interior parts, fuel tanks, shell components and various deep-drawn auto structural accessories.
- Home Appliances: Ideal for shells and inner parts of refrigerators, washing machines, air conditioners and other household appliances.
- Hardware Stamping Parts: Suitable for producing intricate bent fittings, precision stamped parts and cold-formed hardware products.
- Building & Construction: Applied to customized shaped building accessories, special-shaped architectural metal components.
- Industrial Equipment: Manufacturing deep drawing shells, pipes, tubes, protective casings and mechanical auxiliary parts for general machinery.
- Roofing & Profiled Sheets: Perfect for processing roofing, cladding, embossed panels and various formed metal roofing materials.
Premium DX54D Galvanized Steel Manufacturer – WanZhi Group
WanZhi Group is an ISO-certified galvanized steel manufacturer and supplier in China, with its factory located in Boxing County, Binzhou City, Shandong Province. We operates two galvanized steel production lines, each with a monthly output exceeding 10,000 tons. We produce hot-dip and electro-galvanized steel, supplying galvanized steel raw materials and finished products worldwide, including galvanized coils, flat sheets, roof panels, corrugated sheets, trapezoidal sheets and steel pipes. Besides, we provide supporting deep processing services such as bending, punching, slitting, forming, coating and custom special-shaped processing.
WanZhi Steel Factory
- Production Lines: WanZhi factory is equipped with complete galvanizing lines, color coating lines and zinc-aluminum-magnesium alloy coating lines, as well as sample rooms and quality inspection rooms. We have established a strict full-process management system covering raw material procurement, production processing, quality testing and finished product packaging, to ensure stable and high-quality products for customers’ projects.
- Quality Inspection: WanZhi Steel implements a strict full-range quality control system for galvanized products, covering incoming raw material inspection, in-process production monitoring and finished product testing. We test coating thickness, zinc coating weight, surface quality, dimensional tolerances and mechanical properties to ensure all products comply with international standards including ASTM, ISO, EN and JIS.
- One-stop Custom Service: We provide full-process one-stop supporting services including material selection, technical consultation, customized production and delivery, alongside 24-hour online support. We also offer customization services covering dimensions, metal coating types, surface treatments such as film laminating, passivation, phosphating, anti-fingerprint treatment and spray coating, material grades as well as export packaging solutions.
- Certificates: Our factory has passed ISO9001, ISO14001 and ISO45001 certifications. Original Mill Test Certificate (MTC) is available. We support third-party inspections including SGS, BV and TUV, and free samples are provided.
Export Packaging

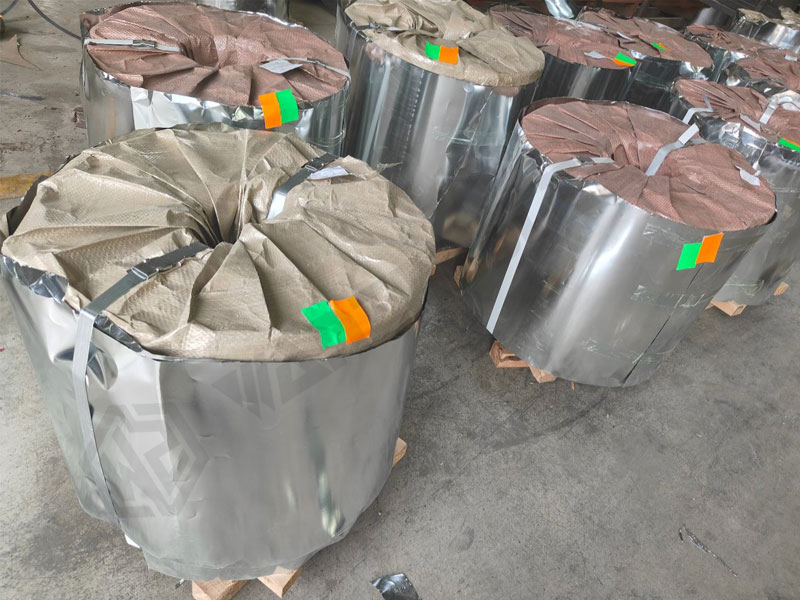

Most exported steel sheets and coils adopt standard export packaging, including plastic film, moisture-proof paper, kraft paper, galvanized iron sheet, edge protectors and wooden pallets. It effectively prevents products from collision deformation, dampness and rust, ensuring intact delivery to clients’ project sites. Besides, customized packaging is available as per customer requirements.
Global Cases
WanZhi Steel’s galvanized and galvalume products are exported to over 120 countries and regions worldwide. We have deeply expanded markets in Southeast Asia, the Middle East, Africa, Europe and other regions, serving industries including industry, construction materials, home appliance manufacturing and agriculture, and have gained wide market recognition and favorable reputation.
Wanzhi Steel – Agricultural Greenhouse Project in Turkmenistan
550 tons PPGI Steel Coil to Azerbaijan
100 tons of Galvanized Coils to Saudi Arabia
144 ton Steel Wire to Spanish
Project of PPGI Roofing en Libya
100 tons of GL and PPGL in Solomon Islands
If you are looking for deep drawing grade galvanized steel, please feel free to contact us. Should you be interested in our other products such as GI, GL, PPGI, PPGL, metal roof panels and corrugated sheets, welcome to get in touch. Our sales managers will provide you with free quotations and customized solutions.
