Galvanized Appliance Steel Sheet, also known as galvanized steel sheet/strip for home appliances, features a smooth, impurity-free surface, uniform color, and good decorative properties. It is a commonly used corrosion-resistant raw material for exterior and structural components of home appliances, and is a popular material for the outer shell, doors, panels, inner liners, air ducts, and various brackets of products such as refrigerators, air conditioners, washing machines, and microwave ovens.
Galvanized Appliance Steel Sheet for Sale
Wanzhi Group specializes in the production and supply of high-quality galvanized steel sheets for home appliances. We offer flexible specifications to meet the specific requirements of various appliance components, from exterior panels to internal structural parts, striving to be your most reliable raw material partner.
Specifications
| Category | Details |
| Base Material Grade | Commercial Grade: DX51D (suitable for general forming parts); Stamping/Deep Drawing Grade: DX52D, DX53D, DX54D (suitable for complex stamping and forming parts, such as door panels and inner drums); Structural Grade: S series (e.g., S250GD, suitable for load-bearing brackets) |
| Coating & Surface | Recommended Z60, Z90, Z120, Z150, Z180 (select according to the anti-corrosion level) |
| Surface Structure | Zero spangle, minimized spangle (to ensure uniform appearance after painting) |
| Surface Treatment | Environmentally friendly chromium-free passivation, anti-white rust; fingerprint-resistant treatment; oil-free/lightly oiled |
| Thickness | 0.12mm – 2.0mm (common range: 0.4mm – 0.8mm) |
| Width | 600mm – 1250mm (customizable slitting available) |

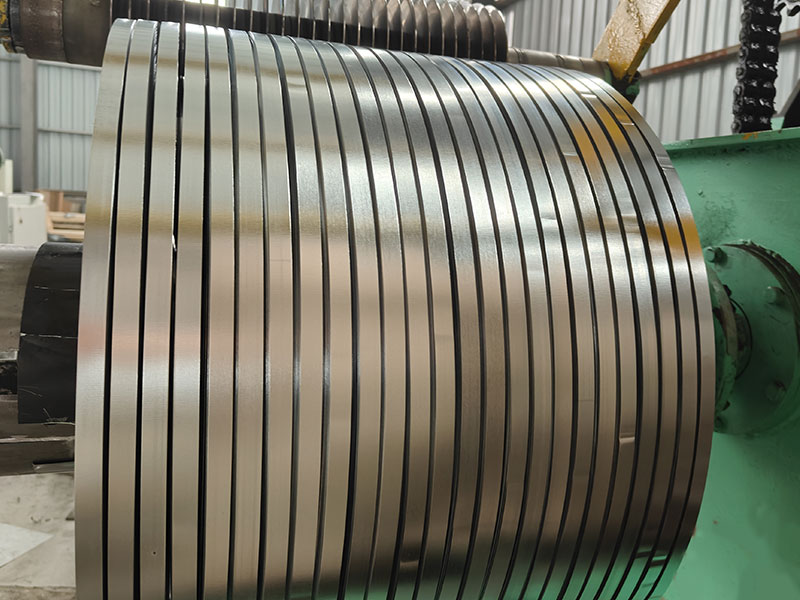

| Supply Form | Steel coil (inner diameter 508mm/610mm) or cut-to-length flat sheets |
| Certifications & Standards | Compliant with environmental directives such as RoHS and REACH; meets Chinese national standards (GB), European standards (EN), American standards (ASTM), etc. |
Features and Advantages
- Applications: Specifically designed for home appliance manufacturing, adapting to the appearance and structural requirements of appliances.
- Surface: Small zinc spangle/zero zinc spangle surface, flat, smooth, scratch-free, and free of zinc particle accumulation. No additional polishing is required; direct spraying and printing are possible, ensuring the quality of the appliance’s appearance.
- Mechanical Properties: The substrate (e.g., DX51D, DX52D) exhibits excellent ductility and stamping performance, withstanding bending, stretching, and complex stamping processes. The coating has extremely strong adhesion and is not easily peeled off after processing.
- Environmental Protection: Must comply with the environmental standards of the home appliance industry; chromium-free passivation processes are commonly used.
- High Cost-Effectiveness: Lower cost than stainless steel, VCM sheets, and other sheet materials used in home appliances.
Galvanized Appliance Steel Sheet vs VCM sheet vs PCM sheet
| Feature | GI Appliance Steel Sheet | PCM Sheet | VCM Sheet |
| Essence | Carbon steel + galvanization | Base material + organic coating | Base material + decorative film |
| Surface Condition | Galvanized original color (silver-white matte), fingerprint-resistant, oil-free, etc. | Coated with colored paint films such as polyester (PE) and silicone-modified polyester (SMP). | Covered with plastic films printed with patterns like wood grain and stone grain, such as PVC and PET. |
| Advantages | Optimal processing performance; high cost-effectiveness; suitable as a coating base material. | Rich and uniform colors, high production efficiency; good weather and chemical resistance. | Excellent decorative effect with realistic texture; outstanding fingerprint and scratch resistance. |
| Applications | Home appliance casings, structural parts, inner drums/inner liners, and other components with high forming requirements. | Outdoor unit casings of air conditioners, side panels of washing machines, casings of water heaters, and other exterior parts with high aesthetic requirements. | Door panels of refrigerators/air conditioners, control panels of high-end home appliances, decorative panels, and other components with high requirements for appearance and touch. |
Galvanized Appliance Steel Sheet Factory
Wanzhi Group is a galvanizing plant located in China, possessing a fully independent, highly automated hot-dip galvanizing production line specifically for appliance panels. From cleaning and annealing to galvanizing and post-treatment, the entire process is precisely controlled. Wanzhi Steel Factory is certified by ISO9001, ISO14001, and CE, and supports SGS, BV, and TUV testing. With extensive export experience, its products are sold to over 100 countries and regions, including Brazil, Djibouti, the Philippines, the Middle East, Southeast Asia, and South America, flexibly adapting to the procurement needs of global customers.
Appliance Panel Production Line
Production:The production line includes a hot-dip galvanizing line, a cold rolling line, and pre-treatment equipment, with an annual capacity of 600,000 tons and a delivery time of 5-45 working days.
Online Inspection: Equipped with laser velocimeters, coating thickness gauges, and an automatic surface defect detection system, it monitors key parameters in real time.
Quality Control: Production strictly adheres to international and domestic standards such as ASTM A653, EN 10346, and GB/T 2518.
Laboratory: Equipped with a comprehensive laboratory, capable of conducting mechanical property tests, salt spray tests, roughness measurements, coating adhesion tests, etc.
Customization and Services
Flexible Customization: Wanzhi can customize specific thicknesses, widths, coating weights, mechanical properties, and surface treatments according to your drawings and technical requirements.
Performance Customization: We can optimize the processing performance of the sheet metal according to the processing needs of home appliance components, precisely matching the production process of your project.
Stable Supply: Wanzhi Factory has stable raw material channels and efficient production management, ensuring on-time delivery.
Wanzhi Group supplies Galvanized Appliance Steel Sheet, supporting bulk purchases and customized production. We not only sell metal materials but also provide reliable solutions. Leave a message to get the most cost-effective quote and premium galvanized steel!
