S250GD Z275 galvanized steel is a structural steel with a 275 g/m² zinc coating, produced according to EN 10346. It offers a balanced combination of strength, formability, and corrosion resistance for construction, automotive, and industrial applications. Compared with stainless steel, it can provide a more cost-effective solution in many applications. Wanzhi Group supplies S220GD, S250GD, S350GD, and other galvanized steel grades in coils, sheets, and strips.
- Thickness: 0.12mm-6mm
- Width: 600mm – 1500mm
- Zinc Coating Mass: Z30g/㎡- Z275g/㎡
What is S250GD Z275 Galvanized Steel?
S250GD Z275 GI steel is a structural steel product with a zinc coating, specified under EN 10346. In “S250GD,” “S” denotes structural steel, while “250” indicates a minimum yield strength of 250 MPa. “GD” identifies the steel as a grade intended for hot-dip coated products. “Z275” means the total zinc coating mass on both sides is 275 g/m². The Z275 zinc coating provides reliable corrosion protection and improved durability.
It combines structural strength with zinc coating protection and is commonly used in construction and industrial applications. It has a tensile strength of 350–400 MPa and good elongation, offering a more cost-effective solution than stainless steel in many structural applications.
Equivalent Grades for S250GD Z275 Galvanized Steel
| Standard | Equivalent Grade |
| BS | FeE250G |
| ASTM | Grade B (ASTM A 466 M) |
| GB | Q235 |
| JIS | SGC340 |
Mechanical Properties of S250GD Z275 GI Steel
| Steel Grade | Yield Strength (MPa) ≥ | Tensile Strength (MPa) ≥ | Elongation A80 (%) ≥ (0.25–0.35 mm | Elongation A80 (%) ≥ (>0.35–0.50 mm) | Elongation A80 (%) ≥ (>0.50–0.70 mm) | Elongation A80 (%) ≥ (>0.70 mm) |
| S250GD+Z | 250 | 330 | 12 | 15 | 17 | 19 |
S250GD Steel Mechanical Properties
S250GD+Z, S250GD+ZF, S250GD+ZA, S250GD+ZM, S250GD+AZ, and S250GD+AS use the same S250GD steel grade and have the same specified mechanical properties under EN 10346: a minimum yield strength of 250 MPa, a minimum tensile strength of 330 MPa, and a minimum A80 elongation of 19% for thicknesses >0.70 mm. The main difference lies in the metallic coating composition. The minimum A80 elongation is reduced for thinner products.
| Steel Grade | Yield Strength MPa ≥ | Tensile Strength MPa ≥ | Elongation % ≥ (Nominal Thickness ≤0.7mm) | Elongation % ≥ (Nominal Thickness >0.7mm) | Coating AdhesionBending Center Diameter (a = plate thickness) |
| S250GD+Z, S250GD+ZF, S250GD+ZA, S250GD+ZM, S250GD+AZ, S250GD+AS | 250 | 330 | 17 | 19 | 1a |
Specification
| Product Name | S250GD Z275 Galvanized Steel (GI Steel) |
|---|---|
| Standard | EN 10346 |
| Thickness | 0.12–6.0 mm |
| Width | 600–1500 mm |
| Length | 2000–6000 mm, can be customzied |
| Zinc Coating Weight | 275 g/m², both sides |
| Product Form | Coil, Sheet, Strip |
| Surface Structure | Zero spangles, small spangles, regular spangles, big spangles |
| Surface Treatment | Oiling, passivation, non-oiled, pre-painting, etc. |
| Processing Services | Slitting, cutting, bending, profiling, punching, embossing, etc. |
| Certificates | SGS, ISO 9001,CE, etc. |
| MOQ | 10 tons |
| Package | Standard export packaging, or as required |
Advantages of S250GD Z275 Galvanized Steel
- High Structural Strength: Minimum yield strength of 250 MPa supports structural and load-bearing applications.
- Good Tensile Strength: Minimum tensile strength of 330 MPa provides reliable mechanical performance.
- Zinc Corrosion Protection: The Z275 coating provides a minimum total zinc coating mass of 275 g/m² on both sides.
- Good Formability: Suitable for roll forming and fabrication into structural profiles and components.
- Long Service Life: The zinc coating provides galvanic corrosion protection in corrosive environments.
- Consistent Surface: A uniform zinc coating provides a consistent surface for further processing and painting.

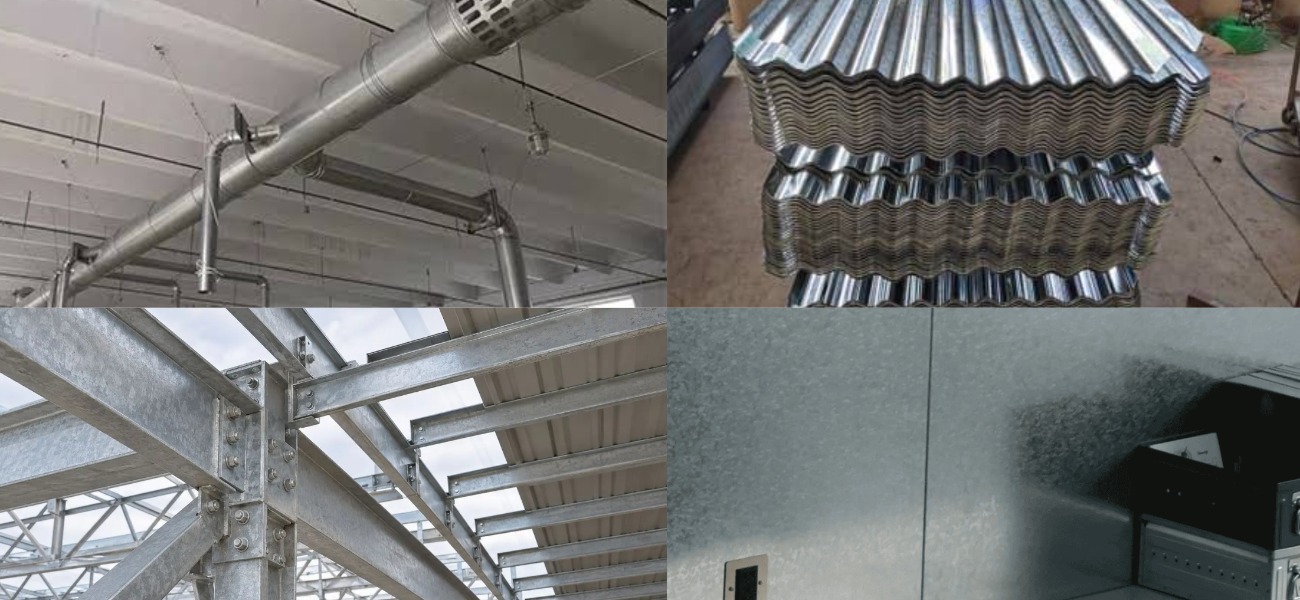

Applications
- Building Structures: Purlins, load-bearing sheets, corrugated profiles, roof panels, and floor decking.
- Light Steel Structures: Structural frames, studs, tracks, and support components.
- Solar Structures: Photovoltaic mounting structures and solar panel racks.
- Industrial Facilities: Silos, storage racks, support frames, and other load-bearing components.
- Fabricated Components: Nail plates, brackets, channels, and other roll-formed structural parts.
S250GD Z275 Galvanized Steel vs. Stainless Steel
S250GD Z275 galvanized steel combines structural strength with zinc-based corrosion protection. It is suitable for structural and load-bearing applications. Stainless steel relies on a chromium-rich passive film for corrosion resistance and is available in different grades for various service conditions. Material selection depends on structural requirements, corrosion conditions, forming requirements, and project cost.
| Item | S250GD Z275 Galvanized Steel | Stainless Steel |
| Material Type | Structural steel with zinc coating | Chromium-containing alloy steel |
| Corrosion Protection | Zinc coating provides sacrificial protection | Chromium-rich passive film provides corrosion resistance |
| Strength | Min. yield strength: 250 MPa
|
Depends on stainless steel grade |
| Formability | Good for structural forming and fabrication | Depends on grade and condition |
| Typical Applications
|
Purlins, structural profiles, load-bearing sheets, solar structures | Food equipment, chemical equipment, architectural and corrosive-service applications |
| Cost | Generally economical for structural applications | Typically higher material cost |
Packaging and Shipping
Galvanized steel coils and sheets are packed in standard export packaging, including plastic film, moisture-proof paper, galvanized steel sheets, corner protectors, and wooden pallets. Customized export packaging is also available according to customer requirements. We accept various Incoterms, including FOB, CIF, EXW, and CFR, and can handle customs declaration, commodity inspection, and shipping arrangements to support timely delivery.
S250GD Z275 Galvanized Steel Manufacturer – Wanzhi Group
Wanzhi Group is an ISO-certified galvanized steel manufacturer and supplier in China, with ISO 9001, ISO 14001, and ISO 45001 certifications. Our factory is located in Binzhou, Shandong Province. It is equipped with two galvanizing production lines, roll forming equipment, slitting equipment, a sample room, and quality inspection laboratories. Each production line has a monthly capacity of up to 10,000 tons. Our galvanized steel coils, galvanized steel sheets, galvanized corrugated sheets, galvanized steel strips, galvanized steel pipes, wires, and other products have been exported to more than 120 countries and regions worldwide.
Factory and Production Capability
Wanzhi factory is equipped with galvanized steel, galvalume steel, color coated steel, and zinc-aluminum-magnesium steel production lines, with an annual production capacity of 600,000 tons. We provide integrated production and processing services from raw materials to finished products, helping control costs and maintain consistent product quality. Available processing services include slitting, cutting, stamping, punching, bending, lamination, painting, and profile processing.
Quality Inspection
S250GD galvanized steel is inspected for chemical composition, mechanical properties, dimensions, zinc coating mass, coating adhesion, surface quality, flatness, and formability. Inspection is performed according to applicable EN 10346 requirements, with inspection reports or MTC available upon request. We support third-party inspections by SGS, BV, TUV, and other inspection organizations. Free samples are also available for customer reference and quality verification.
Global Cases
In recent years, Wanzhi Group’s GI, GL, PPGI, and PPGL products have been exported to Africa, the Middle East, Central Asia, Southeast Asia, Europe, South America, and other regions. These products serve a wide range of applications in construction, industry, agriculture, home appliance, infrastructure, and other sectors. Contact us for a free quotation and customized project solutions.
Wanzhi Steel – Agricultural Greenhouse Project in Turkmenistan
550 tons PPGI Steel Coil to Azerbaijan
100 tons of Galvanized Coils to Saudi Arabia
144 ton Steel Wire to Spanish
Project of PPGI Roofing en Libya
100 tons of GL and PPGL in Solomon Islands
Customer Feedback
We supply galvanized steel products, including DX51D, DX52D, DX53D, S250GD, S350GD, and S550GD, with zinc coating weights from Z30 to Z275. Our products support a wide range of customer projects and are valued for their durability. Besides, we provide technical support throughout the project.
S250GD Z275 galvanized steel combines structural strength with zinc corrosion protection for demanding structural applications. It offers a minimum yield strength of 250 MPa and good formability. AZ or ZM coatings are available for demanding corrosion conditions, while higher-strength structural grades can meet higher load-bearing requirements. Contact Wanzhi Group for customized solutions and competitive prices based on your project needs.
