DC01 Cold-rolled Steel is a general low-carbon cold-rolled material that complies with the EN 10130 standard. It features a smooth surface, precise dimensions, and excellent formability, making it suitable for secondary processing such as coating, painting, electroplating, and welding. Wanzhi Group supplies cold-rolled steel coil, hot-rolled sheet and coils , color-coated galvanized/aluzinc steel, stainless steel sheets, and more. Our products are exported to over 120 countries and regions worldwide, meeting the needs of various projects.
Thickness: 0.15-6mm
Width: 600-1,250mm
Standard: GB/T708 GB/T5213,EN10130,JIS G3141
What Is DC01 Cold-rolled Steel?
DC01 Cold-rolled Steel is a low-carbon, low-sulfur, low-phosphorus cold-rolled steel primarily composed of iron, carbon, and manganese, with a small amount of aluminum. It has low impurity content and excellent machining performance. “DC” designation indicates cold drawing, making it suitable for processes such as cold forming, bending, and stretching. “01” denotes the grade of formability, which is commonly used in hardware, home appliances, and structural components.
DC01 Cold-rolled Steel features a smooth and flat surface, high dimensional accuracy, uniform thickness, low hardness, and is easy to bend and stamp.
Specification
| Product Name | DC01 Cold-rolled Steel |
|---|---|
| Standard | EN 10130 |
| Thickness | 0.15-6 mm |
| Width | 600-1,250mm |
| Yield Strength | 140–280 MPa |
| Tensile Strength | 270–410 MPa |
| Elongation (A80) | ≥ 28% |
| Surface Treatment | Anti-rust oiling, Galvanizing, Coating, etc. |
| Standard | GB/T708 GB/T5213,EN10130,JIS G3141 |
DC01 Cold-rolled Steel Price
The price of cold-rolled steel ranges from $600 to $1,000 per ton, with the final price depending on the thickness and width of the steel coils. Wanzhi Group offers standard sizes of cold-rolled steel coils measuring from 0.15 to 6 mm in thickness and 600 to 1,250 mm in width, with materials including SPCC, ST12, DC01 and Q195, and others. Please leave a message with your required dimensions, and we will provide you with a free quote.
DC01 Steel Chemical Composition
| Item | Content (Max) |
| Carbon (C) | ≤ 0.12% |
| Manganese (Mn) | ≤ 0.60% |
| Phosphorus (P) | ≤ 0.045% |
| Sulfur (S) | ≤ 0.045% |
| Aluminium (Al) | ≥ 0.020% |
DC01 Cold-rolled Steel Surface Treatments
DC01 cold-rolled steel supports various surface treatments, including anti-rust oiling, skin pass finishing, galvanizing, and coating. Wanzhi Group is equipped with three color-coated steel production lines and two galvanized steel production lines, with an annual capacity exceeding 600,000 tons. Customized specifications and processing solutions are available to meet customers’ project requirements.
- Oiled Finish: A standard treatment at Wanzhi factory, providing temporary anti-rust protection for steel during storage and transportation.
- Skin Pass / Mill Finish: Wanzhi’s DC01 cold-rolled steel features a smooth, uncoated surface, making it suitable for bending and stamping operations.
- Galvanizing: Wanzhi provides hot-dip galvanizing and electro-galvanizing processes. Our metal-coated steels products cover galvanized steel, galvalume, aluminum-magnesium galvanized steel, tin-galvanized steel and copper-galvanized steel.
- Coating: Wanzhi Group adopts PE, SMP, HDP, and PVDF coatings, and supplies PPGI & PPGL steel products, with support for RAL color chart customization.
Production Process of DC01 Cold Rolled Steel
DC01 cold rolled steel is manufactured through a series of processes: hot rolling and pickling, cold rolling, annealing for softening, skin passing and oiling, as well as precision cutting and finishing. It features high surface accuracy and excellent formability.
- Hot Rolling: Raw steel slab is rolled into hot rolled pickled coil at high temperature.
- Pickling & Cleaning: Remove surface oxide scale and impurities to ensure clean surface.
- Cold Rolling: Cold rolling with precise rolling mill to get thin, smooth and high-precision thickness.
- Annealing: Heat treatment to soften the steel, improve ductility for bending and stamping.
- Skin Pass & Oiling: Fine skin pass finishing, coated with anti-rust oil for storage and transportation.
- Cutting & Finishing: Slitting, cut-to-length, inspection and finished packaging.
Why Choose DC01 Cold-rolled Steel?
- High Dimensional Accuracy: Strict control over thickness tolerances and good plate shape make it suitable for high-precision stamping and forming processes.
- Excellent Machinability: High elongation rate (generally ≥ 28%), it is easy to bend, shallow-stamp and form without the need for complex pre-treatment.
- Good Weldability: Compatible with spot welding, seam welding, gas welding and other welding methods, ensuring stable joint strength.
- Cost-Effective: Lower cost compared with stainless steel and high-strength steel, ideal for mass production and general industrial applications.
- Excellent Plating Performance: Lower cost compared with stainless steel and high-strength steel, ideal for mass production and general industrial applications.
- Strong Coating Adhesion: High surface cleanliness ensures firm bonding for paint and powder coatings, effectively preventing peeling.
DC01 Cold-rolled Steel Application
- Automotive Industry: Interior parts, non-structural body panels, brackets and instrument panel frames.
- Home Appliance Manufacturing: Refrigerator shells, washing machine cabinets, microwave cavities and air conditioner panels.
- Electrical Industry: Distribution boxes, control cabinets, motor housings and switch boxes.
- Construction and Decoration: Light steel keels, door frames, window frames, ventilation ducts and ceiling panels.
- Office Equipment: Filing cabinets, computer cases, printer housings and cashier counters.
- Consumer Hardware: Tool boxes, toy accessories, lamp housings and kitchenware.
- Packaging Industry: Steel drums, metal packaging containers (non-food grade).
Professional Cold-rolled Steel Supplier – Wanzhi Steel
Wanzhi Group is an established coated steel manufacturer and supplier certified to ISO9001 and ISO14000 standards. We supply DC01 cold-rolled steel sheets, coils, steel pipes and related products to around 120 countries and regions worldwide. Our full product range covers galvanized steel, galvalume steel and color-coated products, together with a complete selection of steel profiles. We deliver tailored material solutions for home appliances, hardware, construction, general industry and other fields.

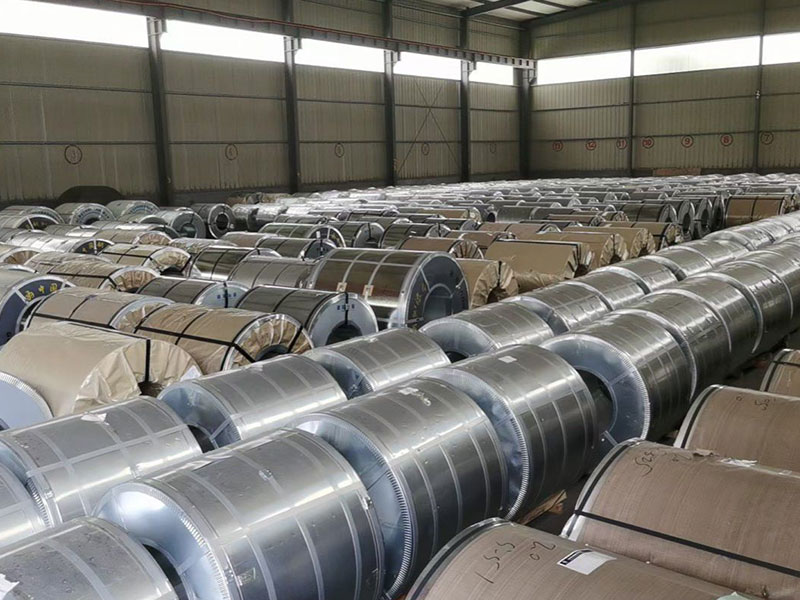

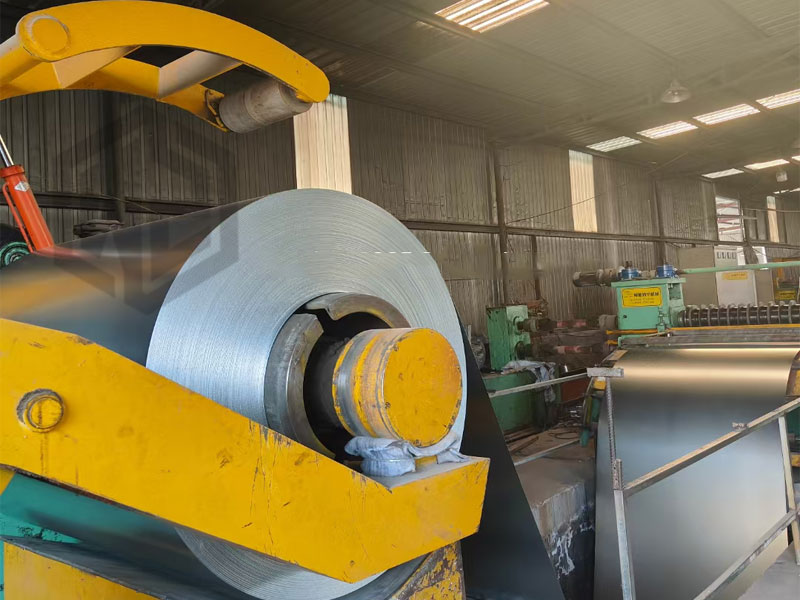

Factory
Wanzhi Group operates professional galvanized and color-coated production lines. Our products comply with international standards including ASTM, GB, JIS and EN. With ample inventory on hand, we can deliver orders within 5 to 45 day according to order quantities. In addition to standard steel production, we also provide customized solutions for material specifications, shapes and steel structures to meet customers’ requirements.

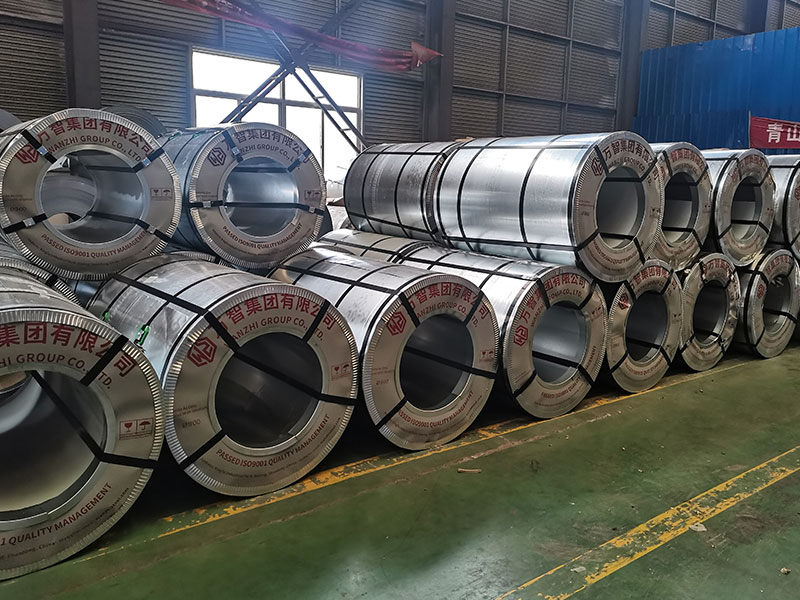

Package
Most products adopt standard export packaging, including plastic film, moisture-proof paper, galvanized iron sheet, edge protectors and wooden pallets. Customized options for weight, packaging methods and printed logos are also available upon customer request.
Global Cases
Wanzhi Group’s products, including color-coated galvanized and galvanized-aluminum steel coils and metal roofing panels, have been exported to more than 120 countries across Europe, South America, the Middle East, Southeast Asia, Africa, and Oceania, including Libya, Brazil, Saudi Arabia, the United Arab Emirates, Chile, Colombia, Azerbaijan, Malaysia, Uzbekistan, Turkey, and Poland.
Wanzhi Steel – Agricultural Greenhouse Project in Turkmenistan
550 tons PPGI Steel Coil to Azerbaijan
100 tons of Galvanized Coils to Saudi Arabia
144 ton Steel Wire to Spanish
Project of PPGI Roofing en Libya
100 tons of GL and PPGL in Solomon Islands
If you would like to know more about other cold-rolled steel grades, or if you are interested in our GI, GL, PPGI, PPGL and other products of Wanzhi, please feel free to leave us a message.
