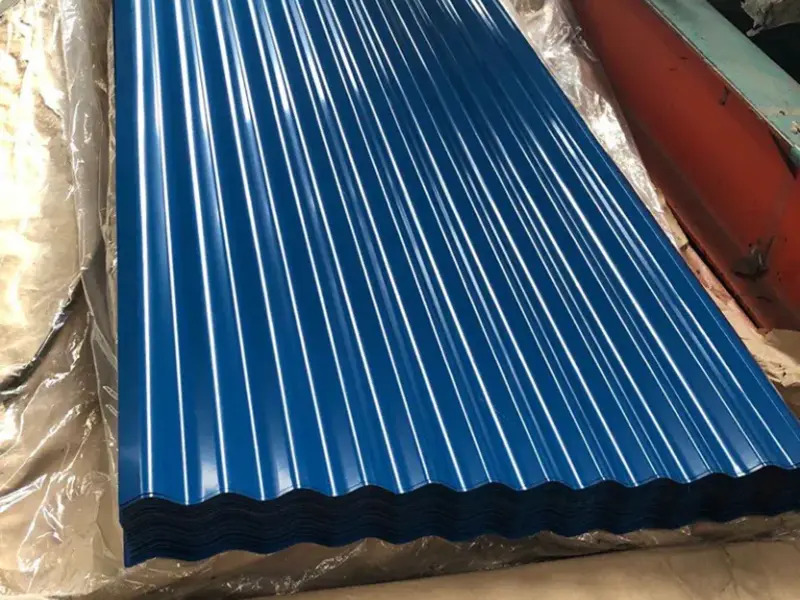

Wavy PPGL sheet is made of galvalume steel substrate, processed with color coating and then roll forming. It features corrosion resistance, heat insulation, light weight and attractive looks, and is used for roof and wall cladding of industrial, commercial and agricultural buildings. Wanzhi Group runs galvalume and color coating production lines, which can produce PPGL sheets of various specifications, coatings, profiles and surface finishes.
Thickness: 0.12 – 1.2mm
Width: 600mm – 1250mm
Aluzinc Coating: AZ30 – AZ150g/㎡
Specification
| Product Name | Wavy PPGL Sheets |
|---|---|
| Substrate | Galvalume steel (GL) |
| Thickness | 0.12mm - 1.2mm |
| Width | 600mm - 1250mm |
| Grade | DX51D/DX52D/DX53D/S220GD/S280GD/Q195/Q215/Q235, etc |
| Standard | ASTM/EN/JIS/DIN/GB |
| Aluzinc Coating | AZ30 - AZ150 g/㎡ |
| Coating Thickness | Top: 11 - 35 μm Back: 5 - 14 μm |
| Coatings | PE / SMP / HDP / PVDF |
| Paint Surface | Matt/wrinkled/glossy/emboss |
| Colors | As per RAL Color, can be customized |
| MOQ | 10 tons |
| Quality Certificate | SGS, ISO, BV, CE etc. |
| Package | Standard export packaging, according to clients’ requirements |
Production Process of Wavy PPGL Sheets
- Raw Material Preparation: Adopt qualified hot-dip galvalume steel coils as the base substrate.
- Surface Pretreatment: Remove oil, dust and oxide layers through cleaning and chemical passivation to improve paint adhesion and corrosion resistance.
- Continuous Color Coating & Curing: Apply primer, topcoat and backcoat with PE/SMP/HDP/PVDF paint systems, and cure under high temperature to form a stable organic coating layer.
- Leveling & Straightening: Straighten the coated steel coil to ensure flatness and consistent mechanical performance.
- Cold Roll Forming: Process flat PPGL strips into standard corrugated/wavy profiles by professional roll forming machines without damaging the paint surface.
- Precision Cutting: Cut wavy sheets into customized lengths via controlled hydraulic cutting system.
- Final Inspection & Packaging: Check size, surface quality and flatness, then pack with protective film and export standard bundles.
Types of Wavy PPGL Sheets
Wanzhi supplies high-performance wavy PPGL sheets with diverse specifications and styles. We offer multiple profiles, wave heights, coating systems and surface treatments to match various construction scenarios, featuring reliable durability, strong waterproofing and excellent decorative performance.

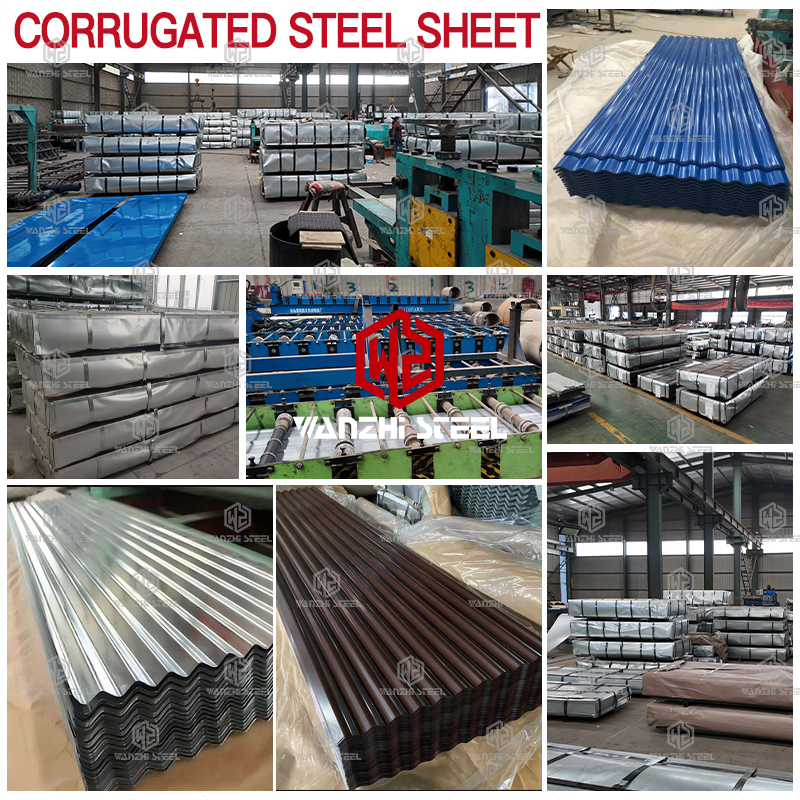

- Profiles: Available in corrugated sheets, trapezoidal rib panels, tile-type sheets and standing seam profiles to meet diverse structural and waterproofing demands.
- Wave Height: Classified into low, medium and high wave types to suit common buildings, large-span projects and high wind pressure areas.
- Coatings: Supplied with PE, SMP, HDP and PVDF coatings, featuring different weather resistance for various service environments.
- Surface Finish: Available in solid color, wood grain, 3D, embossed, matte and wrinkled textures with customizable patterns including brick, camouflage, floral and landscape prints, delivering both practical performance and rich decorative effects.
Wavy PPGL Sheets Prices
The price of wavy PPGL sheets is mainly affected by substrate cost, sheet specifications, thickness, coating weight, surface finish and coating type. The price range of galvalume steel is USD 600 to USD 1,000 per ton. The minimum order quantity (MOQ) for steel products at Wanzhi Group is 10 tons. Standard specifications are available in stock, while the lead time for custom products ranges from 5 to 45 days. Additionally, we supply cold rolled steel, hot rolled steel, galvanized steel, galvalume steel, galvanized steel wire, PPGI steel, color coated aluminum coils and stainless steel products. Please leave a message with your required specifications and quantity, and we will offer you our most competitive price!
Advantages and Applications of Wavy PPGL Sheets
Advantages
- Superior corrosion resistance: Aluminum-zinc substrate plus organic coating dual protection, effectively resisting acid rain, salt spray, and industrial pollution.
- Excellent weather resistance: Available with PE, SMP, HDP and PVDF coatings to resist UV, fading and aging for decades.
- Light weight & high strength: Low self-weight reduces building load, while rigid wave structure ensures good bearing capacity.
- Good waterproof: Corrugated shape enhances drainage, reducing water accumulation and leakage risk.
- Rich decorative effect: Pre-coated layer offers rich colors and textures to meet diverse aesthetic demands.
- Easy installation & maintenance: Can be cut, bent, and fixed on site, fast installation speed, low labor cost; smooth surface is easy to clean and maintain.
- Energy-saving: High-reflectivity coating lowers roof heat absorption, helping reduce building energy consumption.
Applications
- Roofing systems: Industrial factories, warehouses, workshops, logistics parks, large-span buildings.
- Exterior wall cladding: Factory facades, warehouse walls, auxiliary buildings, prefab houses.
- Agricultural buildings: Poultry houses, barns, farm storage sheds, greenhouses.
- Temporary & prefabricated buildings: Site offices, labor camps, temporary enclosures, container houses.
- Public & commercial facilities: Stadiums, exhibition halls, gymnasiums, shopping mall canopies.
- Ventilation accessories: Roof ridge ventilators, ventilation hoods, exhaust louvers and rainproof ventilation components.
Comparison of Wavy PPGL & PPGI Sheets
| Item | Wavy PPGL Sheet | Wavy PPGI Sheet |
| Substrate | Hot-dip aluzinc (55% Al-Zn) | Hot-dip galvanized steel |
| Corrosion Resistance | Excellent | Good |
| Heat Resistance | Good | Moderate |
| Service Life | Longer | Medium |
| Cost | Higher | Lower |
| Application | Coastal, humid & harsh areas | General indoor & outdoor use |
Maintenance Tips
- Wipe dust and dirt regularly with soft cloth and clean water.
- Clear stagnant rainwater, mud and debris off panels promptly.
- Keep corrosive chemicals away from coated surfaces.
- Inspect fasteners and seal strips every half a year.
- Touch up scratched coating with matching repair paint right away.
- Avoid hard sharp objects scraping the sheet surface.
- Do not walk heavily on roof sheets to prevent deformation.
PPGL Sheet Manufacturer and Supplier – Wanzhi Group
Wanzhi Group is a manufacturer and supplier of coated steel, with its factory located in Boxing County, Binzhou City, Shandong Province, China. We have obtained ISO, CE and SGS certifications. Our factory is equipped with production lines for galvanized steel, galvalume steel and color coated steel, with an annual output capacity of 600,000 metric tons. We produce a full range of roofing materials, including galvanized steel sheets, coils & strips, galvalume steel sheets, coils & strips, as well as PPGI/PPGL sheets such as corrugated panels, ribbed panels, trapezoidal panels and sandwich panels. We deliver one-stop services including design, customization and production tailored to clients’ project demands. In addition, we provide deep processing services such as slitting, stamping, punching, bending, forming, film lamination, coating and special shaped fabrication.

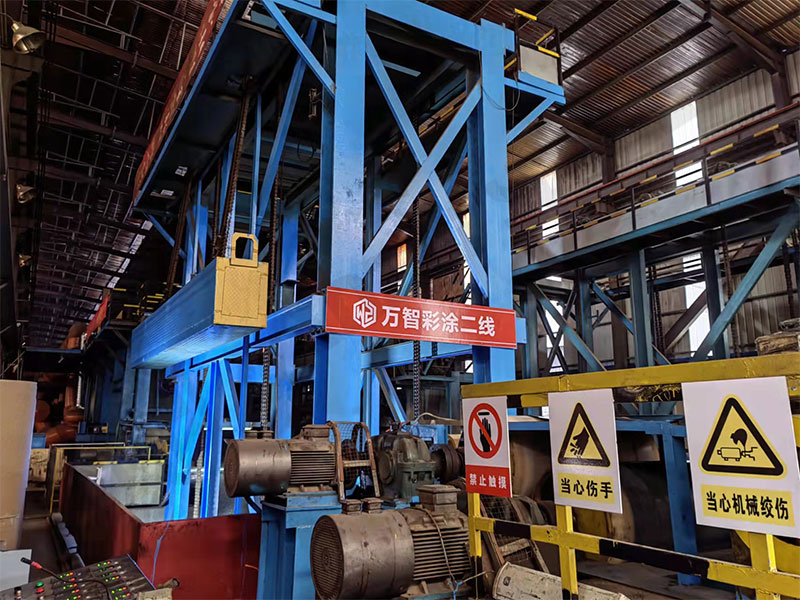

PPGL Production Line – Wanzhi Steel
Wanzhi Steel Factory operates 3 color coated steel production lines, each with a monthly output of 10,000 tons. We offer one-stop services covering raw material supply for color coated steel, sample production, customized solutions, after-sales service and quality control. Sufficient raw materials are kept in stock, and the production lead time ranges from 5 to 45 days.
Wanzhi Factory
Wanzhi factory has obtained ISO 14001:2015, ISO 9001:2015 and ISO 45001:2018 management system certifications. Our products comply with international standards including ASTM, GB, JIS and EN. To date, we have received customers from over 40 countries and regions such as Chile, Libya, Azerbaijan, Singapore, Indonesia, Turkey and Turkmenistan. You are warmly welcome to visit our factory for inspection or request samples.
- Stable Supply Chain: Wanzhi Group provides a full range of metal raw materials and finished products globally, covering South America, Africa, the Middle East, Central Asia, Southeast Asia, Europe and more. Our factory is conveniently located close to Qingdao Port and Tianjin Port. We are well-versed in regional technical specifications and customs clearance procedures to guarantee smooth order delivery.
- One-stop Service: Our team is committed to delivering all-round services, including material selection, technical consultation, production manufacturing and delivery, alongside 24/7 online support.
- Quality Certificate: We supply original Material Test Certificates (MTC) for every batch of products. Third-party inspections by authorized institutions such as SGS and BV are available prior to shipment. We also arrange global logistics to guarantee intact, on-time delivery to your project site worldwide.
Package
We adopt standard export packaging, including plastic film, moisture-proof paper, galvanized steel sheets and edge protectors. It effectively prevents collision, deformation, moisture and rust, ensuring goods arrive intact at your project site. Custom packaging such as printed logos, marked coil weights and wooden pallets is also available upon request.
Global Cases
Wanzhi Group supplies GI, GL steel, PPGI, PPGL sheet and coil, metal roof sheets, galvanized wire and other steel products to 120 countries and regions worldwide. Our consistent quality, efficient delivery and attentive service have earned recognition and positive feedback from clients, who maintain long-term, stable cooperation with us.
Wanzhi Steel – Agricultural Greenhouse Project in Turkmenistan
550 tons PPGI Steel Coil to Azerbaijan
100 tons of Galvanized Coils to Saudi Arabia
144 ton Steel Wire to Spanish
Project of PPGI Roofing en Libya
100 tons of GL and PPGL in Solomon Islands
Customer Feedback
We keep receiving positive feedback from clients across various industries, including building material processing plants, home appliance manufacturers, decorative material distributors and metal component factories. Moving forward, Wanzhi Group will continue to supply our customers with high-quality, cost-effective steel products.
PPGL sheets feature excellent corrosion resistance, weatherability, elegant appearance and long service life for construction, home appliance, decoration and metal component sectors. Feel free to contact Wanzhi for free quotes and customized solutions if you have any questions about color coated or metal roof sheets.
