Galvanized steel is one of the most widely used corrosion-resistant metallic materials in the industrial and construction sectors. It combines the excellent processing properties of cold-rolled steel with the protective function of a zinc coating. It is an ideal choice for applications in building structures, home appliance components, and transportation equipment, seeking the best balance between corrosion protection, processing performance, strength requirements, and cost budget.
What are the Basic Properties of Galvanized Steel?
Corrosion Resistance
Corrosion resistance is the primary functional characteristic of galvanized steel. The main factor influencing the corrosion-resistant lifespan is the coating thickness. The thicker the coating, the longer the corrosion-resistant life. (Under the same environmental conditions, the service life of galvanized steel is 5-10 times that of ordinary bare steel).
- Barrier Protection: The surface pure zinc layer physically isolates the steel from oxygen, moisture, and corrosive media in the air.
- Sacrificial Anode Protection: When the coating is damaged and the steel base is exposed, the zinc corrodes preferentially, forming a “self-sacrifice” to protect the iron substrate.
Forming and Processing Performance
The forming performance of galvanized steel is determined by the base metal material, supporting processing from flat plates to complex components.
- Bending Performance: Conventional grades like DX51D can withstand 90° bending, while deep drawing grades like DX53D/DX54D can withstand 180° bending or small radius bending.
- Stamping Performance: Used for stamping complex shapes such as appliance housings and automotive parts.
- Roll Forming: Used to produce long components like roof panels, wall panels, and C/Z purlins.
Surface Quality
High-quality galvanized steel has a smooth, flat surface with a uniform, dense zinc coating, free from defects such as uncoated spots, zinc stripping, scratches, pimples, or color differences. Surface quality is also a major factor affecting subsequent coating results and the appearance of the final product.
- Spangle Pattern: Options include regular spangle, minimized spangle, and zero spangle.
- Surface Defect Control: Free from obvious defects like zinc particles, zinc protrusions, scratches, roll marks, etc.
- Post-Treatment: Passivation, painting, laminating.
Mechanical Properties
| Grade Type | Representative Grades | Yield Strength (MPa) | Tensile Strength (MPa) | Elongation (%) |
| Commercial Grade | DX51D, SGCC, Q195 | 140-300 | 270-420 | ≥22 |
| Drawing Grade | DX52D, SGCD1 | 140-300 | 270-420 | ≥26 |
| Deep Drawing Grade | DX53D, DX54D, SGCD3 | 140-300 | 270-420 | ≥30-38 |
| Structural Grade | S250GD, S280GD | ≥250-280 | 330-470 | ≥19-20 |
| High Strength Grade | S350GD, S450GD | ≥350-450 | 420-550 | ≥14-16 |
Welding and Painting Performance
- Welding Performance: Galvanized steel can be welded using methods such as resistance spot welding and arc welding. Weldability is also affected by the coating thickness and composition.
- Paint Adhesion: After appropriate surface treatment (such as phosphating, passivation), the galvanized layer can be coated with various paints (polyester, epoxy, high-durability polyester, powder coatings), providing excellent adhesion.
What are the Key Factors Affecting the Performance of Galvanized Steel?
Base Metal
The chemical composition and mechanical properties of the galvanized steel substrate determine its formability and strength. Low carbon steel (C≤0.15%) such as Q195 and DX series are suitable for deep drawing; high-strength steels like the S series are suitable for load-bearing structures. The surface cleanliness of the substrate also directly affects coating adhesion.
Zinc Coating Weight
The zinc coating weight (Z30-Z350) directly determines the corrosion protection lifespan. In a general atmospheric environment, the expected service life of Z30-Z350 galvanized steel is 10-30 years.
- Z80: Economical basic corrosion protection, expected life: 10-15 years
- Z120: General-purpose medium corrosion protection, expected life: 15-20 years
- Z180: Enhanced good corrosion protection, expected life: 15-25 years
- Z275: High-strength corrosion protection, expected life: 20-30 years
Hot-Dip Galvanizing Process
- Zinc Bath Temperature & Composition: Controlled at 455-465°C. Adding a small amount of aluminum can improve coating adhesion and surface gloss.
- Air Knife Control: Precisely adjusts coating thickness uniformity to avoid variations.
- Cooling Rate: Influences spangle size and alloy layer structure.
Surface Post-Treatment
- Passivation: Prevents white rust during transportation and storage.
- Anti-Fingerprint Treatment: Improves resistance to contamination.
- Oiling: Provides short-term rust protection.
- Painting: Enhances corrosion resistance and decoration.
Coating Structure and Density
The coating of high-quality galvanized steel consists of an outer pure zinc layer and an inner zinc-iron alloy layer. The zinc-iron alloy layer enhances adhesion; the outer pure zinc layer provides physical protection.
Thickness and Dimensional Accuracy
The thickness, width tolerances, and flatness of galvanized steel affect forming precision and material utilization. Thickness tolerances for galvanized steel of different gauges are controlled between ±0.04mm and ±0.20mm.
Service Environment
- Indoor/Dry Environment: Lower coating weights (Z60-Z90) can be selected.
- General Outdoor Environment: Z120-Z180 is recommended.
- Coastal Areas: Z275 or higher, or Galvalume alternative, is required.
- Chemical/Heavily Polluted Areas: Z275 + special coating.
Performance Comparison & Selection Suggestions
| Application | Recommended Grade | Recommended Coating | Surface Treatment | Selection Reason |
| General Bending Parts | DX51D | Z120-Z180 | Passivation/Oiling | High cost-effectiveness |
| Complex Stamped Parts | DX53D/DX54D | Z100-Z150 | Anti-fingerprint/Oiling | High elongation |
| Load-bearing Structures | S250GD-S350GD | Z180-Z275 | Passivation | High strength |
| High Corrosion Coastal Zone | DX51D | Z275/AZ150 | Eco-friendly Passivation | Long-term protection |
| Appliance Panels | DX53D | Z90-Z120 | Anti-fingerprint | High surface quality |
Wanzhi Group’s Popular Galvanized Steel Recommendations
Wanzhi Group has extensive experience in the production and sale of galvanized steel. The factory offers a full range of galvanized steel products and also provides customization services to meet the needs of different industries and applications.

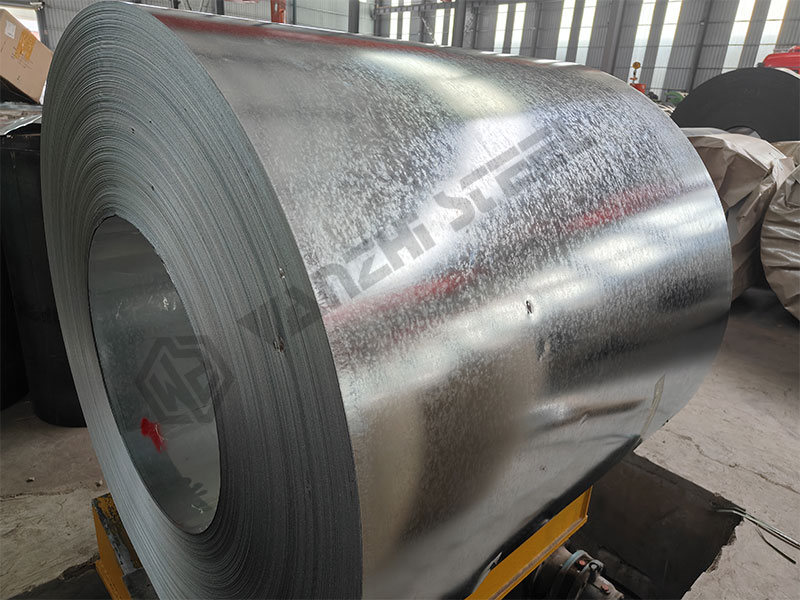

Commercial Grade Series

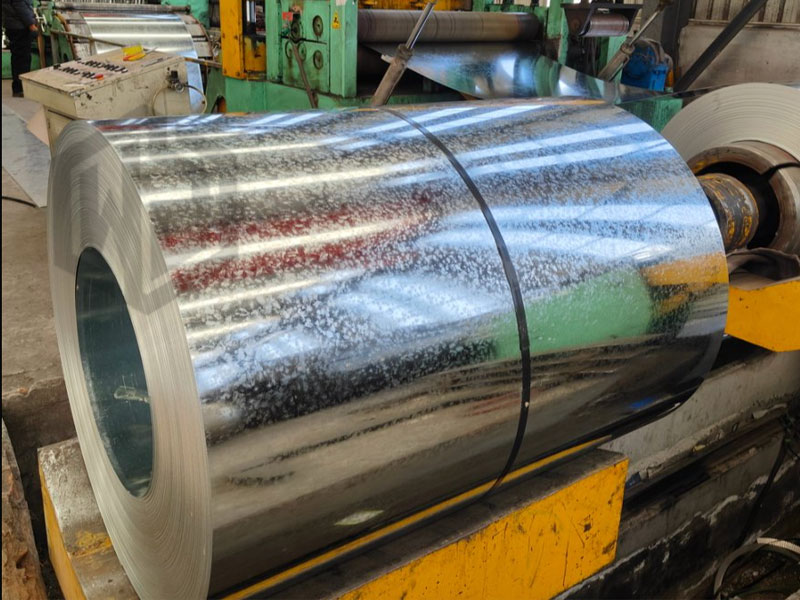

Drawing/Deep Drawing Grade Series
- DX52D+Z: Suitable for stamping parts of medium complexity
- DX53D+Z: Deep drawing grade, elongation ≥30%
- SGCD: JIS deep drawing grade galvanized steel

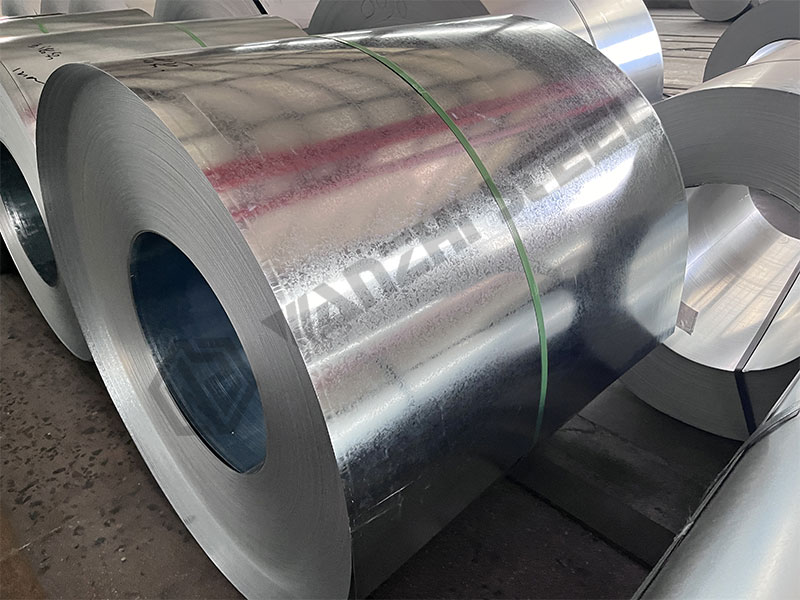

Structural Grade Series
- S250GD+Z / S280GD+Z: Medium strength structural steel
- S350GD+Z: High strength structural steel
Wanzhi Group is a professional galvanized steel factory supplier. We can adjust grades, coatings, and dimensions according to your needs, and also provide selection consultation and processing guidance. If you are looking for suitable galvanized steel, please feel free to contact us!
