PVDF roofing sheets are premium color-coated metal roofing materials with excellent weather and corrosion resistance, which widely used in industrial workshops, commercial buildings, coastal areas, and highly corrosive environments, providing an outdoor lifespan of over 25 years. Wanzhi Steel specializes in PVDF PPGI and PPGL roofing sheets and offers colored aluminum roofing sheets, metal roofing panels, and corrugated metal sheets, etc. For any purchasing inquiries, please feel free to contact us.
Thickness: 0.12 – 1.2mm
Width: 600 – 1,250mm
MQQ: 10 tons
Specification
| Grade | Q195,Q235,DX51D,DX52D,DX53D,DX54D,SGCC,SPGC,SECC,A653, etc |
|---|---|
| Substrate | Galvanized steel, Alu-zinc steel (GI/GL ) |
| Thickness | 0.12 - 1.2mm |
| Width | 600 - 1,250mm |
| Coating Thickness | 25 - 30µm, double-sided coating |
| Color | As per RAL Color, can be customized |
| Paint Surface | Matt/wrinkled/glossy/emboss |
| MQQ | 10 tons |
| Standard | GB, EN, JIS, ASTM, etc |
| Package | Standard Export Package |

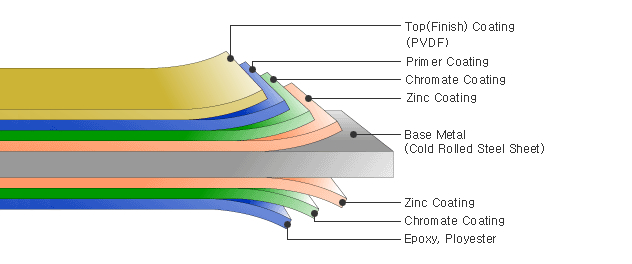

What is PVDF Coating
PVDF is a fluoropolymer that is polymerized from vinylidene fluoride monomers. Its stable chemical structure provides excellent resistance to chemical corrosion, UV rays, and harsh weather conditions. PVDF is currently the highest-end outdoor anti-corrosion and weather-resistant coating in the field of color-coated steel sheets. Thanks to its ultra-long service life and superior durability, PVDF coating has become the preferred material for construction and industrial projects worldwide.
PE/PVDF/SMP/HDP Coating
PE, SMP, HDP and PVDF are four mainstream surface coatings for color coated steel roofing sheets. They differ in weather resistance, color retention, corrosion resistance, service life and cost.
- PE is cost-effective but has moderate durability and resistance, suitable for indoor applications.
- PVDF offers the highest performance in terms of durability and resistance, making it ideal for commercial and industrial settings.
- SMP provides a balance between cost and performance, suitable for various industrial applications.
- HDP enhances the properties of standard polyester, making it suitable for outdoor architectural uses where durability is essential.
| Coating Type | Weather Resistance | Color Retention | Corrosion Resistance | Service Life | Price |
| PE | Low | Ordinary | General | 5-8 years | Lowest |
| SMP | Medium | Good | Medium | 10-15 years | Medium |
| HDP | High | Very Good | High | 15-20 years | High |
| PVDF | Highest | Outstanding | Best | 20-30+ years | Highest |
PPGI PVDF Roofing Sheets VS PPGL PVDF Roofing Sheets
The core difference between PPGI and PPGL PVDF roofing sheets lies in the coating of their base steel substrate. PPGI roofing sheets meet the needs of ordinary buildings, whereas PPGL is preferred for projects with higher anti-corrosion protection requirements.
- PPGI PVDF Roofing Sheets adopt hot-dip galvanized steel as the base material. They feature stable coating protection, good ductility and excellent bending performance. Suitable for conventional building roofing projects, these sheets present full and uniform color finish, serving as universal high-end color-coated steel roofing materials.
- PPGL PVDF Roofing Sheets are made of steel substrate with 55% aluminum-zinc alloy coating. With a superior protective coating system, they provide excellent moisture resistance and corrosion resistance. Ideal for buildings in rainy and high-humidity environments, they enjoy stable paint film adhesion and better overall durability, making them perfect for high-standard outdoor roofing applications.
PPGI/PPGL PVDF Roofing Sheets For Sale
The pricing of PPGI/PPGL PVDF Roofing Sheets is generally determined by substrate, surface treatment, coating thickness, specifications and other factors. Wanzhi Group owns two galvanized steel production lines with zinc coating weight ranging from 30g to 275g per square meter and an average monthly output of 10,000 metric tons. We guarantee to supply cost-effective, high-quality products for customers’ construction projects.
PVDF Roofing Sheet Advantages And Applications
Advantages
- Super Strong Weather Resistance and Aging Resistance: The fluorocarbon coating has a stable structure that resists strong ultraviolet radiation, making it less prone to fading, chalking, or cracking during long-term outdoor use.
- Excellent Corrosion Resistance: Resistant to acids and alkalis, salt spray, and industrial gas erosion, it has a longer lifespan in coastal, humid, and heavily polluted environments.
- Outstanding Self-Cleaning Properties: The smooth and hydrophobic surface makes it difficult for dust to adhere, allowing rainwater to easily wash it clean, resulting in low maintenance costs over time.
- Strong Adhesion of Coating Film: Resistant to impact and scratching, the paint does not easily peel off during bending processing, with stable performance against wind and rain erosion outdoors.
- Lightweight and High Strength: Lightweight with a low structural load, it supports large-span roofs; it can be used with profiled trapezoidal tiles, corrugated tiles, and concealed fastener roof panels, adapting to curved, irregular, and three-dimensional architectural shapes, while allowing for convenient construction.
Application
- Coastal buildings and seaside factories in high salt spray areas.
- Buildings resistant to acid and alkali corrosion in heavy industrial and chemical pollution zones.
- Large public buildings such as stadiums, airports, and convention centers.
- High-end commercial buildings and villa roofs/exterior walls.
- Warehouses, industrial workshops, and various steel structure roofing projects.
Premium PVDF Roofing Sheets Supplier – Wanzhi Steel
Wanzhi Group is an ISO-certified professional manufacturer and supplier of PVDF coated galvanized & galvalume steel sheets. We produce and supply stainless steel, color-coated galvanized/galvalume steel, metal roofing sheets and other steel products, all complying with international standards including GB, JIS and EN, etc.

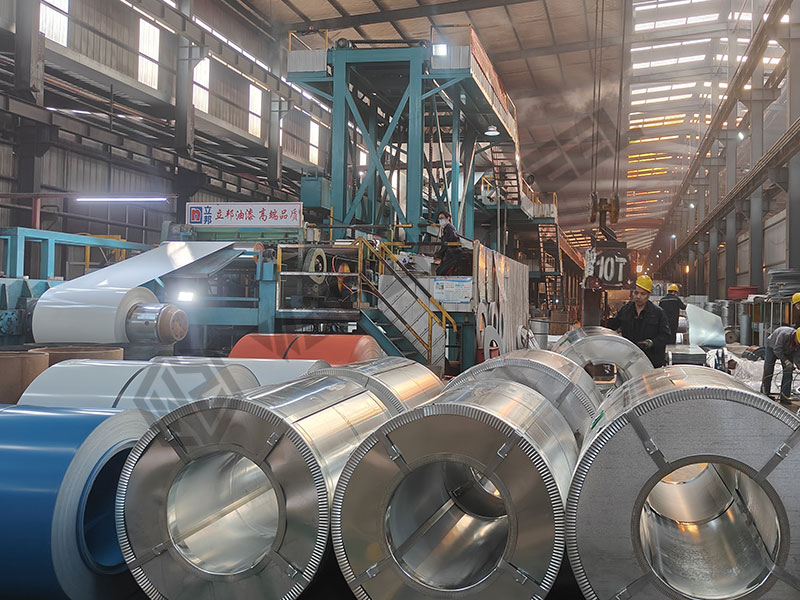

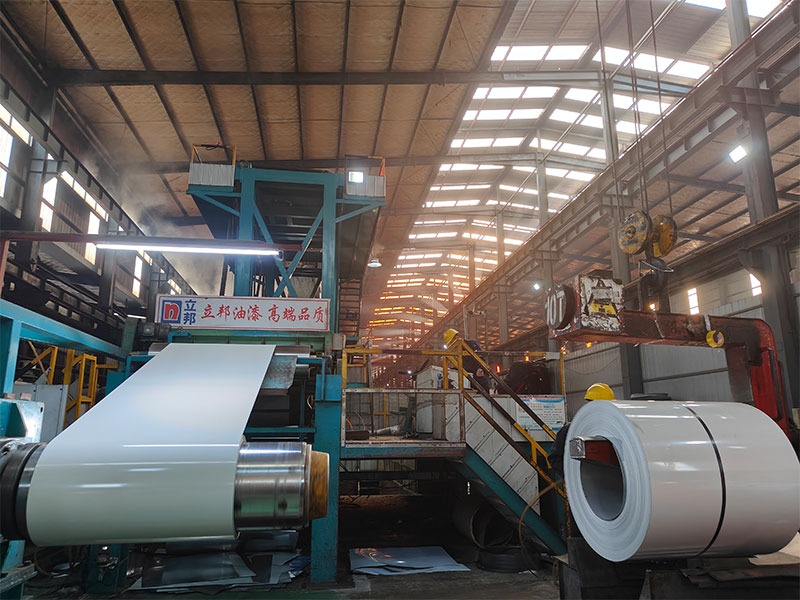

Factory
Quality PPGI/PPGL Steel Solutions: Wanzhi Group implements a strict production management system covering the whole process from substrate cleaning, coating, cooling and curing to final rolling and slitting. Our products are certified by ISO, SGS and other authoritative institutions. We are capable of manufacturing PPGI/PPGL steel coils and sheets in all specifications.

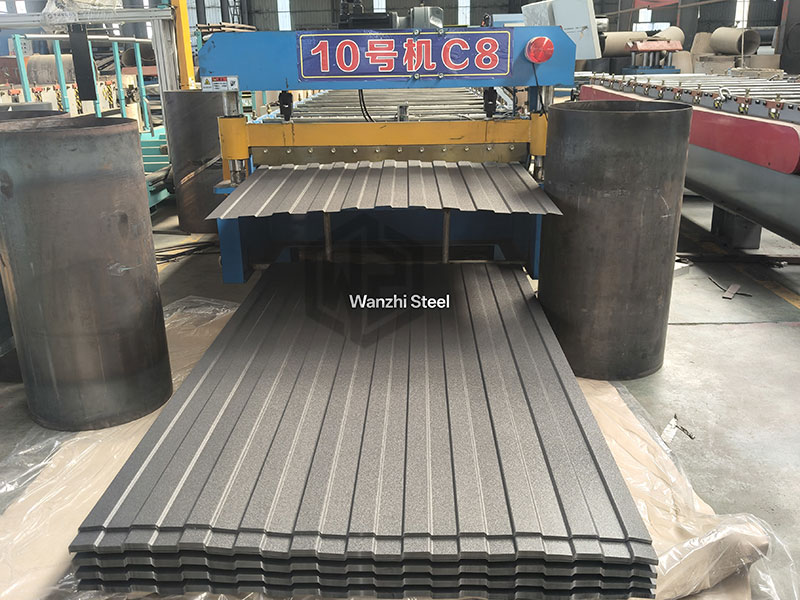

PPGI/PPGL Steel & Processing: Wanzhi provide comprehensive deep processing services including slitting, cutting, stamping, punching, bending, roll forming and special-shaped customization.
One-Stop Customization Service: Equipped with a sample room, laboratory and complete production lines, WanZhi provide one-stop services covering sample supply, customized design and mass production to meet the demands of global customers. Should you have any specific requirements, please feel free to contact us. We will offer you competitive quotations!
Global Cases
Wanzhi provides cost-effective wholesale prices for color-coated steel products as well as customized solutions, with our services covering more than 120 countries and regions worldwide.
Wanzhi Steel – Agricultural Greenhouse Project in Turkmenistan
550 tons PPGI Steel Coil to Azerbaijan
100 tons of Galvanized Coils to Saudi Arabia
144 ton Steel Wire to Spanish
Project of PPGI Roofing en Libya
100 tons of GL and PPGL in Solomon Islands
Choosing PVDF Roofing Sheets For Your Projects – Wanzhi Group
PVDF panels excel at maintaining bright and stable surface appearance without fading. Supplied by Wanzhi Group, our high-performance PVDF roofing sheets feature superior weather resistance, corrosion protection and long service life, being the ideal choice for all kinds of high-standard metal roofing projects worldwide.
