Wanzhi Group produces premium steels conforming to EN 10346, including S280GD galvanized steel, DX51D galvanized steel, S350GD+Z etc. S280GD+Z is a high-demand structural steel for industrial applications requiring enhanced strength and durability, offering optimal balance between mechanical performance and cost efficiency.
Wanzhi S280GD Galvanized Steel
S280GD galvanized steel is a structural hot-dip galvanized steel with a minimum yield strength of 280MPa. Produced under EN 10346, ASTM A653, and JIS G3302 standards, our range includes coils, roofing panels, appliance casings, structural tubes, and custom profiles.
Specifications
| Material | SGCC,S350GD+Z,S550GD+Z,DX51D,DX52D,DX53D, etc |
|---|---|
| Thickness | 0.12mm-6mm |
| Width | The conventional width below 0.5mm is 1000mm, 1200mm, and above is 1000, 1250mm |
| coil weight | 8-10 tons /customized |
| Tolerance | "+/-0.02 mm |
| Substrate Type | Hot rolled coil, Cold rolled coil |
| Surface structure | Zero spangles, Small spangles, Regular spangles, Big spangles |
| Zinc layer thickness | 30g/㎡-275g/㎡ (Z275/G90) |
| Standard | AISI, ASTM, BS, GB, JIS |
| Implementation standards | GB/T2518 GB/T25052, EN10346, JIS G3302, ASTMA653 |
| Certificates | SGS, ISO 9001,CE |
Mechanical Properties
| Parameter | Standard Requirement | Typical Value |
| Yield Strength (Rp0.2) | ≥280 MPa | 300-330 MPa |
| Tensile Strength (Rm) | 380-500 MPa | 400-460 MPa |
| Elongation (A80mm) | ≥12% | 15-18% |
| Bendability | 180° d=0a | No cracking |
Global Standard Grade Comparison
| Property | Europe EN 10346 | China GB/T 2518 | USA ASTM A653 | Japan JIS G3302 |
| Grade | S280GD+Z | S280GD+Z | SS Grade 40 | SGCC440 |
| Yield Strength | ≥280 MPa | ≥280 MPa | ≥275 MPa | ≥440 MPa |
S280GD Galvanized Steel price
The price of S280GD+Z galvanized steel coil depends on the material, specification, surface treatment and supplier, the minimum order price is 650-850USD per ton, the thicker the zinc layer, the higher the price. Meanwhile, the price for different surface effects such as zero zinc, small zinc, fingerprint resistance, chromate passivation, etc. is also different, if you need, you can leave a message to let us know, and we will give you a free quote.
S280GD Galvanized Steel Advantages and Applications
S280GD galvanized steel is designed for building construction, heavy equipment and transportation fabrication, offering excellent structural support, good weldability and formability.
Benefits
- High Strength: 280 MPa yield strength is in the medium to high strength class of structural galvanized steel to support critical structural components.
- Lightweight: Reduced material usage reduces the weight of the building or product while meeting load-carrying requirements.
- Advanced Corrosion Protection: Coating thicknesses can be selected depending on the application to withstand harsh industrial environments.
- Optimized formability: Maintains the ability to bend/stamp complex designs and can be used as a raw material for a wide range of complex shapes.
- Aesthetically pleasing and uniform: Smooth surface with zinc spangle and support for chromic acid passivation, oiling and fingerprint resistance.
Applications
- Construction: Industrial roofs, warehouse frames, structural supports (C-beam, Z-beam or light steel keel raw materials), roofs and walls of large buildings such as stadiums.
- Transportation: truck trailers (doors, hoods, chassis components), cargo containers, vehicle reinforcement.
- Heavy equipment : Agricultural machinery, conveyor systems, storage racks.
- Agriculture : Structures for barns, livestock sheds, etc.
- Energy infrastructure : Installation systems for solar farms, transformer housings, transmission towers, distribution boxes.
S280GD Galvanized Steel Manufacturer

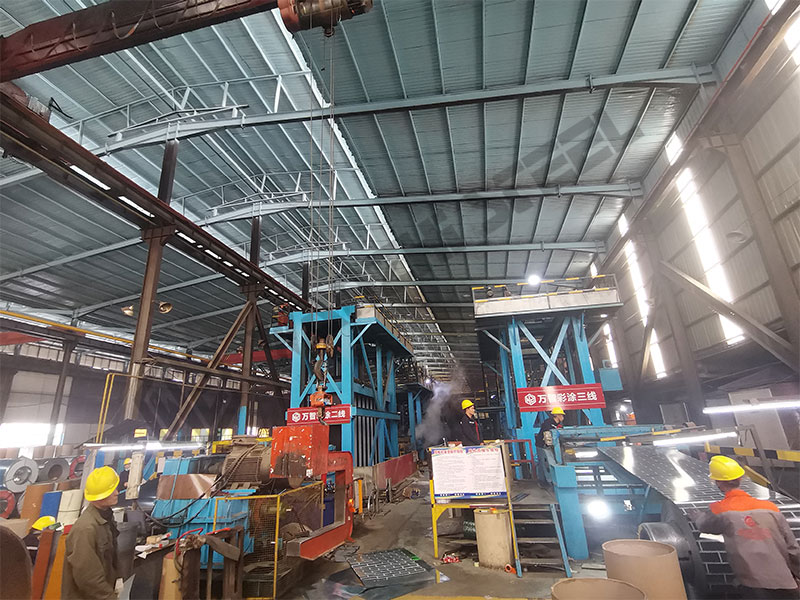

Wanzhi Group (ISO 9001/14001 certified) has two state-of-the-art galvanized steel production lines, producing galvanized steel materials (coils, sheets, profiles, tubes, etc.) in accordance with international standards such as EN, JIS, GB, ASTM, etc. We also provide OEM ODM service for galvanized steel.
- Thickness: 0.12–6mm
- Coatings: Zinc (Z), Al-Zn (AZ), Zn-Al-Mg (ZM)
- Customization: OEM services for dimensions, substrate, coating type/weight.
- Processing: Slitting, punching, bending, painting, profiling (trapezoidal/corrugated).
Lead time: 5–45 days
Customer Feedback
Our S280GD+Z, S350GD+Z, and DX51D+Z products serve 100+ countries across construction, logistics, and energy sectors, with consistent acclaim for reliability.
S280GD+Z，S280GD+AZ, S280GD+ZM
| Property | S280GD+Z | S280GD+AZ (Galvalume) | S280GD+ZM (ZAM) |
| Coating | Pure Zinc | 55% Al-43.4% Zn-1.6% Si | Zn+Mg/Al (e.g., ZM310) |
| Corrosion | Good | Excellent | Outstanding |
| Heat Resistance | Moderate | Excellent | High |
| Appearance | Zinc-spangled | Silvery spangled | Uniform dark gray |
| Formability | Excellent | Good | Good (high toughness) |
| Cost | Low | Moderate | High |
| Typical Uses | Structural frames | Roofing, HVAC ducts | Coastal installations |
S280GD + Z VS S350GD+Z
| Property | S280GD galvanized steel | S350GD galvanized steel |
| Yield Strength | ≥280 MPa | ≥350 MPa |
| Tensile Strength | 380–500 MPa | 350–480 MPa |
| Formability | Excellent | Moderate |
| Weldability | Good | Moderate |
| Cost Efficiency | 15% lower vs. S350GD | Higher material cost |
| Best For | High-strength formable parts | Maximum load-bearing |
S280GD galvanized steel provides 27% higher strength than S220GD while retaining formability. For extreme environments, opt for S280GD+AZ/ZM coatings; for ultra-high strength, pair with S550GD substrates. Wanzhi Group delivers tailored steel solutions – contact us for competitive pricing!
