Sky Cloud Pattern PPGI Coil

Wanzhi Sky Cloud Pattern PPGI Coil is a kind of pre-painted galvanized steel coils (PPGI coil) with blue sky and white clouds printed on the surface, which is beautiful, corrosion-resistant, durable and easy to process, and is widely used in the fields of roofing, walling and interior decoration. In addition to textured cloud effects, we also offer printed galvanized steel coils in a wide range of colors, glosses and patterns for architectural decoration, design and high-end industrial applications.

Patterns: Blue sky and white clouds
Thickness: 0.12-1.5mm
Standards: ASTM, EN, JIS, GB, ISO,etc.

CONTACT US

Sky Cloud PPGI Coil

Sky Cloud Pattern PPGI Coil For Sale

Wanzhi Group is a professional coated steel supplier and manufacturer, our GI GL ZAM PPGI PPGL PPAL and other coated metal materials have the advantages of complete product specifications, wide range of grades, quick delivery and competitive price. We have exported to more than 100 countries and regions.

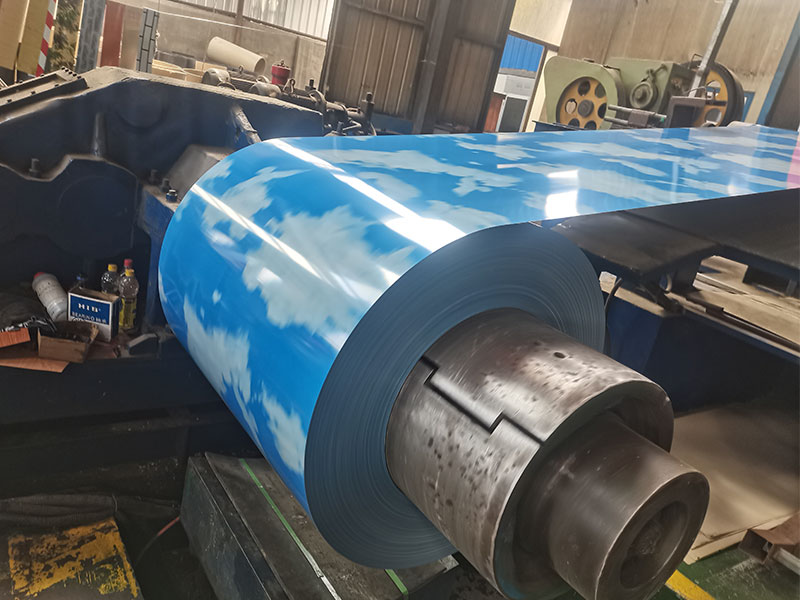

Production Line of GI Steel

Sky Cloud Pattern PPGI Coil - Production

Specifications

Item Specifications
Substrate Galvanized steel, Aluminium zinc steel
Substrate thickness 0.12-1.5 mm
Effective width 600-1,250 mm (customized)
Coating system Primer + Topcoat + Cloudy topcoat + Protective varnish (optional)
Paint film Primer 5-20 µm, Topcoat 10-40 µm
Salt spray resistance 500-1,500 hrs
Temperature -30°C to +120°C
Roll weight 3-10 tons (customized)

Pattern

Pattern PPGI steel is one of Wanzhi’s popular types of PPGI steel, which is embossed with clouds/marble/wood grain/floral/flower/colour coated steel by means of a special roller coating or printing process. The patterns of cloud/marble/wood grain/flower/abstract art paintings are embossed on the surface of colours coated steel by special roller coating or printing process, which enhances the ornamental appearance of the steel.

Customized

Besides the Sky cloud Pattern PPGI Coil, you can customize any printed PPGI Coil you need for your project in Wanzhi by choosing the grade of the material, the size, the pattern, the paint material, the paint film, the surface treatment, the finishing, and so on.

Price

The price of PPGI coil is 600-900USD per ton, the price of patterned PPGI coil is mainly determined by the complexity of the texture, the cost of ordinary roller transfer method is lower than the digital printing, leave us a message to tell us the pattern and PPGI specifications that you need, and get a free quote!

Sky Cloud Pattern PPGI Coil Benefit and Application

Sky cloud pattern PPGI coil is a popular metal material for architectural decoration, high end home and furniture, industrial design with the advantages of decorative, weather resistance, and hiding scratches.

Wood Flower Brick PPGI Coil
Wood Flower Brick PPGI Coil

Benefit

  • Material: galvanized steel + paint, corrosion resistant.
  • Pattern design: The surface of the coil is printed with sky and cloud patterns, which brings a unique aesthetic effect to the product. Often used where an aesthetic appearance is required.
  • Coating: Coating makes the steel surface not only have color and pattern, but also increase corrosion resistance, durability and other functions.
  • Durability: PPGI coils are suitable for both indoor and outdoor applications due to their resistance to corrosion, abrasion and fading, and the cloud texture design conceals minor surface wear.
  • Areas of application: PPGI rolls with sky cloud patterns are widely used in architectural projects with creative or natural elements on the exterior, such as facades, roof panels and decorative facades.

Application

  • Exterior walls and roofs: commercial complexes, hotels, cultural and tourism projects (instead of stone/aluminum panels).
  • Interior decoration: ceilings, partitions, artistic walls.
  • Customized cabinet panels, bar background panels.
  • Light luxury style furniture veneer.
  • Brand display cabinets, elevator car decoration.
  • Yacht/RV interior panels.

Sky Cloud Pattern PPGI Coil Manufacturer

Wanzhi Group factory is located in Binzhou City, Shandong Province, China (Shandong Wanzhi Steel Co., Ltd.), the factory is ISO certified, can provide galvanized steel, aluminum-zinc steel, zinc-aluminum-magnesium, painted galvanized steel, painted galvalume steel, painted aluminium, and other products production and further processing.

Production Lines

We have 2 lines of GI steel, 1 line of GL/ZAM steel, 3 lines of painted steel, 1 line of writing pads, with an annual production capacity of 600,000 tons, 150 patterns, with a minimum order quantity of 10 tons, and a delivery time of 5-45 days.

PPGI Coated Coil - Production
PPGI Coated Coil – Production
PPGI Coated Sheet
PPGI Coated Sheet Production

Production Process

Production process: Substrate cleaning → 2. chemical pretreatment (chroming/zirconizing) → 3. primer coating → 4. cloud pattern printing/embossing → 5. topcoat curing (200-220°C) → 6. cooling and quality control → 7. roll packing.

Texture realization technology: transferring the pattern to the wet coating by means of a pattern roller and then curing.

PPGI Coating Structure
Coating Structure

Customer Testimonials

We provide high quality wood grain, brick, flower, sky cloud pattern PPGI coil, and single color PPGI coil in many colors for traders, factories, construction projects and other customers from different fields, and receive feedback from customers all over the world.

Feedback

Want Sky Cloud Pattern PPGI Coil samples?

We can provide free samples of our regular PPGI coils, leave the information you need about steel substrate thickness, plating, coating, pattern, etc., and get the samples or technical specifications.

  • Substrate thickness (e.g. 0.25mm).
  • Coating type (GI/GL/ZAM).
  • Coating requirements (PE/SMP/PVDF/HDP/PVC).
  • Texture reference or effect requirements (e.g., matte wood grain, high gloss pattern)

Wanzhi Pattern PPGI Coil Cases

110 tons of PPGI and PPGL - Invoice

110 tons of PPGI and PPGL in Colombia

An order from a Colombian customer for 110 tons of color-coated steel, including pre-painted galvanized steel and pre-painted aluzinc-coated steel, ...
Bill of 3000 Tonnes of PPGI Coil

3000 Tonnes of PPGI Coil to Libya

The 18th batch of ppgi coils with a customer in Libya has been delivered. The 18th batch comprises 3,000 tonnes ...
Bill of Lading

280 Tons of PPGI Coils Shipped to Georgia

A total of 280 tons of PPGI with three specifications and six patterns have been produced and sent to Georgia from ...
