Galvanized steel roll is a galvanized steel material with highly adaptable processing that has been supplied in coils. Wanzhi Group produces hot-dip galvanized steel rolls and electro-galvanized steel rolls and their products in accordance with international standards, such as ASTM 653/A653M, JIS G3302, EN 10346, ASTM B633, JIS H0401, and EN 10152. Electro Galvanized Steel Coil and its products.
Galvanized Steel Roll Products
Galvanized steel roll is easy to process and transport and is a good metal raw material, which can be made into galvanized sheet, galvanized corrugated sheet, galvanized strip, galvanized perforated sheet, galvanized stamped sheet, galvanized pipe, galvanized painted steel and so on through further processing such as flattening, slitting, bending, punching, painting and stamping.
According to the product form
By Material Grade
Galvanized Steel Roll Process
Wanzhi Group’s galvanized steel is mainly hot-dipped galvanized and electro-galvanized to form a uniform protective layer of zinc on the surface of hot-rolled or cold-rolled steel.
Galvanizing
Hot Dipped Galvanizing
- Processing: Degreasing of steel coil –> Reduction annealing –> Immersion in zinc solution at 460℃ –> Air Knife Thickness Control –> Cooling and curing
- Performance: Good ductility, scratch resistance, high hardness, thicker coating.
- Finished products: regular spangle galvanized roll, large spangle galvanized roll, small spangle galvanized roll
Electro zinc plating
- Process: Electrolytic degreasing –> Pickling activation –> Electroplating bath –> Current deposition of zinc –> Passivation closure
- Performance: Uniformity (±0.5μm)
- , Suitable for precision spraying, better conductivity for welding.
- Finished product: smooth galvanized roll (free zinc spangle)
Electro-Galvanized vs. Hot-Dip Galvanized
| Parameter | Hot-Dip Galvanized Steel (HDG) | Electro-Galvanized Steel (EG) |
| Coating Formation Principle | Metallurgical bond | Physical bond |
| Coating Thickness | Thicker | Thinner |
| Corrosion Resistance | Excellent (Salt spray test ≥500 hours without red rust) | General (Salt spray test ≤500 hours without red rust) |
| Surface Uniformity | Zinc flower structure, average uniformity | Smooth surface, excellent uniformity |
| Processing Performance | Suitable for stamping and bending (requires control of coating thickness) | Suitable for precision stamping and deep drawing |
| Typical Applications | Building structures, car chassis, outdoor facilities | Appliance housings, electronic components, precision instruments |
Galvanized Steel Roll Application
- Construction and Infrastructure: HDG Z180-Z275 is used for steel structure factory frame, warehouse roof, bridge structure, bridge guardrail, water supply and drainage pipe, fire pipe, gas pipe, etc.
- Automobile and transportation field: Z100-Z180 galvanized steel is used for body chassis, inner door plate, fuel tank bracket, new energy battery shell, truck beam, high-speed railroad interior, high-speed railroad carriage skeleton, subway tunnel support structure and so on.
- Energy and electric power field: Z275 or galvanized aluminum magnesium steel, used for photovoltaic bracket, transmission tower, wind power tower
- Home appliance and electronic field: zero spangle galvanized steel roll, used for air conditioner shell, server chassis, refrigerator backplane, computer chassis, battery pack box body.
- Agriculture and Livestock: Z30-Z150 galvanized steel roll for pigsty fences, chicken house floors, feed storage tanks, tractor chassis, harvester parts.
Advantages of Galvanized Steel Roll
- Long-lasting corrosion protection: zinc sacrificial anode protection (salt spray life 1500-3000h)
- Lightweight and high strength: a wide range of substrates are available, high yield strength galvanized steel thickness is reduced by 30%.
- Processability: ≥15% elongation of electro-galvanized coils (suitable for deep-drawing)
- Environmentally sustainable: chromium-free passivation technology (zero heavy metal emissions)
- Surface functionalization: fingerprint-resistant/self-lubricating/coloured coatings can be added
- Cost-effectiveness: low initial costs compared to coated steels made of other materials, low maintenance costs compared to carbon steels.
- Extreme Environment: Consistent performance in environments from -40°C to 250°C.
Galvanized Steel Roll Upgrade
Galvanized steel roll is a common corrosion-resistant metal material that is coated with pure zinc on the surface of cold rolled steel sheets to protect the substrate by prioritizing corrosion in the presence of oxygen, moisture, and other substances that can prolong service life. In addition to zinc plating, it is also possible to add elements such as aluminum, magnesium, and silicon to the coating to improve the steel’s weather resistance, heat reflectivity, and self-repairing ability.
- Galvalume steel en roll: Aluminum-zinc alloy coated steel made of Al 55%, Zn 43.4%, Si 1.6% has 4-6 times the corrosion resistance of galvanized steel, excellent weathering and high heat reflectivity.
- ZAM steel en roll: 1.5% Al+1.5% Mg+Si elements are added to the coating, salt spray resistance＞6000h, excellent self-repairing ability, super corrosion resistance (6 times of pure zinc), it is a popular corrosion-resistant metal material in the marine environment.
Galvanized Steel Roll Selection Recommendations
| Application Scenario | Recommended Coating Type | Reason |
| Coastal buildings/High salt mist environments | Galvalume (Aluminum-Zinc alloy) | Weather-resistant, corrosion-resistant |
| Precision electronic components | Electro-galvanized steel | High surface accuracy |
| Photovoltaic brackets (Desert) | Zn-Mg-Al alloy | Coating corrosion resistance ≥1000 hours in salt spray test |
| Car chassis | Hot-dip galvanized (Pure Zinc) | Thicker coating, lower cost |
Galvanized Steel Roll Manufacturer in China
Wanzhi Group is a Galvanized Steel Roll factory supplier from China, Our factory is ISO9001, ISO14001 certified, support SGS, BV and other third party testing organizations to test and we can supply free samples of regular models. We also provide a variety of surface treatment and deep processing services for GI roll, welcome to leave a message to tell us your requirements and get a free quote.
OEM ODM

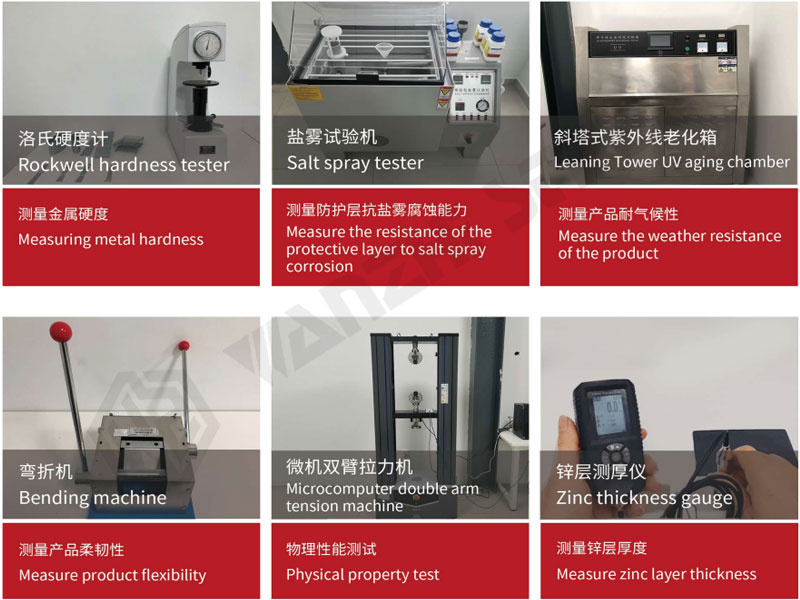

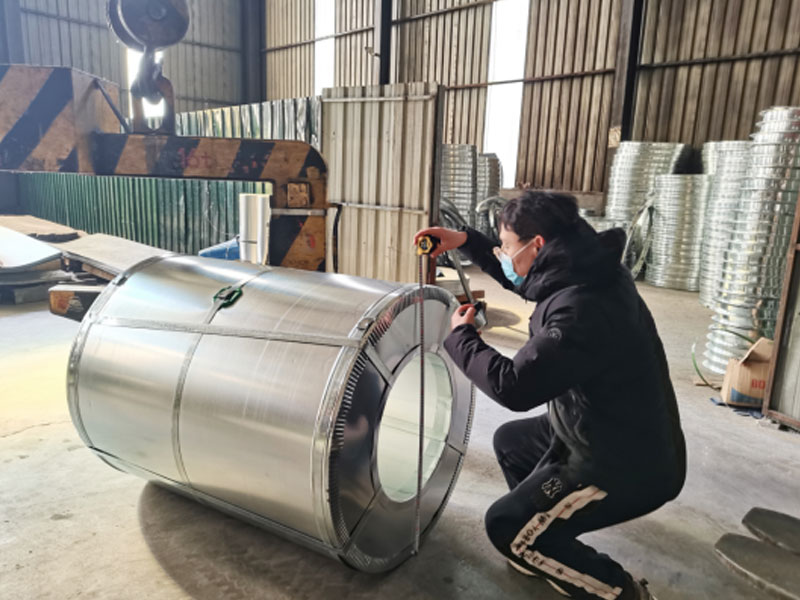

Inspection
Customer Feedback
Galvanized steel roll has become the metal material of choice for the construction, appliance manufacturing, energy, and transportation industries due to its corrosion resistance, cost-effectiveness, environmental friendliness, and ability to withstand extreme environments. Wanzhi Goup continues to provide cost-effective solutions for a wide range of applications, so please feel free to contact us.
