PPGI rolls / PPGI Steel rolls, formally known as PPGI coil, prepainted galvanized iron coil, is a kind of hot-dipped galvanized steel as the substrate roll coated with organic coatings made of color-coated steel, with excellent corrosion resistance, heat resistance, durability and weatherability, long service life, is a popular building roofing and walling, industrial production, home appliance manufacturing, writing boards and other raw materials.
PPGI Rolls Substrates
PPGI rolls are made of hot dipped galvanized steel, galvalume steel and other metal coated steel after surface treatment with thick roller coating of paint, ppgi’s substrate provides corrosion resistance, durability, strength and toughness etc.
Grades
- Commercial : SGCC, SPCC, Q195-235 etc.
- Forming : DX51D, DX52D, DC01, DC02, etc.
- Deep Drawing: DX53D, DX54D, DC03, DC04, etc.
- Structural Grades: SGCH, S220GD, S250GD, S280GD, S320GD, S350GD, S400GD, S500GD, S550GD, etc.
Mechanical properties
| Grades | Standard | Yield strength（ReH） | Tensile strength（Rm） | Elongation （A80mm） | Hardness （HRB） |
| SGCC | JIS G 3302 | ≥140 MPa | 270–370 MPa | ≥20% | 50–75 |
| SPCC | JIS G 3141 | ≥140 MPa | 270–370 MPa | ≥28% | 40–70 |
| DX51D | EN 10346 | ≥140 MPa | 270–350 MPa | ≥26% | 45–75 |
| DC01 | EN 10130 | ≥140 MPa | 270–350 MPa | ≥28% | 40–70 |
| S220GD | EN 10346 | ≥220 MPa | 340–420 MPa | ≥18% | 70–95 |
PPGI Rolls Coatings
The coating of PPGI coils is one of the most important features that enhance the corrosion resistance, improve the appearance and extend the service life of GI/GL substrates. PPGI‘s coatings can be customized for different applications. Coating types, colors, thicknesses, patterns and finishes can be produced upon request.
Coating Customization
Functions of Coating
Applications
PPGI Rolls Products
Wanzhi Group not only produces and sells PPGI rolls, but we also provide additional services such as bending, slitting, molding, punching, etc. with complete specifications and a wide range of products.
- PPGI Roofing Sheet: It has strong corrosion resistance, waterproof and structural strength.
- PPGI wall panels: with the dual function of protection and aesthetics.
- PPGI Fencing: with strong weather resistance.
- PPGI Metal Roof Tiles: used to replace traditional roof tiles, providing lightweight, durability and waterproofing.
- PPGI Color Steel Sheet: Provides aesthetic appearance and corrosion resistance.
- PPGI Appliance panels: for aesthetic, imitation and protection
- PPGI Body panels: with high corrosion resistance and strength
- PPGI Billboards: with good surface coating and color stability.
- PPGI traffic signs: colorful and eye-catching.
- PPGI decorative materials: beautiful, breathable, translucent.
- PPGI sandwich panel: thermal insulation, heat insulation, sound insulation, fireproof.
PPGI Rolls Manufacturer and Supplier
Wannzhi Group is a Chinese coated steel supplier and manufacturer of aesthetic, corrosion-resistant, durable, weather-resistant and easy-to-process PPGI roll, PPGI sheet, GI/GL/PPAL/PPGL/ZAM/Stainless steel coils and sheets for architectural and industrial applications in accordance with international standards such as ASTM, JIS, EN, GB, ISO and others. steel coil and sheet.
Factory – PPGI Rolls and Sheets
Our factory has laboratory, sample room, workshop (coated steel production line + corrugated sheet forming machine + steel slitting machine), ISO9001, ISO14001 certified, annual production capacity of 600,000 tons, we provide salt spray test, SGS and other material certificates and free samples (special specifications are subject to charges.).
Packaging -Rolls and Sheets
Our PPGI rolls and sheets are packed in standard export packaging, plastic film + moisture-proof paper + galvanized iron + trapping tape, meanwhile, you can choose the weight of the packaging, packing method (with or without pallet), customized packaging logo, etc.
Testimonials – Wanzhi
So far, we have supplied Premium PPGI PPGL steel materials for greenhouse construction, commercial hospital construction, roof panel processing, building enclosure, ventilation pipe manufacturing, drainage ditch production and so on, and we have also received feedbacks from customers all over the world.
PE/SMP/PVDF coating PPGI Rolls Comparison
| Coating Type | Weathering Resistance | UV Resistance | Chemical Resistance | Surface Hardness | Cost | Typical Applications |
|---|---|---|---|---|---|---|
| Polyester (PE) | Medium (5-8 years) | ΔE ≤ 5 | Fair (weak acids/alkalis) | 2H-3H (pencil hardness) | Low | Indoor Appliances, Light Buildings |
| Silicon Modified Polyester (SMP) | Good (8-12 years) | E ≤ 5 | Good | 3H | Medium | Outdoor Billboards, Temperate Climate Construction |
| Polyvinylidene Fluoride (PVDF) | Excellent (15-25 years) | ΔE ≤ 3 | Excellent (resistance to strong acids/solvents) | 3H-4H | High | Coastal Buildings, Landmark Projects |

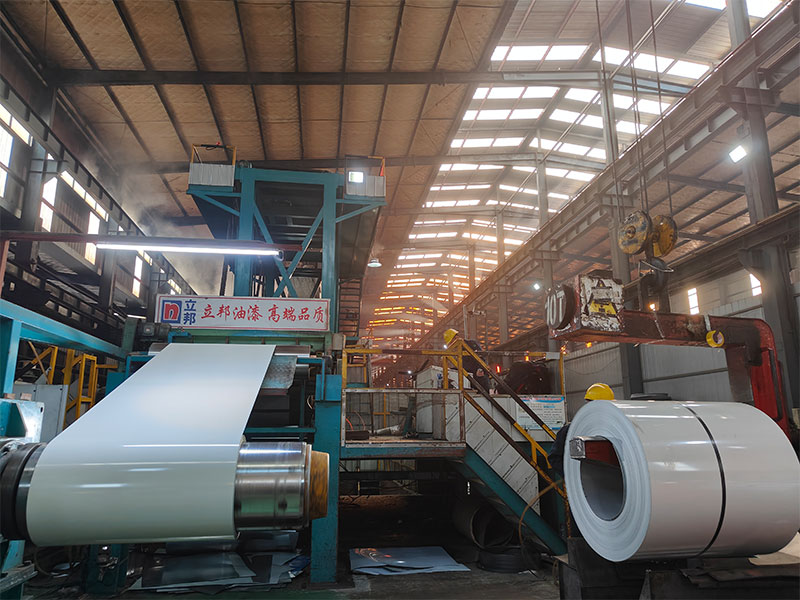

Production process of PPGI Steel Roll
Substrate pre-treatment: degreasing → phosphating/chromating → drying to ensure a clean and active surface.
- First select the appropriate substrate material (e.g. galvanized steel sheet, aluminum-zinc alloy steel sheet, etc.) and carry out surface cleaning to remove oil, rust and other impurities.
Coating process: Roll Coating (Roll Coating) → Curing
- After the substrate is cleaned, it enters the coating process. Common coating methods include roller coating, spraying, dip coating, etc. The coating materials are usually polyester (PE), polyvinylidene fluoride (PVDF), silicone-modified polyester (SMP), and so on.
- After the coating is completed, the substrate needs to be dried at high temperature to ensure that the coating is firmly combined with the substrate to form a strong protective layer.
Quality Inspection: Adhesion → Salt Spray Resistance → Flexibility → Glossiness → Color Difference Analysis
- Finally, the coating is quality inspected to ensure that it has a smooth and even surface without defects, and then it is packaged and ready for shipment.
PPGI rolls are suitable for outdoor, seaside, industrial area and other different applications, and are excellent for building roofing, wall covering, facade, billboard and other materials. Please contact us for more details.
