Hot-rolled galvanized steel is a metal material produced by applying a hot-dip galvanizing process to hot-rolled steel sheets. It combines the high strength and good toughness of hot-rolled steel with the corrosion resistance of the zinc coating, making it widely used in construction, structural engineering, transportation, and machinery manufacturing.
Hot Rolled Galvanized Steel for Sale
Wanzhi Group, as a steel mill supplier in China, specializes in the production and sale of various raw materials and finished products including hot-rolled galvanized steel, cold-rolled galvanized steel, and color-coated galvanized steel. We have supplied steel raw materials and finished products to customers in over 100 countries and regions worldwide. Beyond coil and plate production, we offer processing services including leveling, slitting, bending, stamping, and forming. We also support OEM and ODM customization for galvanized steel products to meet diverse industry application needs.
Specifications
| Project | Common Range or Type |
| Base Material Thickness | 0.15mm – 6.0mm |
| Width | 600mm – 1250mm |
| Form | Coils, Sheets |
| Zinc Coating Weight | Z30 – Z350 |
| Surface Treatment | Regular Zinc Flowers, Small Zinc Flowers, No Zinc Flowers, Phosphating, Oiling |
Grade
| Substrate Classification | Grade | Performance |
| Low Carbon Steel | DC51D+Z (Baosteel), DX51D (EU Standard), SGCC (Japanese Standard), ASTM A653 CS Type C (US Standard) | High plasticity (elongation ≥22%), low yield strength (140-300 MPa), suitable for deep drawing |
| Carbon Structural Steel & Low Alloy Steel | S250GD+Z (EU Standard), SGC340 (Japanese Standard), ASTM A653 SS255 (US Standard) | Medium-high strength (yield strength 250-350 MPa), good toughness |
| High Strength Steel | HC220YD+Z (EU Standard) | Strength improved through baking process |
| Dual Phase Steel | HC340/590DPD+Z (EU Standard) | Yield strength 340 MPa, tensile strength 590 MPa |
| Complex Phase Steel | HC780/980CPD+Z (EU Standard) | Tensile strength up to 980 MPa |
Price
Hot-rolled galvanized steel typically ranges from $550 to $750 per ton, with specific pricing varying based on material grade, thickness, zinc coating, surface finish requirements, and quantity. Please leave your requirements for a real-time quote!
Hot Rolled Galvanized Steel Production Process
Hot rolled galvanized steel uses hot-rolled steel plate as its base material. Through the hot-dip galvanizing process, a uniform and highly adherent zinc layer is formed on its surface, providing excellent corrosion resistance and high mechanical strength.
Advanced Processing
- Cutting: Wanzhi offers high-precision slitting and cut-to-length processing, capable of cutting wide coils or large sheets into specific widths and lengths as required.
- Stamping: Utilizing large-scale stamping equipment, we transform sheets into complex-shaped components, including GI perforated sheets and galvanized stamped panels.
- Bending: Wanzhi performs cold bending to form structural members at various angles, such as C-channels, Z-channels (purlins), and channel sections.
- Roll Forming: Wanzhi’s roll forming production lines directly shape galvanized coils into long-length products with specific cross-sections, including galvanized roofing panels, galvanized wall panels, galvanized guardrail panels, and cable trays.
- Welding: Wanzhi offers welding services including spot welding and MIG/MAG welding.
Surface Treatment
- Phosphating: Forms a water-insoluble phosphate protective layer on galvanized steel surfaces.
- Oiling: Applies a thin layer of rust-preventive oil to galvanized steel surfaces.
- Passivation: Forms a dense passivation film on galvanized steel surfaces.
- Process: Treated using chromate or chromate-free passivation solutions.
- Color Coating / PPGI: Applies primer and topcoat to galvanized steel substrates.
Advantages and Applications of Hot-Rolled Galvanized Steel
Hot-rolled galvanized steel offers corrosion resistance, strength and toughness, formability and weldability, along with excellent coating adhesion. It plays a vital role across sectors including construction, industrial production, energy, and transportation.
Product Features
- Weather Resistance: Suitable for outdoor structures and corrosive environments;
- High Strength and Toughness: Hot-rolled base material provides superior mechanical properties;
- Workability: Supports cutting, welding, bending, and other secondary processing;
- Environmentally Friendly & Cost-Effective: Zinc is recyclable, offers extended service life, and provides better value than stainless steel and other materials.
Application Fields
- Building Envelope: Roof panels, wall panels, stair treads;
- Building Structures: Industrial steel structures, purlins, roofs, wall cladding systems;
- Road & Transportation: Highway guardrails, signposts, noise barriers;
- Automotive Manufacturing: Vehicle body panels, chassis components, truck frames, automotive crash beams;
- Agricultural Facilities: Grain silos, greenhouse structures, livestock equipment;
- Industrial Equipment: Conveyor frames, warehouse shelving, lightweight structural components, electrical distribution enclosures;
- Energy Sector: Photovoltaic mounting systems, transmission towers;
- Appliance Structural Components: Refrigerator side panels, air conditioner housings.
Wanzhi Group — Hot Rolled Galvanized Steel Factory
If you are seeking a reliable manufacturer of hot-rolled galvanized steel, Wanzhi Group looks forward to collaborating with you! With our own factory, galvanizing production lines, finished product processing lines, and extensive export experience, we offer integrated services from substrate production and hot-dip galvanizing to deep processing and surface treatment. This ensures stable product quality and controllable delivery schedules.
Hot-Rolled Galvanized Steel Supplier
Wanzhi Steel Factory holds certifications for management systems including ISO9001 and ISO14001. Our galvanized products comply with multiple international standards: Chinese National Standard (GB/T2518), European Standard (EN 10345), American Standard (ASTM A653), and Japanese Standard (JIS G3302). We provide material selection and process recommendations tailored to your specific application scenarios.
Production Capacity & Equipment
Our facilities include multiple hot-rolled galvanized production lines, slitting equipment, painting lines, and cold-forming units. With an annual capacity of 600,000 tons and delivery times ranging from 5 to 45 working days, we maintain stable raw material supply and large-scale shipping capabilities.

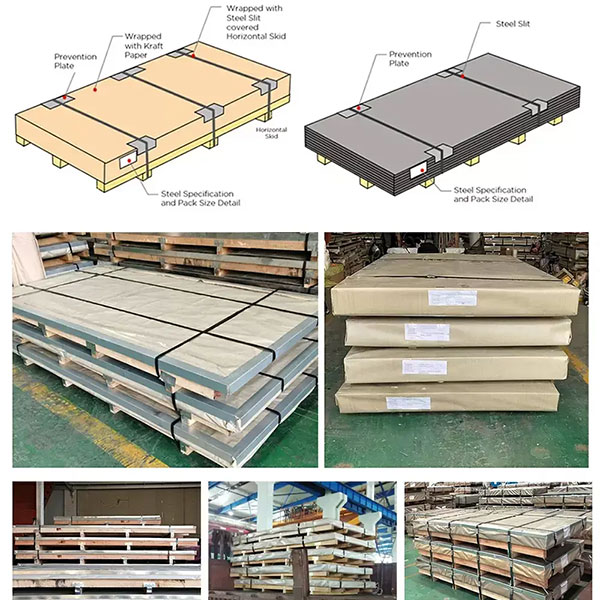

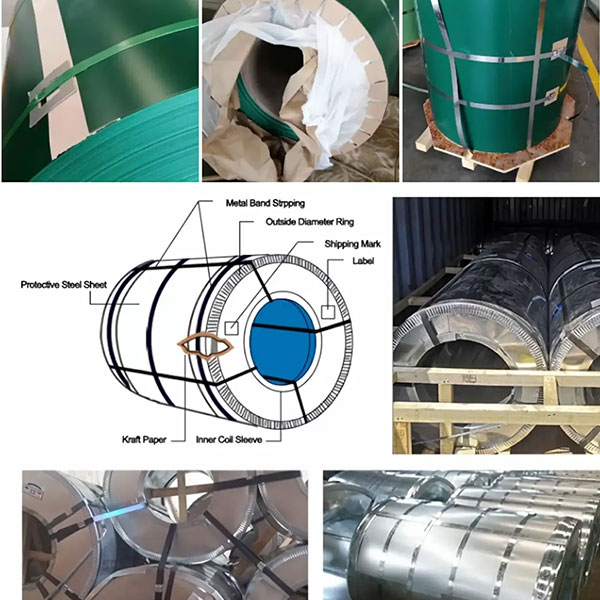

Packaging Methods
We employ export-standard packaging with moisture-proof paper, plastic film, galvanized iron sheet wrapping, and steel band strapping. Waterproof woven fabric and wooden pallet reinforcement are available upon request.
Global Case
Wanzhi Group’s hot-rolled galvanized steel products have been exported to Turkey, Saudi Arabia, the United Arab Emirates, Peru, and Colombia. We supply galvanized steel coil, strip, pipe, wire mesh, and finished products for applications including roofing/wall panel factories, home appliance manufacturing plants, greenhouse projects, and commercial/hospital construction.
Hot rolled Galvanized Steel VS Cold Rolled Galvanized Steel
| Comparison | Hot-Rolled Galvanized Steel (HRGI) | Cold-Rolled Galvanized Steel (CRGI) |
| Base Material Production | Rolled at high temperature | Rolled thin at room temperature |
| Surface Appearance | Relatively rough | Very smooth, flat, fine, and uniform |
| Dimensional Accuracy | Low | Extremely high |
| Mechanical Properties | High strength, good toughness, but lower hardness | High strength, high hardness, good toughness, and fatigue resistance |
| Forming and Processing | Suitable for simple bending and stretching (e.g., structural parts) | Suitable for deep drawing, complex bending, high-speed stamping, and precision processing |
| Application Areas | Building structures, highway guardrails, car beams, agricultural equipment, containers, etc. | Appliance casings, car body panels, electronic enclosures, office furniture, building roof and wall panels, etc. |
| Cost | Lower | Relatively higher |
Wanzhi Group integrates multiple production lines including hot-rolled, galvanized, and color-coated steel, offering one-stop solutions from raw materials to finished products. For any hot-rolled galvanized steel procurement or customization needs, feel free to contact us anytime.
