Metal roofing sheets come in a variety of colors, with red being a particularly popular choice. These sheets are manufactured by cold-rolling and forming a colored-coated metal substrate into a continuous corrugated pattern, and are commonly used for building roofs and walls. We offer a wide selection of red corrugated roofing sheets in various colors and types. If you have any needs or questions, please contact us!
Specifications
| Item | Parameters |
| Thickness | 0.12mm – 0.8mm |
| Width | 600 – 1250mm |
| Length | 1-12m (customizable) |
| Substrate | Galvanized Steel Coil, Galvalume Steel Coil, Aluminum Coil |
| Paint Type | PE, SMP, HDP, PVDF |
| MOQ | 10 tons |
| Packaging | Standard export packaging or according to your requirements |
| Certificate | SGS, ISO 9001, CE |
| Delivery Date | 5-45 days |
Red Coating Systems
- PE: An economical coating offering a wide range of colors and good gloss. However, it is prone to fading and chalking when used long-term in areas with intense sunlight, making it more suitable for interior applications or environments with adequate shading.
- SMP: SMP is not commonly used because it is more expensive than PE but does not offer the same weather resistance as HDP; HDP is generally the preferred choice.
- HDP: An upgraded version of conventional polyester coatings, offering better abrasion resistance and significantly improved UV resistance compared to traditional polyester.
- PVDF: Currently recognized as the roofing coating with the best performance, containing at least 70% fluorocarbon resin. It features excellent resistance to UV aging, color retention, and chemical corrosion, maintaining vibrant colors for over 20 years.
Red Color Range
Based on the RAL color system, we typically offer standard colors such as RAL 3003 (Scarlet), RAL 3013 (Tomato Red), RAL 3020 (Traffic Red), and RAL 3028 (Burgundy). Special effects such as matte red, metallic red, gradient red, and pearlescent red are also available upon request.
Types and Manufacturing Processes
Types of Red Corrugated Roofing Sheets
- Red PPGI Corrugated Sheets: The most commonly used type of corrugated sheet. It is made by coating high-quality galvanized steel coils (zinc content: 30–275 g/m²) with red paint and then forming them into the desired corrugated sheets.
- Red PPGL Corrugated Sheets: Offering superior corrosion resistance compared to PPGI, these sheets are made from high-quality aluminum-zinc steel coils, coated with paint, and then pressed into corrugated sheets.
- Red PPAL Corrugated Sheets: Made from an aluminum alloy substrate, these sheets are over 30% lighter than steel sheets, never rust, and offer exceptional weather resistance. They are suitable for high-end buildings requiring high corrosion resistance and lightweight construction.
Manufacturing Process
Using continuous cold-forming roll-forming technology, red coiled material (PPGI/PPGL/PPAL) is progressively formed into standard corrugated or trapezoidal profiles through multiple precision rollers. The entire process is fully automated, ensuring high profile accuracy, no stress-induced deformation, and zero damage to the surface coating.
Applications
- Industrial Buildings: Roofing and walling for steel-framed factories, warehouses, logistics centers, workshops, power plants, and chemical plants; suitable for large spans, heavy loads, and highly corrosive environments.
- Residential Buildings: Villas, custom-built homes, apartments, community facilities, sunrooms, and canopies; red roofing enhances the building’s aesthetic appeal and visual distinctiveness.
- Commercial and Temporary Structures: Markets, exhibition halls, carports, toll booths, and temporary housing; features quick installation, low cost, and reusability.
- Special Applications: Coastal buildings, chemical plant facilities, and structures in acid rain areas; the aluminum-zinc-coated + fluorocarbon-coated combination is recommended for long-term corrosion resistance.

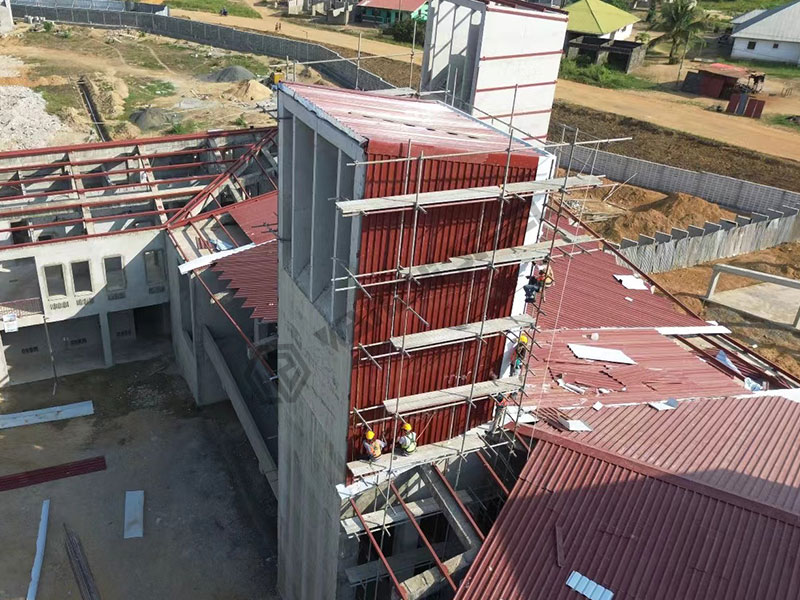

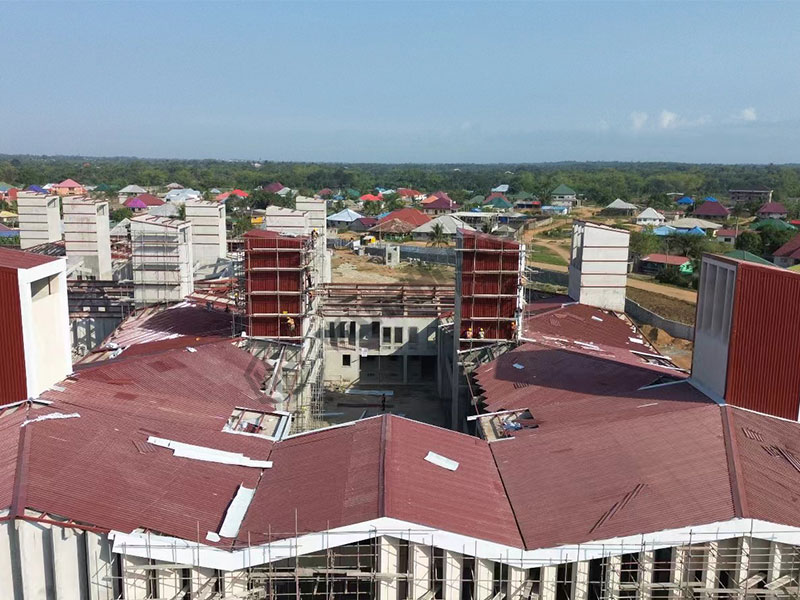

Wanzhi – Roofing Sheet Cases and Projects
Wanzhi Group has over a decade of export experience and has obtained multiple certifications, including ISO 9001, CE, and SGS. We have supplied metal roofing sheets for construction projects in numerous countries and have helped many clients successfully complete their projects. Here are some of our case studies:
Wanzhi Steel – Agricultural Greenhouse Project in Turkmenistan
550 tons PPGI Steel Coil to Azerbaijan
100 tons of Galvanized Coils to Saudi Arabia
144 ton Steel Wire to Spanish
Project of PPGI Roofing en Libya
100 tons of GL and PPGL in Solomon Islands
Factory
We operate a complete range of galvanized and color-coated production lines, along with a dedicated sample room and quality inspection center. From material selection at the source through production, inspection, and packaging, every step is conducted under a rigorous quality control system to ensure we deliver truly reliable, high-quality products for your projects. Please feel free to contact us with any inquiries; we are committed to providing you with the best possible service.
