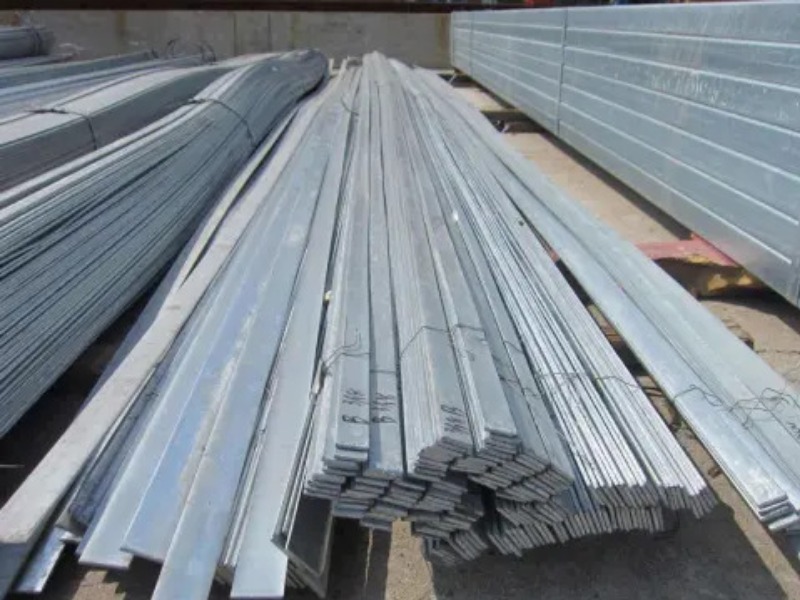

Galvanized flat bar is rectangular steel coated with zinc via hot-dip galvanizing or electro-galvanizing. It boasts outstanding corrosion resistance and structural strength with low cost and easy fabrication, widely applied in construction, machinery manufacturing, load-bearing brackets and industrial parts. Wanzhi Group supplies high-precision, weather-resistant galvanized flat bars for harsh working conditions. We also provide full deep processing including slitting, bending, punching, forming, painting and special shaped customization.
Width: 10mm – 870mm
Thickness: 0.5mm – 5.0mm
Material Grades: Q195/Q235/Q215/Q345/20Cr/40Cr/20CrMo/35CrMo
Specification
| Product Name | Galvanized Flat Bar |
|---|---|
| Material Grades | Q195/Q235/Q215/Q345/20Cr/40Cr/20CrMo/35CrMo |
| Galvanizing Type | Hot Dipped Galvanized / Electro Galvanized |
| Zinc Coating Weight | HDG: Z30 – Z275g/m2 EG: Z10-Z50 g/m2 |
| Width | 10mm – 870mm |
| Thickness | 0.5mm - 5.0mm |
| Length | 6m - 12m, can be customized |
| Color | Silver |
| Processing Service | Cutting, punching, welding, drilling, slitting, forming, polishing, etc. |
| MOQ | 10 tons |
| Standard | AISI, ASTM, DIN, JIS, GB, EN |
| Certificates | SGS, ISO BV, CE etc. |
| Package | Standard export packaging or as per your requirements |
| Application | Construction brackets, culvert fittings, load-bearing frames, industrial components |
What Is Galvanized Flat Bar?
Galvanized flat bar is solid rectangular steel coated with hot-dip or electro zinc layer. We offer multiple grades: low-carbon Q195/Q215/Q235/A36 for general applications, high-strength Q345/S355JR/1018 for heavy-duty projects, and custom alloy steel on demand. Hot-dip galvanized coating delivers superior rust resistance and an extended service life, acting as a budget-friendly alternative to stainless steel. It boasts stable structural strength and allows easy cutting, drilling, welding and forming. Anti-rust touch-up paint can be applied to restore protection on exposed steel at cut edges, drilled holes and welding spots.
Galvanizing Process of Galvanized Flat Bar
Wanzhi Group operates two hot-dip and one electro-galvanizing production lines. We can provide both galvanizing processes to meet different precision, appearance and anti-corrosion requirements of galvanized flat bars.
- Hot-dip Galvanizing (HDG): This process submerges flat steel into molten zinc to create thick zinc coating (30-275 g/m²). It offers great anti-rust capacity, perfect for outdoor projects and large structural steel pieces.
- Electro Galvanizing (EG): It generates thin zinc coating (10-50 g/m²) through electrochemical reaction. The surface is smooth with high precision, fit for delicate parts used indoors or mild outdoor conditions.
How to Calculate the Weight of GI Flat Bar?
Calculate the theoretical weight of GI flat bar via this formula: Weight per meter (kg/m) = Width (mm) × Thickness (mm) × 0.00785. Multiply the weight per meter by the total length (m) to obtain the total weight of the GI flat bar.
Advantages & Usages of Galvanized Flat Bar
Benefits
- Excellent rust and corrosion resistance: Integral zinc coating fully wraps the steel substrate, isolating air and moisture to effectively prevent oxidation and rust, adapting to damp, saline and outdoor exposure environments.
- Firm coating adhesion: The zinc layer closely bonds with the base steel, not easy to fall off under bending, collision and extrusion during processing and installation.
- Outstanding mechanical performance: Solid rectangular steel body delivers stable tensile and bearing strength, capable of supporting structural load for brackets, frames and engineering fittings.
- Great machinability: The product can be freely slitted, cut, bent, punched, drilled, welded and shaped to match customized component requirements.
- Low long-term maintenance: No frequent repainting or anti-rust treatment needed after installation, saving follow-up labor and material maintenance costs.
- Economical cost performance: It provides reliable anti-corrosion protection at a far lower cost than stainless steel, perfect for mass engineering procurement.
- Good surface wear resistance: The zinc coating has certain abrasion resistance, reducing surface scratches during transportation and on-site construction.
Usages

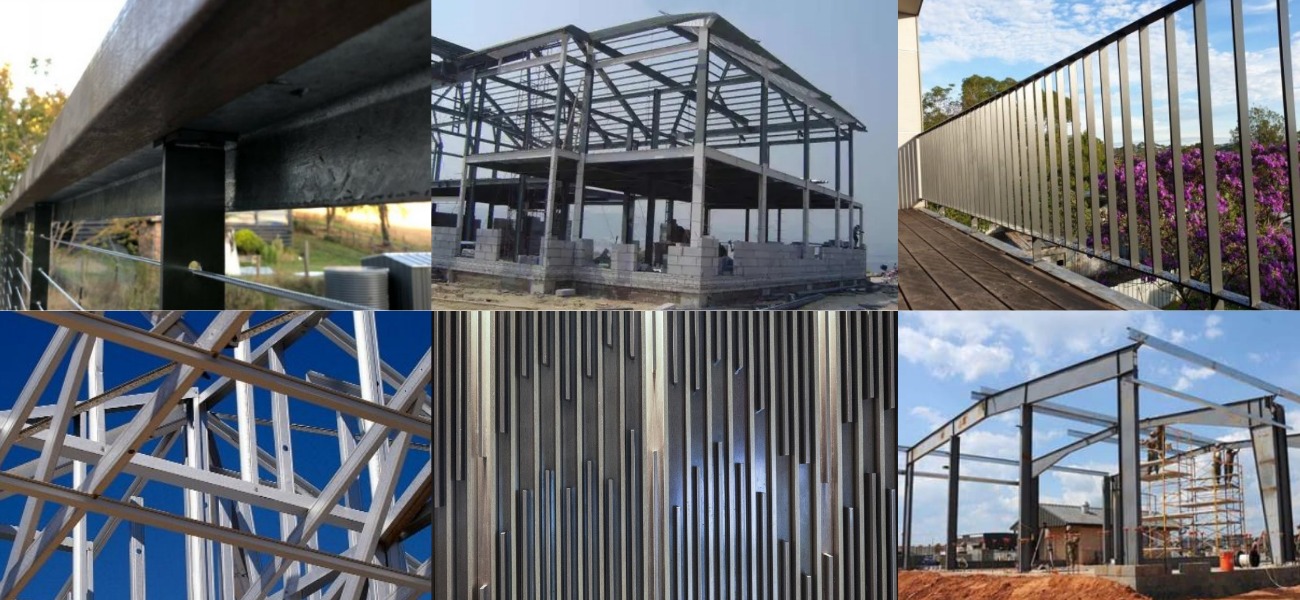

- Building Structural Supports: Used for wall brackets, ceiling supports, handrail frames, stair accessories and building embedded parts in civil construction.
- Municipal & Outdoor Engineering: Fabricate road guardrail fittings, street lamp bases, drainage culvert components and outdoor sign fixing frames.
- Agricultural Facilities: Make greenhouse support frames, livestock farm fences, breeding equipment brackets and farm storage rack parts.
- Machinery & Equipment Accessories: Produce mechanical mounting bases, transmission rack brackets, small equipment frames and machinery fixed connecting pieces.
- Hardware & Decoration: Process indoor decorative frames, furniture support parts, cabinet fixing strips and display stand components.
- Transportation Industry: Manufacture cargo rack accessories for trucks, trailer connecting parts and logistics storage shelf fittings.
- Pipeline & Water Conservancy Works: Act as fixing supports for water pipes, drainage pipe clamps and small water conservancy project fasteners.
- Electrical Engineering: Produce cable tray brackets, electrical cabinet fixing strips and outdoor power distribution auxiliary components.
Types of Galvanized Flat Steel
Galvanized flat steel is categorized in three logical dimensions: production processing method, base material grade and cross-sectional shape. Each type carries distinct surface precision, mechanical strength and cost features to fit construction, machinery, decoration and special engineering demands. Wanzhi Group supplies a full range of all mainstream classifications of galvanized flat steel with customizable sizes, galvanizing layers and material grades, etc.
Classified by Manufacturing Process
Classified by Base Material
Classified by Cross-sectional Shape
Wanzhi Galvanized Flat Bar Prices
The price of Wanzhi galvanized flat bar is mainly determined by factors including substrate cost, material grades, galvanizing technique, zinc coating weight, plus dimensional specifications. The price ranges from USD 600 to 800 per ton for regular carbon steel flat bar, with a minimum order quantity of 10 tons for factory direct pricing. Our delivery lead time is 5 to 45 days. Apart from galvanized flat bar, Wanzhi Group also supplies hot rolled/cold rolled steel, galvanized/aluzinc steel coils, sheets and strips, PPGI, PPGL steel coils and sheets, PPAL, metal corrugated sheets, and stainless steel. Please leave us a message with your required specifications and quantity, and we will offer you the most competitive prices and customized solutions!

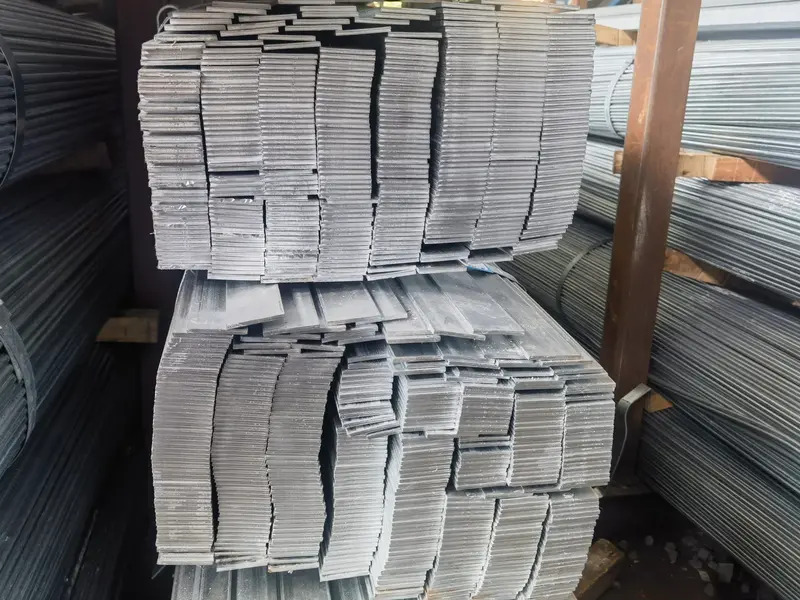

Galvanized Flat Steel Manufacturer & Supplier – Wanzhi Group
