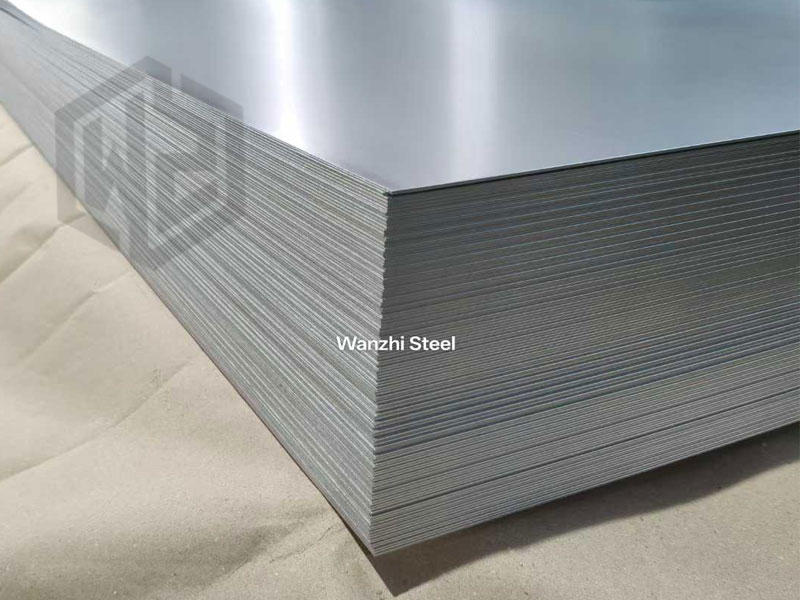

DC53D+Z is an ultra-high-formability, hot-dip galvanized steel that complies with EN 10346 standards. It is designed for complex stamping applications requiring exceptional ductility and surface finish. Wnzhi Group offers DC53D+Z coil and sheet production, customized coating options (galvanized, galvanized, and zinc-aluminum-magnesium alloy), and further processing services such as bending, slitting, and painting for the automotive, appliance, and construction industries.
DC53D Chemical Composition
| Element | Content Range | Control Purpose |
| C | ≤0.06% | Improve weldability & ductility |
| Mn | ≤0.40% | Suppress work hardening |
| P | ≤0.020% | Eliminate cold brittleness |
| Als | ≥0.035% | Refine grain and optimize r-value |
DC53D Mechanical properties
| Parameter | Typical Value | VS. DC52D |
| Yield Strength (ReH) | 200-380 MPa | More uniform strength distribution |
| Tensile Strength (Rm) | 260-420 MPa | Deep draw stability ↑30% |
| Elongation (A₈₀) | ≥28% | ↑7% vs DC52D |
| Plastic Strain Ratio (r-value) | ≥2.0 | Complex surface forming ability ↑40% |
| Work Hardening Index (n-value) | ≥0.20 | Strengthened necking resistance |
Surface treatment system
| Technical Solution | Characteristics |
| Zero Zinc Flower Surface | Ra=0.6-0.9μm |
| Finishing Treatment | Mirror/satin finish optional |
| Chromium-Free Passivation | Environmentally friendly, fingerprint resistant |
| Zinc-Aluminum-Magnesium Coating | Salt spray >4000h |
| Coating | Color/pattern/surface effect optional |
DC53D Galvanized Steel Benefit
- Excellent deep drawing performance: DC53D grade steel features high ductility and low yield strength, with an LDR of ≤2.5.
- Excellent corrosion resistance: A coating provides rust protection for the steel substrate. Coating thickness (20-350g) and coating material (+Z, +AZ, +ZAM) can be selected based on application requirements.
- Surface quality: Smooth and aesthetically pleasing, and various surface treatments such as painting and lamination are possible.
- Lightweighting: Thinner substrates result in lighter parts.
DC53D Galvanized Steel Applications
- Automotive body panels
- Chassis and structural parts
- Appliance and electronic product housings and interiors
- Building and infrastructure exterior walls and roofs
- Lightweight steel structures
- Power and energy equipment
Wanzhi Group DC53D Galvanized Steel
Wanzhi Group‘s galvanizing plant is ISO 9001, ISO 45001, and ISO 14001 certified, and supports quality inspections by third-party organizations such as SGS and TÜV.
Production Guarantee
- 2 continuous hot-dip galvanizing lines (monthly capacity 20,000 tons)
- Online laser thickness gauge (accuracy ±1μm)

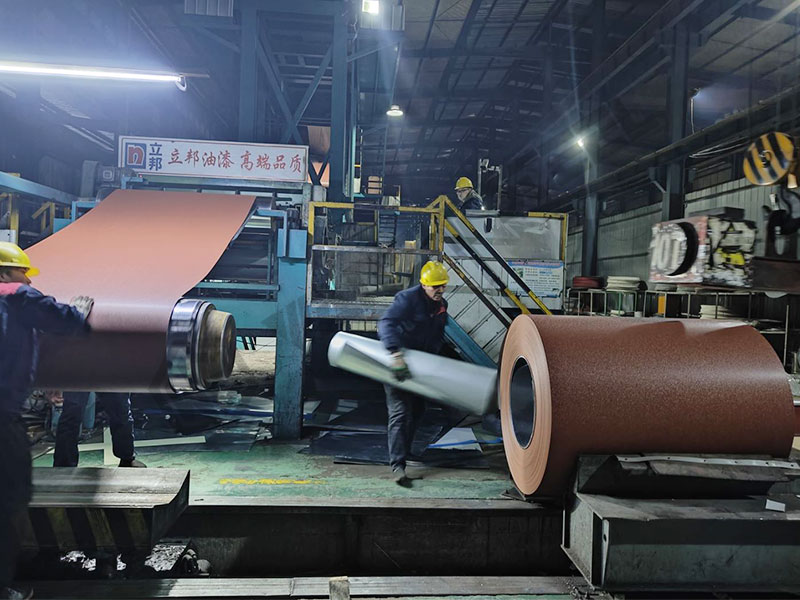

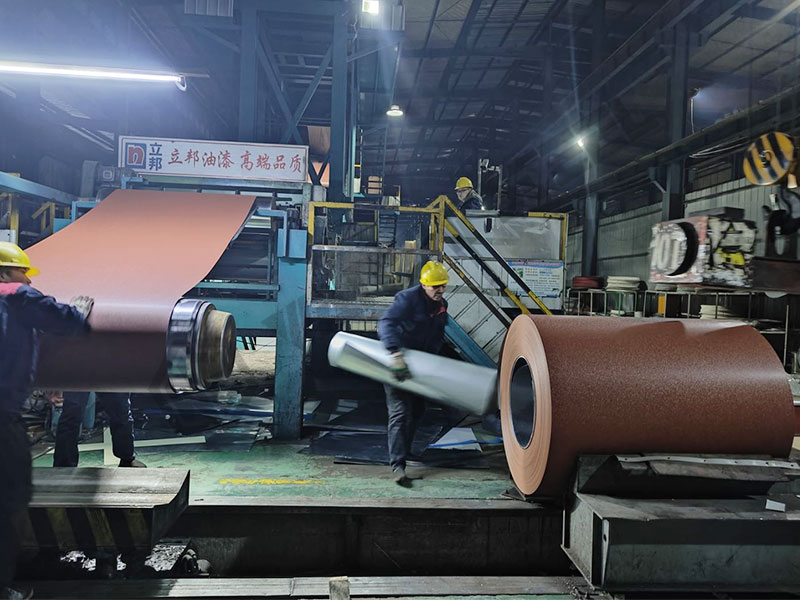

- 3 pre-coated galvanized steel production lines
- Delivery time 5-45 working days
- Raw materials and standard models in stock
Value-added Processing
- Precision slitting: Width tolerance ±0.05mm
- Printing: Over 200 printing roller molds
- Forming: Various profiling machines, customizing sheet materials with various surface structures
- Painting: Galvanized steel painting, customizable colors and finishes
Certification and Case Studies
Wnzhi Group provides full-process certification support (from material testing to factory audits) for metal materials such as DX51D, SGCC, and DC53D Galvanized Steel. We also offer steel solutions for applications such as factories and construction projects.
DC53D Galvanized Steel is one of our popular deep-drawing galvanized steel grades. We provide galvanized steel products to customers worldwide that comply with standards such as EN 10346, JIS G3302, and ASTM A653, including galvanized steel coils, sheets, profiled sheets, and finished products. Leave your request for a free quote!
