SCH 80 hot-dip galvanized steel pipe is an American-standard heavy-wall, high-strength pipe with excellent mechanical strength, pressure rating, and impact resistance. It is widely applied in outdoor projects, building structures, fence support and other scenarios. It can normally serve 15 to 25 years in regular outdoor environments, and maintain stable performance for 8 to 12 years in humid and coastal areas. Wanzhi can customize and manufacture galvanized pipe products in various specifications, including galvanized round pipes, square pipes, rectangular pipes and galvanized pipe fittings.
Standard: ASTM A53, ASTM F1083, ASME B36.10
Zinc Coating: 30 – 275g/m2
MQQ: 10 tons
What Is Schedule 80 Galvanized Pipe?

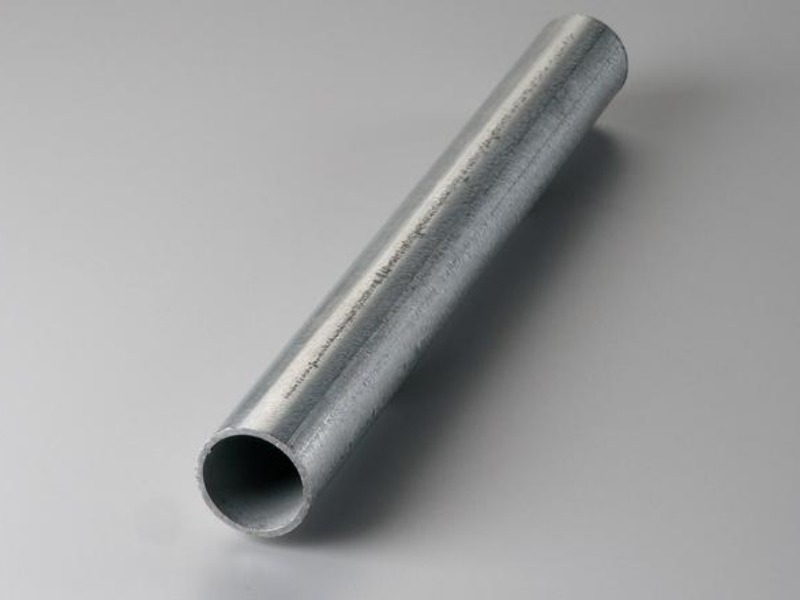

Schedule 80 Galvanized Pipe refers to hot-dip galvanized steel pipe complying with the ASME B36.10 standard. Made of low-carbon steel substrate, the pipe is processed by high-frequency welding and overall hot-dip galvanizing, with the galvanized coating thickness reaching Z275/G90. 80 denotes the fixed wall thickness grade of the pipe, rather than the pipe diameter.
Under the same nominal size, Schedule 80 pipe has a thicker wall than Schedule 40 pipe, featuring higher pressure bearing capacity and structural strength. It is widely used in industrial facilities, construction projects, commercial supporting facilities and other scenarios that require high pipe strength and corrosion resistance.
SCH 80 Galvanized Pipe Specification
| Product Name | SCH 80 Hot Dipped Galvanized Steel Pipe |
|---|---|
| Standard | ASTM A53, ASTM F1083, ASME B36.10 |
| Grade | Grade A, Grade B |
| Zinc Coating | 30 - 275g/m2 |
| Processing Service | Welding, cutting, bending, threading, punching, spraying, etc. |
| Outer Diameter | 33.4mm – 219.1mm |
| Length | 5.5m, 5.8m, 6m, 11.8m, 12m, Customized. |
| Yield Strength | ≥205MPa |
| Tensile Strength | 330–550MPa |
| MQQ | 10 tons |
| Package | Standard export packing or as client required |
WanZhi SCH 80 Galvanized Pipe Prices
The price of Schedule 80 galvanized steel pipes is mainly affected by raw material costs, galvanizing processes, wall thickness, customized specifications and other factors, with a price range of USD 600 to 1,000 per ton. Due to its thicker wall thickness, Schedule 80 pipes are approximately 20%-30% higher in price than schedule 40 pipes.
In addition to Schedule 80 galvanized pipes, Wanzhi Group also supplies a full range of steel pipe products, including galvanized round pipes / square pipes, seamless steel pipes, spiral welded pipes, galvanized angle steel / channel steel, as well as custom-specification products. Delivery is available within 5 to 45 days. Please leave your detailed requirements, and Wanzhi Group will promptly provide you with competitive quotations and professional, all-round services.
Schedule 80 Steel Pipe Material Options
WanZhi Group provide multiple premium material grades for Schedule 80 steel pipes to cater to diverse industrial application needs, including stainless steel pipe, nickel alloy pipe, carbon steel pipe, alloy steel pipe, copper nickel pipe, mild steel pipe and galvanized steel pipe, etc.

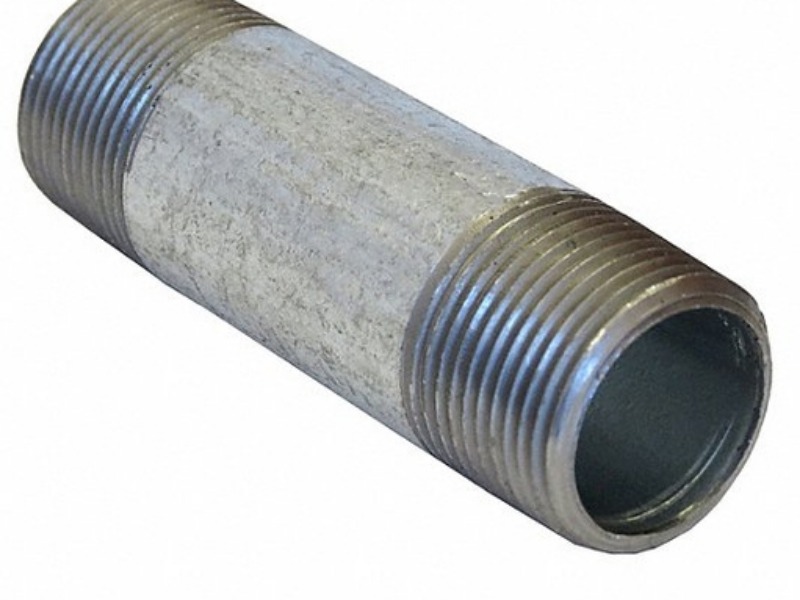

SCH 80 vs SCH 40 Galvanized Pipe Comparison
Choose SCH 80 for strength and pressure. Choose SCH 40 for general-purpose, cost-effective utility piping.
- Wall Thickness: For the same nominal size, SCH 80 has a much thicker wall than SCH 40, belonging to extra strong thick-wall pipes.
- Pressure & Strength: SCH 80 offers better pressure resistance, impact resistance and load-bearing capacity; SCH 40 is standard wall thickness with medium pressure-bearing performance.
- Applications: SCH 80 is suitable for outdoor heavy-duty structures, fence posts, high-pressure fluids and coastal anti-corrosion projects; SCH 40 is for ordinary building water supply and drainage, light supports and general municipal civil projects.
- Weight & Cost: SCH 80 is heavier per unit, consumes more raw materials, and its price is higher than SCH 40; SCH 40 is cost-effective with less material, suitable for regular projects.
- Service Life: With the same zinc coating, SCH 80 has a longer overall service life and better anti-corrosion and anti-perforation ability due to its thicker wall margin.
Schedule 80 Galvanized Pipes Sizes
| NPS (Nominal Pipe Size) | Outer Diameter (mm) | Wall Thickness (mm) |
| 1/2″ (DN15) | 21.3 | 2.77 |
| 3/4″ (DN20) | 26.9 | 2.87 |
| 1″ (DN25) | 33.7 | 3.38 |
| 1 1/4″ (DN32) | 42.4 | 3.56 |
| 1 1/2″ (DN40) | 48.3 | 3.68 |
| 2″ (DN50) | 60.3 | 3.91 |
| 2 1/2″ (DN65) | 76.1 | 5.16 |
| 3″ (DN80) | 88.9 | 5.49 |
| 4″ (DN100) | 114.3 | 6.02 |
| 5″ (DN125) | 141.3 | 6.55 |
| 6″ (DN150) | 168.3 | 7.11 |
Advantages and Applications of SCH 80 Galvanized Pipe
Advantages
- Thick Wall & High Strength: It features excellent bending resistance, impact resistance and heavy load-bearing capacity.
- High Pressure Resistance: It has superior pressure-bearing performance, suitable for high-pressure working conditions and structural support projects.
- Excellent Corrosion Resistance: Adopting hot-dip galvanized treatment, the zinc coating is firm and anti-rust. It owns long service life even in outdoor, humid and coastal environments.
- Standard Universal Size: Comply with ASME B36.10, ASTM A53 and ASTM F1083 standards. Standard dimensions perfectly match American standard pipe fittings for easy installation.
- Cost-Effective Durability: Lower lifetime maintenance and replacement costs. Reliable, long-term performance with minimal upkeep.
- Easy Processing: Made of mild carbon steel, it can be freely cut, drilled and welded, convenient for on-site construction and customized projects.
Applications
- Fencing posts, highway guardrails and isolation barriers
- Scaffolding, handrails, guardrails, catwalks, and building bracing
- Building steel structure, factory framework and structural support
- PV mounting brackets and agricultural greenhouse frames
- Municipal engineering, water supply and fire protection pipelines
- Industrial fluid conveying and high-pressure pipeline systems
SCH 80 Galvanized Pipes Supplier – WanZhi Group
Wanzhi Group operates 2 galvanized steel production lines, 3 prepainted steel production lines and 1 aluminum-zinc-magnesium alloy production line. The zinc coating weight ranges from 30g to 275g per square meter, with an average monthly production capacity of 10,000 tons.
We specialize in the manufacturing and sales of metal materials, supplying high-quality products to over 120 countries and regions worldwide. Our product portfolio includes galvanized steel, galvalume steel, zinc-aluminum-magnesium alloy steel, metal roofing sheets, corrugated sheets, prepainted steel, aluminum products, prepainted aluminum, and stainless steel.

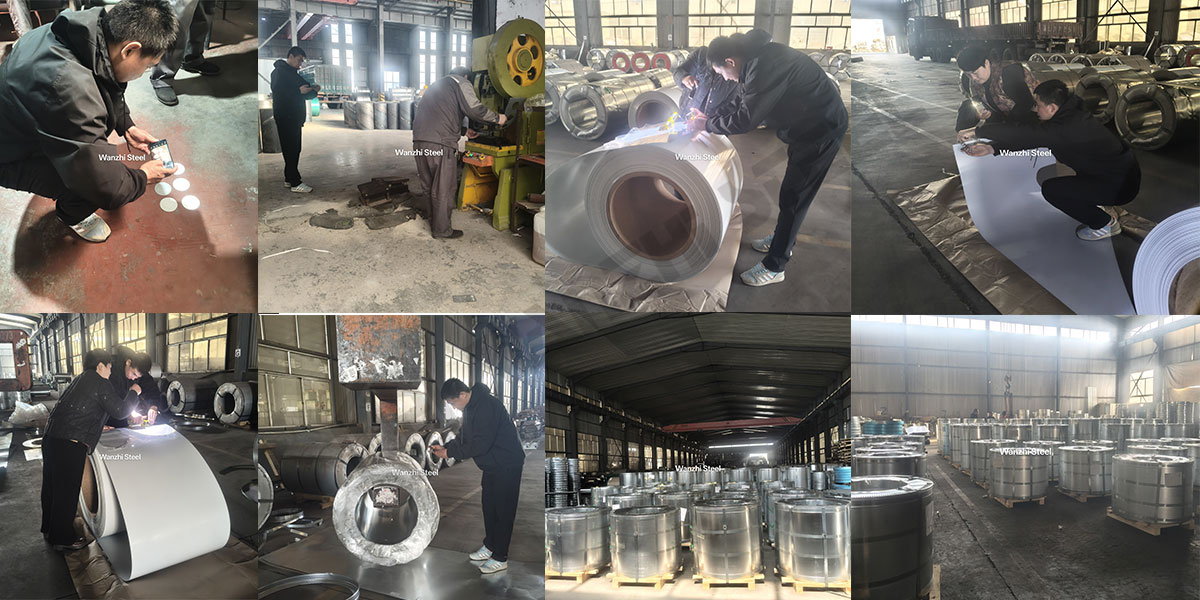

WanZhi Factory
- High-speed Continuous Production Line: Our factory is equipped with multiple galvanizing production lines, including continuous hot-dip galvanizing units, precision coating control systems and online surface inspection equipment, featuring high production efficiency and stable, controllable quality.
- Precision Post-processing & Finishing: Before delivery, all galvanized steel products undergo tension leveling, surface treatment, flexible fixed-length cutting and standardized packaging to ensure every batch meets customers’ specification standards.
- Custom Processing Center: In addition to raw metal materials, our factory is equipped with professional facilities such as large-format laser cutting machines, CNC punching machines and bending centers. Also, We provide processing services such as bending, slitting, forming, stamping and punching and so on.

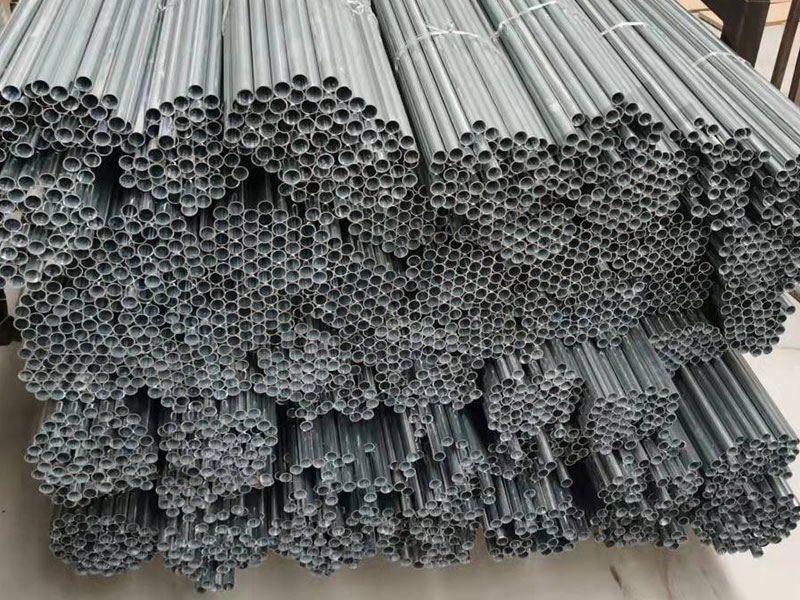

Package
Most exported steel pipes adopt standard export packaging. We can also provide various packaging options according to customer requirements, such as plastic film, moisture-proof paper, galvanized iron sheet, corner protectors, customized marking and other personalized styles.
Certifications
Wanzhi Group is a professional steel manufacturer in China certified with ISO 14001:2015, ISO 9001:2015 and ISO 45001:2018. All products comply with international standards including ASTM, EN and JIS, etc.
Global Cases
Wanzhi Steel – Agricultural Greenhouse Project in Turkmenistan
550 tons PPGI Steel Coil to Azerbaijan
100 tons of Galvanized Coils to Saudi Arabia
144 ton Steel Wire to Spanish
Project of PPGI Roofing en Libya
100 tons of GL and PPGL in Solomon Islands
Customer Feedback
With stable product quality, professional customization services and reliable on-time delivery, we have received positive feedback from customers worldwide. Feel free to contact Wanzhi to request samples, technical specifications or a quotation for customized solutions.

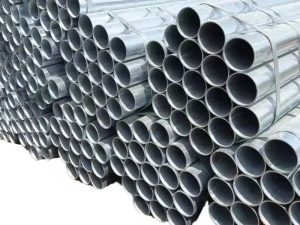

SCH 80 galvanized steel pipe features sufficient wall thickness, high strength and excellent corrosion resistance, with universal applicability for various engineering scenarios. If you are interested in other galvanized steel pipes, galvanized sheets, galvanized coils, galvalume steel sheets and coils, as well as color-coated steel coils, please feel free to contact us at any time!
