AZ50 galvalume steel is produced using a hot-dip coating process to coat steel with a 55% aluminum-zinc alloy. It offers excellent corrosion resistance, heat resistance, strength, and formability. It is widely used in roofing, wall cladding, home appliances, and industrial buildings. Wanzhi Group supplies AZ50 galvalume steel coils, sheets, strips, and roofing products with customized grades, thicknesses, widths, and sizes.
- Thickness: 0.12-3.0mm
- Width: 600mm-1,250 mm
- Standard: ASTM, EN, JIS, GB
What Does AZ50 Galvalume Steel Mean?
AZ50 Galvalume Steel refers to steel with an aluminum-zinc alloy coating. AZ50 indicates a total coating weight of 0.50 oz/ft², equivalent to approximately 150 g/m² on both sides of the sheet. The coating typically contains about 55% aluminum, 43.5% zinc, and 1.5% silicon. A higher AZ designation generally indicates a higher coating weight, while the Al-Zn coating provides excellent corrosion and heat resistance. Wanzhi Group supplies galvalume steel with AZ30–AZ150 g/m² coating weights for different applications.
Specification
| Product Name | AZ50 Galvalume Steel (Al-Zn coated steel) |
|---|---|
| Standard | ASTM, EN, GB, JIS, etc. |
| Coating Composition | 55% Al, 43.5% Zn, 1.5% Si |
| Coating Weight | AZ50, 0.50 oz/ft² ≈ 150 g/m² total both sides |
| Product Type | Coil/sheet/strip |
| Thickness | 0.12–3.00 mm, customizable |
| Width | 600–1,250 mm |
| Length | Can be customized |
| Steel Grades | DX51D+AZ, DX52D+AZ, DX53D+AZ, S220GD+AZ, S350GD+AZ, S550GD+AZ, etc. |
| Coil Weight | 3–8 tons, customizable according to order requirements |
| Surface Treatment | Oiling, passivation, anti-fingerprint treatment, lamination, untreated, etc. |
| Certificates | ISO 9001, SGS, BV, CE etc. |
| MOQ | 10 tons |
| Package | Standard export packaging, or as per your requirements |
AZ50 Galvalume Steel Products for Sale
- AZ50 Galvalume Steel Coil: Available in various thicknesses and widths, with customized specifications to meet different application requirements.
- AZ50 Galvalume Steel Strip: Produced by slitting galvalume steel coils into narrow strips according to required widths.
- AZ50 Galvalume Steel Flat Sheet: Cut from galvalume steel coils to specified lengths for flat sheet applications.
- AZ50 Galvalume Steel Corrugated Sheet: Formed from galvalume steel coils or sheets through roll forming for roofing and wall applications.
Surface Treatment Options
- Passivation: A chemical conversion film is formed on the coating surface to improve corrosion resistance and reduce surface oxidation during storage and handling.
- Oiling: A thin oil film is applied to reduce oxidation and friction-related surface damage during storage and transportation.
- Phosphating: A phosphate conversion coating is formed to improve paint adhesion and provide additional corrosion protection, particularly for subsequent painting.
- Untreated: The coating remains in its original condition for applications requiring subsequent processing or specific surface treatments.
- Anti-fingerprint treatment: A protective coating is applied to reduce fingerprints and improve surface cleanliness during handling.
AZ50 Galvalume Steel Manufacturing Process
- Steel Coil Preparation: Select the steel substrate and prepare the coil for processing.
- Cleaning & Surface Preparation: Remove oil, dirt, and surface contaminants to ensure proper coating adhesion.
- Hot-Dip Al-Zn Coating: Pass the steel strip through a molten aluminum-zinc alloy bath to form the galvalume coating.
- Coating Control & Cooling: Control the coating weight and surface quality, then cool the coated strip.
- Surface Treatment: Apply chemical treatment or passivation when required to improve surface protection and storage performance.
- Inspection & Quality Control: Check coating weight, dimensions, surface quality, and mechanical properties.
- Cutting, Slitting & Packaging: Cut, slit, or recoil the coated steel according to order requirements, then package the finished coils, sheets, or strips for shipment.
Advantages of AZ50 Aluzinc Steel
- Corrosion Resistance: The 55% aluminum-zinc coating provides effective protection against corrosion and oxidation, helping protect the steel substrate.
- Heat Resistance: The Aluzinc coating offers good resistance to elevated temperatures and surface oxidation.
- Formability: Depending on the steel grade, AZ50 aluzinc steel is suitable for bending, roll forming, stamping, and other common processing operations.
- Strong Coating Adhesion: The aluminum-zinc coating provides good adhesion during forming and processing when properly manufactured and handled.
- Long Service Life: The coating provides durable protection for roofing, wall cladding, and other outdoor applications.
- Surface Appearance: The smooth metallic surface offers a clean, uniform appearance with good reflectivity.
- Cost-Effective: AZ50 provides a good balance of corrosion resistance, durability, processing performance, and material cost.

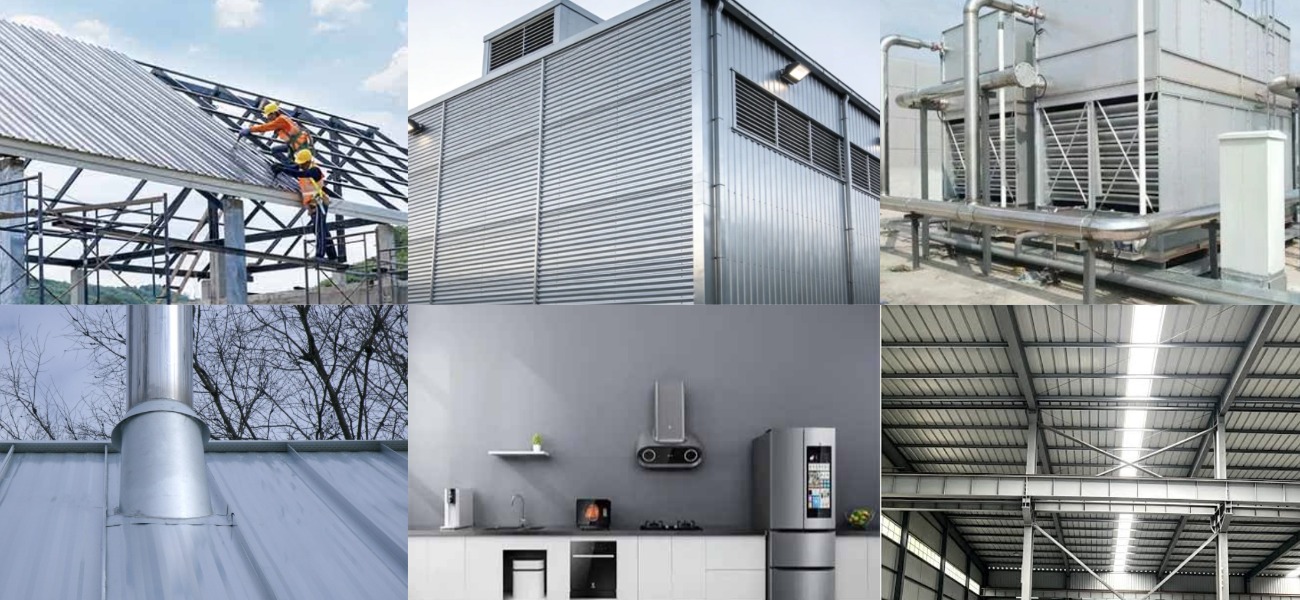

AZ50 GL Steel Applications
- Roofing: Residential, commercial, and industrial roofing sheets.
- Wall Cladding: Exterior wall panels and building cladding.
- Building Components: Building panels, partitions, and other fabricated components.
- Home Appliances: Appliance panels, housings, and internal components.
- Agricultural Buildings: Sheds, barns, and other agricultural structures.
- Industrial Applications: Equipment enclosures, panels, and general fabricated components.
- HVAC Systems: Ducts, air-conditioning components, and ventilation systems.
AZ50 vs AZ55 Galvalume Steel
AZ50 and AZ55 galvalume steel both use a 55% aluminum-zinc coating. The main difference is the total coating weight, with AZ55 having a slightly higher coating mass, which may provide additional coating protection where a higher coating mass is specified.
| Item | AZ50 Galvalume Steel | AZ55 Galvalume Steel |
| Coating Designation | AZ50 | AZ55 |
| Total Coating Weight | 0.50 oz/ft² | 0.55 oz/ft² |
| Approx. Metric Coating Mass | 150 g/m² | 165 g/m² |
| Al-Zn Coating | 55% Al-Zn | 55% Al-Zn |
| Corrosion Protection | Good | Slightly higher |
AZ50 Galvalume Steel Prices
AZ50 galvalume steel prices vary depending on the substrate grade, thickness, width, coating weight, surface treatment, order quantity, and other specifications. Prices may range from USD 600 to 1,000 per ton, but actual prices are subject to current market conditions and order specifications. Standard specifications are available, and customized orders typically have a lead time of 5–45 days. Contact Wanzhi for the latest quotation based on your requirements.
AZ50 Galvalume Steel Manufacturer and Factory in China
Wanzhi Group is a galvalume steel manufacturer in China, with its factory located in Binzhou, Shandong Province. Wanzhi Steel operates production lines for galvanized steel, galvalume steel, prepainted steel, and zinc-aluminum-magnesium alloy steel, with a total annual production capacity of up to 600,000 tons. The factory is certified to ISO 14001:2015, ISO 9001:2015, and ISO 45001:2018. Its steel coils, sheets, strips, and metal roofing products are exported to 120+ countries and regions. With extensive manufacturing and export experience, Wanzhi provides customized products and services based on local standards and project requirements. SGS, BV, and other third-party inspections are also available.
Production Capabilities
Wanzhi factory is equipped with dedicated production lines, as well as sample and quality inspection rooms. From raw material sourcing and production to quality inspection and packaging, the factory follows a strict quality management system throughout the process. In addition, value-added processing services such as slitting, bending, stamping, and forming are available.
Services
- One-stop Services: We provide one-stop services covering galvalume steel material sourcing, manufacturing, surface pretreatment, and customized processing, helping customers control costs while maintaining product quality.
- Customization Support: Wanzhi Group offers customized solutions for dimensions, coating types, surface treatments, steel grades, and export packaging. Available surface treatments include lamination, passivation, phosphating, anti-fingerprint treatment, and coating, depending on product requirements. 24-hour after-sales support is also available.
Packaging and Shipment
Wanzhi provides standard export packaging, including plastic film, anti-rust film, galvanized steel sheets, steel straps, corner protectors, moisture-proof paper, and wooden pallets. These packaging materials help protect the products from moisture, corrosion, and damage during transportation and storage. Customized packaging and shipping requirements are also available, including coil weight, marking, and other specifications, according to customer requirements.
Global Cases
Wanzhi Group has extensive experience supplying steel products for construction, industrial, and other applications worldwide. Our products include GI, GL, PPGI, PPGL steel, and other coated steel products. With competitive pricing, a wide product range, one-stop services, and customized solutions, Wanzhi supports customers with different project and market requirements.
Wanzhi Steel – Agricultural Greenhouse Project in Turkmenistan
550 tons PPGI Steel Coil to Azerbaijan
100 tons of Galvanized Coils to Saudi Arabia
144 ton Steel Wire to Spanish
Project of PPGI Roofing en Libya
100 tons of GL and PPGL in Solomon Islands
Customer Feedback
Customers from metal processing, steel fabrication, construction, and appliance industries value Wanzhi Group’s galvalume steel. They appreciate its stable quality, consistent coating performance, and reliable supply. Customers also recognize our competitive pricing, product customization, and responsive service.
Wanzhi Group supplies AZ50 galvalume steel coils, sheets, strips, and roofing products with customized specifications. Contact us today for samples, technical documents, and a competitive quotation tailored to your requirements.
