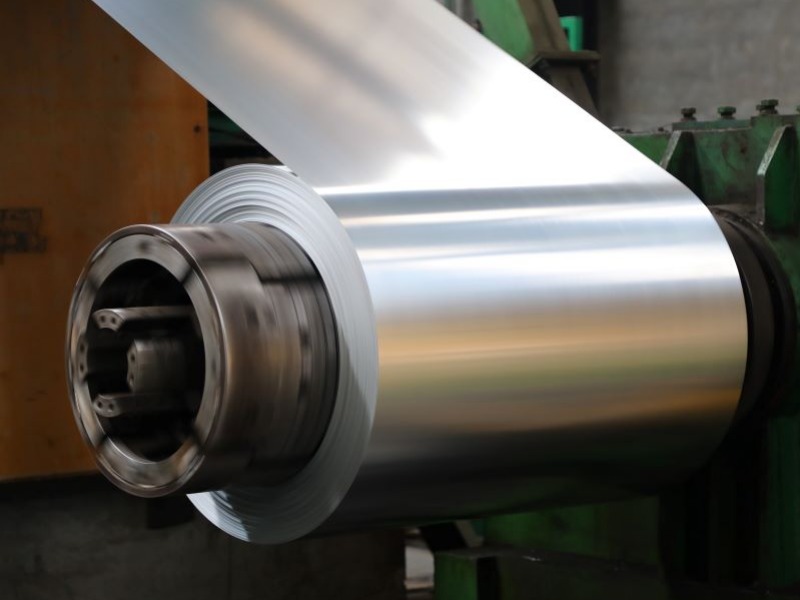

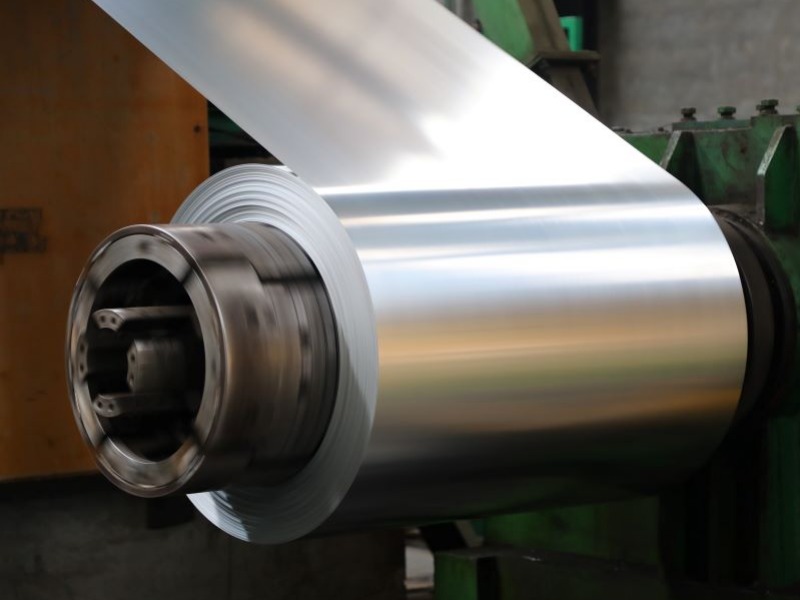

Hot dip galvanized steel coils are produced using cold-rolled or hot-rolled steel coils as substrates. The base material is immersed in molten zinc to form a metallurgically bonded zinc coating, which features strong adhesion, outstanding corrosion resistance and high cost performance. They are widely applied in the construction, automotive and home appliance manufacturing industries. Wanzhi Group operates 2 hot-dip galvanizing production lines. Customization is available for dimensional specifications, zinc coating weight (Z30-Z275g/m²) and surface spangle patterns.
Thickness: 0.12 mm – 6.0 mm
Width: 600 mm – 1,500 mm
Grades: DX51D/DX52D/DX53D/SGCC/SGCD/CS A/Q195/Q235, etc.
Specification
| Item | Hot Dip Galvanized Steel Coil |
|---|---|
| Substrate | Cold rolled steel/hot rolled steel |
| Thickness | 0.12 mm - 6.0 mm |
| Width | 600 mm - 1,500 mm |
| Zinc Coating Thickness | Z30 - Z275 g/m² |
| Grades | DX51D/DX52D/DX53D/SGCC/SGCD/CS A/Q195/Q235, etc. |
| Surface Structure | Zero spangles, small spangles, regular spangles, big spangles |
| Surface Treatment | Passivation, oiled / unoiled, Anti-fingerprint, Phosphating, etc. |
| Coil Weight | 3-8 tons, can be customized |
| Standard | ASTM, EN, GB, JIS, etc. |
| Certificates | SGS, ISO,BV,CE etc. |
| MOQ | 10 tons |
| Delivery Time | 5-45 days |
Production Process of Hot Dip Galvanized Steel Coil
- Raw material feeding: Use cold rolled / hot rolled low carbon steel coils as substrate.
- Uncoiling: Unwind steel strip for continuous production.
- Surface pre-treatment: Degreasing, pickling and rinsing to remove oil and rust.
- Continuous annealing: Heat steel strip under protective atmosphere to enhance zinc coating adhesion.
- Hot dip galvanizing: Immerse strip into molten zinc bath to form metallurgical Fe-Zn alloy coating.
- Air knife wiping: Adjust air pressure to control uniform zinc coating weight on both sides of the strip.
- Cooling: Combined control of zinc bath trace alloy composition and cooling speed to produce big, regular, minimized & zero spangle per customized demands.
- Post-treatment: Passivation, anti-fingerprint coating or oiling per customized requirements.
- Finishing: Skin pass, slitting, recoiling and full inspection before delivery.
Applications & Applications of HDG Steel Coil
Advantages
- Superior corrosion protection: Zinc coating forms a sacrificial barrier that resists rust and extends service life in harsh environments.
- Long-term durability: Uniform zinc layer provides consistent protection even after cutting, forming, or welding.
- Long service life: Stable zinc coating offers long-term outdoor protection without frequent maintenance.
- Strong coating adhesion: Metallurgical bonding avoids peeling or falling off during bending and stamping.
- Cost-effective: Lower maintenance and replacement costs compared with painted or bare steel over the product’s lifecycle.
- Excellent Formability & Machinability: Surface readily accepts primers, paints, and powder coats for additional aesthetic or functional layers.
Applications
- Construction: Roof panels, wall sheets, steel frames, guardrails, drainage components
- Home Appliances: AC housings, refrigerator casings, fridge back panels, water heater shells, cooking utensils
- Agriculture: Greenhouse frames, feed troughs, farm fences, silo parts, irrigation pipes
- Electrical Industry: Cable trays, utility poles, electrical cabinets, transformer brackets
- Automotive: Chassis components, body panels, exhaust assemblies, vehicle structural parts
- Hardware & Machinery: Storage racks, stamped metal fittings, pipe supports
- Traffic Facilities: Highway guardrails, bridge accessories, traffic signal poles, railway fittings
- Storage & Containers: Fuel tanks, chemical storage tanks, water tanks, container liners
Hot Dip Galvanized Products – Wanzhi Group
Wanzhi factory operates multiple continuous hot-dip galvanizing production lines equipped with high-precision tension control systems, intelligent furnace temperature regulation equipment and professional quality inspection instruments, ensuring stable quality of galvanized steel products and tight dimensional tolerances. We deliver one-stop services covering galvanized steel raw materials, manufacturing, surface pretreatment and custom fabrication.
Our hot dip galvanized product range includes:

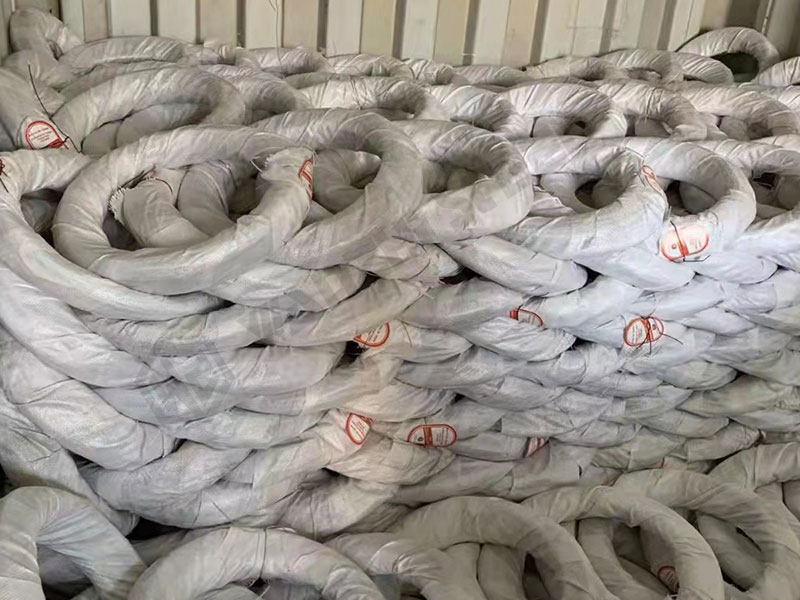

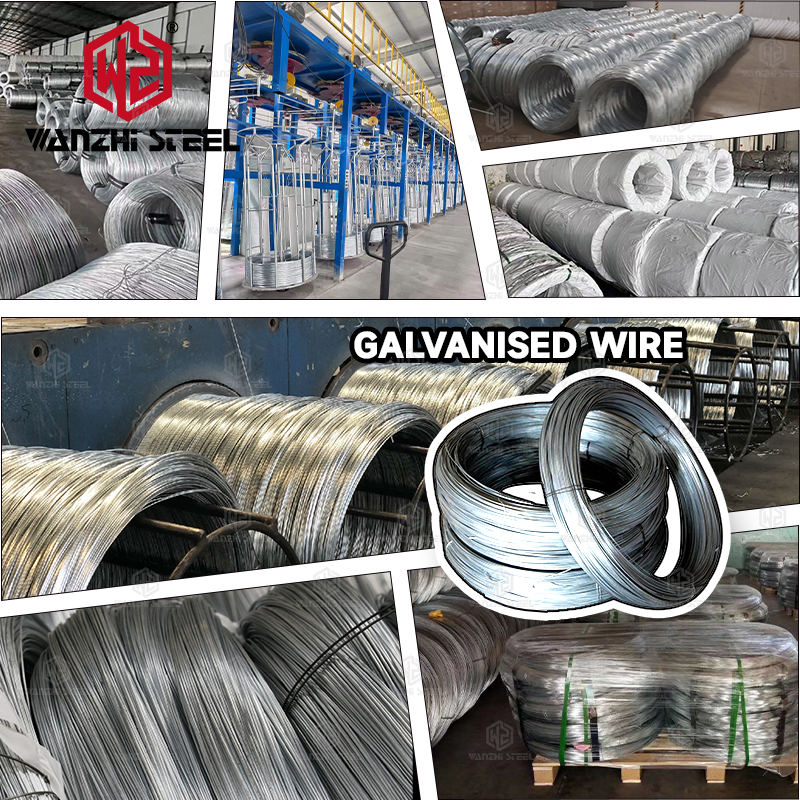

- Galvanized steel sheets/strips/pipes/wires
- Galvanized corrugated roofing sheets
- GI section steels and all types of galvanized structural components
Hot Dip Galvanized Steel Coil Prices
The price of hot-dip galvanized steel coils is affected by factors including substrate thickness, steel grade, zinc coating weight, surface finish and order volume. The price ranges from USD 600 to USD 800 per ton. Thicker steel substrates deliver superior structural strength, while heavier zinc coatings extend anti-corrosion service life. Standard-sized products from Wanzhi are in stock, and lead time for customized products is 5 to 45 days. Factory direct sales pricing is offered. Please leave a message with your required specifications and quantity, and we will provide you with the most competitive quotation and tailored solutions.
Hot Dip Galvanized Steel VS Electro-galvanized Steel
Wanzhi Group operates 2 hot dip galvanizing lines and 1 electrogalvanizing line to cover both materials. HDG steel boasts great anti-rust performance, long service life and cost merits for outdoor heavy projects, while EG steel has glossy smooth surfaces for indoor decorative products.
| Item | HDG Steel | EG Steel |
| Zinc Thickness | Thick & customizable | Thin & fixed |
| Corrosion Resistance | Excellent | Moderate |
| Surface Appearance | With spangles, semi-bright to matte finish | Smooth, uniform bright finish, no spangles |
| Cost | Lower | Higher |
| Service Life | Long-lasting | Short-term |
| Applications | Construction, infrastructure, agriculture, outdoor facilities, automotive chassis | Home appliances, electronic components, indoor hardware, decorative parts |
Hot Dip Galvanized Steel Supplier – Wanzhi Group
Wanzhi Group is a Chinese manufacturer and supplier of galvanized steel. We run production lines for galvanized steel, galvalume steel, prepainted steel and aluminum-magnesium coated alloy steel, and have obtained multiple certifications including ISO and SGS. Our annual production capacity reaches 600,000 tons. We deliver one-stop services covering raw material supply, production and finished product processing. Our product portfolio covers hot-rolled & cold-rolled steel, galvanized & galvalume steel, PPGI/PPGL steel coils and sheets, PPAL, ZAM, metal roofing sheets, stainless steel and more. In addition, we offer deep processing services, including slitting, welding, stamping, punching, bending, forming, coating and custom special-shaped fabrication. Please feel free to contact us, and our account managers will provide you with accurate quotations!
Wanzhi Steel Factory
Wanzhi Steel Factory is located in Boxing County, Binzhou City, Shandong Province, China, and operates multiple production lines, as well as sample rooms and quality inspection laboratories. We have established a rigorous full-process management system covering raw material procurement, production processing, quality inspection and finished product packaging, to guarantee stable and high-quality products for customers’ projects.
- Certificates: The factory holds ISO9001, ISO14001 and ISO45001 certifications. Our steel products fully comply with international standards including ASTM, GB, JIS and EN, and original Mill Test Certificates (MTC) are supported. Third-party inspections by SGS, BV, TUV and other institutions are acceptable.
- One-stop Service: Wanzhi team is committed to delivering full-cycle services ranging from material selection and technical consultation to production and supply. We customize optimal solutions tailored to each project’s climate conditions, building functions, design styles and budget requirements.
Customer Visits
Up to now, we have received clients from more than 40 countries and regions including Chile, Libya, Azerbaijan, Singapore, Indonesia, Turkey and Turkmenistan. You are warmly welcome to visit our factory to tour our galvanized steel production lines, full quality inspection systems and large warehousing & logistics bases, so you can directly witness our reliable product quality and stable delivery capacity. Please make an appointment with us in advance if you plan to visit our factory.
Quality Inspection
Our factory houses a professional testing laboratory that can measure zinc coating weight, dimensional tolerances and run mechanical performance tests for tensile strength, yield strength, elongation, hardness and bending, fully ensuring high quality of finished products.

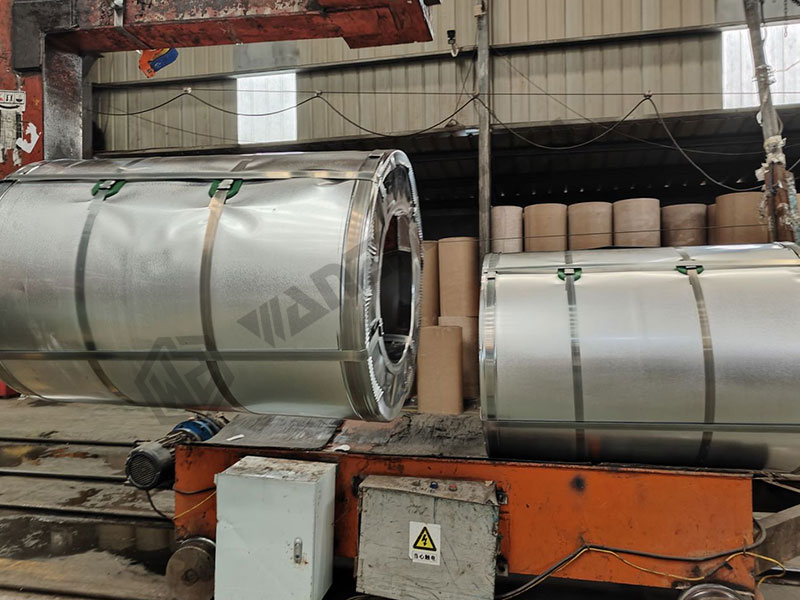

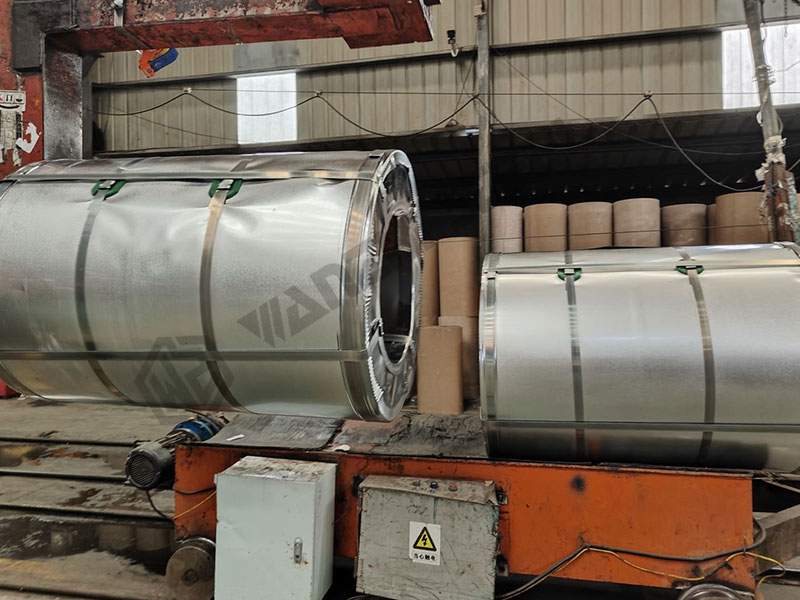

Package
We adopt standard export packaging consisting of plastic film, moisture-proof paper, wooden frames, galvanized steel sheets, edge protectors and wooden pallets to stop products from getting damp and rusty. Also, we offer custom export packaging as per your requirements.
Client Reviews
Check out real feedback from Wanzhi clients about our delivered products! Our professional team is available 24/7 to resolve all your pre-sales and after-sales inquiries.
Hot-dip galvanized steel is an indispensable material for construction, power facilities, transportation, home appliance manufacturing, industrial equipment and other fields. Hot-dip galvanized steel products from Wanzhi Group have been exported to more than 120 countries and regions worldwide. If you are seeking steel that complies with local regulatory standards, feel free to contact us anytime. We will supply you with suitable products and supporting complete solutions!
