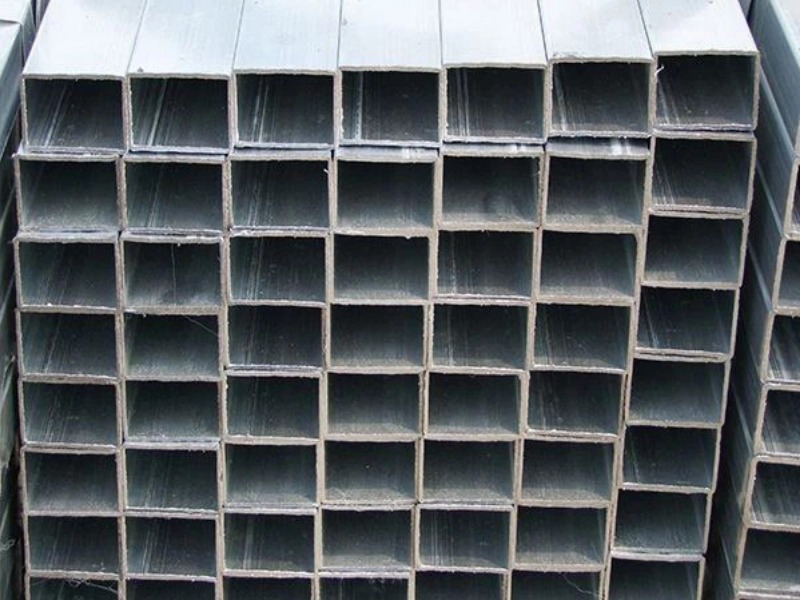

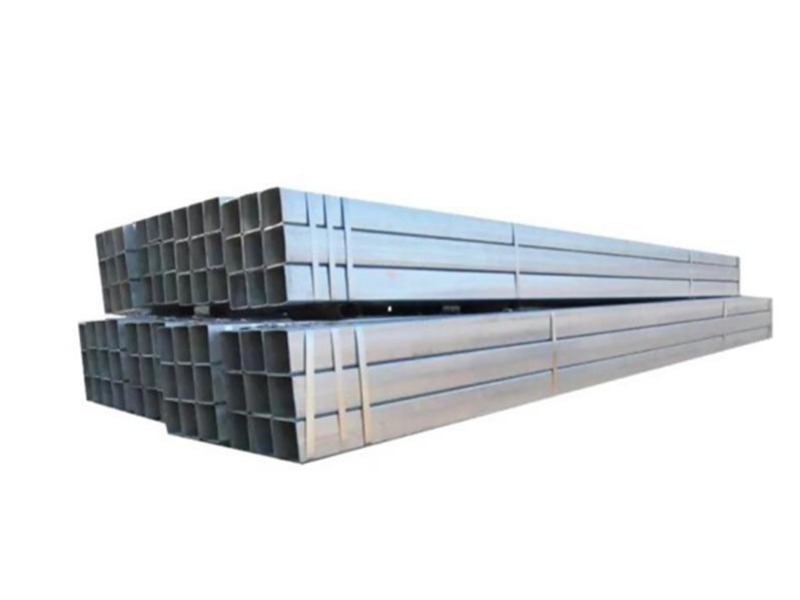

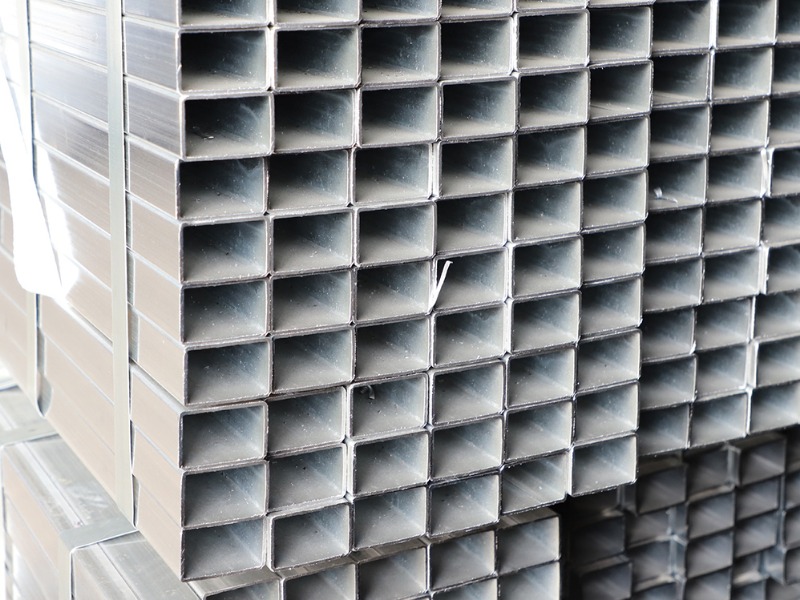

Galvanized rectangular tubes adopt rectangular hollow sections with galvanized anti-corrosion coating. They feature stable load-bearing capacity and outstanding rust resistance, maintaining good performance for years under outdoor exposure. Wanzhi Group provides rectangular tubes in all sizes and various standards, widely used in bridges, highways, agricultural machinery, steel structures and other projects. We offer deep processing services including cutting, punching, stamping, forming and special shape fabrication. Welcome to contact us for a free quote!
Specification
| Product Name | Galvanized Rectangular Tube |
|---|---|
| Material | Q195, Q215, Q235, Q345, SPHC, SS330, S355JR, ASTM A53 Grade A/B, etc. |
| Surface Treatment | Black, pickled, oiled, etc |
| Zinc Coating Weight | Z30 - Z275g/㎡ |
| Wall Thickness | 0.6mm - 15mm |
| Size | 20mmx30mm - 60mmx150mm |
| Length | 3m - 12m, custom cutting available |
| Standards | GB, JIS, ASTM, EN, etc |
| Processing Service | Cutting, punching, stamping, welding, bending, special shape fabrication, etc. |
| Delivery Time | 5 - 45 days |
| Package | Standard export packaging or as per your requirements |
Galvanizing Process of GI Rectangular Tube
Wanzhi Group is equipped with independent hot-dip galvanizing and electro galvanizing production lines to manufacture rectangular tubes for different indoor and outdoor usage scenarios.
- Hot-Dip Galvanizing: The procedure first treats rectangular tubes via degreasing and acid pickling to eliminate oil, rust and oxide scale. Flux coating covers tube surfaces to block re-oxidation. Full immersion in high-temperature molten zinc builds a thick, tightly adherent zinc layer. Subsequent steps include water cooling, passivation and rigorous quality inspection. This process delivers outstanding anti-corrosion performance for outdoor projects.
- Electro Galvanizing: Tubes are degreased and polished for a smooth base, then activated with acid to remove micro oxides. A thin, bright zinc film is deposited on the surface by electrolysis. After sealing passivation, surface appearance and coating uniformity are checked. It features a glossy finish, mostly for indoor light-duty applications.
Sizes of Galvanized Rectangular Tube – Mainstream Hot-Dip Galvanized Specifications
| Section Size (Short × Long, mm) | Wall Thickness(mm) | Theoretical Weight Range (kg/m) |
| 20 × 30 | 1.0 – 5.0 | 1.11 – 3.14 |
| 20 × 40 | 1.0 – 5.0 | 1.34 – 1.76 |
| 30 × 40 | 1.2 – 5.0 | 1.58 – 4.71 |
| 40 × 50 | 1.5 – 5.0 | 2.05 – 6.28 |
| 50 × 60 | 1.5 – 5.0 | 2.52 – 7.85 |
| 60 × 80 | 1.5 – 8.0 | 3.23 – 10.21 |
| 60 × 100 | 1.5 – 8.0 | 3.70 – 11.78 |
| 60 × 120 | 1.5 – 8.0 | 4.17 – 13.35 |
| 60 × 150 | 1.5 – 10.0 | 4.87 – 15.70 |

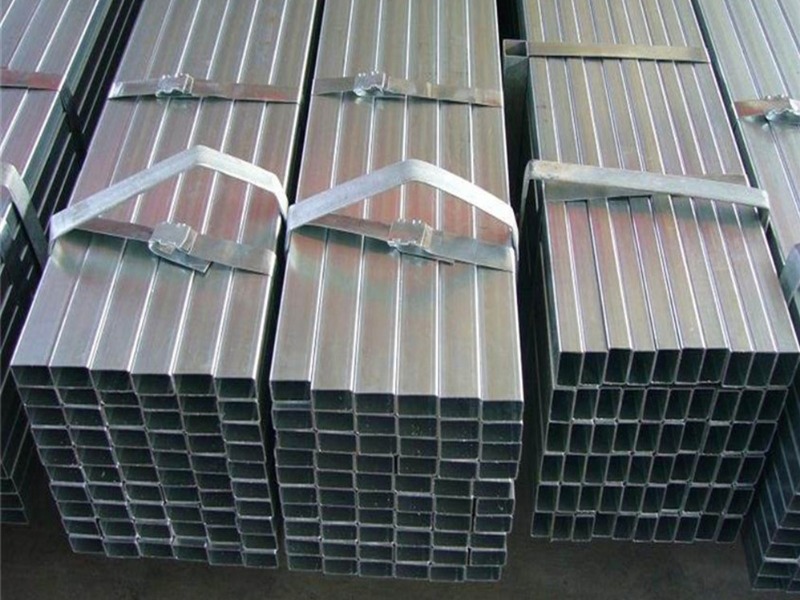

Galvanized Rectangular Tube Prices

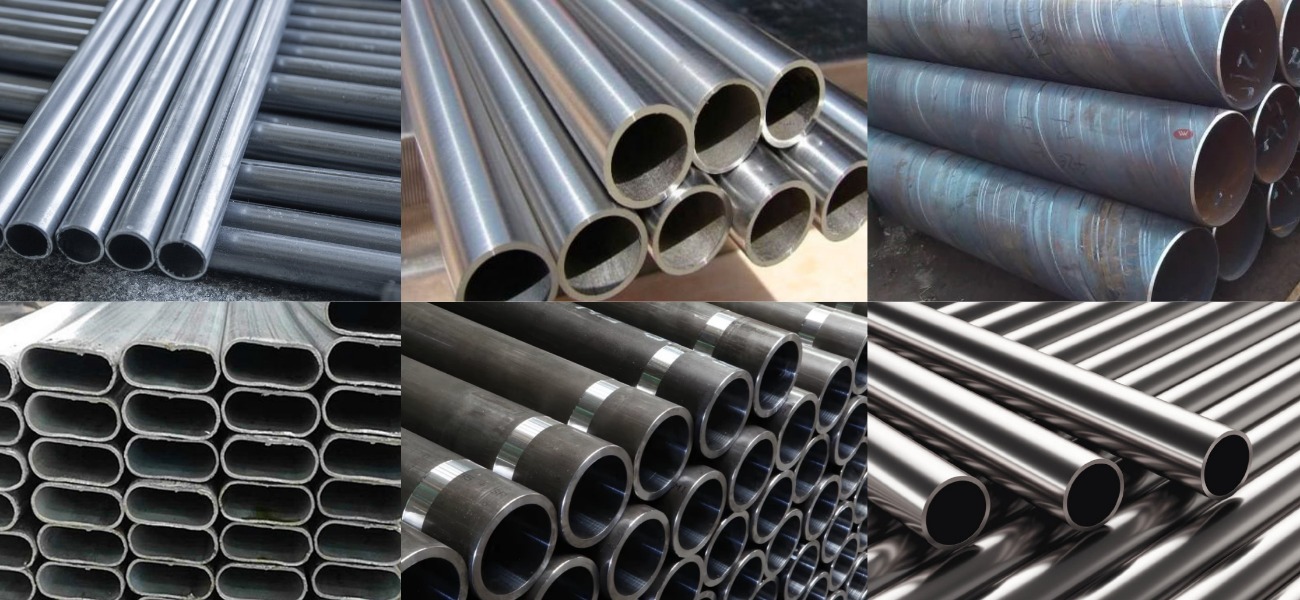

Galvanized rectangular tube prices are determined by raw material costs, dimensions, wall thickness, steel grade and zinc coating weight, along with other factors. The price ranges from USD 500 to USD 800 per ton. Apart from galvanized rectangular tubes, Wanzhi Group supplies a full range of tubular products: galvanized round pipes, seamless pipes, spiral steel pipes, oval tubes, carbon steel pipes, stainless steel tubes, and other pipes with diverse materials and surface finishes. We offer a lead time of 5–45 days with an MOQ of 10 tons. Kindly leave your required quantity, and we will provide competitive quotations and all-round professional support.
Benefits and Applications of Galvanized Rectangular Tube
Benefits
- Excellent corrosion resistance: The hot-dip zinc coating fully adheres to the tube surface, defending against rust, dampness and chemical corrosion and significantly prolonging the service life of outdoor facilities.
- High structural stability: The rectangular hollow section delivers even stress distribution, high strength and stiffness. It weighs less than solid steel bars yet retains outstanding load-bearing capacity.
- Low maintenance cost: The zinc protective layer eliminates frequent repainting and anti-rust treatments, reducing long-term labor and material maintenance costs.
- Wide environmental adaptability: It performs steadily amid drastic temperature changes, UV exposure and high humidity, ideal for indoor and outdoor applications across all climate zones.
- Smooth surface & easy processing: Its uniform zinc coating allows easy cutting, punching, bending, welding and other deep processing to meet customized construction requirements.
- Cost-effective: It boasts a lower unit price and steady supply compared with stainless steel, striking a perfect balance between durability and economy for large-scale engineering projects.
Usages
- Agricultural facilities: Greenhouse frames, farm support brackets, livestock pens, agricultural machinery frames, anti-corrosion for humid farm environments.
- Construction & steel structure: Factory workshop frames, warehouse supports, curtain wall keels, stair handrails, building load-bearing frames.
- Traffic & highway engineering: Highway guardrails, road sign brackets, bridge auxiliary components, traffic isolation fences.
- Municipal engineering: Municipal support frames, pipeline supports, street light poles, outdoor landscape frames.
- Mechanical & equipment manufacturing: Machine base frames, equipment brackets, transmission supporting frames.
- Fence & decorative engineering: Garden fences, villa boundary railings, outdoor decorative frames, indoor partition frames.
- Logistics & storage: Warehouse storage racks, cargo support frames, logistics transport brackets.
Galvanized Rectangular Tube VS Stainless Steel Tube
Wanzhi Steel provides both galvanized rectangular tubes and stainless steel tubes to match different project budget and environment demands.
| Item | Galvanized Rectangular Tube | Stainless Steel Tube |
| Corrosion Resistance | Good | Excellent |
| Service Life | Long | Ultra-long |
| Weldability | Easy to weld | Needs professional welding |
| Appearance | Matte zinc coating | Bright glossy surface |
| Mechanical Strength | High | Higher |
| Cost | Low, cost-effective | Much higher price |
| Applications | Greenhouses, guardrails, ordinary steel structures | Chemical, food, coastal & high-end projects |
Galvanized Steel Tubes Manufacturer and Supplier – Wanzhi Group
Wanzhi Group is a Chinese manufacturer and supplier of galvanized steel, operates three dedicated galvanizing production lines implementing standardized hot-dip galvanizing and electro-galvanizing processes. All galvanized pipes go through a complete set of standardized procedures, including strict raw material inspection, degreasing, multi-stage rinsing, pickling & rust removal, flux treatment, galvanizing, cooling and surface passivation. Rigorous multi-process quality control guarantees the products’ long-term and stable anti-corrosion performance. We supply both raw materials for galvanized pipes and finished galvanized steel pipes, along with customized services to meet application demands in construction, industry, agriculture, transportation and other sectors.
Wanzhi Steel Factory

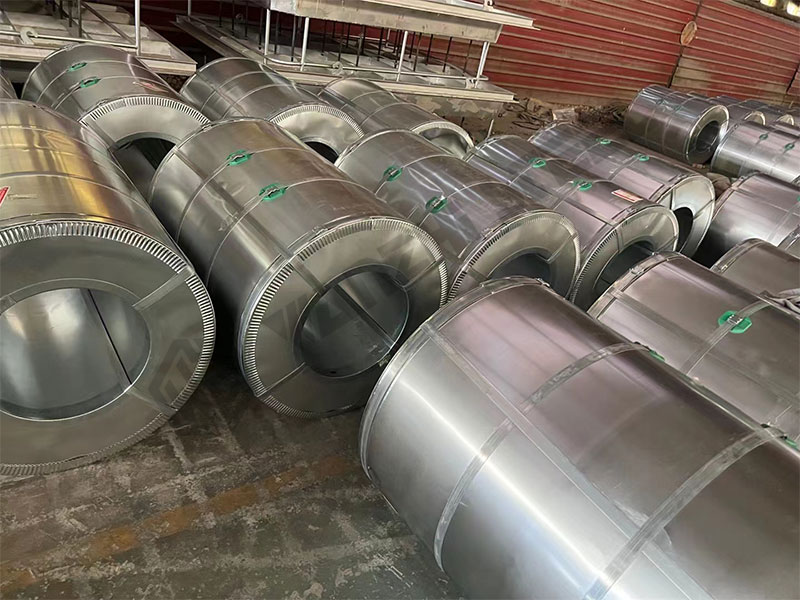

Wanzhi Factory is located in Boxing County, Binzhou City, Shandong Province, China. It is equipped with production lines for galvanized steel, galvalume steel, prepainted steel and zinc-aluminum-magnesium alloy steel, as well as sample rooms and quality inspection rooms. The factory has established a strict full-process management system covering raw material procurement, production processing, quality inspection and finished product packaging, with an annual production capacity of 600,000 tons. We provide one-stop services ranging from raw materials and production to finished goods. Our product range includes carbon steel, hot rolled steel / cold rolled steel, GI, GL, PPGI, PPGL, PPAL, ZAM, corrugated roofing sheets and stainless steel.
- Deep Processing Services: Besides raw material production, we offer deep processing services including slitting, welding, cutting, stamping, punching, strip splitting, bending, forming, coating and special-shaped processing.
- One-stop Service: We provide full-process one-stop supporting services covering material selection, technical consultation, customized production and delivery, with 24-hour online support offered.
- Production Capacity: Each production line reaches a monthly output of 10,000 tons to guarantee stable and reliable supply. Standard-size products are in sufficient stock, while customized goods have a lead time of 5 to 45 days.
- Export Support: Our factory is close to Qingdao Port and Tianjin Port. We accept multiple trade terms such as FOB, CIF and EXW, and take charge of customs declaration, commodity inspection and shipping booking to ensure timely shipment.
Certificates
Our factory has obtained ISO9001, ISO14001 and ISO45001 management system certifications. All steel products fully comply with international standards including ASTM, GB, JIS and EN, and we can provide original Mill Test Certificates (MTC). Third-party inspections by SGS, BV, TUV and other authoritative institutions are acceptable. Please feel free to contact us if you need factory visits or product samples.
Quality Inspection
Our factory houses a professional testing laboratory. We can conduct tests on zinc coating thickness, dimensional tolerance, as well as mechanical property tests including tensile strength, yield strength, elongation, hardness and bending to fully guarantee the quality of finished products.
Packaging & Delivery

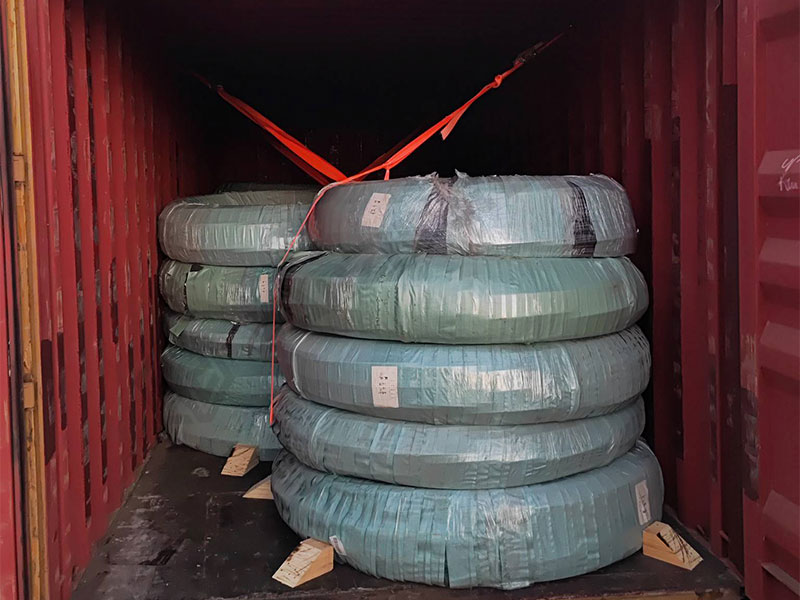

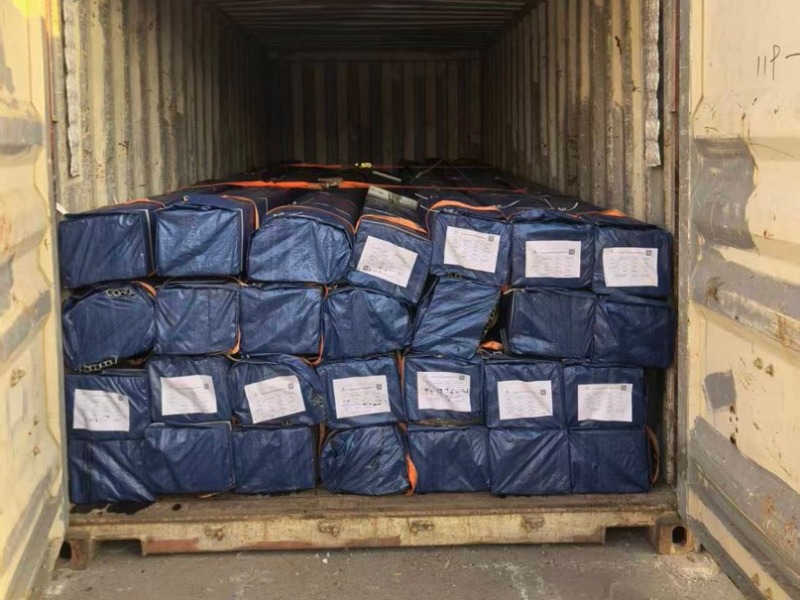

All steel products of Wanzhi Group adopt standard export packaging, including plastic film, anti-rust film, kraft paper, galvanized iron sheet, steel strap, edge protector and moisture-proof paper. The secure packaging prevents scratches during transit and protects goods against dampness and rust in sea transportation. We also provide custom packaging solutions according to clients’ requirements.
Customer Feedback
Wanzhi Group’s GI, GL, PPGI, PPGL, metal roofing sheets and other products have been exported to over 120 countries and regions across the globe. Our reliable product quality, efficient delivery and professional after-sales service have earned consistent recognition and positive feedback from customers worldwide.
Wanzhi Group supplies premium metal materials for global construction, industrial, transportation, energy and home appliance industries. We offer galvanized pipes, galvanized/aluzinc coils and sheets, prepainted steel sheets/coils, roofing sheets and other products. For inquiries about specs, sizes, prices or custom solutions, leave your message and our sales manager will contact you promptly with accurate quotations.
