DX51D Z275 galvanized steel is commonly used in building structures or industrial equipment that require high corrosion resistance, it is a popular material grade for cold forming in EN 10346 standard, Wanzhi Group is a steel supplier from China, we can produce ISO-certified galvanized steel material that serves the international standards such as EN, JIS, ASTM, GB, etc.
DX51D
DX51D is a galvanized steel grade designed for cold forming according to the European standard EN 10346. The D, X, 51, and D designations represent hot-rolled steel for various forming processes, strength grades, and general-purpose applications.
DX51D steel is a hot-rolled steel coil for engineering applications with a yield strength of about 235 MPa, which can be tensile or punched.
Other hot rolled grades:
- DX52D
- DX53D
- DX54D
Z275
Z275 refers to the weight of the galvanized layer, i.e. 275 grams of zinc per square meter of double-sided galvanization. Z275 galvanized steel is a highly galvanized steel that can be used in highly corrosive environments such as seacoasts and industrial areas.
Other zinc thicknesses:
- Z80
- Z100
- Z140
- Z150
- Z180
- Z275
DX51D+Z275 Performance
| Performance Indicators | Parameter Requirements | Test Methods |
|---|---|---|
| Tensile Strength (Rm) | 270-350 MPa | ISO 6892-1 |
| Yield Strength (Rp0.2) | ≥140 MPa | ISO 6892-1 |
| Elongation (A80) | ≥22% | ISO 6892-1 (Scale Distance 80 mm) |
| Hardness (HV) | 70-130 HV | ISO 6507 |
| Bending Performance | Crack-free 180° cold bending | ISO 7438 |
| Coating adhesion | No flaking or peeling (by bending or impact test) | ISO 1460 |
DX51D + Z275 Chemical Composition
| Element | Content-Range (%) | Effects and Influences |
|---|---|---|
| Carbon (C) | ≤0.12 | Low carbon content ensures excellent cold formability and weldability. |
| Manganese (Mn) | ≤0.60 | Improves strength and toughness, excessive amounts may affect moldability. |
| Phosphorus (P) | ≤0.10 | Impurity elements, need to be controlled to prevent cold brittleness. |
| Sulfur (S) | ≤0.045 | Impurity elements, and excess will reduce the ductility and weldability. |
| Silicon (Si) | ≤0.50 | Improves strength, excessive amounts may lead to surface defects. |
| Aluminum (Al) | ≥0.015 | Deoxidizer, refine the grain, improve toughness. |
| Other elements | Total ≤0.70 | Including chromium (Cr), nickel (Ni), copper (Cu) and other residual elements. |
dx51d z275 Benefit and Application
DX51D+Z275 galvanized steel is highly coated steel, it has better corrosion resistance, base material ductility, low yield strength + high elongation, and can meet the needs of cold bending, stamping, welding, shearing, etc. in different applications, it is a high-quality coated metal material for construction and industrial production.
| Application Scenarios | Advantages |
|---|---|
| Building Roofing | Wind Pressure Resistance, Corrosion Resistance |
| Automotive Structural Components | Formability, Weldability |
| Home Appliance Panels | Surface Quality, Molding Accuracy |
dx51d z275 GI Steel for Sale
Wanzhi Group is a dx51d z275 hot dip galvanized steel supplier from China, our factory Shandong Wanzhi Steel is ISO9001, ISO14001 certified, not only produces galvanized steel material in accordance with EN10346 but also provides galvanized steel material in accordance with ASTM A653, JIS G3302, and other international standards.

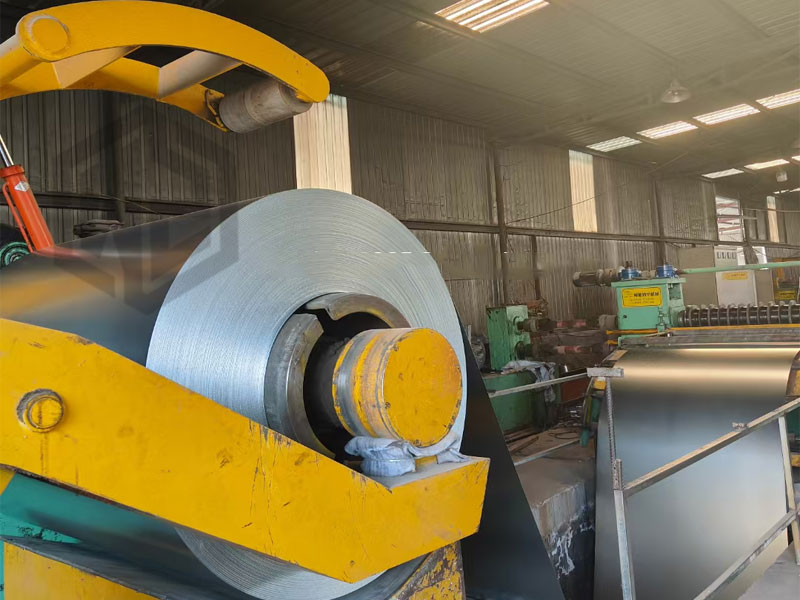

Factory and Production Line
Our galvanized steel material production line is located in Binzhou City, Shandong Province, China. The galvanizing factory has 2 galvanized steel production lines and 1 alloy-coated steel (GL, ZAM) production line, with an average production capacity of 10,000 tons per month, and we can provide free galvanized steel samples with different surface effects (regular spangle, large spangle, zero spangles, etc.). If you are planning to visit our galvanizing plant in China, please feel free to contact us.
Customer Visits and Feedback
So far, our factory has received visits from customers from more than 40 countries and regions, likewise, our coated steel (PPGI PPGL Sheet, ALUM Sheet, GI Sheet, MS Sheet, or any other steel items like angle, tube, pipe, etc.) are also available for sale in China. C CHANNEL, I BEAM, H BEAM, WIRE MESH, etc.) are also exported all over the world, and have received feedback from customers in different fields.
Wanzhi Steel – Agricultural Greenhouse Project in Turkmenistan
550 tons PPGI Steel Coil to Azerbaijan
100 tons of Galvanized Coils to Saudi Arabia
144 ton Steel Wire to Spanish
Project of PPGI Roofing en Libya
100 tons of GL and PPGL in Solomon Islands
GI Steel Specifications
| Material | SGCC,S350GD+Z,S550GD+Z,DX51D,DX52D,DX53D, etc |
|---|---|
| Thickness | 0.12mm-6mm |
| Width | The conventional width below 0.5mm is 1000mm, 1200mm, and above is 1000, 1250mm |
| coil weight | 8-10 tons /customized |
| Tolerance | "+/-0.02 mm |
| Substrate Type | Hot rolled coil, Cold rolled coil |
| Surface structure | Zero spangles, Small spangles, Regular spangles, Big spangles |
| Zinc layer thickness | 30g/㎡-275g/㎡ (Z275/G90) |
| Standard | AISI, ASTM, BS, GB, JIS |
| Implementation standards | GB/T2518 GB/T25052, EN10346, JIS G3302, ASTMA653 |
| Certificates | SGS, ISO 9001,CE |
dx51d z275 Galvanized Products
- Galvanized Steel Sheet
- Galvanized Steel Coil
- Galvanized Corrugated Sheet
- Galvanized steel strips
- Galvanized Sandwich Panel
- Galvanized Pipe
- Galvanized Wire
DX51D DX52D S350GD + z275
| Brand No. | Coating (g/m²) | Formability | Applicable Scenarios |
|---|---|---|---|
| DX51D+Z275 | 275 | Excellent (no cracks in cold bending) | Highly corrosive environments, complex molded parts |
| DX52D+Z200 | 200 | Good | Ordinary industrial equipment, dry environments |
| S350GD+Z275 | 275 | Medium (preheating is required) | Load-bearing structures (tensile strength ≥350MPa) |
Z275 vs. G90
| Indicator | Z275 | G90 |
|---|---|---|
| Standard system | European standard EN 10346 | US standard ASTM A653 |
| Representation of the coating | Total zinc weight 275 g/m² on both sides | Zinc weight 0.90 oz/ft² on one side |
| Conversion | 275 g/m² on both sides ≈ 137.5 g/m² on one side | 0.90 oz/ft² on one side ≈ and 275 g/m² on both sides |
| Structure of the coating | Pure zinc or zinc-iron alloy (optional) | Pure zinc plating |
| Corrosion class | Suitable for C4 high corrosion environments (ISO 12944) | Similar to Z275 |
Galvanized Steel Project Case
Besides DX51D Z275 galvanized steel, we also provide DX51D Z100/Z140/Z180, G30/G90, SGCC, SECC, and other galvanized materials in different material grades to our customers in more than 100 countries and regions around the world.
Wanzhi Steel – Agricultural Greenhouse Project in Turkmenistan
550 tons PPGI Steel Coil to Azerbaijan
100 tons of Galvanized Coils to Saudi Arabia
144 ton Steel Wire to Spanish
Project of PPGI Roofing en Libya
100 tons of GL and PPGL in Solomon Islands
dx51d z275 HDG Steel Supplier
Wanzhi Group provides premium galvanized steel (hot-dip galvanized steel and electro-galvanized steel) with customized solutions for further processing and surface treatment according to different application requirements.
Further Processing
- Bending
- Punching
- Punching
- Slitting
- Forming
Surface Treatment
- Passivation
- Phosphating
- Oil Coating
- Anti-fingerprint Coating
- Organic Paint Coating
Whether it’s for indoor, outdoor, or coastal/chemical projects, Wanzhi Group can provide you with cost-effective galvanized steel solutions for your building and industrial projects, please leave us a message with your requirements and we will get back to you within 24 hours.
