1250mm PPGI coil is made by applying a protective and decorative color coating to a galvanized steel substrate. It offers good weather resistance, formability, and durability for roofing, wall cladding, construction, and industrial applications. Wanzhi Group operates professional color coating lines, supplying PPGI coils in widths from 600mm to 1500mm. Customized specifications, zinc coating weights, colors, and paint types are available to meet different project requirement.
- Thickness: 0.12 mm-1.20 mm
- Zinc Coating Weight: Z30–Z275 g/m² (both sides)
- Paint Type: PE, SMP, HDP, PVDF
- Steel Grade: DX51D+Z, DX52D+Z, DX53D+Z, SPCC, SPCD, S250GD, S350GD, Q195, Q215, Q235, etc.
1250mm PPGI Coil Structure and Coating Layers
PPGI (Pre-Painted Galvanized Steel) coil is produced from cold-rolled steel through continuous hot-dip galvanizing and coil coating. Its typical structure consists of a steel substrate, zinc coating, chemical conversion layer, primer, and topcoat.
- Steel Substrate: Provides strength and formability.
- Zinc Coating: Protects the steel substrate from corrosion.
- Chemical Conversion Layer: Improves paint adhesion and corrosion protection.
- Primer: Enhances coating adhesion and provides additional corrosion protection.
- Topcoat: Provides color, weather resistance, UV resistance, and surface protection.
Specification
| Product Name | Prepainted Galvanized Steel Coil (PPGI) |
|---|---|
| Substrate | Cold-rolled steel |
| Width | 1250 mm |
| Thickness | 0.12 mm-1.20 mm |
| Steel Grade | DX51D+Z, DX52D+Z, DX53D+Z, SPCC, SPCD, S250GD, S350GD, Q195, Q215, Q235, etc. |
| Standards | EN, ASTM, JIS, GB, etc. |
| Zinc Coating Weight | Z30–Z275 g/m² (both sides) |
| Paint System | PE / SMP / HDP / PVDF |
| Paint Film Thickness | Top: 10–40 μm; Back: 5–20 μm |
| Color | RAL Colors or custom colors |
| Surface Finish | Glossy, Matte, Embossed, Wrinkle |
| Coil Inner Diameter | 508 mm / 610 mm |
| Coil Weight | 3–5 tons, customizable |
| Certificates | SGS, ISO, BV, CE, etc. |
| Package | Standard export packaging or as per customer requirements |
| Delivery Time | 5–45 days |
PPGI Paint Options and Service Life
PPGI coils are commonly available with four paint systems: PE, SMP, HDP, and PVDF. Each coating type offers different levels of weather resistance, UV resistance, color retention, durability, and typical service life, allowing the coating to be selected according to the application environment and performance requirements.
- PE (Polyester): Good flexibility, color retention, and cost-effectiveness. Typical service life: 5–10 years.
- SMP (Silicone-Modified Polyester): Better weather resistance, gloss retention, and durability than PE. Typical service life: 10–15 years.
- HDP (High-Durability Polyester): Enhanced weather resistance and color retention for outdoor applications. Typical service life: 15–20 years.
- PVDF (Fluorocarbon): Excellent UV resistance, weathering, and color retention for demanding environments. Typical service life: 20+ years.
Surface Finish and Colors
PPGI coils are available in various surface finishes, colors, and decorative patterns. Surface options include glossy, matte, wrinkle, and embossed finishes. Colors can be selected from the RAL color chart or matched to customer samples. Decorative patterns such as marble, brick, floral, striped, tile-like, grass, and sky designs are also available. Wanzhi Group provides customized finishes, colors, and printing options for different project requirements.
Benefits of 1250mm Prepainted Galvanized Steel Coil
- Corrosion Protection: The zinc coating and paint system provide effective protection against corrosion and environmental exposure.
- Weather Resistance: Color coatings offer good resistance to weathering, UV exposure, and color fading.
- Good Formability: The steel substrate can be processed by bending, forming, profiling, and other fabrication methods.
- Durable Surface: The coating system provides surface protection while maintaining an attractive appearance.
- Lightweight: PPGI coils provide a relatively lightweight material option for roofing, wall panels, and other building applications.
- Aesthetic Appearance: A wide range of RAL colors, surface finishes, and decorative patterns provides flexible appearance options for different projects.
Applications
- Roofing: Residential, commercial, and industrial roofing sheets and panels.
- Wall Cladding: Exterior wall panels, siding, and building facades.
- Construction: Doors, partitions, ceilings, and other building components.
- Industrial Buildings: Warehouses, workshops, factories, and equipment enclosures.
- Home Appliances: Appliance panels and selected components.
- Fabrication: Profiled sheets, panels, strips, and other formed products.
PPGI Coil Processing and Fabrication
Beyond supplying PPGI coils, Wanzhi Group provides further processing services, including:
- Slitting: Customized strip widths.
- Cutting-to-Length: Sheets cut to specified lengths.
- Leveling: Improves sheet flatness for further processing.
- Punching: Customized holes according to requirements.
- Profiling: Corrugated and customized profiles.
- Bending: Customized shapes and angles.
- Stamping: Formed components according to requirements.
Wanzhi PPGI Finished Products
Wanzhi Group supplies a range of PPGI finished products for construction, decorative, and industrial applications. Products include PPGI corrugated sheets, ribbed panels, sandwich panels, writing boards, metal carved boards, steel strips, and customized formed products. With customers in 120+ countries and regions, Wanzhi serves importers, distributors, contractors, manufacturers, and construction companies worldwide.
1250mm Prepainted Galvanized Steel Coil Prices
The price of 1250mm PPGI coil depends on factors such as steel grade, thickness, zinc coating weight, paint system, paint film thickness, color, surface finish, and order quantity. Prices may vary with raw material and market conditions. Contact Wanzhi Group with your required specifications and quantity for a customized quotation and cost-effective solution.
1250mm PPGI Coil Factory and Production in China
Wanzhi Group is a China-based color coated steel supplier certified to ISO 9001, ISO 14001, and ISO 45001. Its factory is located in Boxing County, Binzhou, Shandong Province. The factory operates three color coating lines with a controlled production process covering surface pretreatment, primer and topcoat application, baking, cooling, inspection, and recoiling. Wanzhi Group supplies color coated steel coils and sheets with coating structures such as 2/0, 2/1, 2/1M, 2/2, 3/2, and 3/3. Customized specifications and coating solutions are available to meet different project requirements.
Production Capacity and Delivery
Wanzhi Group operates production lines for galvanized, galvalume, prepainted, and zinc-aluminum-magnesium (ZAM) steel products, with a total annual production capacity of 600,000 tons. Standard products are available from stock, while customized orders can be completed within 5–45 days. Factory-direct supply ensures stable quality, competitive prices, and efficient delivery.
Quality Inspection
PPGI coils undergo strict quality inspections throughout production. Key checks include coating thickness, paint film thickness, color and surface quality, dimensional accuracy, mechanical properties, bending performance, and salt spray resistance. These inspections help ensure consistent quality and compliance with specified requirements.
Certificates
Wanzhi Group is ISO certified and follows international standards such as ASTM, GB, JIS, and EN. Each shipment is supplied with a Material Test Certificate (MTC) and relevant inspection reports. Third-party inspections by SGS and BV are also supported upon request.

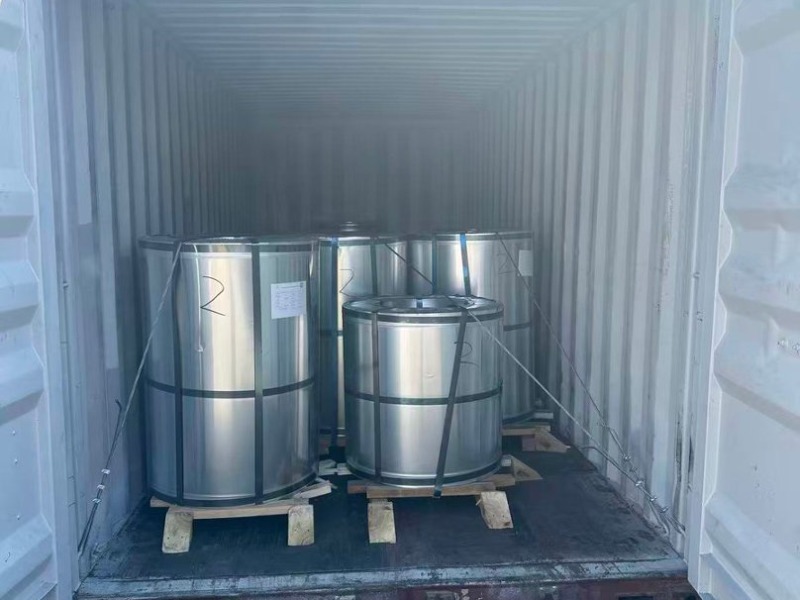

Packaging and Shipping
Wanzhi Group provides standard export packaging for coils and sheets, including plastic film, moisture-resistant paper, galvanized steel sheets, steel straps, and corner protectors. These materials help protect coils and sheets from moisture, scratches, impact, and other damage during handling and transportation. Customized packaging is also available based on customer requirements.
Global Cases and Projects
Wanzhi Group has supplied prepainted steel products to customers in 120+ countries and regions, including Russia, Azerbaijan, Libya, Zambia, Turkey, the UAE, Saudi Arabia, Chile, Peru, Georgia, Singapore, Mongolia, Indonesia, and Tajikistan. These products are used in customer projects involving roofing, wall cladding, home appliances, factory buildings, metal ceilings, and warehouses.
Wanzhi Steel – Agricultural Greenhouse Project in Turkmenistan
550 tons PPGI Steel Coil to Azerbaijan
100 tons of Galvanized Coils to Saudi Arabia
144 ton Steel Wire to Spanish
Project of PPGI Roofing en Libya
100 tons of GL and PPGL in Solomon Islands
Looking for PPGI coils, PPGI sheets, or other coated steel products? Leave us a message with your requirements. Our sales team will contact you with product details and a suitable solution.
