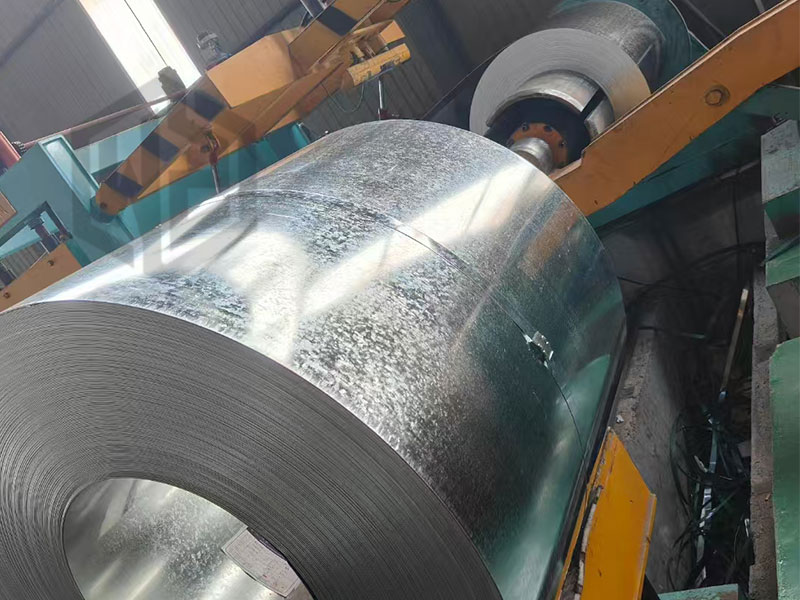

dx51d z150 Galvanized Steel Coil is a hot-dip galvanized steel material according to EN 10346 with regular /small /large spangle, and other zinc crystal patterns, and has become the material of choice for low to medium corrosive environments in construction, appliance, automotive, and agricultural industries. Wanzhi Group is a coated steel supplier from China, offering DX51D / DX52D+Z80-275 GI steel solutions for various applications.
What is dx51d z150 Galvanized Steel Coil?
DX51D Z150 galvanized steel coil, is a coated steel coil with a yield strength (Rp0.2) of 140-300 MPa, tensile strength (Rm) of 270-500 MPa, and elongation (A80mm) of ≥22%, with a certain degree of strength and good formability for most medium-demanding cold forming and structural applications.
DX51D
- D: Cold Forming.
- X: Mild Steel.
- 51: Material grade for stamping processes with medium deformation requirements.
- D: Hot Dip Galvanized.
Z150
- Z: Galvanized coating.
- 150: The total weight of the galvanized coating on both sides is 150 g/m² (approx. 75 g/m² on one side), corresponding to a layer thickness of approximately 10-12 μm.
dx51d z150 Production Process
The production process of dx51d z150 consists of a hot dip galvanizing process and a post-treatment. Hot dip galvanizing provides a uniform zinc coating on the steel surface to provide corrosion resistance, and the post-treatment extends the service life of the GI steel.
- Hot dip galvanizing
- Degreasing and Cleaning: Lye solution to remove rolled oils.
- Annealing: Heating to approx. 800°C in a reducing atmosphere (H₂+N₂) to remove cold rolling stresses.
- Galvanizing: immersion in molten zinc solution (450-460°C), air knife to control coating thickness.
- Cooling: water quenching or air cooling to form a uniform coating.
Post-treatment
- Surface passivation: chromate or environmentally friendly chrome-free passivation solution treatment.
- Oiling/laminating: Prevent scratches or oxidation during transportation and storage.
dx51d z150 Galvanized Steel Coil for Sale
Wanzhi Group produces and sells galvanized steel coils according to international standards such as EN 10346, ASTM A653, JIS G3302, etc. Among them, dx51d z150, dx51d z100, dx51d z275, SGCC, G30, and G90 GI steel have been exported to Turkey, Brazil, Egypt, South Africa, the Philippines, Malaysia, Indonesia, Saudi Arabia, UAE, and more than 100 countries.
Specification
| Standard | EN 10346 |
| Grade | DX51D |
| Zinc coating | z150 |
| Thickness | 0.12-6mm |
| Width | 600-1500mm |
| Coil weight | 3-8 ton |
| Surface | zero/big/regular/small spangle |
dx51d z150 GI Steel Coils Price
dx51d z150 Galvanized Steel Coil price is 600-700USD per ton, the price is mainly determined by the purchase quantity and surface treatment, leave a message to tell us the quantity you need, and get an accurate quotation. Wanzhi GI steel minimum order quantity is 10 tons, and we can provide samples for testing.
Cases
We supply premium galvanized steel coils for corrugated galvanized sheets, piping systems, drainage, steel structures, galvanized parts, and other processing plants. So far, our products have been sold all over the world!
EN 10346 dx51d z150 GI steel coil
EN 10346 is a European standard covering the technical requirements for hot-dip galvanized steel, including specifications, test methods, dimensions, tolerances, and surface quality of hot-dip galvanized steel sheets and strips. DX51D is one of the hot-dip galvanized steel grades in EN 10346, along with other grades such as dx52d, s350GD, and others.
Comparison with other zinc coatings
| Grade | Weight of double-sided coating (g/m²) | Corrosive environment | Formability (T-bend test) | Application area |
| dx51d+Z80 | 80 | C1 (low humidity indoors) | 0T (optimum) | dry indoor environment |
| dx51d+Z100 | 100 | C2 (general city/country) | 0T-1T | low corrosion outdoor/light construction |
| dx51d+Z120 | 120 | C3 (industrial area/medium salt spray) | 1T-2T | industrial area/medium corrosive environment |
| dx51d+Z140 | 140 | C4 (high salt spray/coastal) | 2T-3T | coastal/high humidity environment |
| dx51d+Z150 | 150 | C4-C5 (severe industrial/marine) | 3T | severe industrial/marine marginal zone |
| dx51d+Z275 | 275 | C5 (extreme marine/chemical zone) | ≥4T | extreme corrosive environment |
Comparison with other grades
| Parameter | DX51D Z150 | DX52D Z180 | S350GD+Z275 |
| Application | Medium deflection stamping | High deflection stamping | Structural parts (high tensile steel) |
| Coating weight | 150g/m² | 180g/m² | 275g/m² |
| Tensile strength | 270-500 MPa | 270-420 MPa | 350-550 MPa |
| Typical Scenarios | Appliance panels | Automotive deep-drawn parts | Industrial plant frames |
dx51d z150 Galvanized Steel Coil Properties and Applications
The DX51D series of galvanized steel coils offer full coverage from economical to ultra-resistant with different plating weights (Z30 to Z275). It combines the physical and mechanical properties of carbon steel and zinc for a wide range of applications in the construction and industrial sectors.
Properties
Highly weather-resistant, UV-resistant
Flat surface, suitable for painting/laminating
Good moldability, lightweight design
Resistant to corrosion in humid environments
Applications
Roofs, walls, ventilation ducts
Refrigerator housings, washing machine panels
Interior trim, chassis panels
Grain bins, greenhouse skeletons
dx51d z150 Buying Guide
When purchasing dx51d z150 Galvanized Steel Coil, firstly determine the steel specification and coating requirements of the application, and then test the samples for compliance with international standards such as ASTM, EN, JIS, etc., to determine whether they meet our project requirements.
Key Quality Indicators
- Coating uniformity: no leakage, uniform zinc bloom (regular zinc bloom, large zinc bloom, small zinc bloom/no zinc bloom available).
- Surface defects: no scratches, indentations, oxidized spots.
- Certification standards: EN 10346, ASTM A653, JIS G3302, etc.
Plating Upgrades and Alternatives
- Use zinc aluminized steel sheet, Z140 zinc aluminized ≈ Z275 galvanized for corrosion resistance.
- Galvanized + organic coating (PPGI), e.g. Z120 + PVDF coating, corrosion resistance upgraded to Z275 level.
Wanzhi dx51d z150 Galvanized Steel Coil Factory
China is a major steel exporter and there are many coated steel suppliers from China with proven galvanizing technology, flexible supply chain management, and customized solutions, Wanzhi Steel Materials is one of them. Wanzhi Steel is one of the Wanzhi Group’s coated steel manufacturing plants, located in Boxing County, Binzhou City, Shandong Province, China, offering a full range of DX51D+Z series galvanized steel production and customization services.
- Certificates: Wanzhi Factory is ISO9001, ISO14001 certified.
- Capacity: 600,000 tons per year with 7 production lines.
- Additional services: bending, stamping, punching, forming, profiling, painting, and other further processing.
- Supply Chain: In-stock, other steel products in cooperation with factories.
Related Products
dx51d z150 Galvanized Steel Coil is a high zinc coated galvanized steel, which can be used in C4-C5 environmental corrosion grade applications, Wanzhi Group has galvanized steel solutions for light duty/indoor scenarios, heavy industrial/marine scenarios, extremely cost-effective, and other non-demanding-galvanized-steel solutions, please feel free to contact us for more information. Information!
